Plan 17574LV Luxury 5-Bed Home Plan with Landscape Overlook

5,692 5 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury 5-Bed Home Plan with Landscape Overlook

Plan 17574LV

  • 5,692

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Designed for sloping lots, this magnificent home offers windows that overlook the rear grounds from three separate levels.
  • The foyer is enriched by decorative columns and an abundance of windows.
  • Upstairs, three suites and a loft feature opportunities to survey the surrounding landscape.
  • The finished walkout basement has a two-sided fireplace separating the gathering room from the game room and bar.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

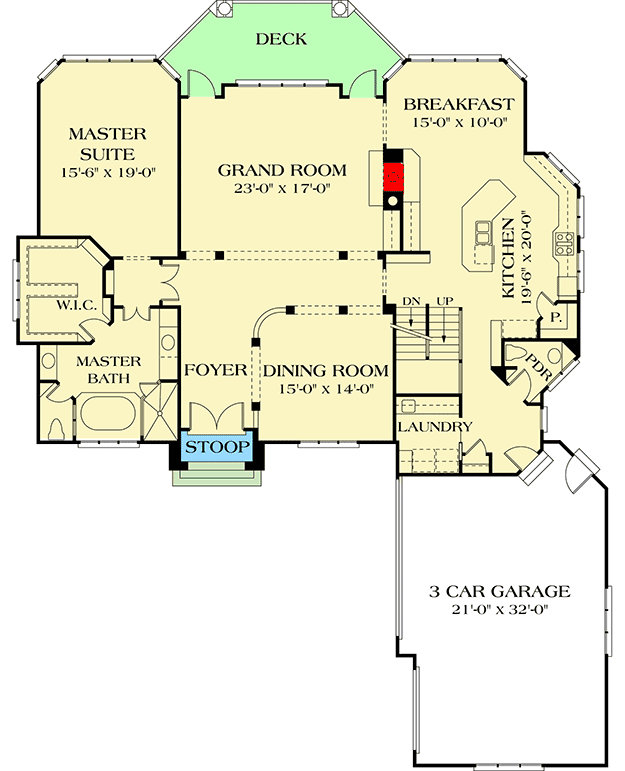

Luxury 5-Bed Home Plan with Landscape Overlook - 17574LV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

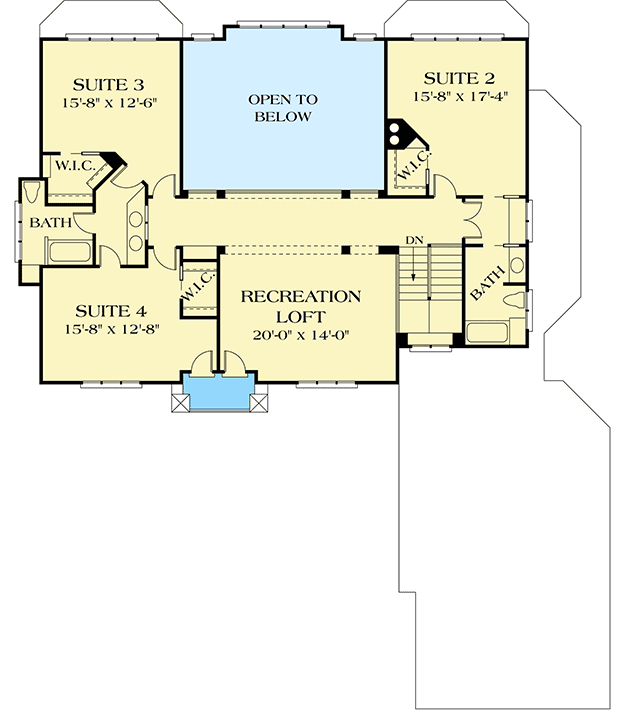

Luxury 5-Bed Home Plan with Landscape Overlook - 17574LV floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

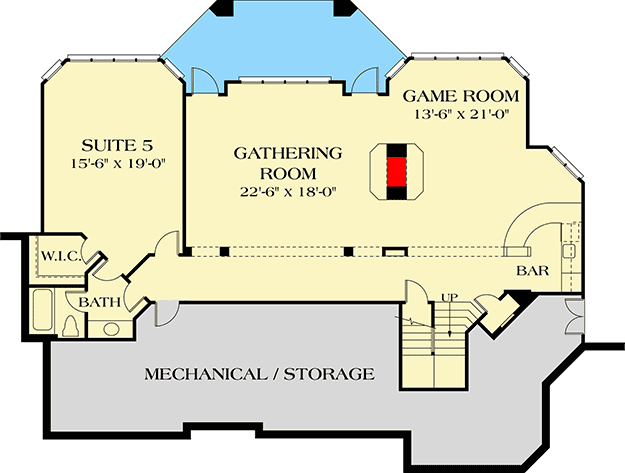

Luxury 5-Bed Home Plan with Landscape Overlook - 17574LV floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,692 sq. ft.
  • Lower Level: 1,568 sq. ft.
  • 1st Floor: 2,450 sq. ft.
  • 2nd Floor: 1,674 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 10"
  • Depth: 85' 2"

Garage

  • Type: Attached
  • Area: 778 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Luxury 5-Bed Home Plan with Landscape Overlook

  • 5,692

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $2,250
  • PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • Designed for sloping lots, this magnificent home offers windows that overlook the rear grounds from three separate levels.
  • The foyer is enriched by decorative columns and an abundance of windows.
  • Upstairs, three suites and a loft feature opportunities to survey the surrounding landscape.
  • The finished walkout basement has a two-sided fireplace separating the gathering room from the game room and bar.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,692 sq. ft.
  • Lower Level: 1,568 sq. ft.
  • 1st Floor: 2,450 sq. ft.
  • 2nd Floor: 1,674 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 10"
  • Depth: 85' 2"

Garage

  • Type: Attached
  • Area: 778 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
