Plan 59544ND
Luxury and Elegance
Heated S.F.
3,283
Beds
5
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • Pure luxury and elegance describe this exceptional home plan. The formal dining room and kitchen are separated by a butler's pantry adding a buffer for a busy kitchen during meal preparation.
  • This wonderful kitchen has bar counter seating and a large walk-in pantry.
  • On the opposite side of this remarkable home plan is the master suite complete with an adjoining study or nursery if desired. The private master bathroom is full of amenities including his and her walk-in closets.
  • The upstairs has three additional bedrooms a shared bath and a library wall near the computer room.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury and Elegance

  • 3,283

    Heated s.f.

  • 5

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

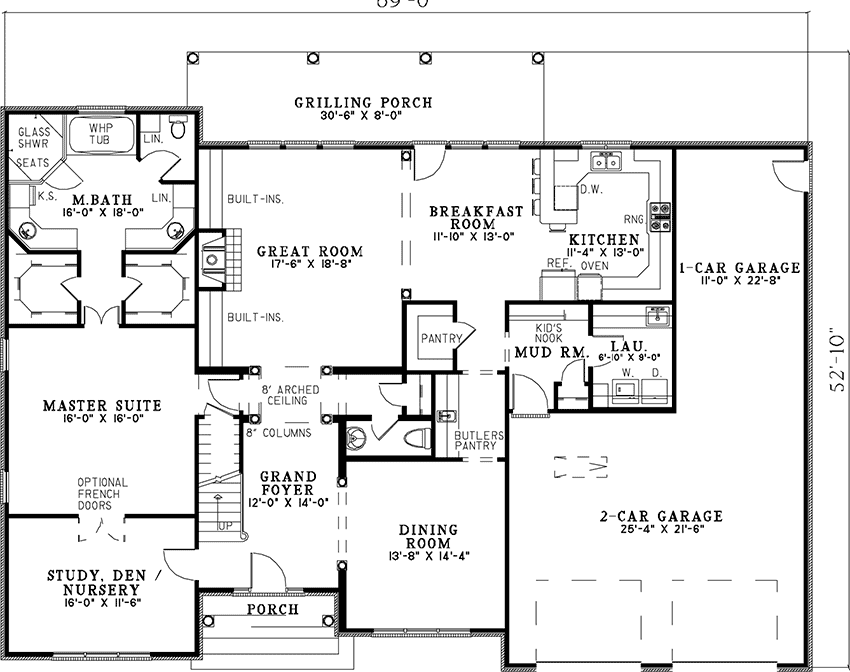

  • Main Level

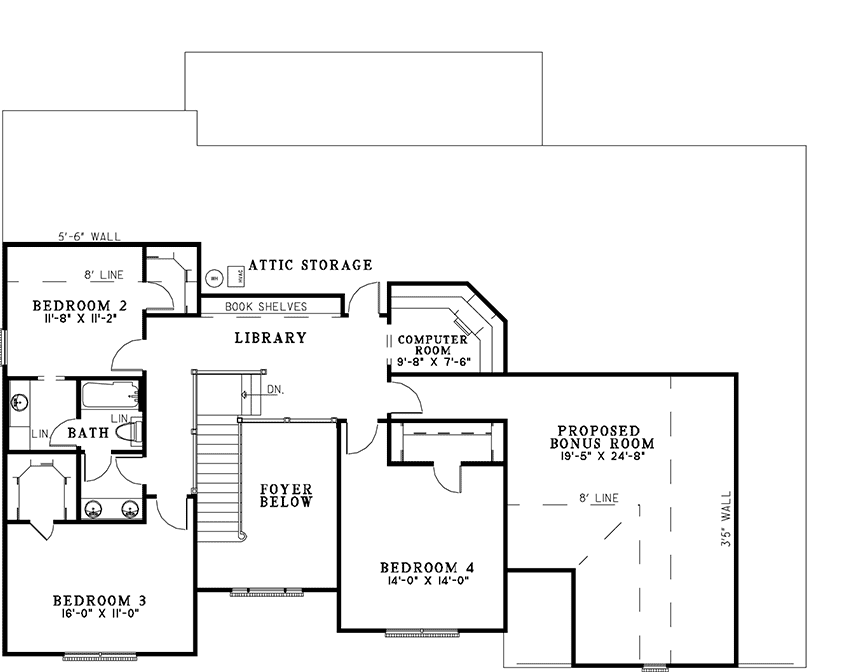

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,283 sq. ft.
  • 1st Floor: 2,184 sq. ft.
  • 2nd Floor: 1,099 sq. ft.

Dimensions

  • Width: 69' 0"
  • Depth: 52' 10"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 822 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
