Plan 290111IY

Luxury Chateau Plan with Optional Lower Level

Heated S.F.
7,072
Beds
4 - 6
Baths
4.5 - 6.5
Stories
2
Cars
3

Floor Plan

Plan 290111IY

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 290111IY

M-F 9am-5pm EST |

1-203-761-8500

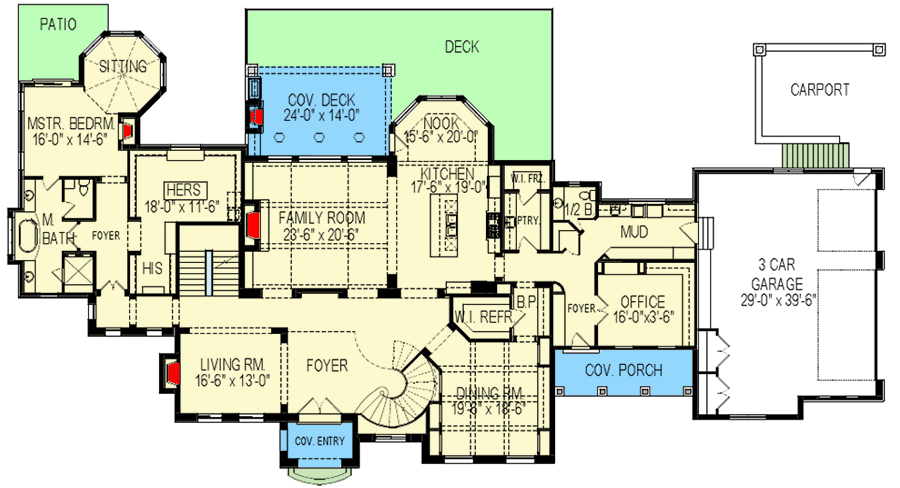

Main Level

Plan 290111IY: Luxury Chateau Plan with Optional Lower Level - Floor Plan - Main Level - European, Mediterranean

2nd Floor

Plan 290111IY: Luxury Chateau Plan with Optional Lower Level - Floor Plan - 2nd Floor - European, Mediterranean

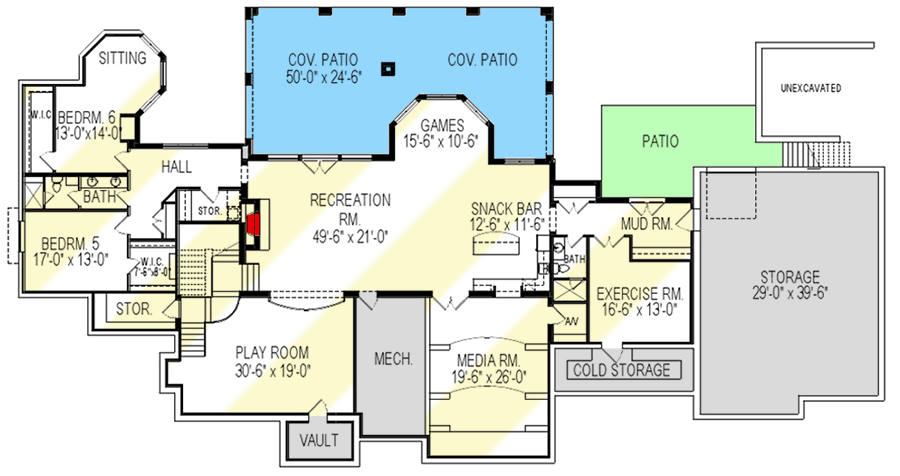

Optional Lower Level

Plan 290111IY: Luxury Chateau Plan with Optional Lower Level - Floor Plan - Optional Lower Level - European, Mediterranean

Plan Details

  • Live in luxury with this stunning chateau-style home plan, which features over 7,000 square feet of living space, including elegant coffered ceilings, a formal dining room, home office, hobby studio, and optional 4,447 sq ft lower level.
  • A circular stairway highlights the foyer upon entering, and a formal living room is located to the left. A fireplace adds warmth to the family room, which opens to the kitchen and breakfast nook.
  • The covered deck is ideal for outdoor entertaining, and extends onto a large deck.
  • Enjoy the convenience of a main-floor master suite, complete with an octagonal sitting nook, private patio, 5-fixture ensuite, and massive wardrobe.
  • Upstairs, three bedroom suites are joined by a hobby studio that provides access to a storage room above the garage.
  • Need additional living space? Finish the lower level and enjoy a recreation room with a snack bar that opens to a covered patio, play area, media room, exercise room, and two bedrooms.

What's Included

  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

7,072 sq. ft.

1st Floor

4,588 sq. ft.

2nd Floor

2,484 sq. ft.

Optional Lower Level

4,447 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4, 5, or 6

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

142' 6"

Depth

74' 6"

Garage

Type

Attached

Count

3 Cars

Entry Location

Side

Architectural Style

European

Mediterranean

Special Features

Breakfast Nook

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Luxury

Sloping Lot

Square Footage Breakdown

Total Heated Area

7,072 sq. ft.

1st Floor

4,588 sq. ft.

2nd Floor

2,484 sq. ft.

Optional Lower Level

4,447 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

4, 5, or 6

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

142' 6"

Depth

74' 6"

Garage

Type

Attached

Count

3 Cars

Entry Location

Side

Architectural Style

European

Mediterranean

Special Features

Breakfast Nook

Formal Dining

Home Office

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Mudroom

Multiple Stairs

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Luxury

Sloping Lot
