Plan 66016WE

Luxury Coastal Contemporary House Plan with Elevator and Outdoor Kitchen

Name: Plan 66016WE: Luxury Coastal Contemporary House Plan with Elevator and Outdoor Kitchen
Brand: Architectural Designs
SKU: 66016WE
Price: 2384.25 USD
Availability: InStock

Heated S.F.

8,204

Beds

Baths

4.5+

Stories

Cars

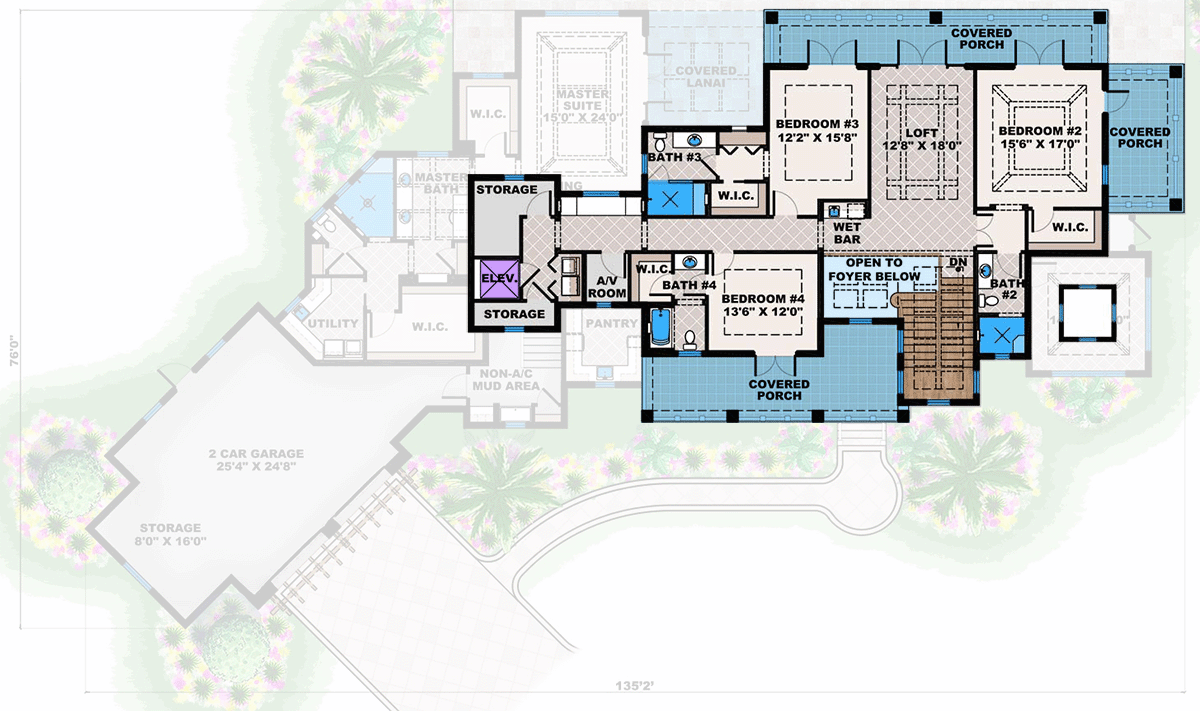

Floor Plan

Main Level

2nd Floor

Plan Details

This expansive 8,204 sq. ft. Coastal Contemporary house plan offers 4 bedrooms, 4 full bathrooms, 2 half bathrooms, and an attached 944 sq. ft. two-car garage with side entry.
Step through the grand entry into a soaring foyer that immediately opens to the formal dining room and a spacious great room, creating an inviting open-concept flow. A dedicated study, perfect for a home office, is conveniently located near the foyer.
The heart of the home features a gourmet kitchen, complete with a generous island and walk-in pantry, seamlessly connecting to the dining room and great room. An elegant wet bar serves both the kitchen and great room, enhancing the flow for entertaining, while the great room opens to a vast covered lanai with an outdoor kitchen.
The luxurious first-floor master suite is a private sanctuary, boasting a spacious bedroom with a dedicated sitting area, two walk-in closets, and a spa-like master bath. Upstairs, three additional bedrooms, each with walk-in closets and private or shared baths, are thoughtfully separated from the master suite, offering privacy for family or guests.
Beyond the main living areas, this home includes a practical mudroom, a dedicated utility room, and an A/V room upstairs. A convenient elevator provides effortless access between floors, connecting all levels of this sophisticated residence.
Experience unparalleled outdoor living with a sprawling 1,123 sq. ft. covered patio, a 744 sq. ft. deck and porch area, and a welcoming 265 sq. ft. front porch. The expansive covered lanai includes a fully equipped outdoor kitchen, perfect for alfresco dining and entertaining by an optional outdoor fireplace, while upstairs covered porches offer serene retreats.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
