Plan 72348DA

Luxury Craftsman Home Plan with RV Garage, Wine Room and Bunk Room

Heated S.F.

4,810

Beds

4

Baths

4.5

Stories

2

Cars

4

What's Included

Floor Plan

Main Level

Reverse Floor Plan

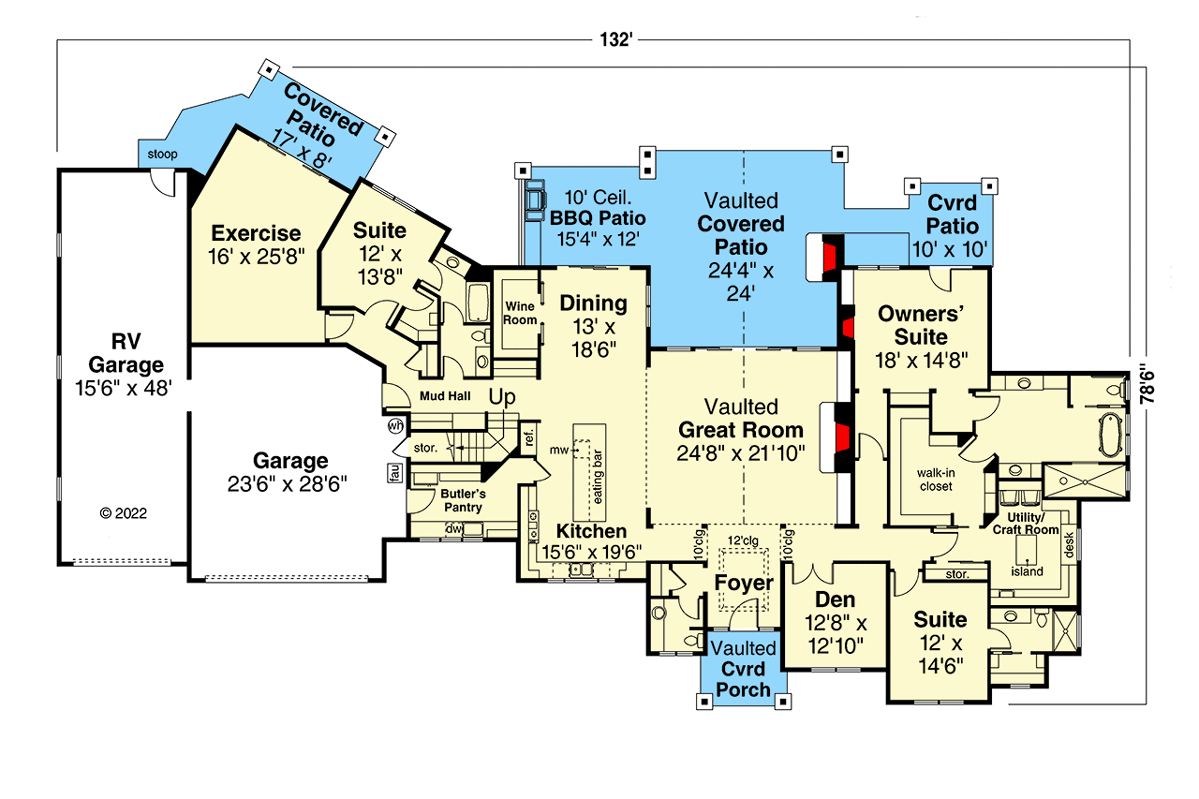

Luxury Craftsman Home Plan with RV Garage, Wine Room and Bunk Room - 72348DA floor plan - Main Level

2nd Floor

Reverse Floor Plan

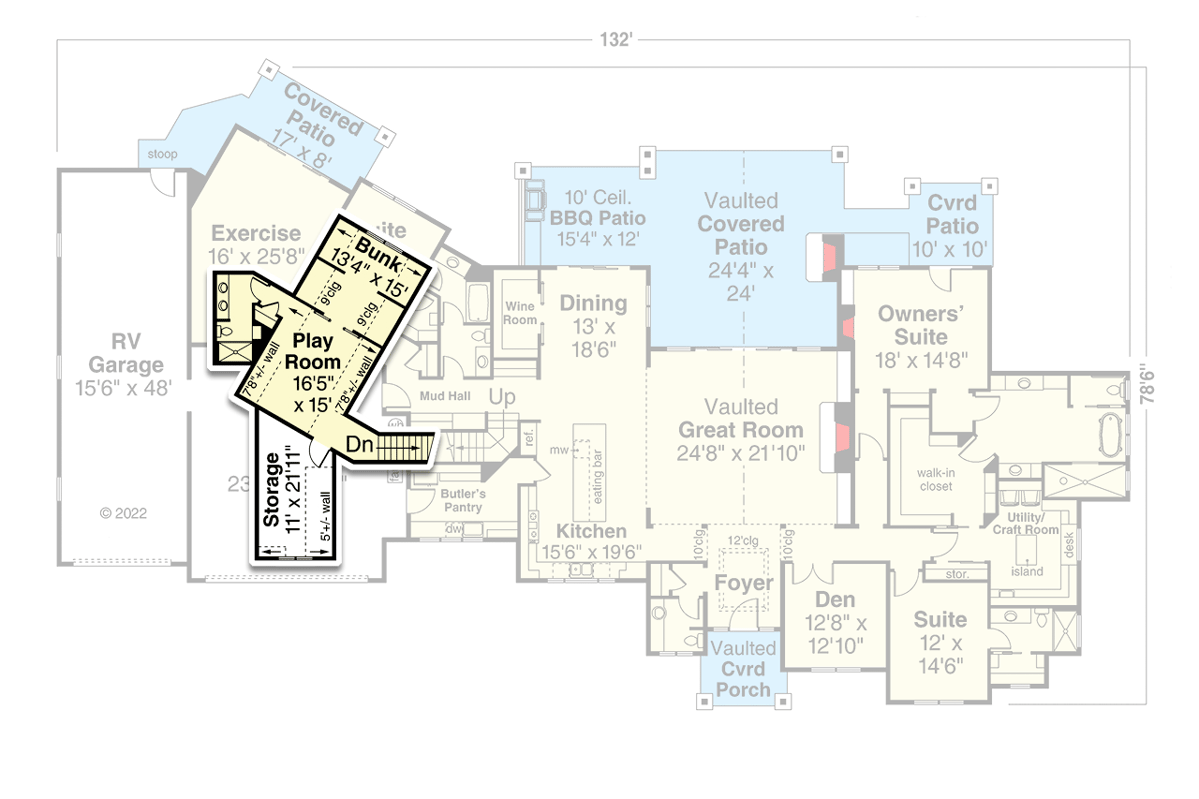

Luxury Craftsman Home Plan with RV Garage, Wine Room and Bunk Room - 72348DA floor plan - 2nd Floor

Plan Details

Spacious and accommodating, this impressive 4,810 square foot Craftsman home plan is designed for a wide lot with an overall 132' width. Its broad spectrum of gathering spaces include a playroom, bunk room, wine room, vaulted great room, den and exercise room.
Apart from the luxury options and recreational space, the home boasts 2 suites on the main floor with their own walk-in closets and private bathrooms. The third bedroom, the owner's suite, sits on the right side of the home with a massive walk-in closet and spacious bathroom.
Separating the owner's suite from the bedroom suite is the dual-purpose craft and utility room with its own island.
Walking out the back entrance of the home you find yourself underneath the expansive vaulted patio that features an outdoor BBQ area and fireplace.
The garage has room for 2 cars and is connected to the RV garage with impressive 13’ ceilings.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

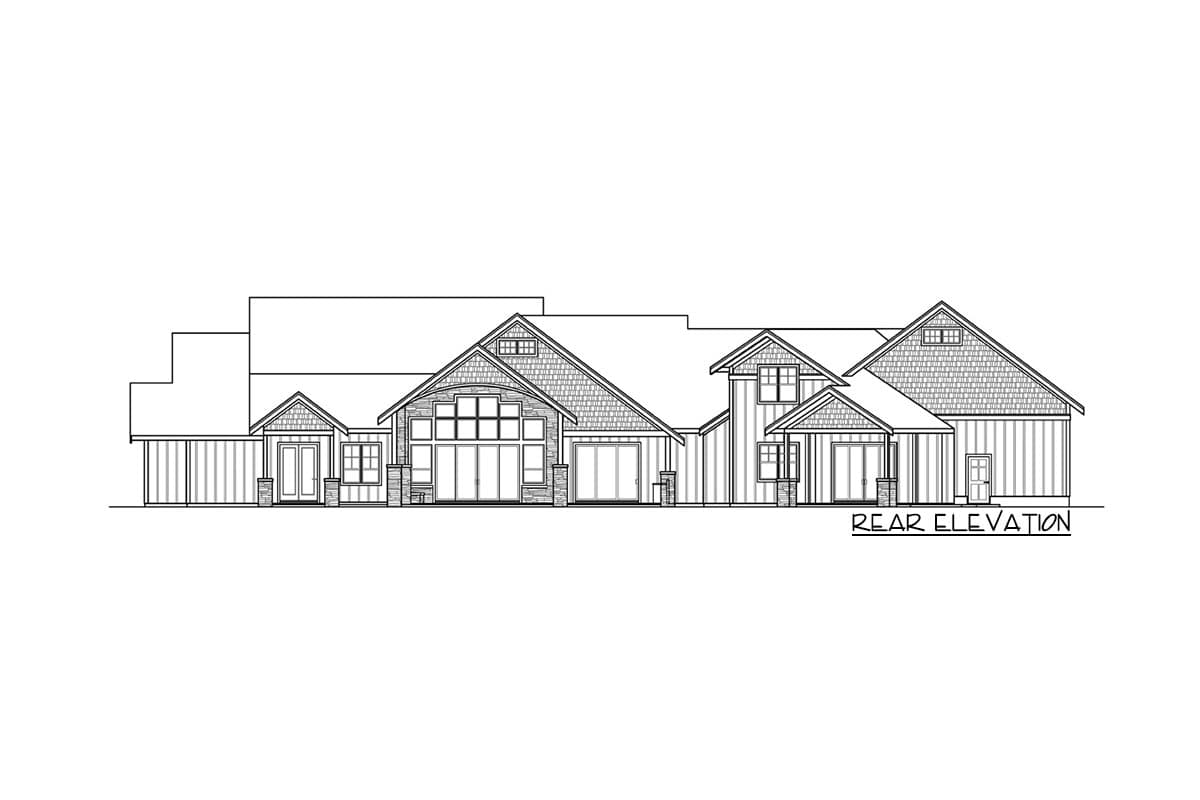

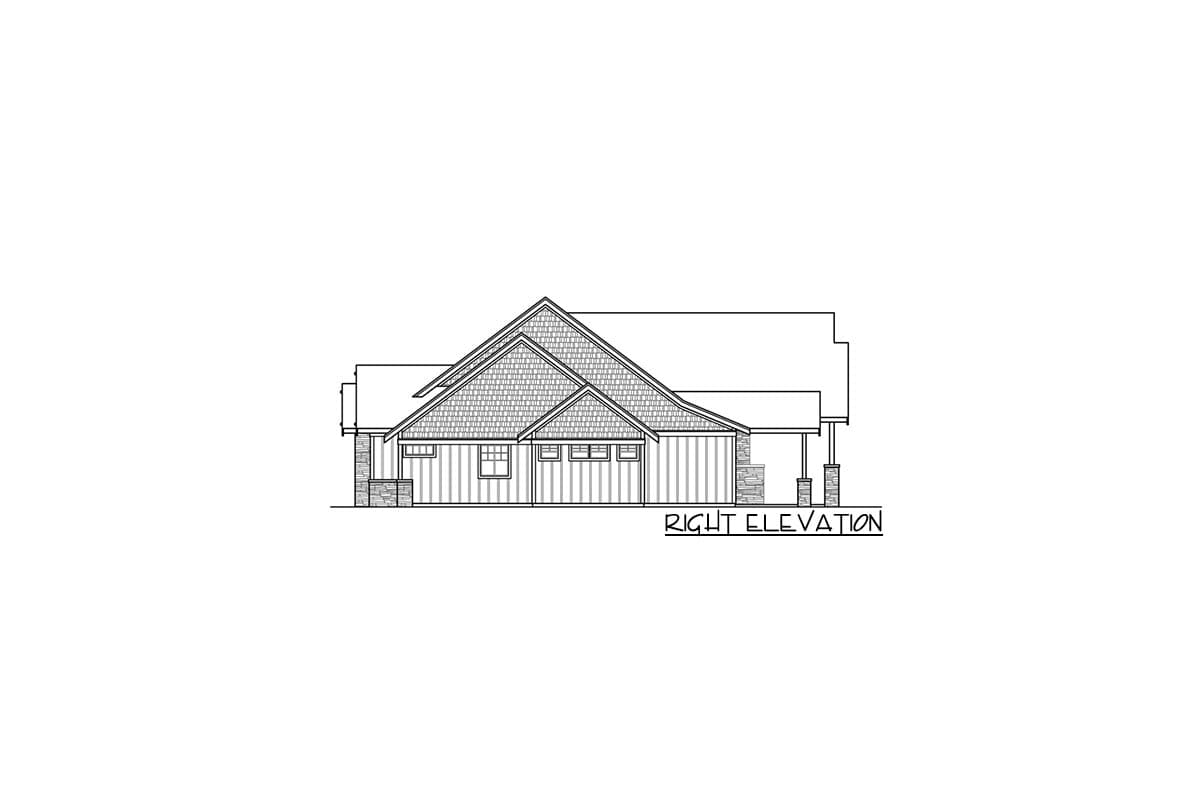

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

4,810 sq. ft.

1st Floor:

3,737 sq. ft.

2nd Floor:

659 sq. ft.

Storage:

231 sq. ft.

Exercise Room:

414 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Half bathrooms:

1

Foundation Type

Standard Foundations:

Crawl

Optional Foundations:

Slab, Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

132' 0"

Depth:

78' 6"

Max Ridge Height:

29' 11"

Garage

Type:

Attached

Area:

1523 sq. ft.

Count:

4 Cars

Entry Location:

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch:

9 on 12

Framing Type:

Stick And Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Two Story Great Room
