Plan 24370TW Luxury Craftsman House Plan Idea for a Rear-Sloping Lot

2,867 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury Craftsman House Plan Idea for a Rear-Sloping Lot

Plan 24370TW

  • 2,867

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Step through the double front doors of this magnificent Craftsman house plan and be greeted with views of the spacious vaulted great room.
  • The vaulted ceiling extends out to the rear covered porch too.
  • With its big, open floor plan, you'll have plenty of room for entertaining and family living.
  • The master suite gets a door to the rear porch, a private bathroom and a large walk-in closet.
  • Upstairs, three more bedrooms share a cozy loft space.
  • The three car garage is courtyard style with room for a golf cart.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

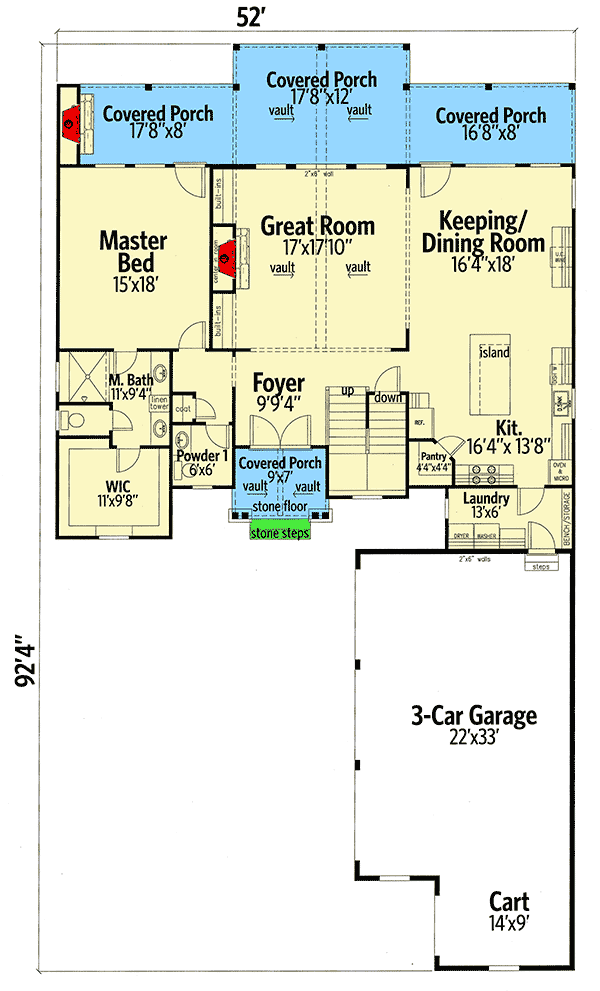

Luxury Craftsman House Plan Idea for a Rear-Sloping Lot - 24370TW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

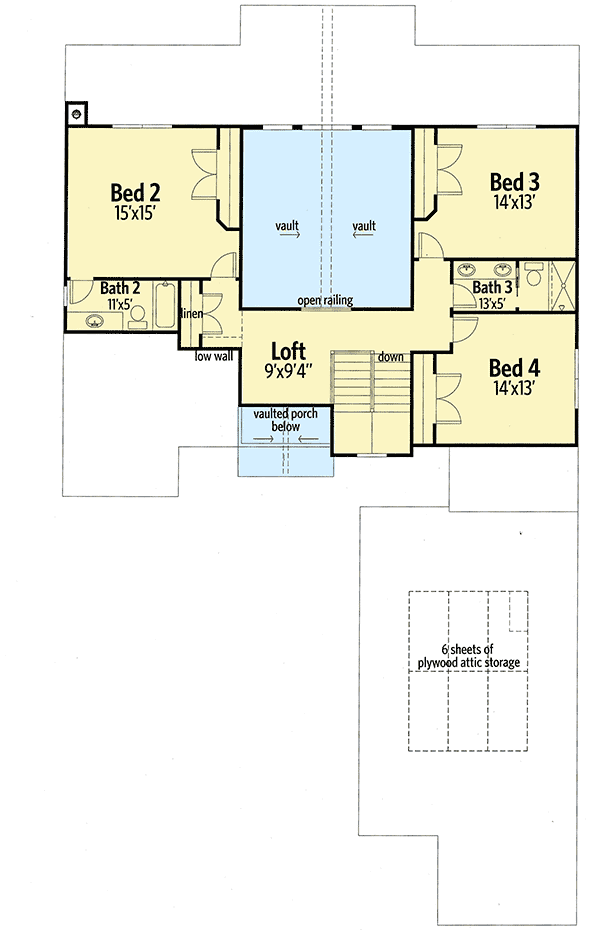

Luxury Craftsman House Plan Idea for a Rear-Sloping Lot - 24370TW floor plan - 2nd Floor

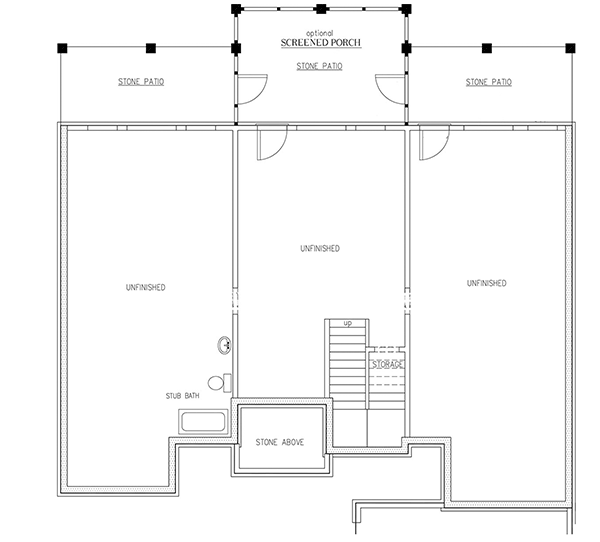

Basement Layout

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury Craftsman House Plan Idea for a Rear-Sloping Lot - 24370TW floor plan - Basement Layout

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,867 sq. ft.
  • 1st Floor: 1,797 sq. ft.
  • 2nd Floor: 1,070 sq. ft.
  • Porch, Rear: 487 sq. ft.
  • Porch, Front: 65 sq. ft.
  • Basement Unfinished: 1,797 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 52' 0"
  • Depth: 92' 4"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 845 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Craftsman House Plan Idea for a Rear-Sloping Lot

  • 2,867

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • CAD + PDF - Single-Build $1,495
  • View all purchase option online

About This Plan

  • Step through the double front doors of this magnificent Craftsman house plan and be greeted with views of the spacious vaulted great room.
  • The vaulted ceiling extends out to the rear covered porch too.
  • With its big, open floor plan, you'll have plenty of room for entertaining and family living.
  • The master suite gets a door to the rear porch, a private bathroom and a large walk-in closet.
  • Upstairs, three more bedrooms share a cozy loft space.
  • The three car garage is courtyard style with room for a golf cart.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,867 sq. ft.
  • 1st Floor: 1,797 sq. ft.
  • 2nd Floor: 1,070 sq. ft.
  • Porch, Rear: 487 sq. ft.
  • Porch, Front: 65 sq. ft.
  • Basement Unfinished: 1,797 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 52' 0"
  • Depth: 92' 4"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 845 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 24370TW
View this and more for this plan by visiting www.architechtecturaldesigns.com/24370TW
|
Need Help? 800-854-7852
|
Plan 24370TW
