Luxury European Home Plan with Second-level Sun Deck

Plan 36631TX

This plan plants 3 trees

8,368
Heated s.f.
5
Beds
6.5+
Baths
2
Stories
4
Cars

The ornate exterior of this luxury, European home plan features grand columns, arched windows, stone, and stucco. A portico on the right side of the home leads to a motor court and connects the four garage bays and an abundance of storage space.
The front entrance sets the stage for luxury with a double-sided staircase flanked by the formal dining room and a study. Large living spaces are met with quieter spaces to provide room to socialize and relax.
Tall coffered ceilings rest above the living room, which neighbors the square kitchen with a prep island in the center.
The master suite is located on the main level of this spacious home, and features a private patio, two fireplaces, and a deluxe master bath with dual closets.
Three staircases, including a spiral staircase near the master, and an elevator guide you upstairs to find four bedroom suites, a game room, and a sizable sun deck.

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

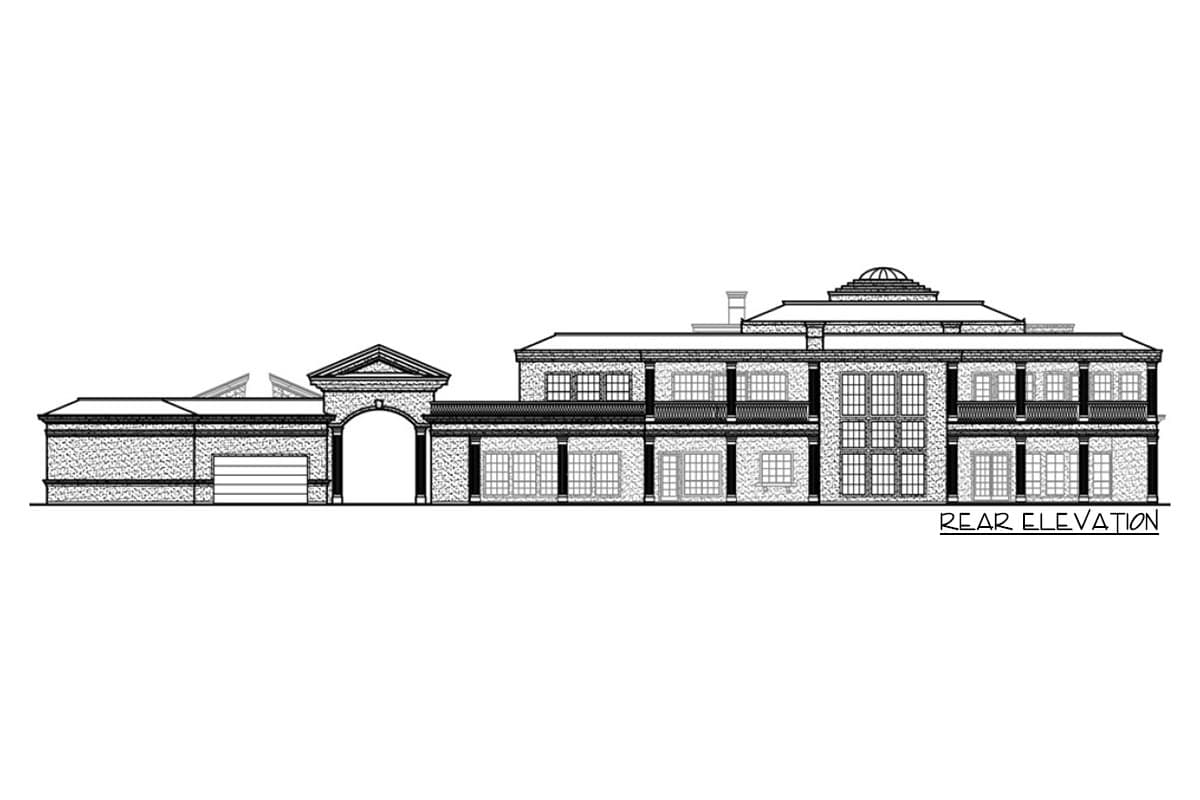

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

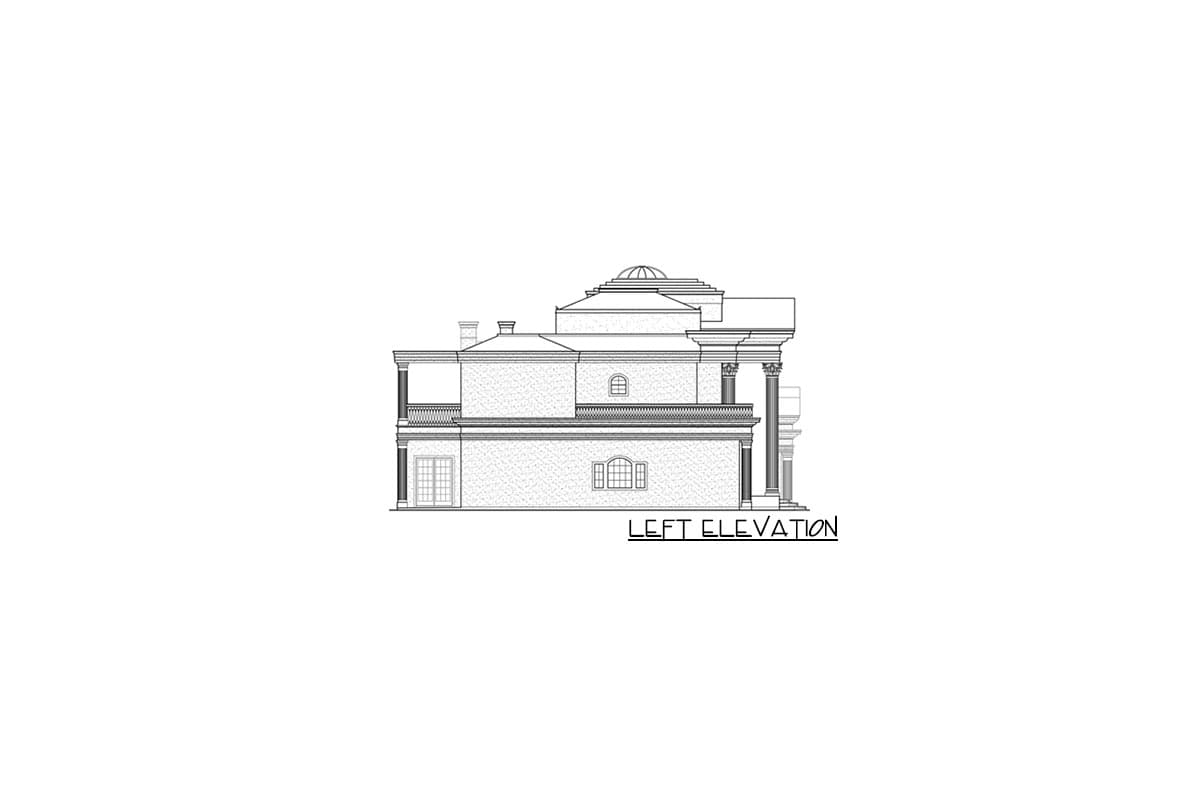

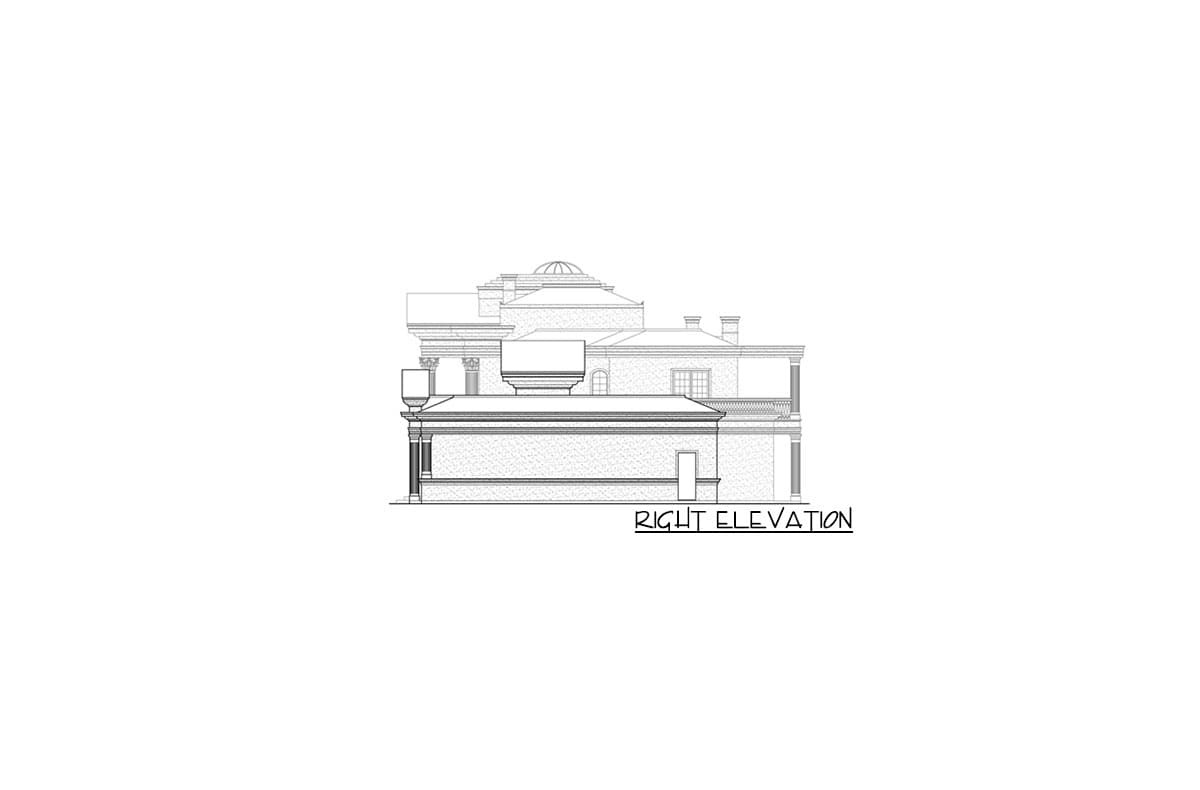

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

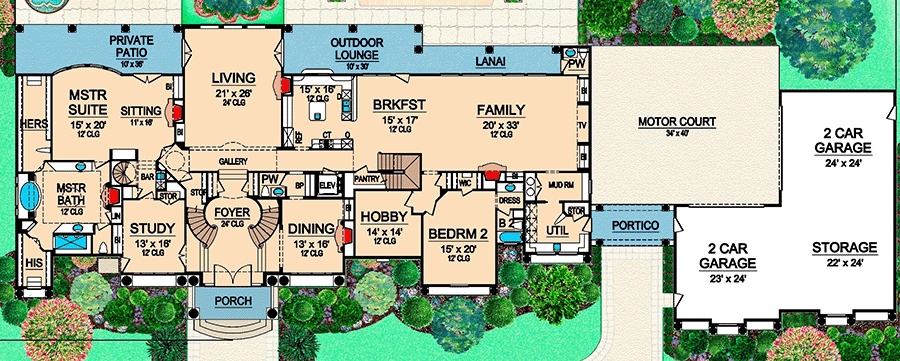

Luxury European Home Plan with Second-level Sun Deck - 36631TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

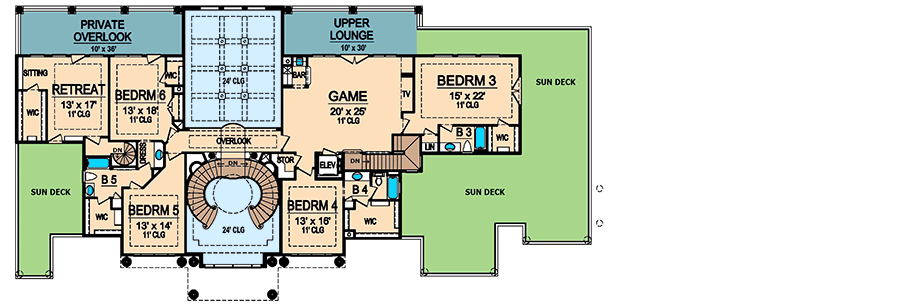

Luxury European Home Plan with Second-level Sun Deck - 36631TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 8,368 sq. ft.
1st Floor: 5,472 sq. ft.
2nd Floor: 2,896 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 6
Half bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 189' 0"
Depth: 67' 0"
Max ridge height: 42' 0"

Garage

Type: Detached
Area: 1767 sq. ft.
Count: 4 Cars
Entry Location: Rear, Side

Ceiling Heights

Floor / Height: First Floor / 12' 0" Second Floor / 11' 0"
