Plan 290135IY Luxury European Home Plan with Wine Cellar in Spacious Lower Level

6,292 3-4 3.5+ 2 3
Print
Compare
...

Luxury European Home Plan with Wine Cellar in Spacious Lower Level

Plan 290135IY

  • 6,292

    Heated s.f.

  • 3-4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 3

    Cars

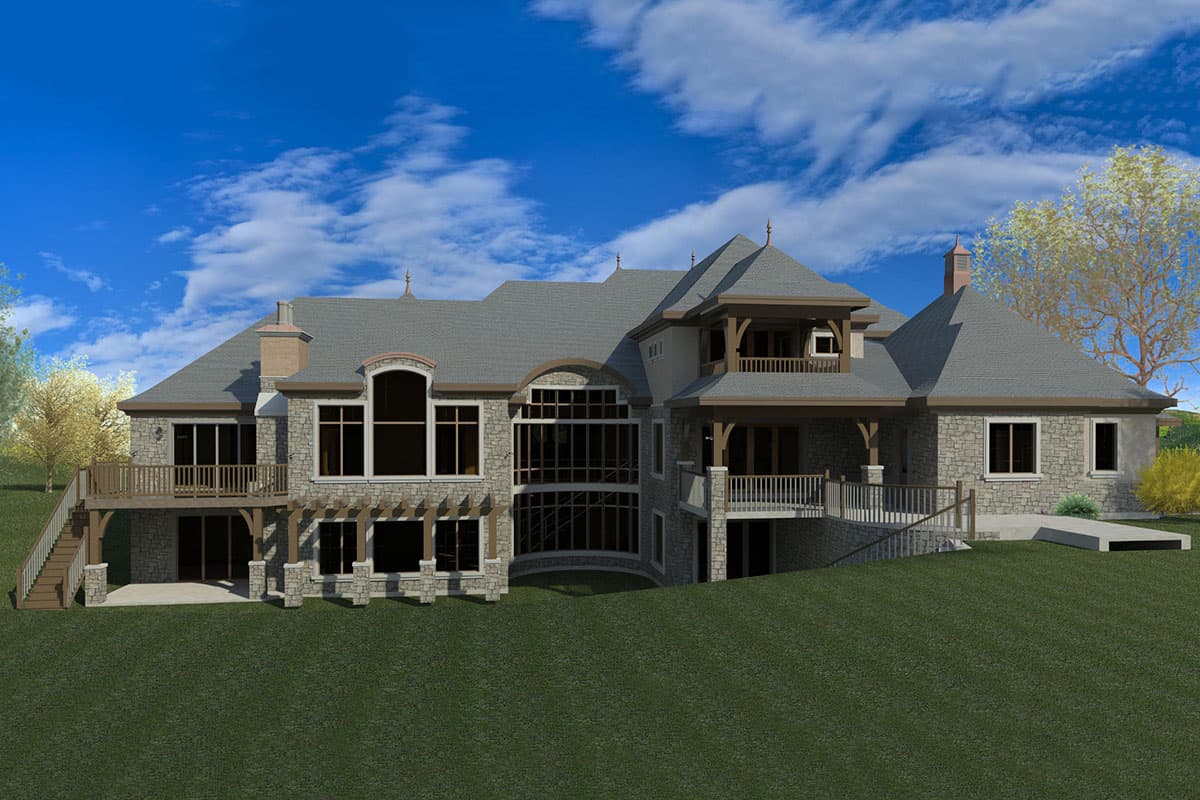

  • This luxury European home plan was designed with hospitality in mind, at just under 6,300 square feet; complete with a formal dining room and billiard room on the main level, and a downstairs game room, media room, and wine cellar for an additional 3,988 square feet of living space.
  • Two curved stairwells guide you to other levels of the home while serving as focal design features. The gourmet kitchen boasts a sizable rounded island, large range, and a walk-in pantry.
  • The master bedroom, located on the main level, includes its own foyer, as well as a 5-fixture bath and his and hers closets. Two secondary bedroom suites share the second level with a play room and study.
  • Oversized service areas, including a craft room, line the left side of the home, situated between the 3 garage bays.
  • Finish the lower level for additional living space and enjoy the entertainment rooms, along with a fourth bedroom, home office that opens to a patio, and exercise room.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

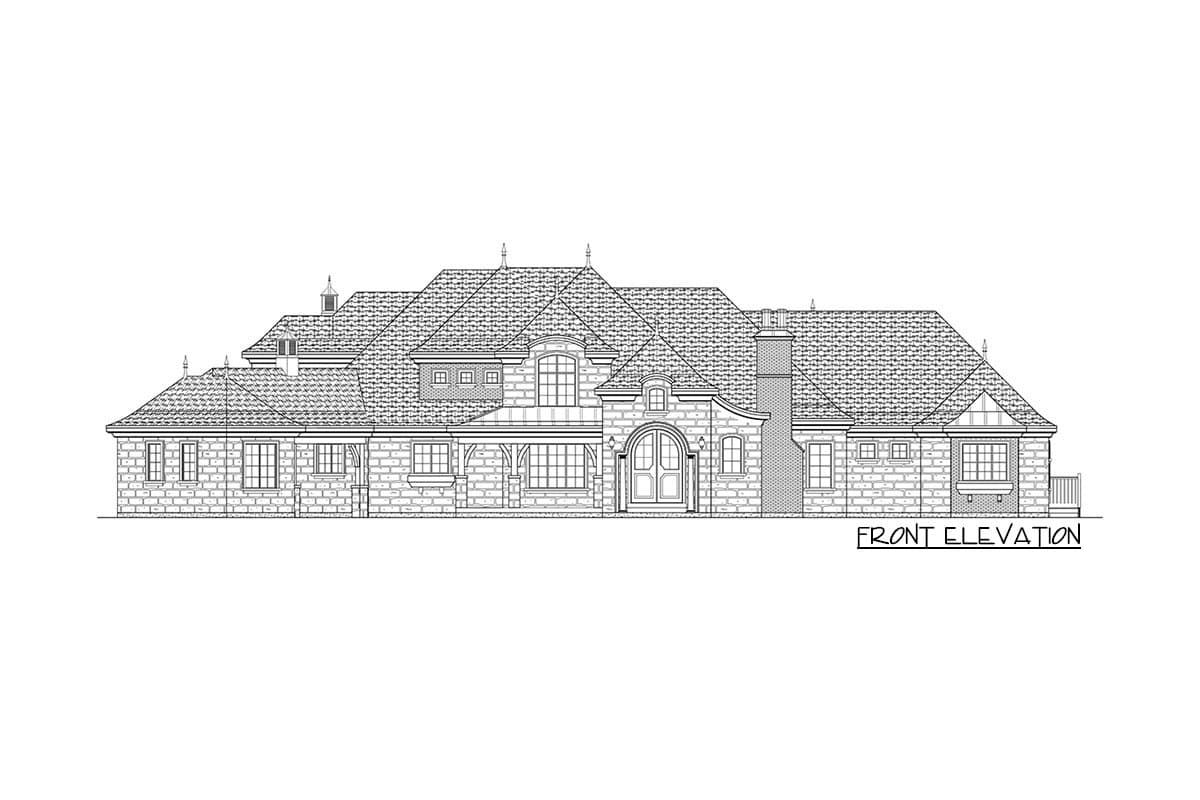

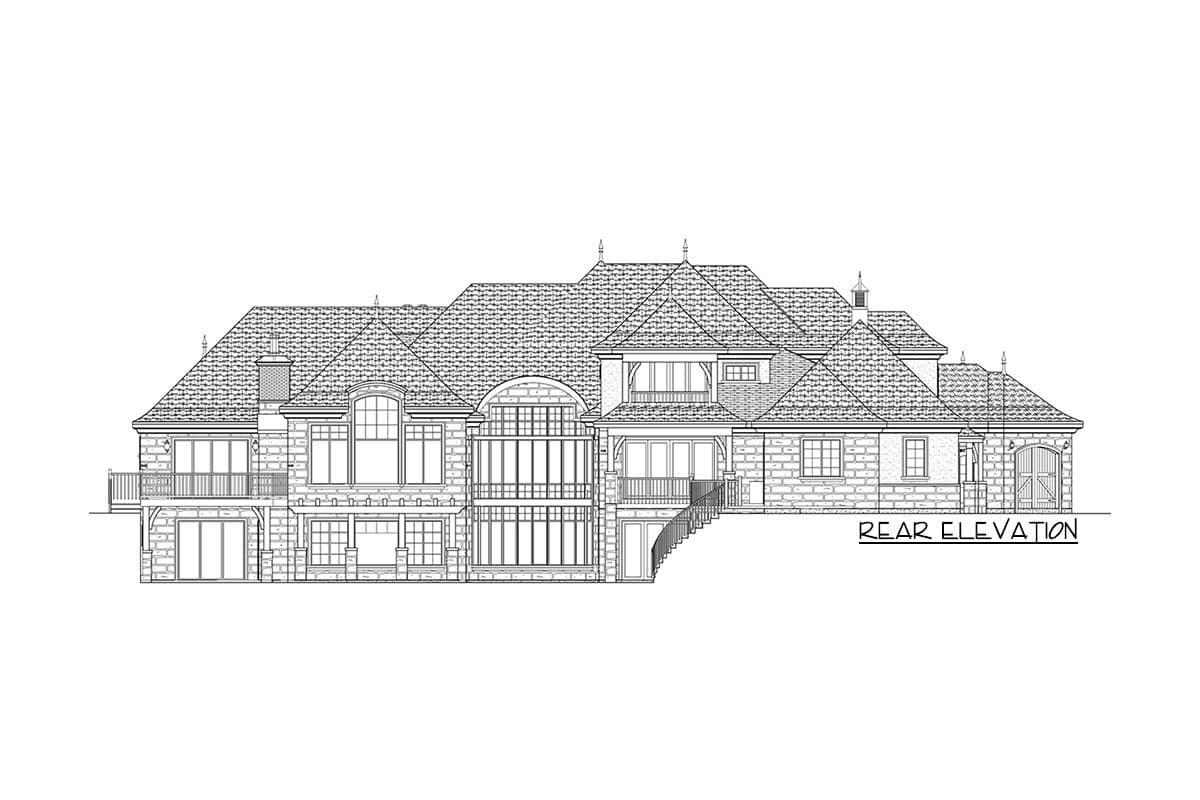

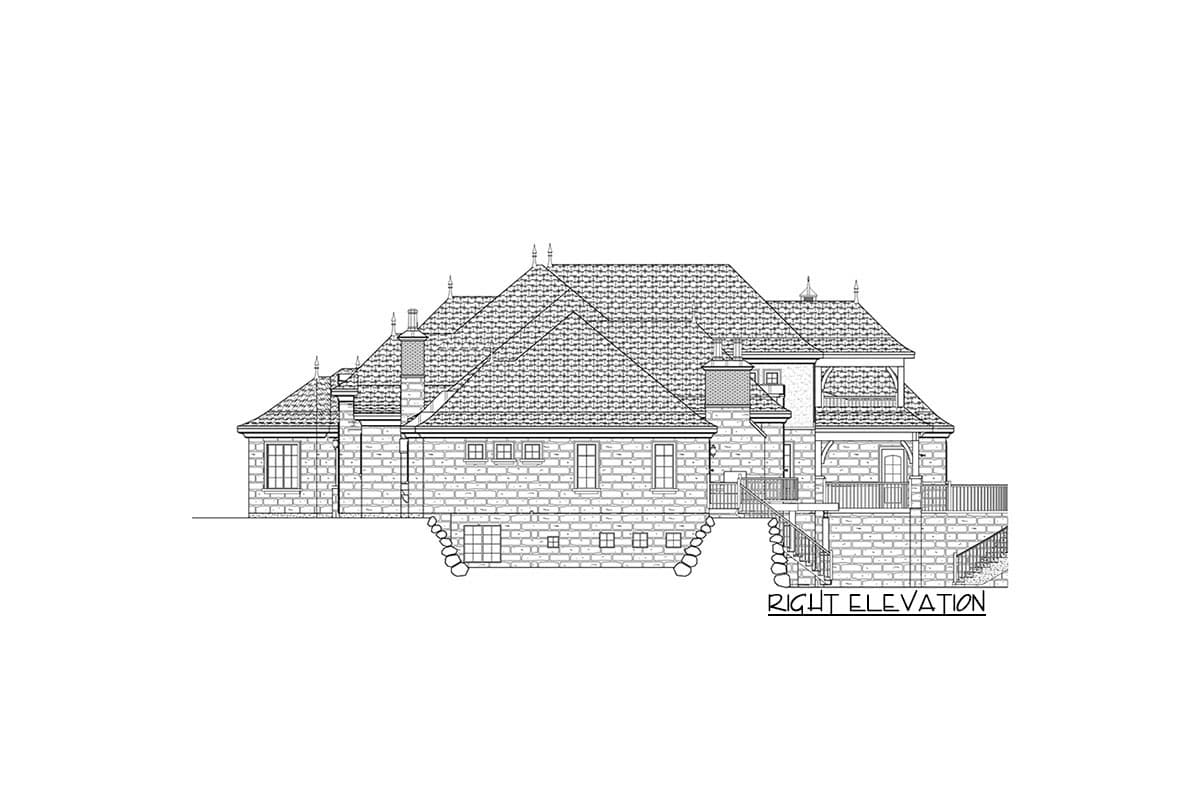

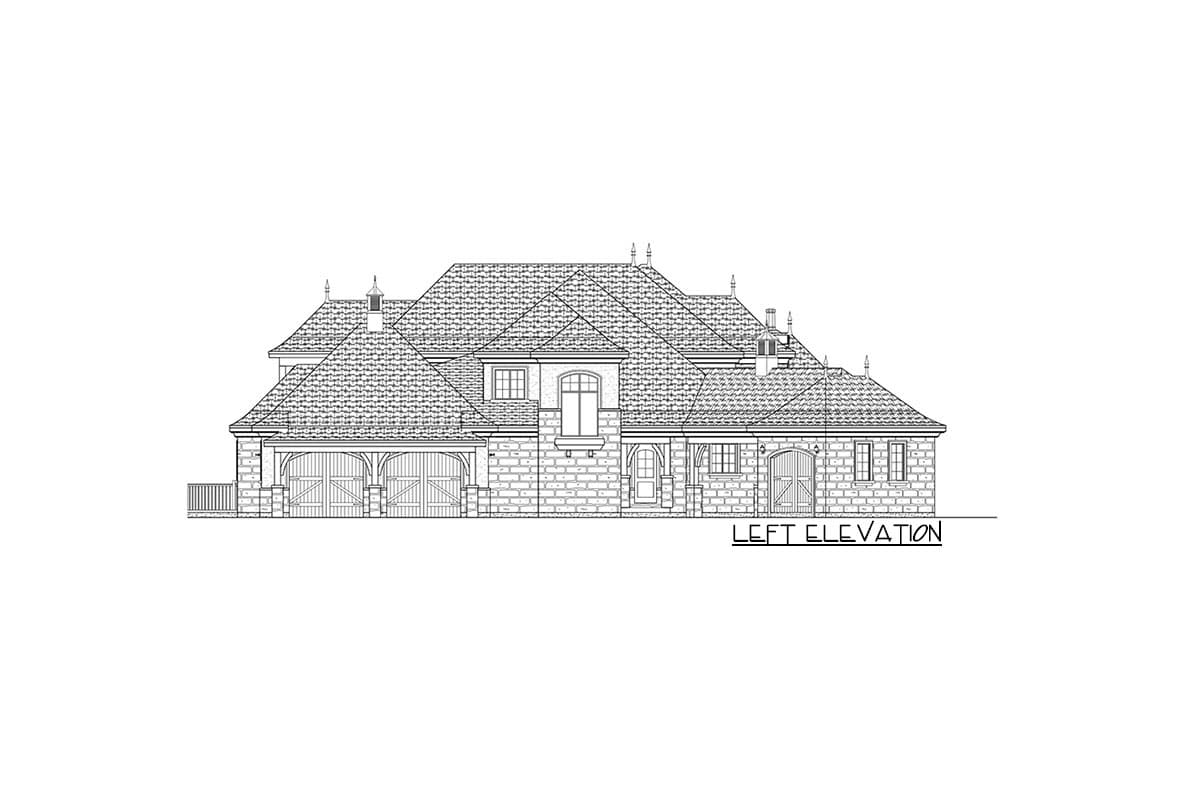

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

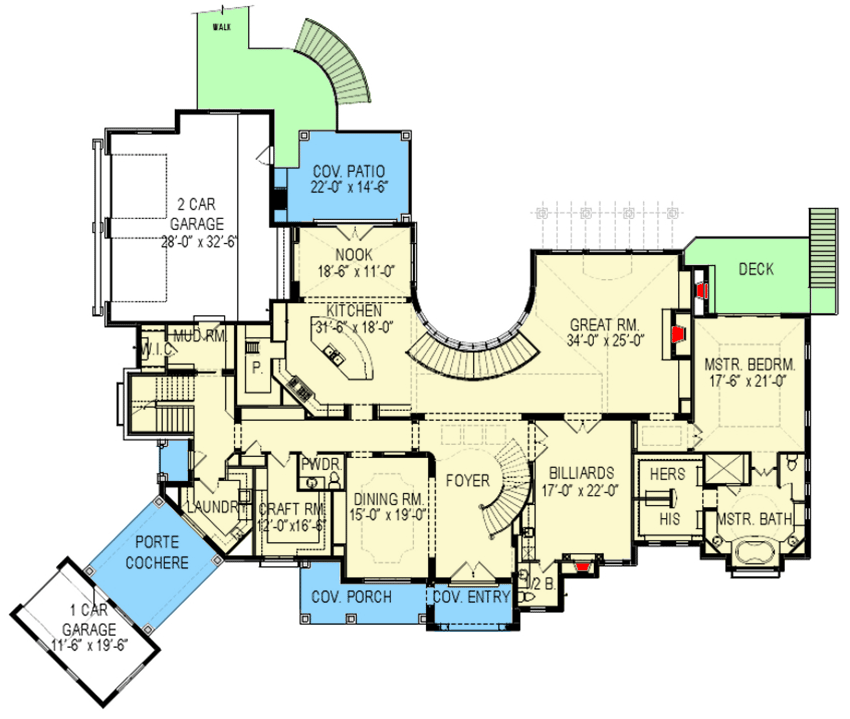

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury European Home Plan with Wine Cellar in Spacious Lower Level - 290135IY floor plan - Main Level

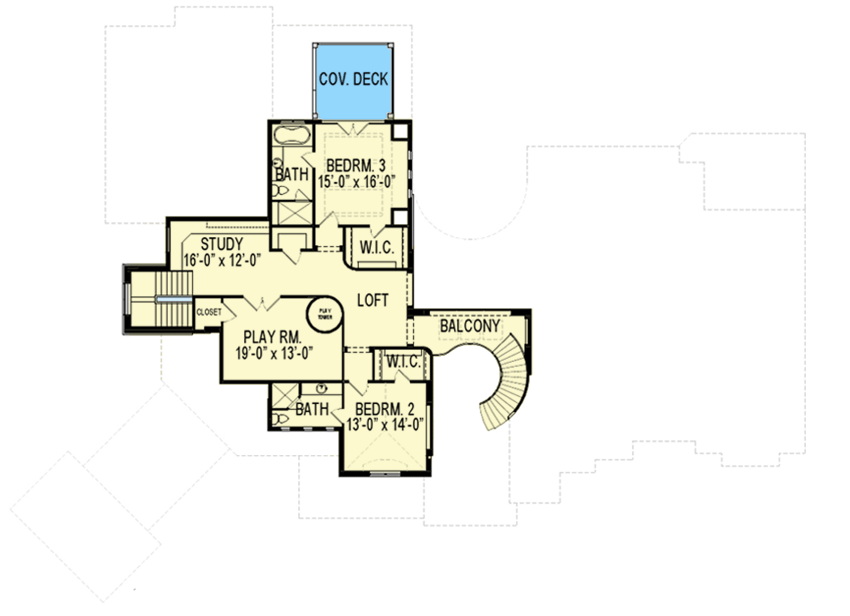

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury European Home Plan with Wine Cellar in Spacious Lower Level - 290135IY floor plan - 2nd Floor

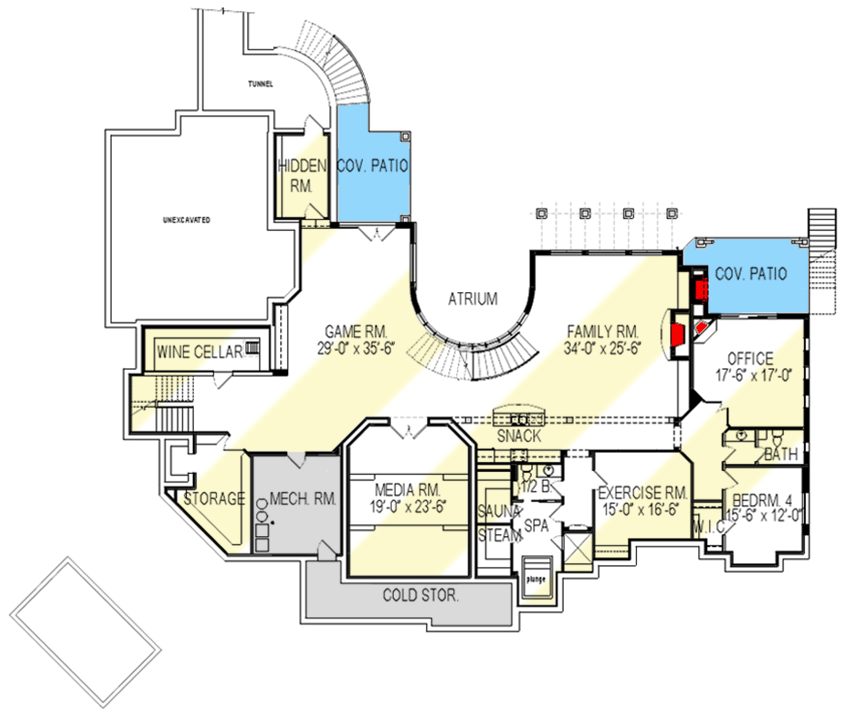

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury European Home Plan with Wine Cellar in Spacious Lower Level - 290135IY floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,292 sq. ft.
  • 1st Floor: 4,480 sq. ft.
  • 2nd Floor: 1,812 sq. ft.
  • Optional Lower Level: 3,988 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 126' 0"
  • Depth: 94' 3"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Rear, Side

Architectural Style

Special features

Plan Collections



Luxury European Home Plan with Wine Cellar in Spacious Lower Level

  • 6,292

    Heated s.f.

  • 3 - 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $6,292
  • CAD - Single-Build $9,438
  • View all purchase option online

About This Plan

  • This luxury European home plan was designed with hospitality in mind, at just under 6,300 square feet; complete with a formal dining room and billiard room on the main level, and a downstairs game room, media room, and wine cellar for an additional 3,988 square feet of living space.
  • Two curved stairwells guide you to other levels of the home while serving as focal design features. The gourmet kitchen boasts a sizable rounded island, large range, and a walk-in pantry.
  • The master bedroom, located on the main level, includes its own foyer, as well as a 5-fixture bath and his and hers closets. Two secondary bedroom suites share the second level with a play room and study.
  • Oversized service areas, including a craft room, line the left side of the home, situated between the 3 garage bays.
  • Finish the lower level for additional living space and enjoy the entertainment rooms, along with a fourth bedroom, home office that opens to a patio, and exercise room.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,292 sq. ft.
  • 1st Floor: 4,480 sq. ft.
  • 2nd Floor: 1,812 sq. ft.
  • Optional Lower Level: 3,988 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 126' 0"
  • Depth: 94' 3"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Rear, Side

Plan 290135IY
