Plan 36431TX
Luxury Home With Outdoor Lounge
Heated S.F.
3,767
Beds
3-4
Baths
3.5+ - 4.5+
Stories
2
Cars
3
What's Included
Plan Details
  • Enjoy luxury living inside and out with this beautiful house plan with outdoor lounge perfect for entertaining.
  • A 2-story entry welcomes guests and the foyer with dramatic stair makes a warm welcome.
  • The foyer is flanked by a formal dining room with double French doors leading to the butlery, kitchen and pantry, for ease in serving, and a quiet study with built-ins and storage.
  • The 2-story family room is centrally-located and features a fireplace and hearth, built-ins and a wall of windows looking out to the patio, and is open to the kitchen and breakfast room.
  • A family bedroom with a walk-in closet and full bath sits behind the kitchen and could be converted to a guest suite or in-law suite.
  • On the other side of the family room is the master suite boasting a luxurious master bath with his and hers vanities, separate garden tub and shower, and a large wardrobe. Upstairs, two family bedrooms with full baths and walk-in closets share space with a media and game room.
  • The 3-car garage with storage and utility/mud room complete this portion of this first floor.
  • Related Plan: Get an alternate exterior with house plan 36427TX.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

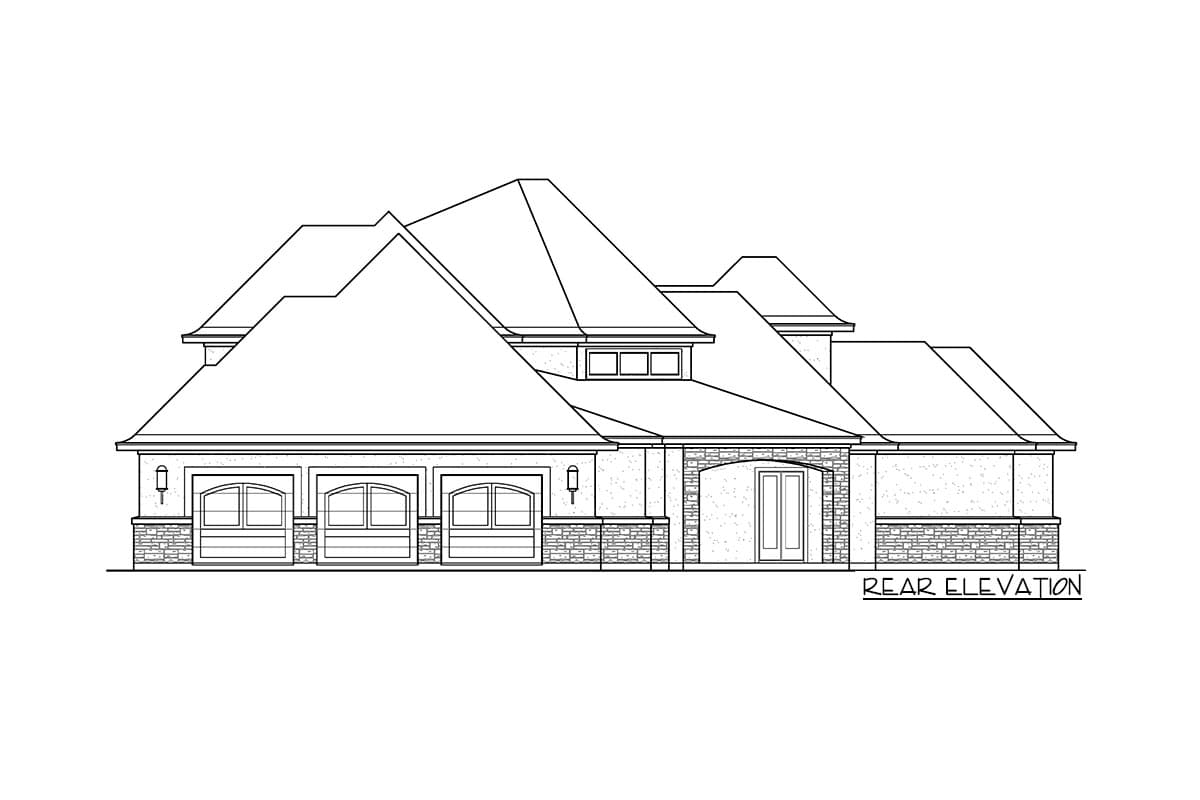

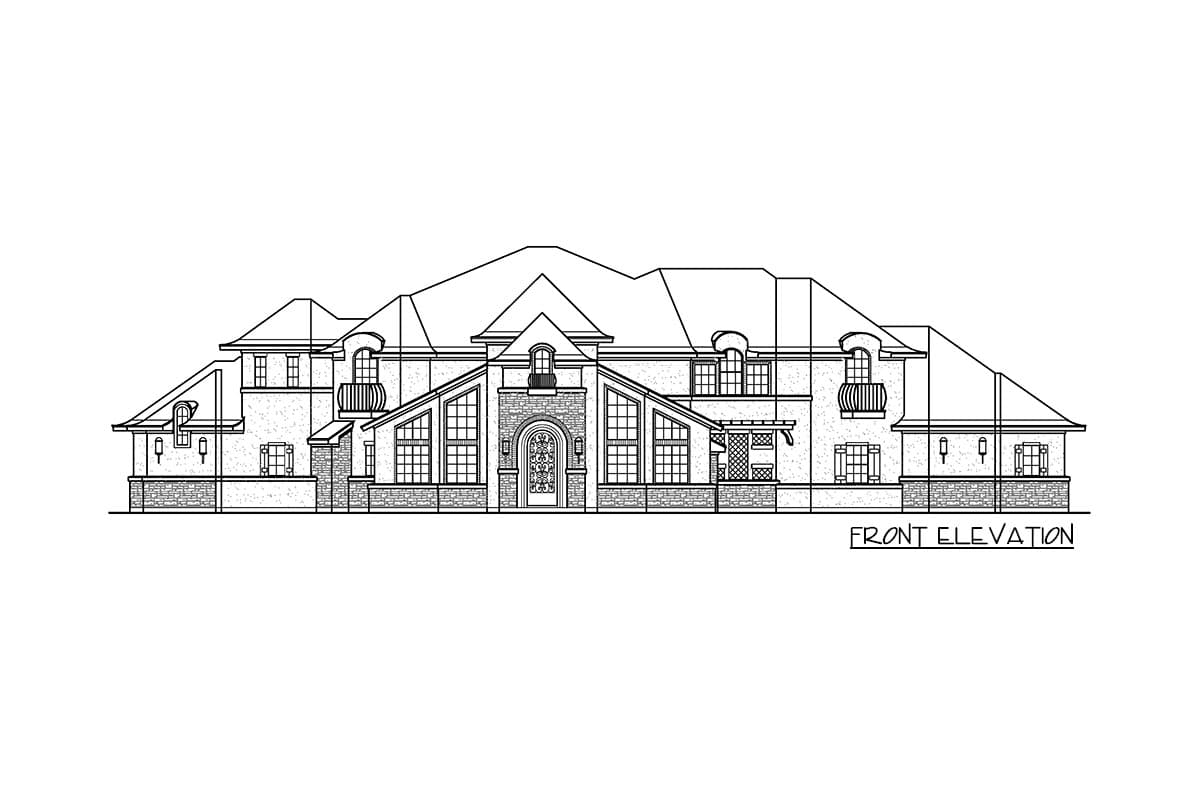

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

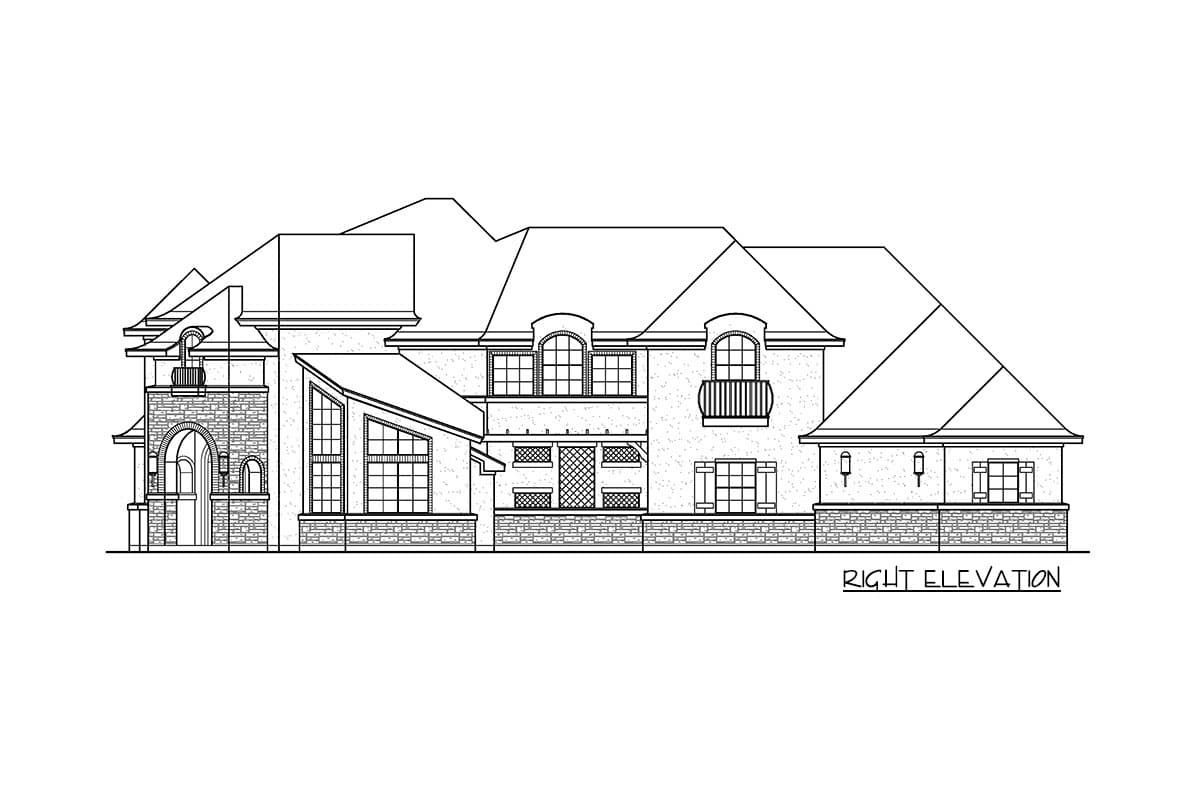

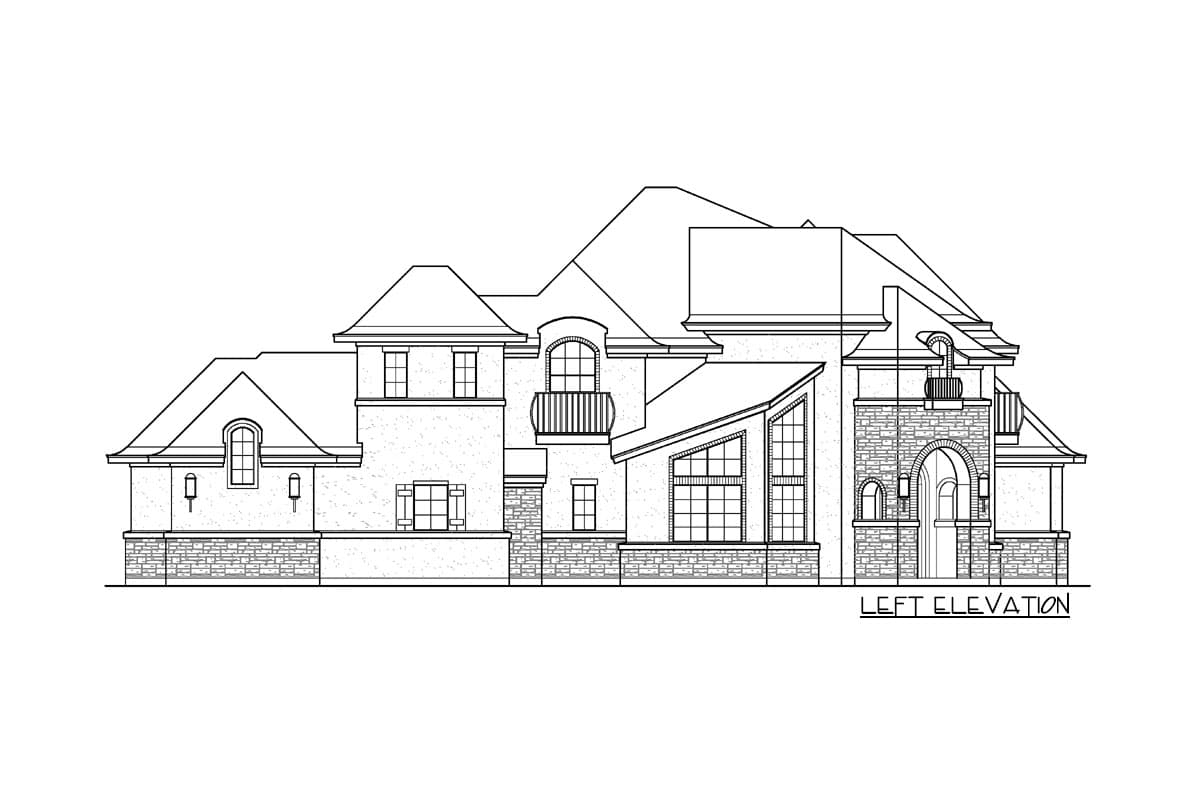

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury Home With Outdoor Lounge

  • 3,767

    Heated s.f.

  • 3-4

    Beds

  • 3.5+ - 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

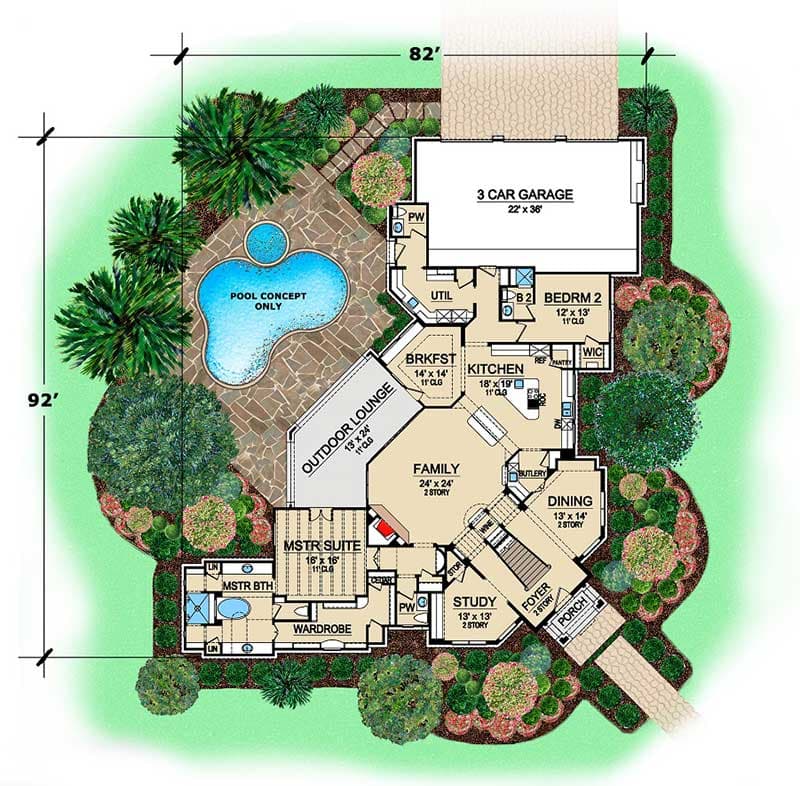

  • Main Level

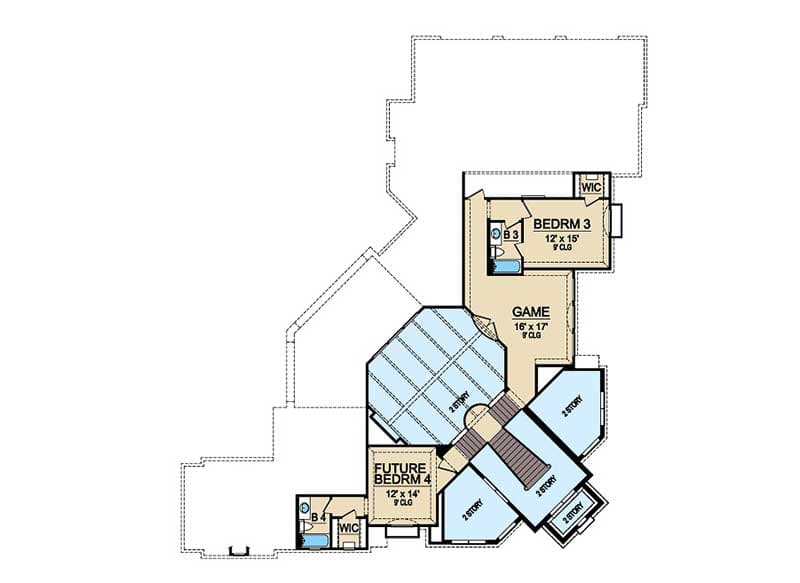

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,767 sq. ft.
  • 1st Floor: 3,083 sq. ft.
  • 2nd Floor: 684 sq. ft.

Dimensions

  • Width: 82' 0"
  • Depth: 92' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 929 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"
