Plan: 36349TX

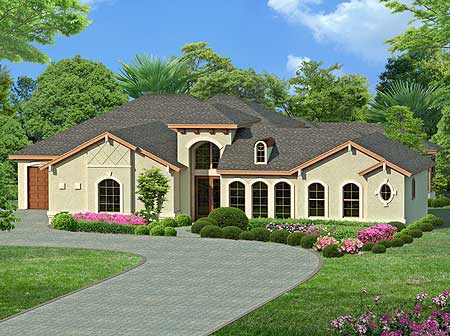

Luxury Living On One Level

3,242 4 4 1 3
Pageloader

Luxury Living On One Level

Plan 36349TX

  • 3,242

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This luxury house plan opens to a private foyer and has an expansive view straight back to the family room far beyond.
  • To the right of the foyer is a sleeping wing that features two family bedrooms that share a full bath and a game room.

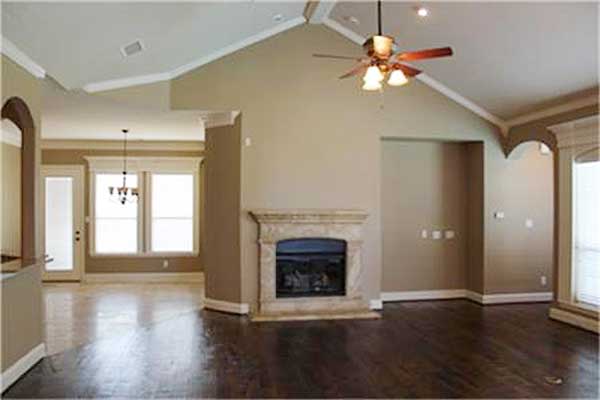

  • The family room boasts a fireplace, bar, and wall of windows for giving yuo great views and abundant sunlight.

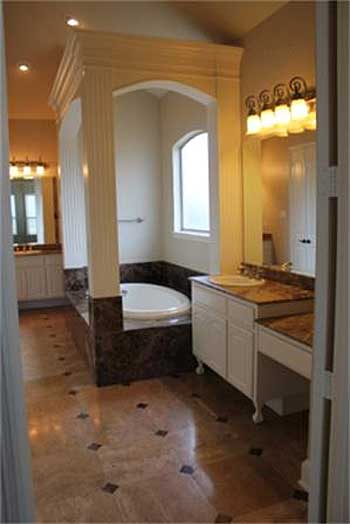

  • The master suite features a bayed sitting area, lavish bath, and enormous his and her walk-in closets.

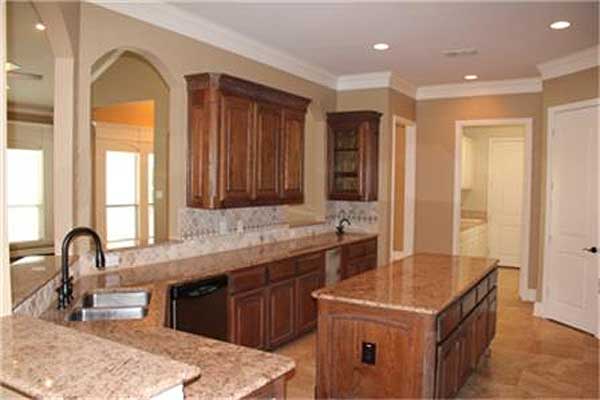

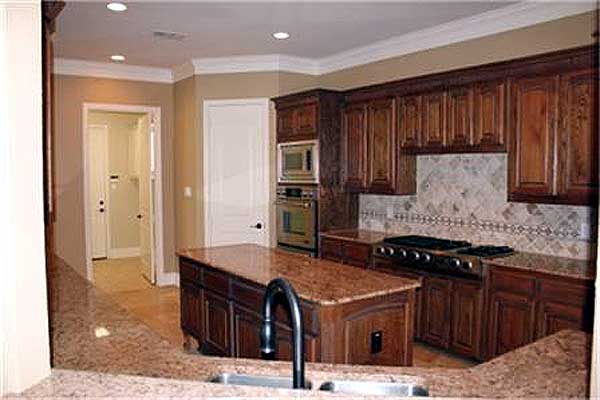

  • The kitchen in this one-story home plan is conveniently located between the dining room and breakfast area for easy hosting. A fourth family bedroom is located off the breakfast area features a full bath and walk-in closet.
  • Related Plan: Get an alternate exterior with house plan 36363TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Luxury Living On One Level

  • 3,242

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,160
  • 5 Sets $1,360
  • CAD $1,745
  • View all purchase option online

About This Plan

  • This luxury house plan opens to a private foyer and has an expansive view straight back to the family room far beyond.
  • To the right of the foyer is a sleeping wing that features two family bedrooms that share a full bath and a game room.
  • The family room boasts a fireplace, bar, and wall of windows for giving yuo great views and abundant sunlight.
  • The master suite features a bayed sitting area, lavish bath, and enormous his and her walk-in closets.
  • The kitchen in this one-story home plan is conveniently located between the dining room and breakfast area for easy hosting. A fourth family bedroom is located off the breakfast area features a full bath and walk-in closet.
  • Related Plan: Get an alternate exterior with house plan 36363TX.

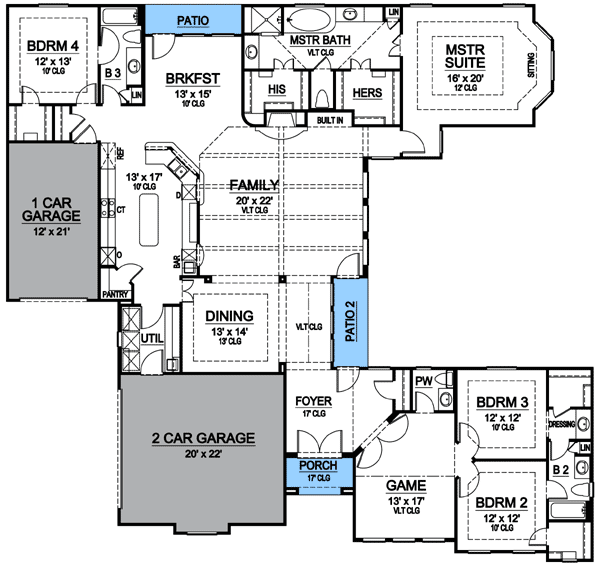

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,242 sq. ft.
  • 1st Floor: 3,242 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 79' 0"
  • Depth: 75' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 729 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

  • European
  • Mediterranean

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF
  • Split Bedrooms
