Luxury Mountain Craftsman Plan with Home Office and Walkout Basement

Plan 365018PED

  • 3,919

    Heated s.f.

  • 4-6

    Beds

  • 4.5 - 6.5

    Baths

  • 1

    Stories

  • 4-5

    Cars

  • This Mountain Craftsman home plan offers loads of curb appeal and boasts an interior drenched in luxurious features from top to bottom.
  • The expansive, vaulted great room is open to the gourmet kitchen and dining area, which is anchored by an oversized island. Two sets of sliding doors on the rear wall connect with the lengthy wraparound deck for outdoor enjoyment.
  • Not only will you find a deluxe master suite on the main level, but also a home office and guest suite, complete with a kitchenette, living space, and full bathroom.
  • Find your way downstairs by one of the two staircases and discover a rec room with a wet bar and access to the walkout patio. Three bedrooms, a fitness room, and pool bath are also included in the lower level.
  • The homeowner will appreciate the additional space in the 4-car garage, along with the "dog hotel" accessible from the laundry / mudroom combo.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

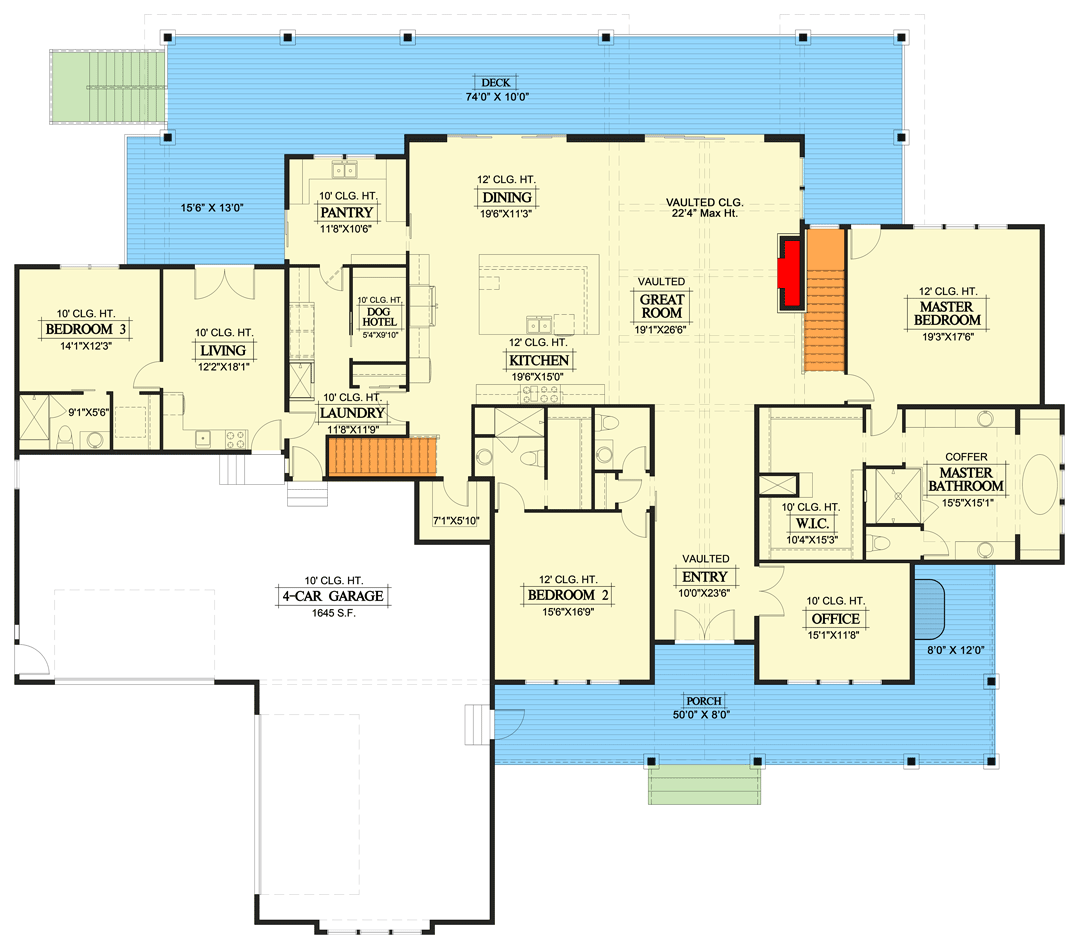

Luxury Mountain Craftsman Plan with Home Office and Walkout Basement - 365018PED floor plan - Main Level

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

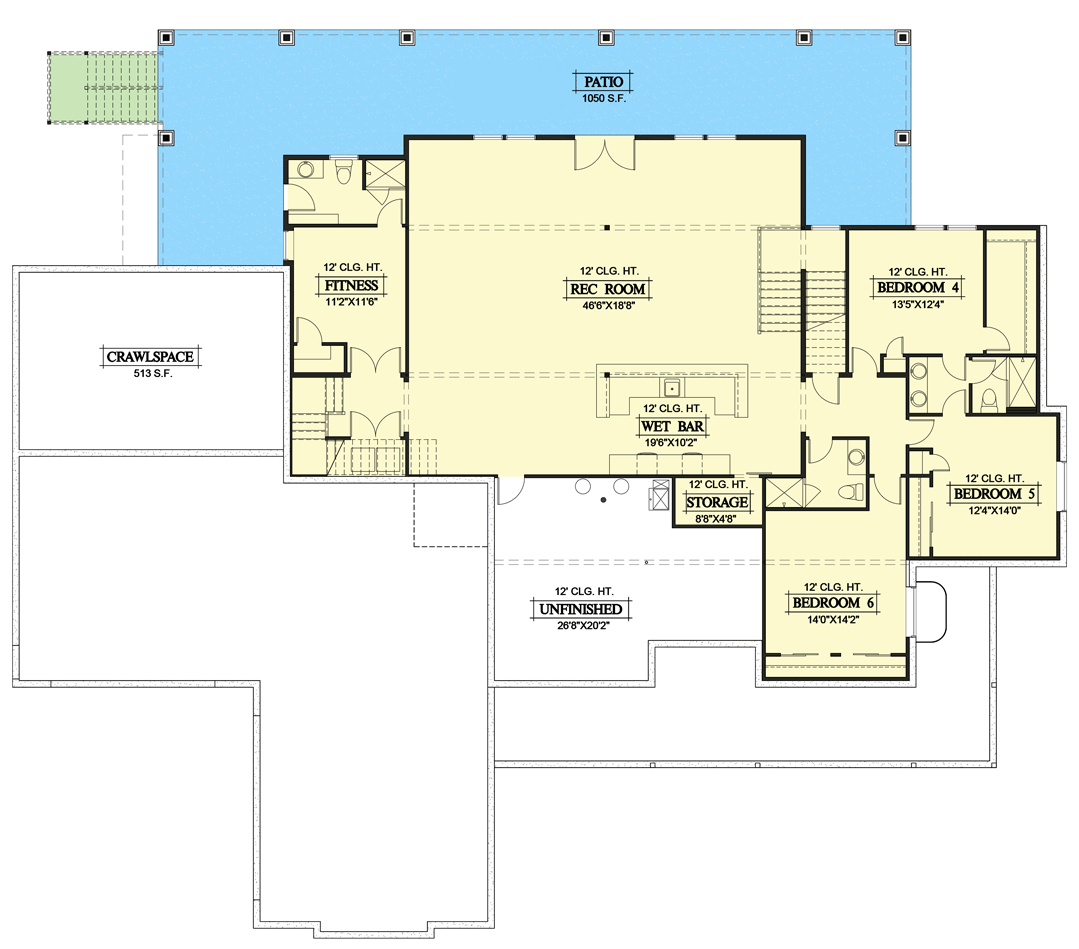

Luxury Mountain Craftsman Plan with Home Office and Walkout Basement - 365018PED floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,919 sq. ft.
  • 1st Floor: 3,919 sq. ft.
  • Porch, Rear: 1,062 sq. ft.
  • Porch, Front: 536 sq. ft.
  • Optional Lower Level: 2,763 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 4, 5, or 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 105' 0"
  • Depth: 90' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 1579 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Courtyard, Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 12' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Mountain Craftsman Plan with Home Office and Walkout Basement

  • 3,919

    Heated s.f.

  • 4-6

    Beds

  • 4.5 - 6.5

    Baths

  • 1

    Floors

  • 4 - 5

    Car garage

Buy This Plan
  • PDF - Single-Build $1,797
  • CAD + PDF - Single Build $2,597
  • View all purchase option online

About This Plan

  • This Mountain Craftsman home plan offers loads of curb appeal and boasts an interior drenched in luxurious features from top to bottom.
  • The expansive, vaulted great room is open to the gourmet kitchen and dining area, which is anchored by an oversized island. Two sets of sliding doors on the rear wall connect with the lengthy wraparound deck for outdoor enjoyment.
  • Not only will you find a deluxe master suite on the main level, but also a home office and guest suite, complete with a kitchenette, living space, and full bathroom.
  • Find your way downstairs by one of the two staircases and discover a rec room with a wet bar and access to the walkout patio. Three bedrooms, a fitness room, and pool bath are also included in the lower level.
  • The homeowner will appreciate the additional space in the 4-car garage, along with the "dog hotel" accessible from the laundry / mudroom combo.

Floor Plans

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,919 sq. ft.
  • 1st Floor: 3,919 sq. ft.
  • Porch, Rear: 1,062 sq. ft.
  • Porch, Front: 536 sq. ft.
  • Optional Lower Level: 2,763 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 4, 5, or 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 105' 0"
  • Depth: 90' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 1579 sq. ft.
  • Count: 4 or 5 Cars
  • Entry Location: Courtyard, Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 12' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
