Plan 65669BS Luxury Southern Home Plan with Large Outdoor Living Space

4,735 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury Southern Home Plan with Large Outdoor Living Space

Plan 65669BS

  • 4,735

    Heated s.f.

  • 1

    Stories

  • 2

    Cars

  • Large gathering spaces easily flow into the outdoor living areas with this Southern home plan, creating an environment perfect for entertaining friends and family.
  • The gourmet kitchen boasts a sizable island, while a wine room off the foyer allows you to store your collection.
  • A quiet study encourages you to get-away-from-it-all, and a flex room provides a versatile space for all to enjoy.
  • The master suite occupies the left side of the design and features dual walk-in closets and a freestanding tub in front of the oversized tile shower in the ensuite.
  • Three secondary bedroom suites resides behind the 3-car garage, where dedicated storage helps organize your lawn supplies.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

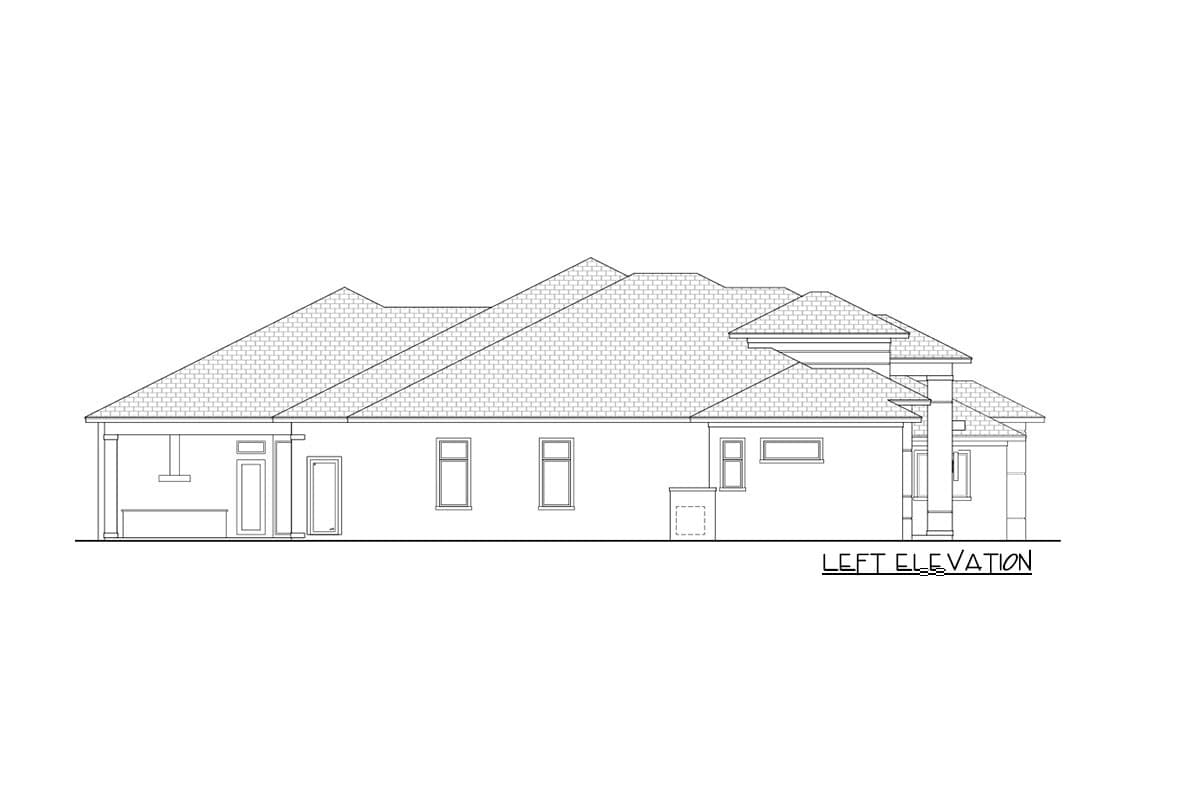

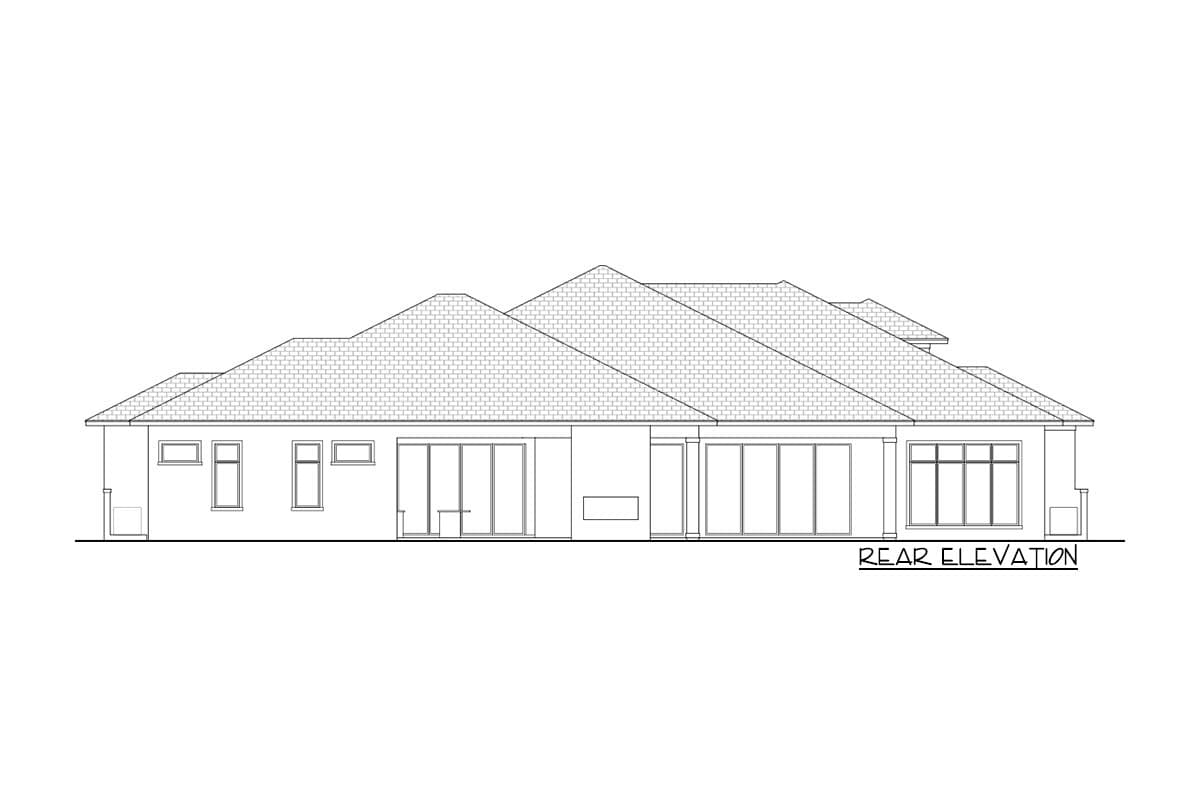

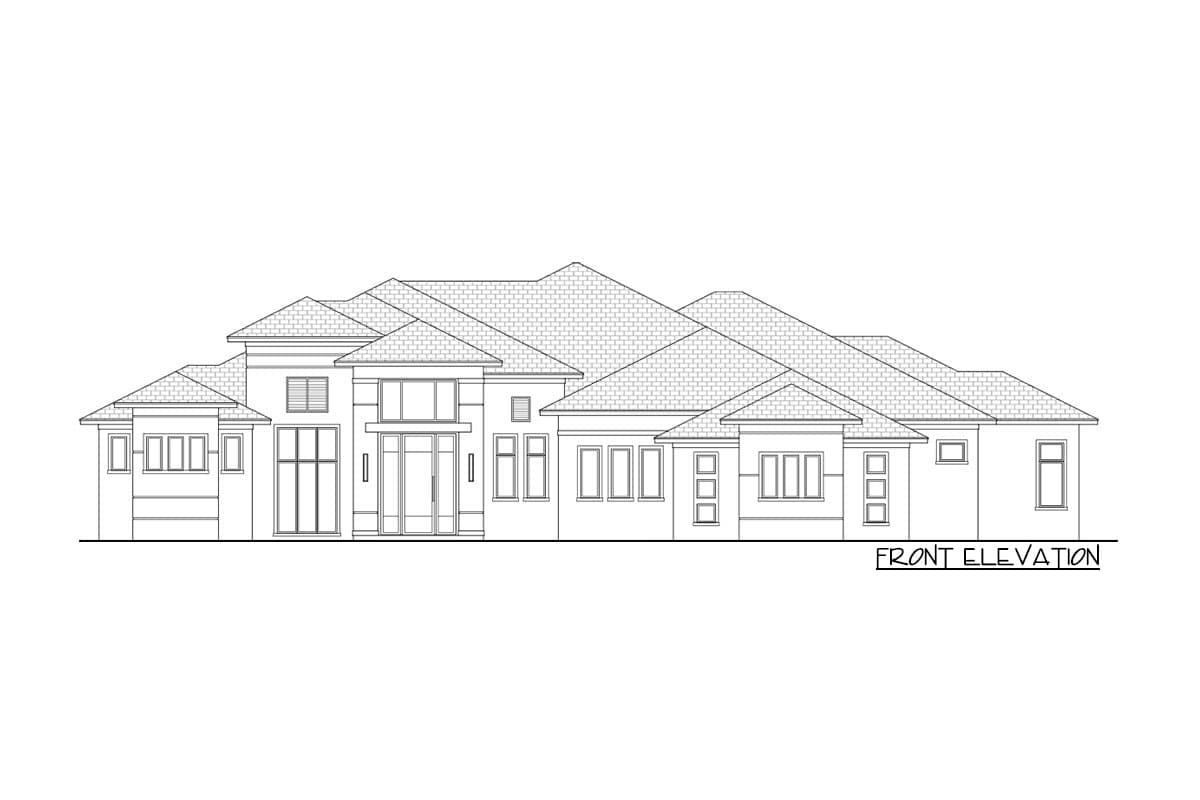

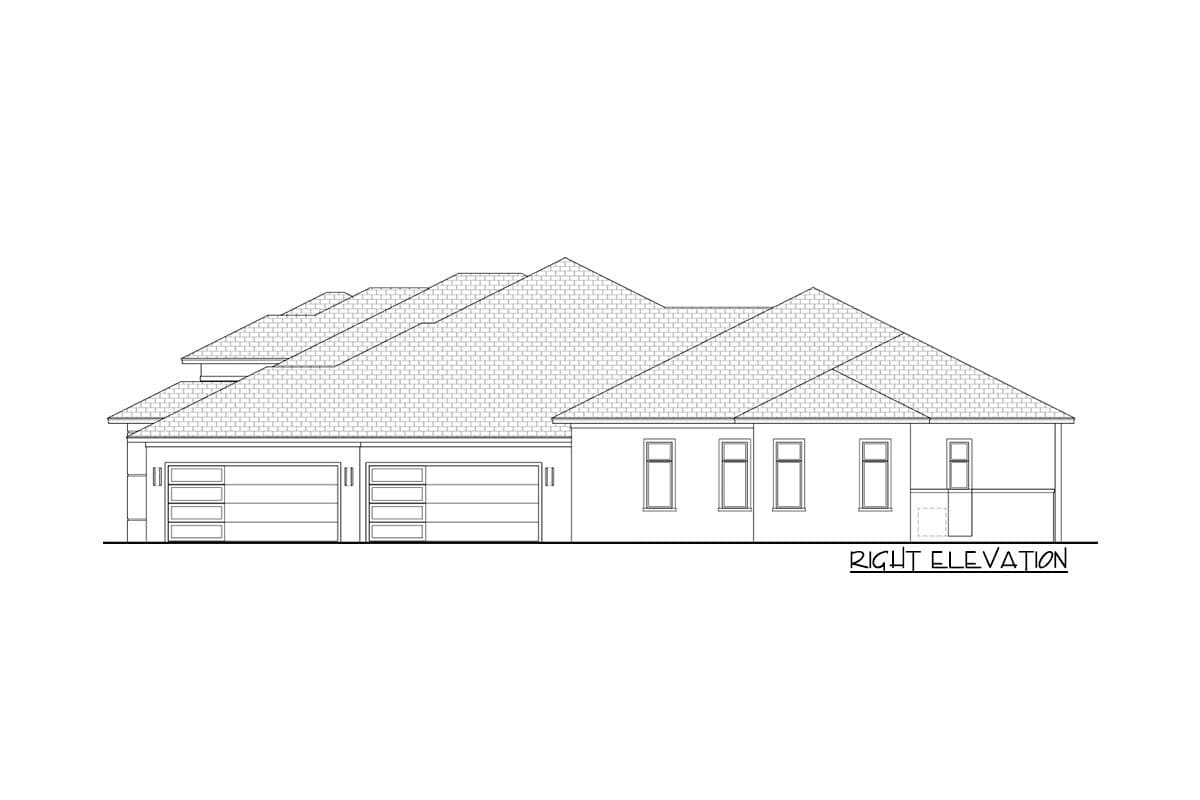

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

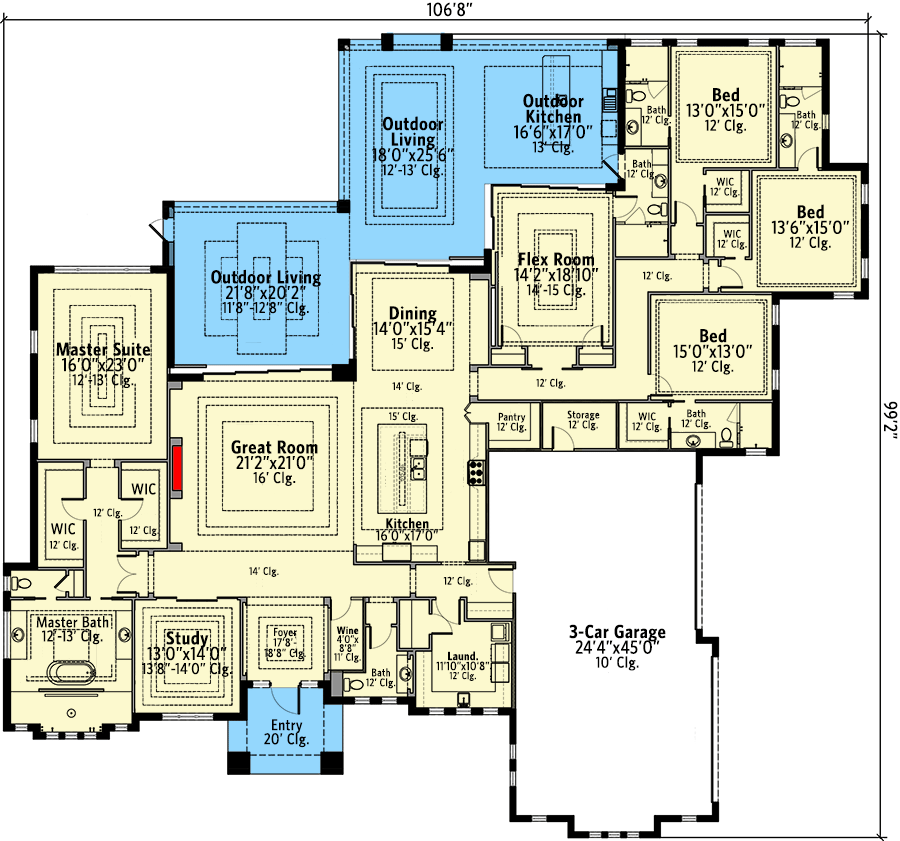

Luxury Southern Home Plan with Large Outdoor Living Space - 65669BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,735 sq. ft.
  • 1st Floor: 4,735 sq. ft.
  • Lanai: 1,263 sq. ft.
  • Entry: 137 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 106' 8"
  • Depth: 99' 2"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 1227 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Southern Home Plan with Large Outdoor Living Space

  • 4,735

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,735
  • PDF - Single-Build $4,735
  • View all purchase option online

About This Plan

  • Large gathering spaces easily flow into the outdoor living areas with this Southern home plan, creating an environment perfect for entertaining friends and family.
  • The gourmet kitchen boasts a sizable island, while a wine room off the foyer allows you to store your collection.
  • A quiet study encourages you to get-away-from-it-all, and a flex room provides a versatile space for all to enjoy.
  • The master suite occupies the left side of the design and features dual walk-in closets and a freestanding tub in front of the oversized tile shower in the ensuite.
  • Three secondary bedroom suites resides behind the 3-car garage, where dedicated storage helps organize your lawn supplies.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details
