Plan 72876DA Luxury Tuscan House Plan with Three Bedrooms

Luxury Tuscan House Plan with Three Bedrooms

Plan 72876DA

  • 3,919

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • The grand vaulted foyer welcomes you and opens directly into the grand living room which features a masonry fireplace and a double set of sliding doors that allow you to expand the living area to the covered patio on nice days.
  • The open-style great room living flows into a dining area which is open to the kitchen and perfect set up for those who love to entertain.
  • Off the dining room is a piano room which creates a cozy secondary gathering space complete with a gas fireplace.
  • Pass the piano room is a hall that leads to the secondary bedrooms that each have their own walk-in closet and dressing area and share a jack-n-jill style bathroom.
  • The master suite fills the left side of the house and has its own exercise room, large walk-in closet and luxury private bathroom complete with walk-in shower.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

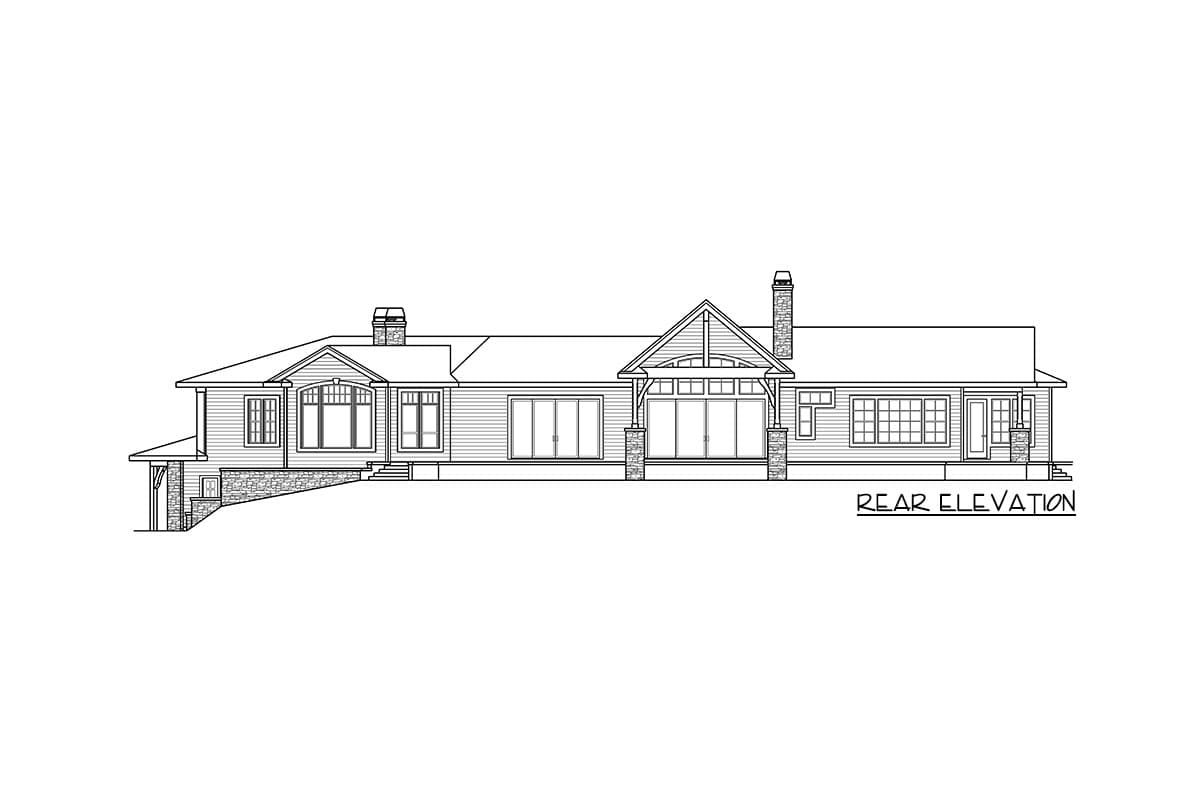

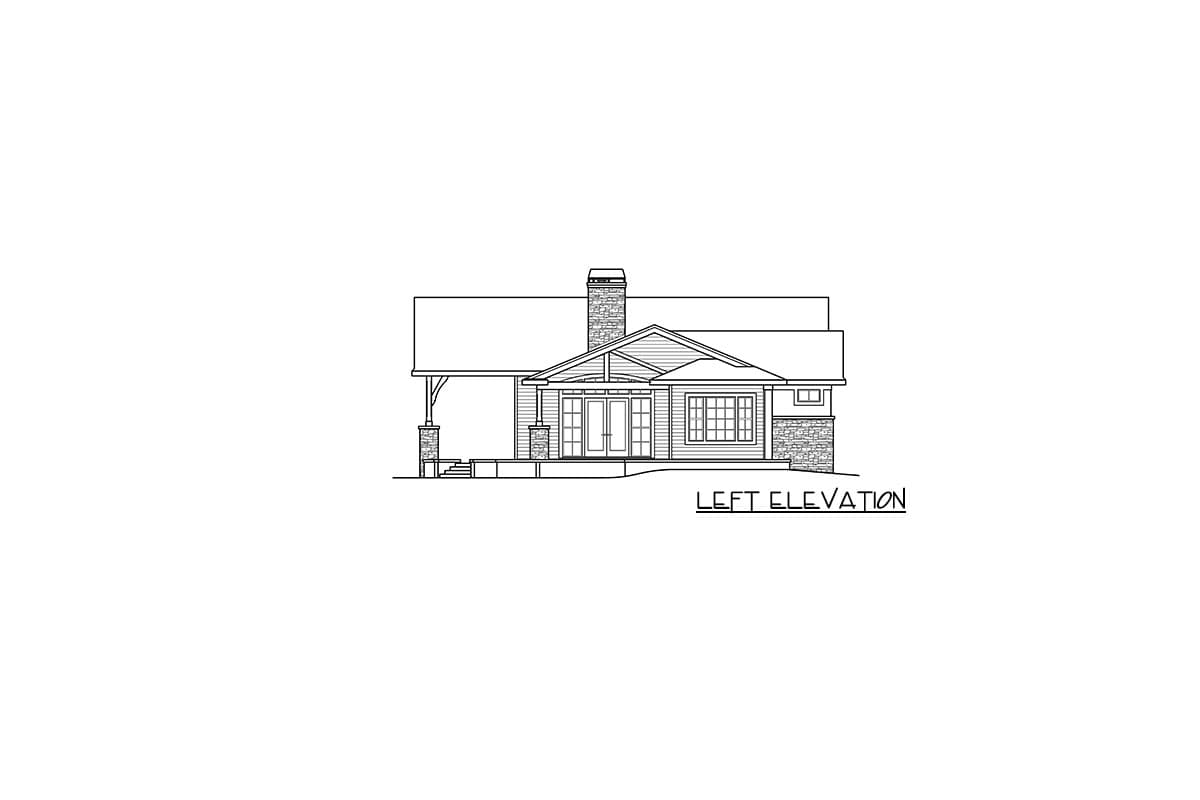

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

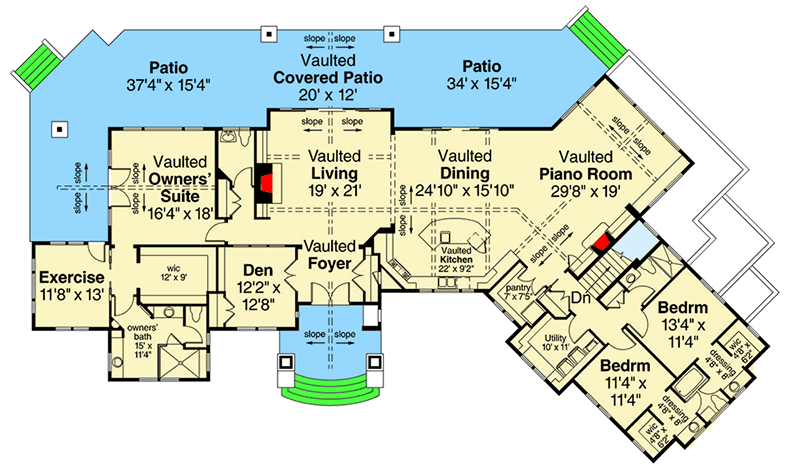

Luxury Tuscan House Plan with Three Bedrooms - 72876DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

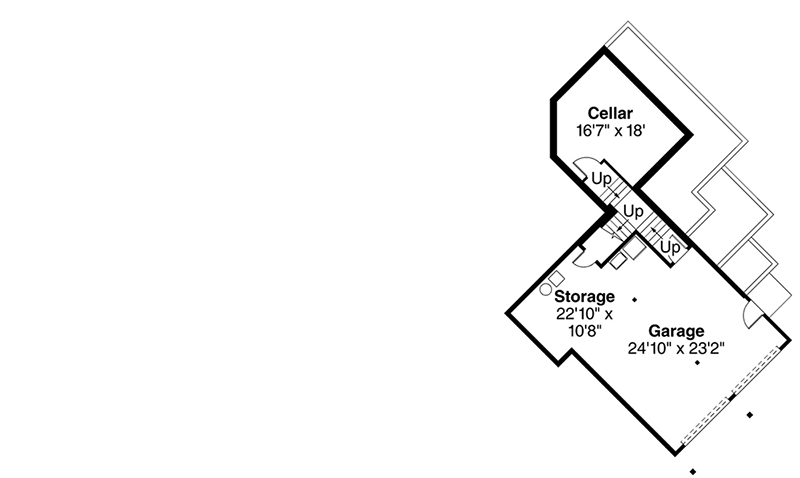

Luxury Tuscan House Plan with Three Bedrooms - 72876DA floor plan - Lower Level

Plan details

Luxury Tuscan House Plan with Three Bedrooms

  • 3,919

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $995
  • PDF Light $1,245
  • 5 Sets + PDF $1,375
  • PDF - Single-Build $2,375
  • CAD - Single-Build $2,595
  • CAD - Unlimited Build $2,855
  • View all purchase option online

About This Plan

  • The grand vaulted foyer welcomes you and opens directly into the grand living room which features a masonry fireplace and a double set of sliding doors that allow you to expand the living area to the covered patio on nice days.
  • The open-style great room living flows into a dining area which is open to the kitchen and perfect set up for those who love to entertain.
  • Off the dining room is a piano room which creates a cozy secondary gathering space complete with a gas fireplace.
  • Pass the piano room is a hall that leads to the secondary bedrooms that each have their own walk-in closet and dressing area and share a jack-n-jill style bathroom.
  • The master suite fills the left side of the house and has its own exercise room, large walk-in closet and luxury private bathroom complete with walk-in shower.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,919 sq. ft.
  • Lower Level: 307 sq. ft.
  • 1st Floor: 3,612 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 122' 8"
  • Depth: 73' 4"
  • Max ridge height: 24' 3"

Garage

  • Type: Drive Under
  • Area: 882 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick And Truss
