Magnificent Arched Entryway

Plan 59634ND

  • 3,823

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A magnificent arched entryway and elegant windows define the exterior of this home plan. Entertain your guests in the enormous great room with step-down access and fireplace.
  • A formal dining room and a breakfast room are included in this design and provide plenty of options for mealtime.
  • Relax in the study with a good book or enjoy a movie in the den/home theater.
  • At the end of the day, you'll absolutely love retiring to this master suite, full of amenities. Two secondary bedrooms, a loft area, and a game room occupy the upper floor of this home plan.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Magnificent Arched Entryway

  • 3,823

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,350
  • 5 Sets $1,450
  • CAD $2,700
  • View all purchase option online

About This Plan

  • A magnificent arched entryway and elegant windows define the exterior of this home plan. Entertain your guests in the enormous great room with step-down access and fireplace.
  • A formal dining room and a breakfast room are included in this design and provide plenty of options for mealtime.
  • Relax in the study with a good book or enjoy a movie in the den/home theater.
  • At the end of the day, you'll absolutely love retiring to this master suite, full of amenities. Two secondary bedrooms, a loft area, and a game room occupy the upper floor of this home plan.

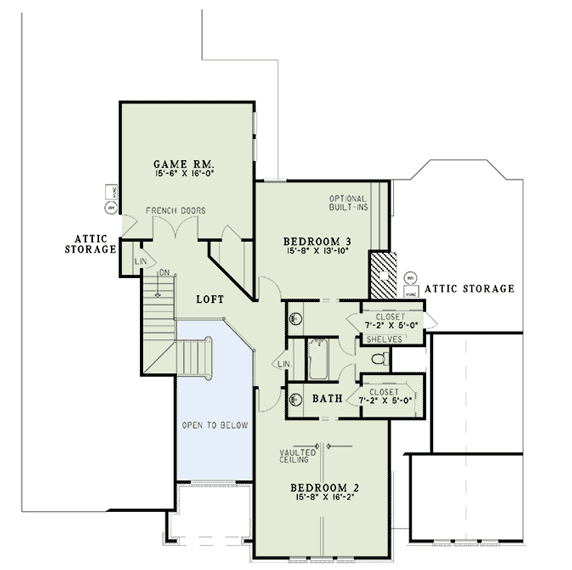

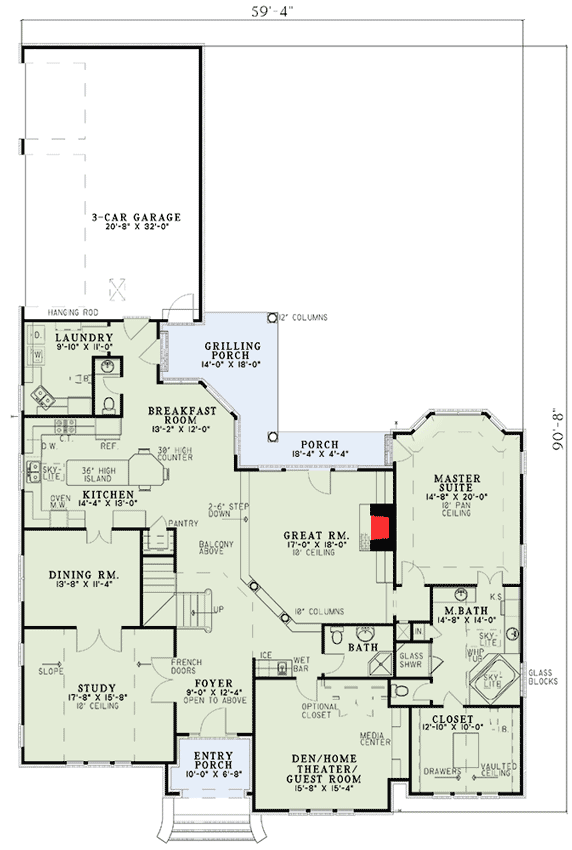

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,823 sq. ft.
  • 1st Floor: 2,654 sq. ft.
  • 2nd Floor: 1,169 sq. ft.
  • Porch, Combined: 297 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 4"
  • Depth: 90' 8"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 981 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
