Plan 24333TW
Magnificent Family Room Windows
Heated S.F.
2,908
Beds
3-4
Baths
2.5+
Stories
2
Cars
2
What's Included
Plan Details
  • With a dramatic 18' ceiling height, the great room is flooded with light from its magnificent group of windows in this elegant home plan.
  • A 14' ceiling in the foyer welcomes you into the home with views of the dining room to the left.
  • The formal living room also has vaulted ceilings, making the space seem larger.
  • The kitchen and breakfast nook form one large space with access to a screened porch in back.
  • No stairs to climb in this first floor master suite with tray ceiling and double walk-in closets.
  • Two bedrooms, a full bath and a loft occupy the second floor.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.
What's Included

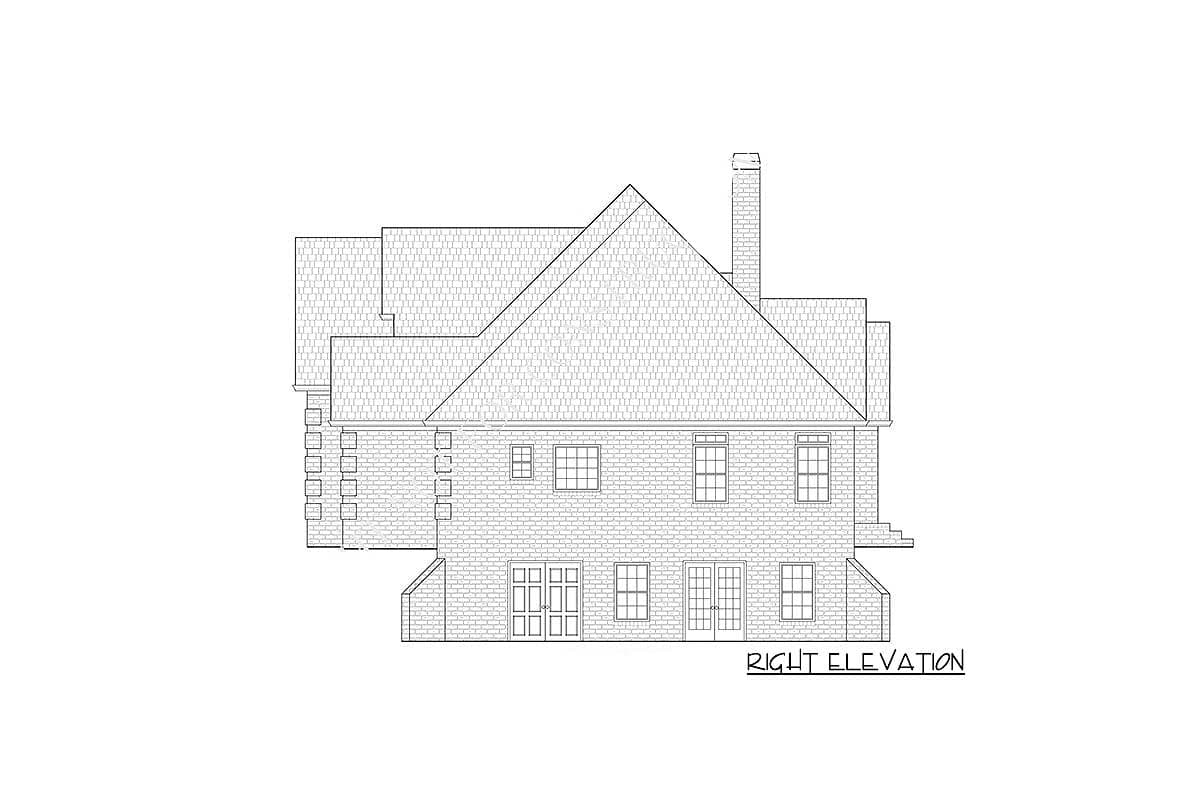

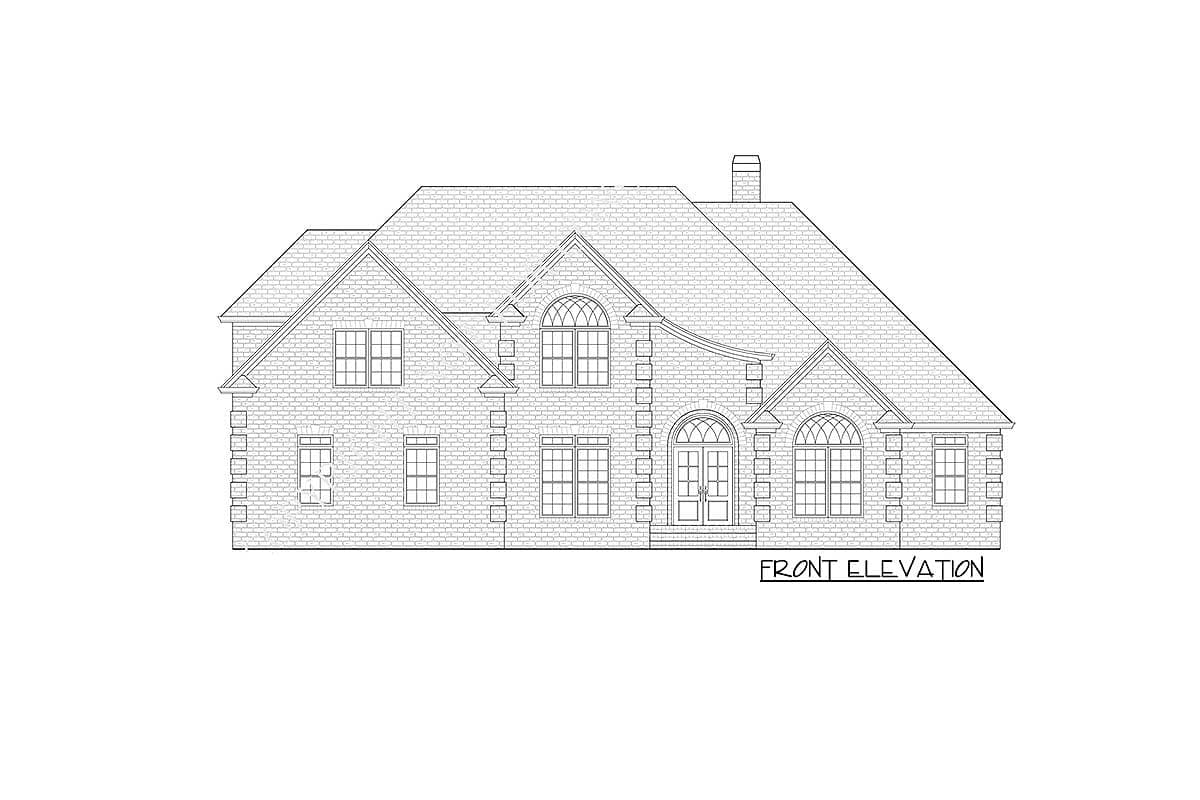

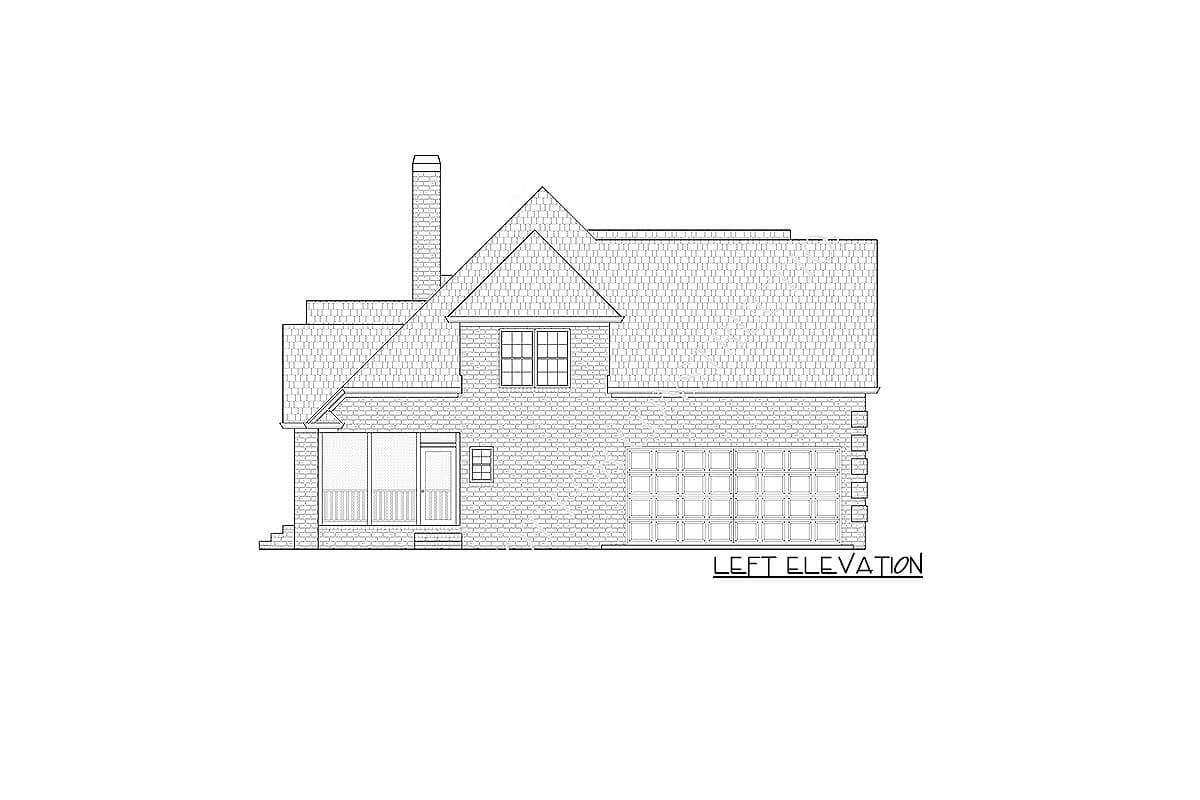

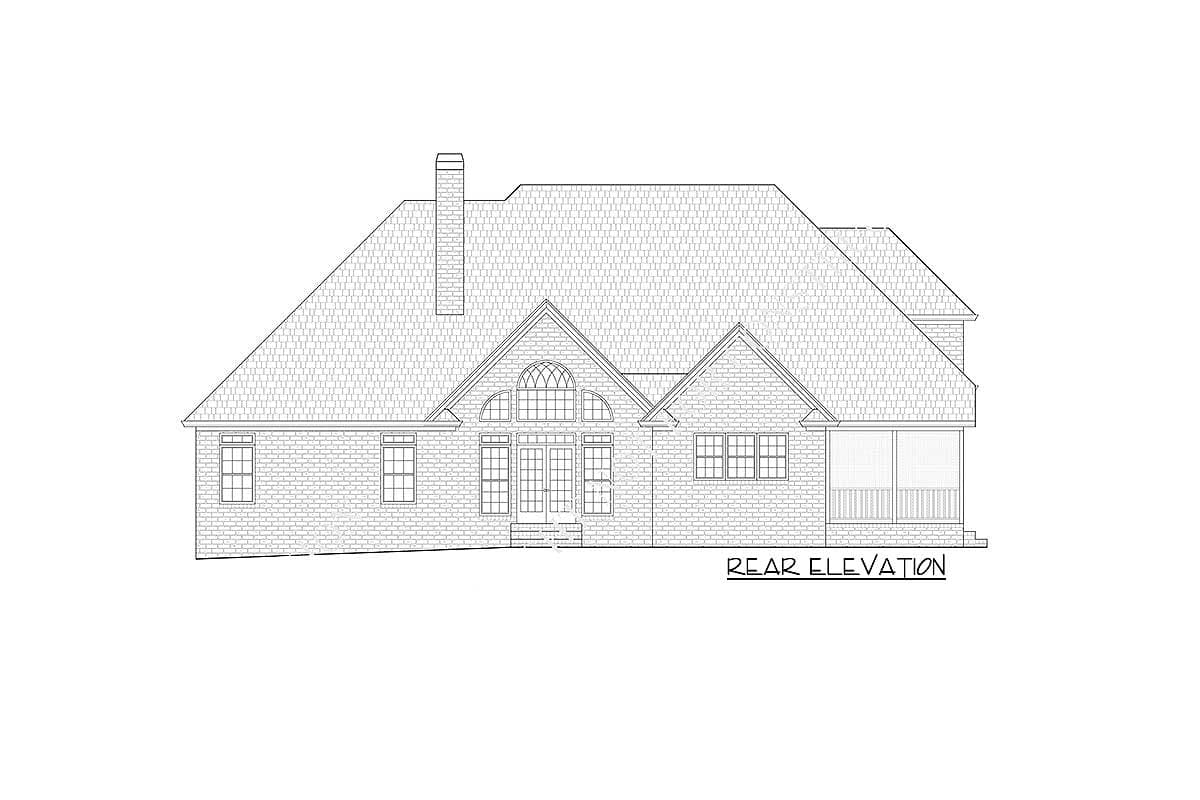

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Magnificent Family Room Windows

  • 2,908

    Heated s.f.

  • 3-4

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,908 sq. ft.
  • 1st Floor: 2,088 sq. ft.
  • 2nd Floor: 820 sq. ft.

Dimensions

  • Width: 65' 0"
  • Depth: 48' 4"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
