Magnificent Master-On-Main House Plan with up to Five Bedrooms

Plan 25657GE

  • 3,745

    Heated s.f.

  • 4-7

    Beds

  • 4.5 - 6.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This magnificent master-on-main house plan features board and batten siding, stone accents, and decorative, gable brackets on the exterior. Inside, you get up to five bedrooms and an expansive, optional finished lower level.
  • An inviting, front porch welcomes you through the formal entry featuring a transom window. Double doors off the foyer lead to a quiet study, while the formal dining room sits on the opposite side. A vaulted, lodge room, with a fireplace surrounded by built-ins, provides a space for gatherings, while the adjacent kitchen boasts an oversized island and walk-in pantry.
  • A keeping room, connected to the kitchen, provides a fireplace with built-ins, coffered ceiling, and access to the covered porch.
  • Your first-floor, master suite is situated on one side of the home offering added privacy, and includes a tray ceiling and a master bath with dual sinks, separate tub and oversized shower, and his and her closets. Two additional bedrooms with full bathrooms can be found on the opposite side of the home. Upstairs, bedrooms four and five share a Jack-and-Jill bathroom.
  • An expansive, lower level design maximizes versatility and allows you to expand when needed. In the plan, discover two additional bedrooms that share a Jack-and-Jill bathroom, a wet bar in the game room, kitchenette near the wine cellar, and a media room. The living room opens to a covered porch with a fireplace.

The plan set includes the following:

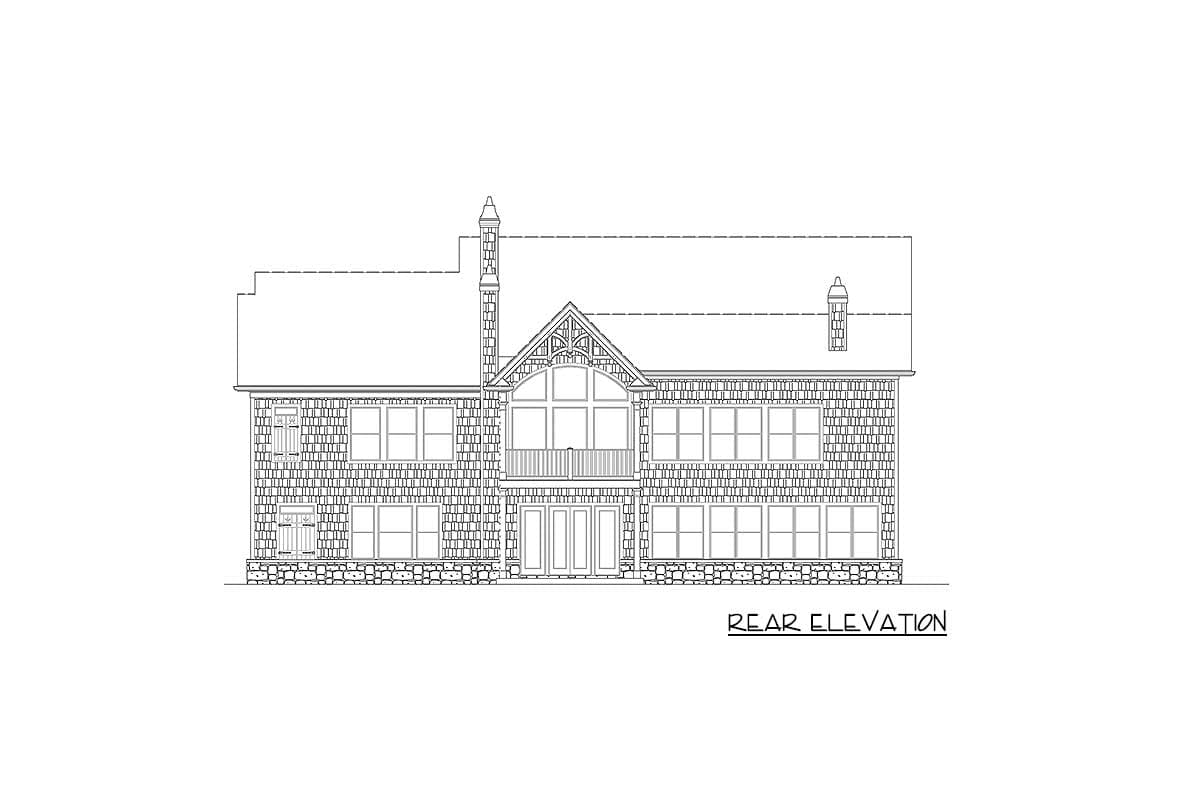

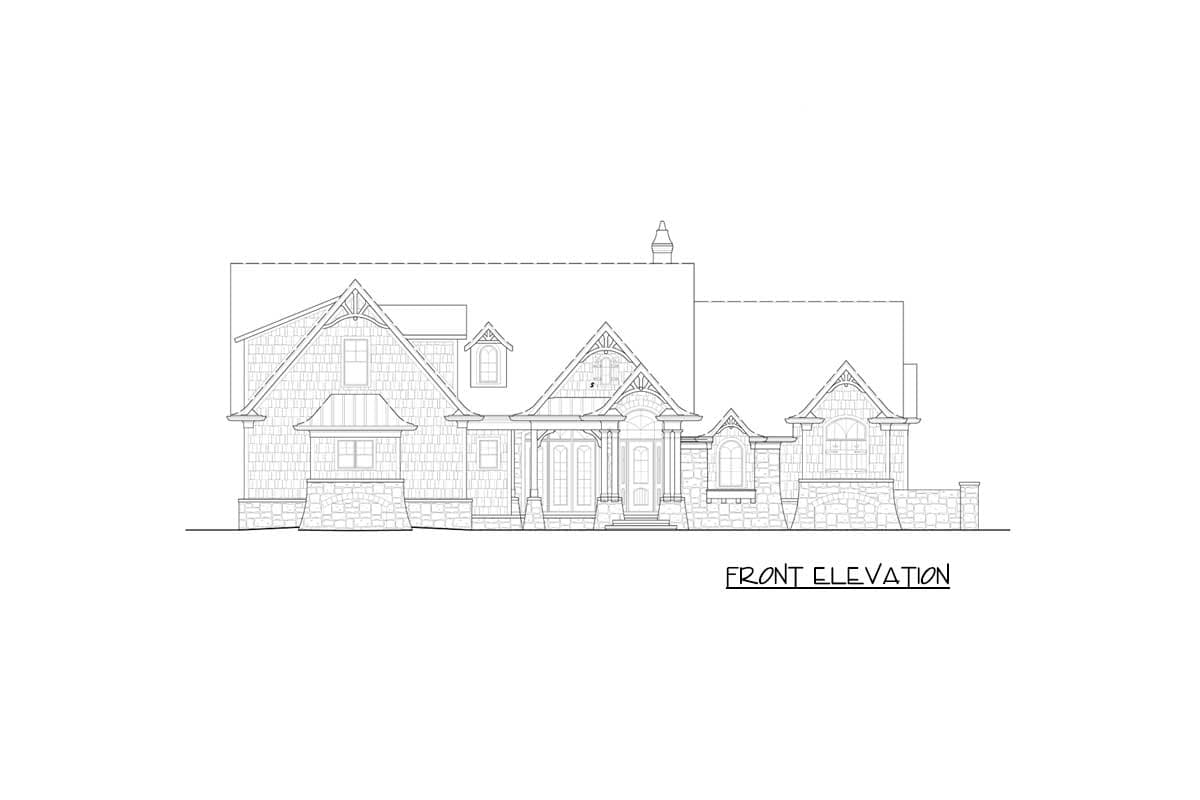

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

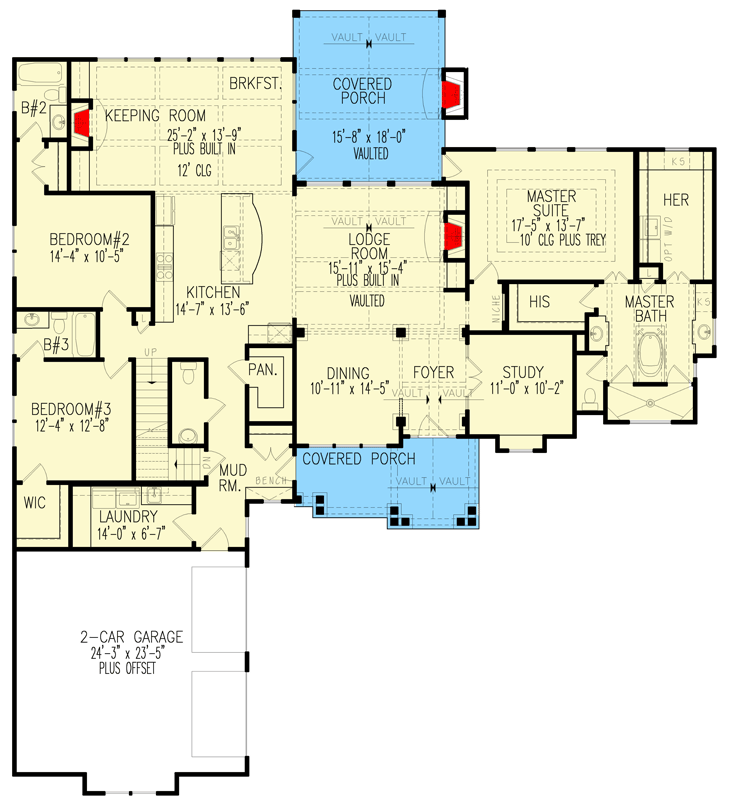

Magnificent Master-On-Main House Plan with up to Five Bedrooms - 25657GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

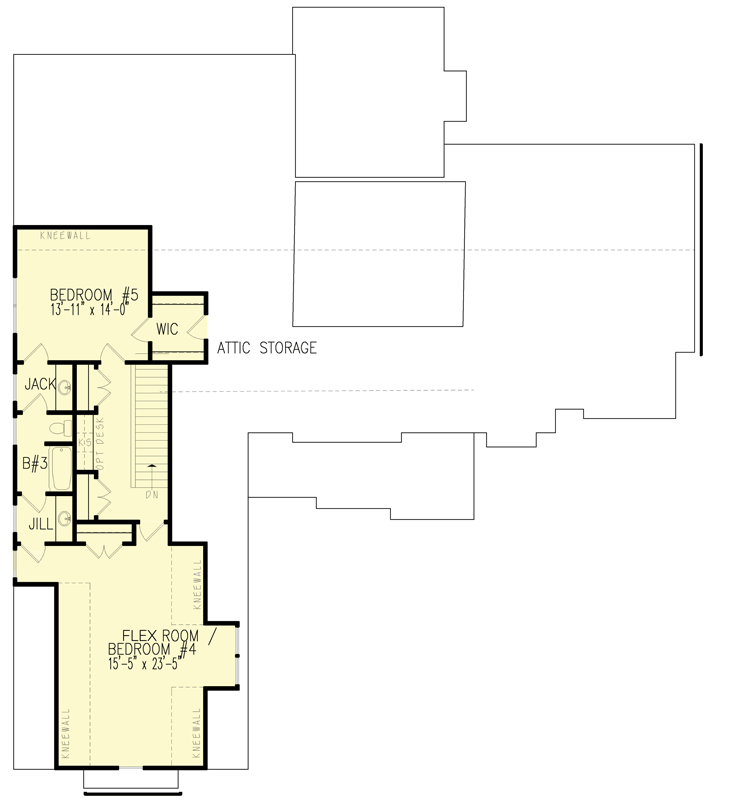

Magnificent Master-On-Main House Plan with up to Five Bedrooms - 25657GE floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

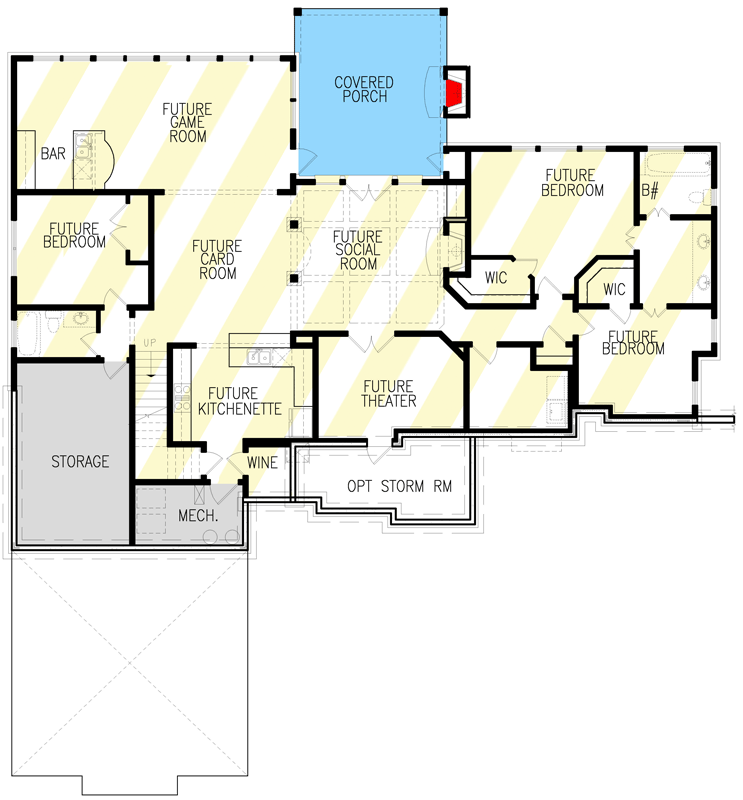

Magnificent Master-On-Main House Plan with up to Five Bedrooms - 25657GE floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,745 sq. ft.
  • 1st Floor: 2,795 sq. ft.
  • 2nd Floor: 950 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, 6, or 7
  • Full bathrooms: 4, 5, or 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 10"
  • Depth: 83' 5"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 596 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Magnificent Master-On-Main House Plan with up to Five Bedrooms

  • 3,745

    Heated s.f.

  • 4-7

    Beds

  • 4.5 - 6.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD - Single-Build $3,645
  • View all purchase option online

About This Plan

  • This magnificent master-on-main house plan features board and batten siding, stone accents, and decorative, gable brackets on the exterior. Inside, you get up to five bedrooms and an expansive, optional finished lower level.
  • An inviting, front porch welcomes you through the formal entry featuring a transom window. Double doors off the foyer lead to a quiet study, while the formal dining room sits on the opposite side. A vaulted, lodge room, with a fireplace surrounded by built-ins, provides a space for gatherings, while the adjacent kitchen boasts an oversized island and walk-in pantry.
  • A keeping room, connected to the kitchen, provides a fireplace with built-ins, coffered ceiling, and access to the covered porch.
  • Your first-floor, master suite is situated on one side of the home offering added privacy, and includes a tray ceiling and a master bath with dual sinks, separate tub and oversized shower, and his and her closets. Two additional bedrooms with full bathrooms can be found on the opposite side of the home. Upstairs, bedrooms four and five share a Jack-and-Jill bathroom.
  • An expansive, lower level design maximizes versatility and allows you to expand when needed. In the plan, discover two additional bedrooms that share a Jack-and-Jill bathroom, a wet bar in the game room, kitchenette near the wine cellar, and a media room. The living room opens to a covered porch with a fireplace.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,745 sq. ft.
  • 1st Floor: 2,795 sq. ft.
  • 2nd Floor: 950 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, 6, or 7
  • Full bathrooms: 4, 5, or 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 10"
  • Depth: 83' 5"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 596 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
