Magnificent Mountain Home Plan
Heated S.F.
8,340
Beds
8
Baths
5.5
Stories
2
Cars
4
What's Included
Plan Details
  • Clipped rooflines on the gables and dormers highlight the stone and log beams on the exterior of this magnificent mountain home plan.
  • A spacious floor plan and lots of bedrooms make this design perfect for large family reunions and entertaining on a grand scale.
  • Covered porches and decks create additional space to enjoy the outdoors and a four car garage will house all your vehicles.

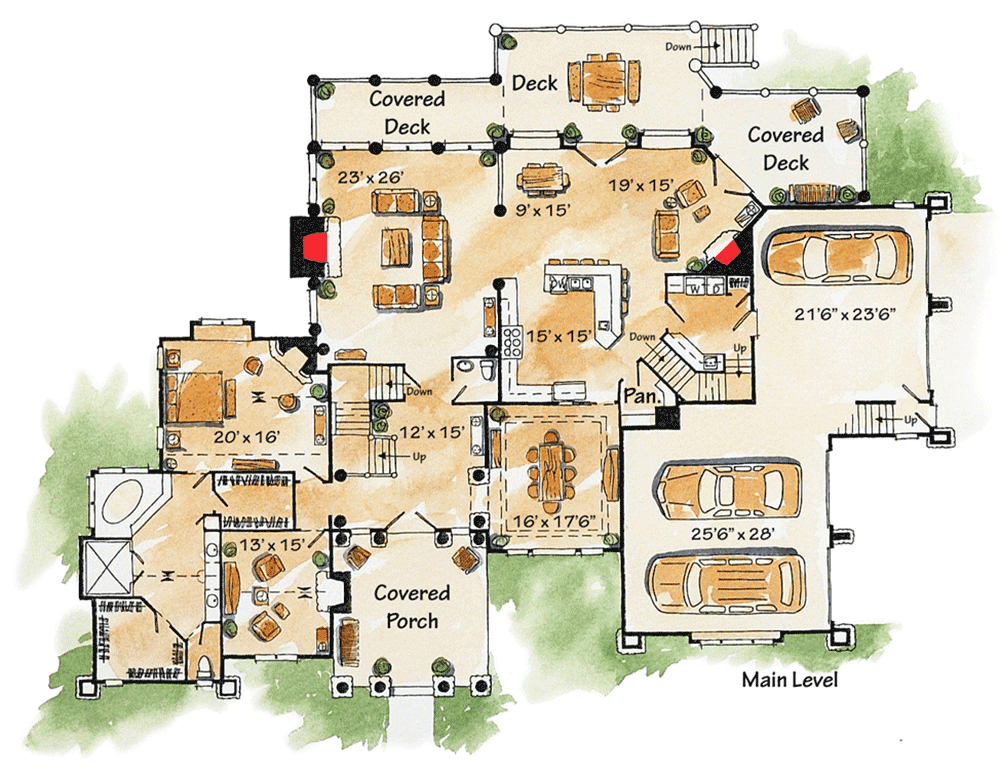

  • The two-story great room has a huge fireplace as the focal point and is open to the eating nook and kitchen area.

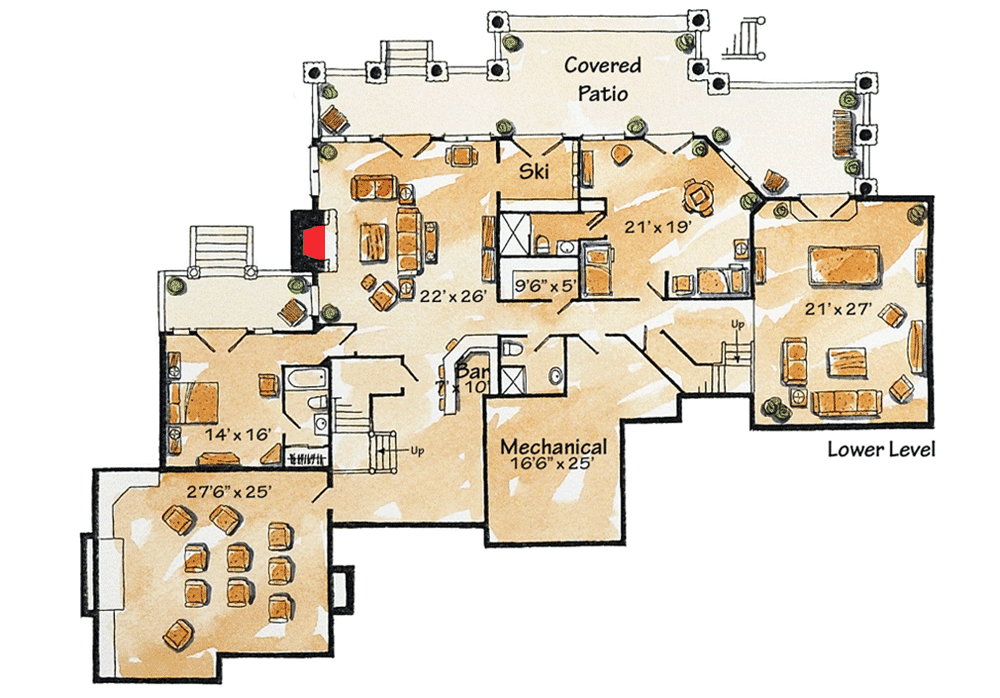

  • Two sets of stairs lead to the massive lower level with a ski room for all your equipment, theater room, billiards room, a spacious rec room and another bedroom plus two baths.
  • On the second floor, a balcony hall overlooks both the foyer and the great room below.

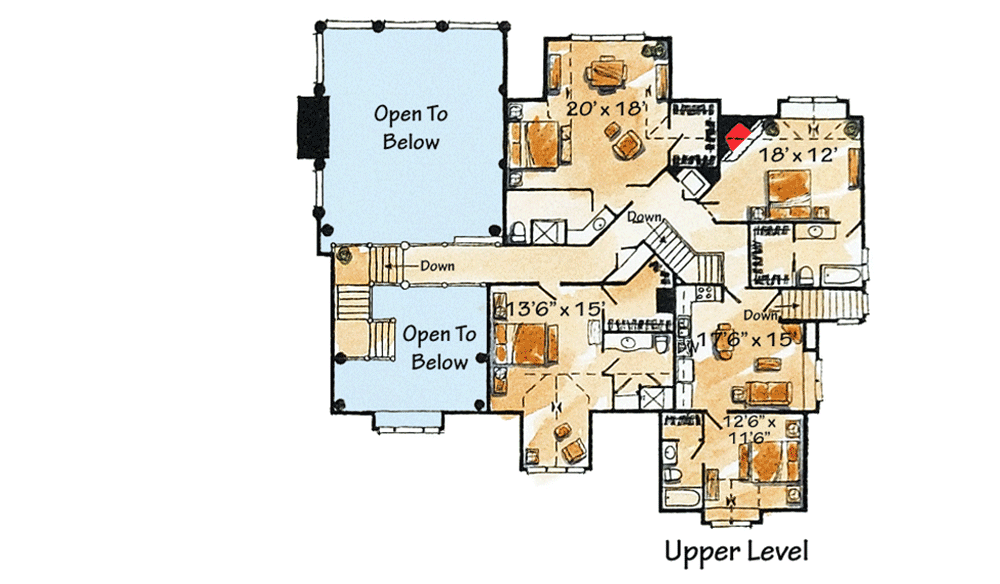

  • Three bedrooms on this level share space with an in-law suite, complete with its own living room, dining area,kitchen and separate staircase.
What's Included

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Magnificent Mountain Home Plan

  • 8,340

    Heated s.f.

  • 8

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 8,340 sq. ft.
  • Lower Level: 2,699 sq. ft.
  • 1st Floor: 3,453 sq. ft.
  • 2nd Floor: 2,188 sq. ft.

Dimensions

  • Width: 82' 0"
  • Depth: 107' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1225 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
