Magnificent Tuscan House Plan

Plan 64409SC

  • 4,690

    Heated s.f.

  • 4-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • With a grand entry tower, private central courtyard, spiral staircase and luxurious home office space, this Tuscan house plan is a step above all others.
  • Beams top the ceiling of the huge great room that looks out over the covered rear porch.
  • This home comes with a quiet library and a stunning office area with tons of counter space and a private conference room.
  • Choose from a main floor master suite or a spacious second floor master with a sitting area.
  • You get two laundry rooms too, one on each floor plus a media room near the two second floor family bedrooms.
  • A finished lower level adds a fitness room and large home theater.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

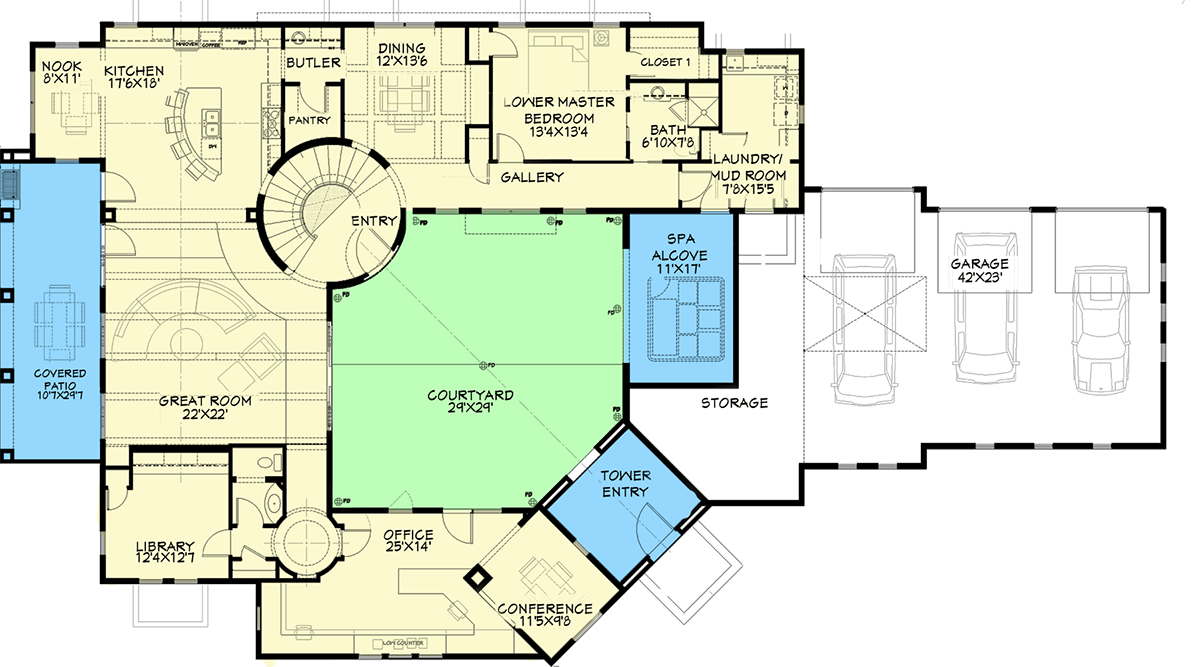

Magnificent Tuscan House Plan - 64409SC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

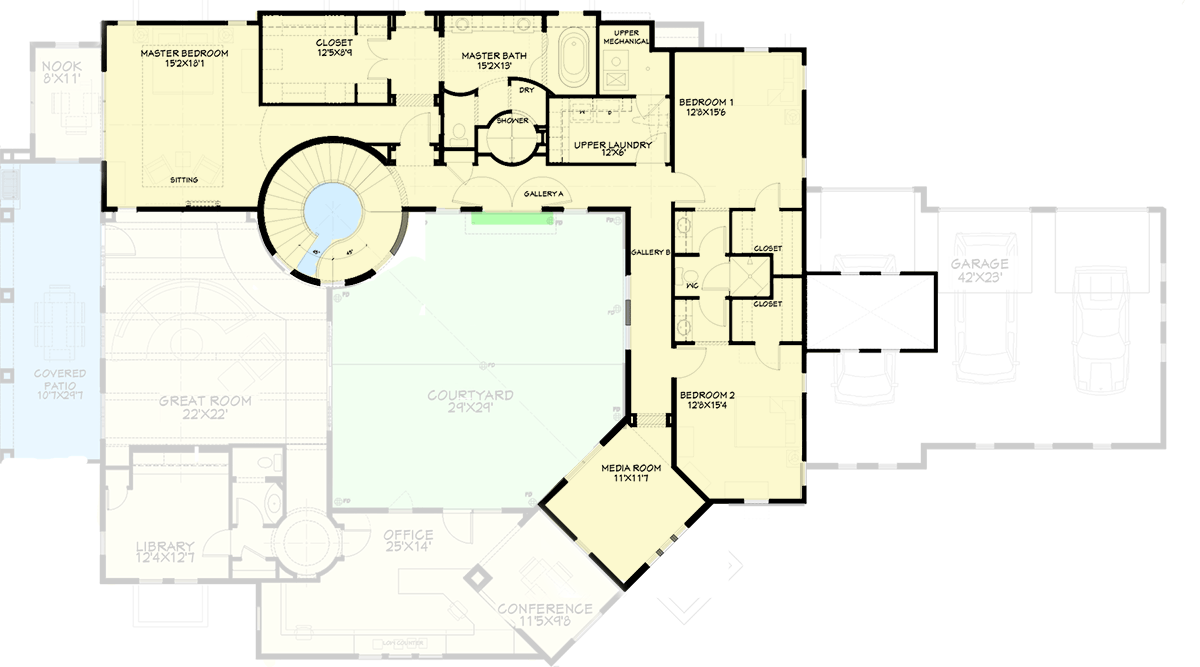

Magnificent Tuscan House Plan - 64409SC floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

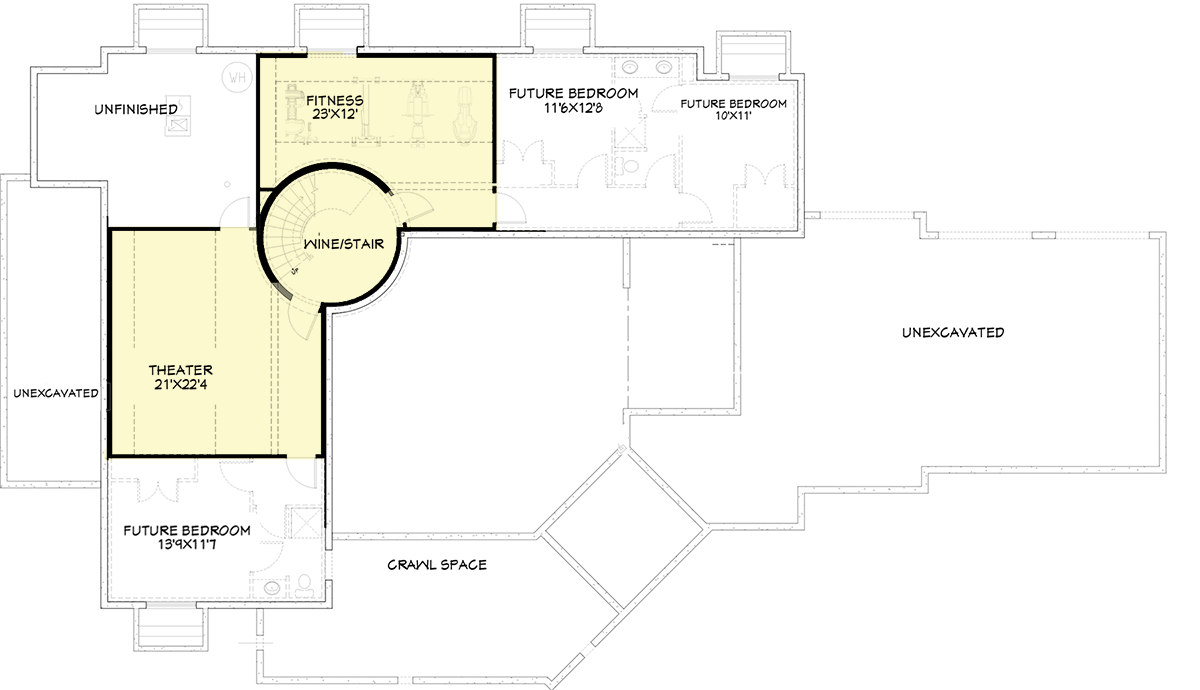

Magnificent Tuscan House Plan - 64409SC floor plan - Lower Level

Magnificent Tuscan House Plan

  • 4,690

    Heated s.f.

  • 4-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,690 sq. ft.
  • 1st Floor: 2,720 sq. ft.
  • 2nd Floor: 1,870 sq. ft.

Dimensions

  • Width: 116' 0"
  • Depth: 64' 0"
  • Max ridge height: 27' 9"

Beds/Baths

  • Bedrooms: 4, 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1211 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
