Plan 72819DA Man Cave with Vaulted Ceilings

2,499 1 1 1-2 3
Print
Compare
...

Man Cave with Vaulted Ceilings

Plan 72819DA

  • 2,499

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Even the three car garage is vaulted in this Carriage house plan that would make a terrific man cave.
  • There's a home office and a hobby room that could serve as a bedroom since it's near the bathroom.
  • A fireplace warms the enormous rec room, big enough for large gatherings at party time.
  • Vaulted loft space on the upper floor is good for storage, bunk beds or whatever you need it to be.
  • A wrap-around patio is covered so you can sit out in the shade.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

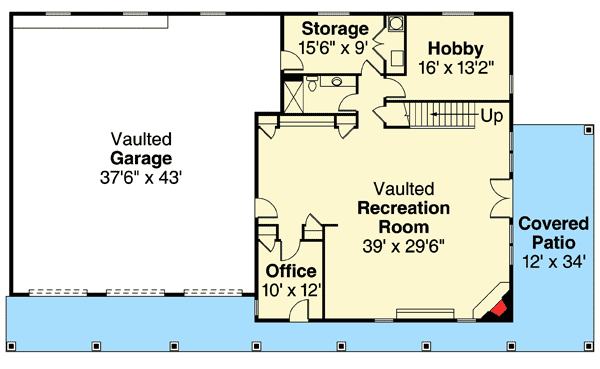

Man Cave with Vaulted Ceilings - 72819DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Man Cave with Vaulted Ceilings - 72819DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,499 sq. ft.
  • 1st Floor: 1,858 sq. ft.
  • 2nd Floor: 641 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 52' 0"
  • Max ridge height: 24' 10"

Garage

  • Type: Attached
  • Area: 1734 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections



Man Cave with Vaulted Ceilings

  • 2,499

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $745
  • PDF Light $975
  • 5 Sets + PDF $1,085
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • Even the three car garage is vaulted in this Carriage house plan that would make a terrific man cave.
  • There's a home office and a hobby room that could serve as a bedroom since it's near the bathroom.
  • A fireplace warms the enormous rec room, big enough for large gatherings at party time.
  • Vaulted loft space on the upper floor is good for storage, bunk beds or whatever you need it to be.
  • A wrap-around patio is covered so you can sit out in the shade.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,499 sq. ft.
  • 1st Floor: 1,858 sq. ft.
  • 2nd Floor: 641 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 90' 0"
  • Depth: 52' 0"
  • Max ridge height: 24' 10"

Garage

  • Type: Attached
  • Area: 1734 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 4 on 12

Plan 72819DA
