Plan 93002EL

Manor With Main Floor Master

4,004 4 3.5 2 3
print
Pageloader

Manor With Main Floor Master

Plan 93002EL

  • 4,004

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The beautiful English Manor French Country exterior gives way to a stunning open floor plan inside.
  • Popular features include a main floor master suite, a home office space, flex space for either formal dining or a study, a gourmet kitchen with large dining area and a vaulted great room overlooking a large rear deck.
  • Upstairs you'll find a recreation room, a lounge, flexible space for a fourth suite or game room, and an optional exercise room.
  • Parking for large vehicles is a breeze, thanks to the garage with ample 3-car dimensions.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Framing
  • First Floor Plan
  • Second Floor Framing (if applicable)
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

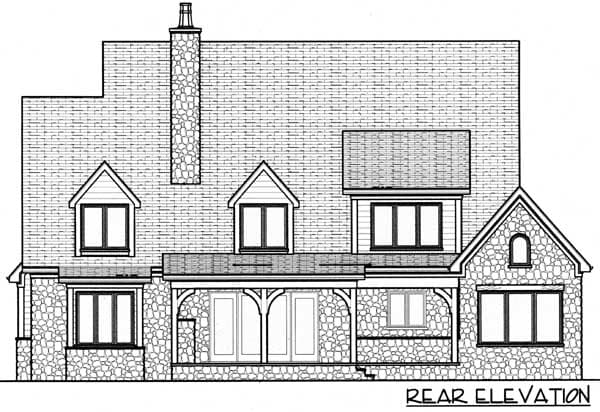

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

Floor Plan

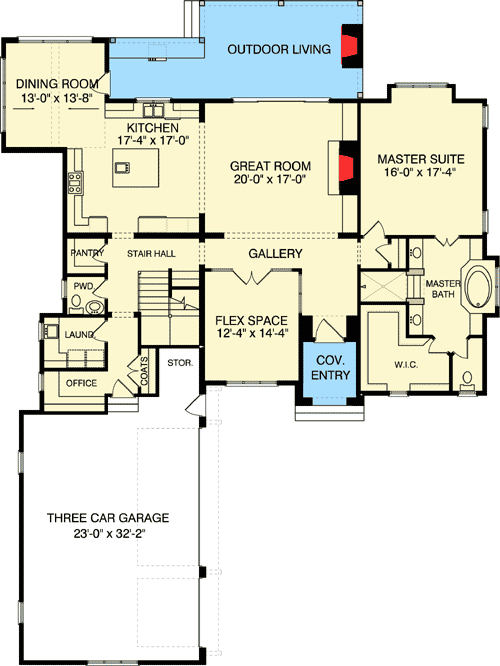

Main Level

Pinit white
Reverse Floor Plan
Manor With Main Floor Master - 93002EL floor plan - Main Level

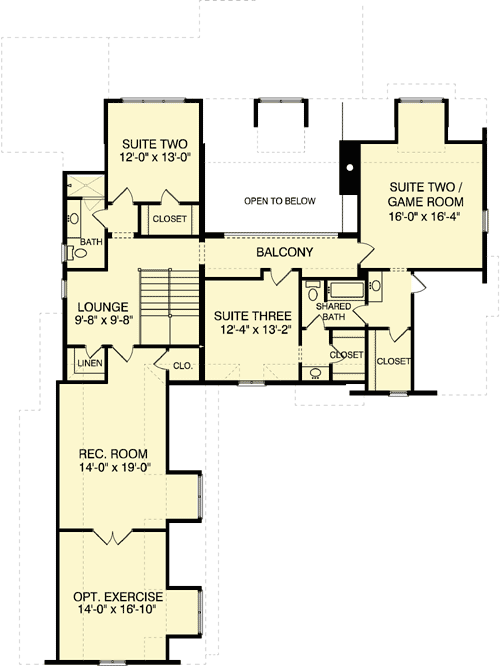

2nd Floor

Pinit white
Reverse Floor Plan
Manor With Main Floor Master - 93002EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,004 sq. ft.
  • 1st Floor: 2,292 sq. ft.
  • 2nd Floor: 1,712 sq. ft.
  • Porch, Combined: 430 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 8"
  • Depth: 86' 6"
  • Max ridge height: 37' 7"

Garage

  • Type: Attached
  • Area: 863 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12

Architectural Style

Special features

Plan Collections



Manor With Main Floor Master

  • 4,004

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,295
  • 5 Sets $2,920
  • CAD $2,920
  • View all purchase option online

About This Plan

  • The beautiful English Manor French Country exterior gives way to a stunning open floor plan inside.
  • Popular features include a main floor master suite, a home office space, flex space for either formal dining or a study, a gourmet kitchen with large dining area and a vaulted great room overlooking a large rear deck.
  • Upstairs you'll find a recreation room, a lounge, flexible space for a fourth suite or game room, and an optional exercise room.
  • Parking for large vehicles is a breeze, thanks to the garage with ample 3-car dimensions.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,004 sq. ft.
  • 1st Floor: 2,292 sq. ft.
  • 2nd Floor: 1,712 sq. ft.
  • Porch, Combined: 430 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 64' 8"
  • Depth: 86' 6"
  • Max ridge height: 37' 7"

Garage

  • Type: Attached
  • Area: 863 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12

Plan 93002EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93002EL
|
