Plan 4254MJ

Marvelous Arches and More

Heated S.F.
4,274
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 4254MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 4254MJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 4254MJ: Marvelous Arches and More - Floor Plan - Main Level - Mediterranean, Spanish

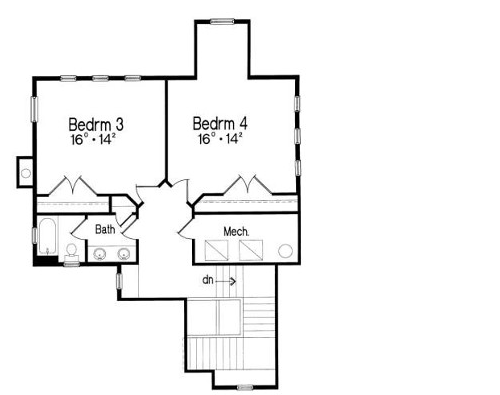

2nd Floor

Plan 4254MJ: Marvelous Arches and More - Floor Plan - 2nd Floor - Mediterranean, Spanish

Plan Details

  • Delicate Corinthian columns welcome you into this very unique home plan.
  • The garage is in the rear of this house, making a perfect buffer for poolside privacy.
  • Privacy is assured in the master suite which has French doors off the front entry portico.
  • The gathering, kitchen and nook all are amply sized and view the pool.
  • The second floor bedrooms share a bath, and a big enough for two.
  • Note the guest room downstairs, the hall closets near foyer, and also the gazebo off the pool the area.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
