Plan 66295WE

Marvelous In-Law Suite

Pageloader

Marvelous In-Law Suite

Plan 66295WE

  • 2,972

    Heated s.f.

  • 2-3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This lovely Old Florida style home plan not only fits on a narrow lot but has a marvelous in-law suite in back.
  • Mom and Dad will have their privacy with a separate entrance, great room, walk-in closet and bathroom.
  • This bonus suite adds 576 square feet of living space to the home.
  • The main house is entered from the side where a large foyer with tray ceiling greets you.
  • A study with coffered ceiling is off to one side.
  • Head back to the main living area that is comprised of the kitchen, dining area and huge great room.
  • The master suite is in the back of the home and has both linear and walk-in closets.

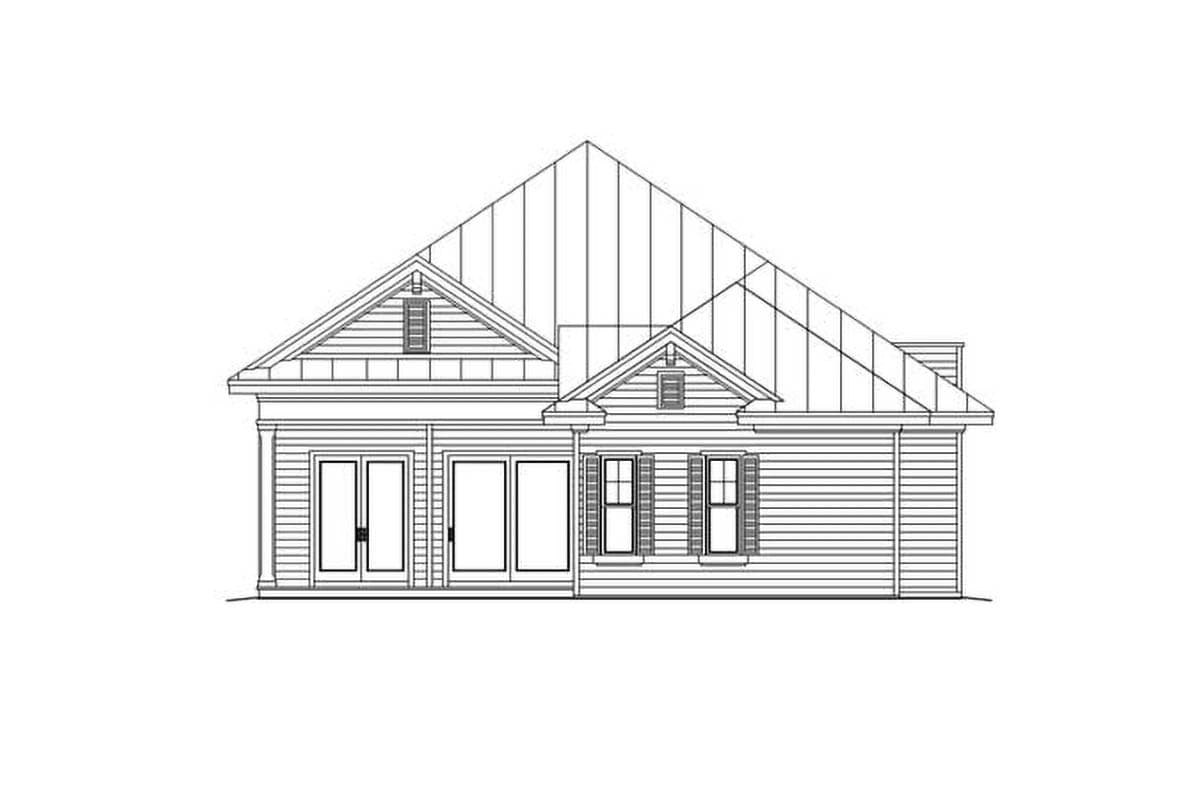

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Marvelous In-Law Suite

  • 2,972

    Heated s.f.

  • 2 - 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,100
  • PDF - single-use $1,100
  • CAD $1,100
  • View all purchase option online

About This Plan

  • This lovely Old Florida style home plan not only fits on a narrow lot but has a marvelous in-law suite in back.
  • Mom and Dad will have their privacy with a separate entrance, great room, walk-in closet and bathroom.
  • This bonus suite adds 576 square feet of living space to the home.
  • The main house is entered from the side where a large foyer with tray ceiling greets you.
  • A study with coffered ceiling is off to one side.
  • Head back to the main living area that is comprised of the kitchen, dining area and huge great room.
  • The master suite is in the back of the home and has both linear and walk-in closets.

Floor Plans

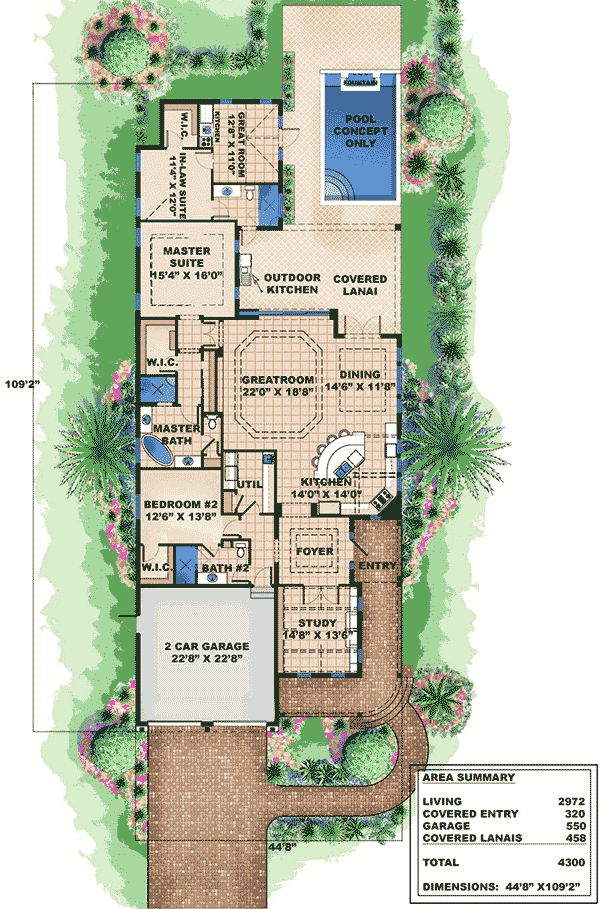

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,972 sq. ft.
  • 1st Floor: 2,972 sq. ft.
  • Lanai: 458 sq. ft.
  • Entry: 320 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 44' 8"
  • Depth: 109' 2"

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
