Plan 11780HZ

Marvelous Open Floor Plan

Heated S.F.

1,850

Beds

3

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

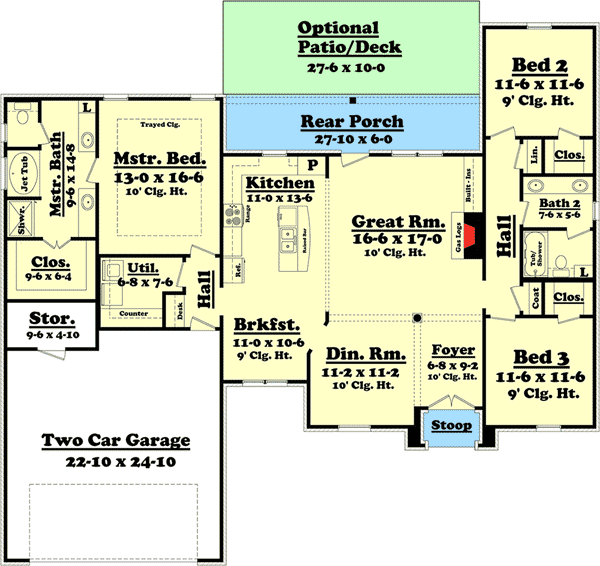

Marvelous Open Floor Plan - 11780HZ floor plan - Main Level

Plan Details

From the moment you step into the foyer, amazing views encompass the dining room, great room, kitchen and the rear covered porch beyond.
Add an optional patio/deck if your lot allows.
A beautiful tray ceiling tops the master suite that is set off by itself for privacy.
Two sinks and a jetted soaking tub will pamper homeowners.
On the opposite side of the home two family bedrooms share a compartmented hall bathroom.

What's Included

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Square Footage Breakdown

Total Heated Area:

1,850 sq. ft.

1st Floor:

1,850 sq. ft.

Storage:

52 sq. ft.

Porch, Combined:

199 sq. ft.

Porch, Rear:

162 sq. ft.

Porch, Front:

37 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Crawl, Slab

Optional Foundations:

Basement, Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

63' 6"

Depth:

57' 10"

Max Ridge Height:

22' 9"

Garage

Type:

Attached

Area:

560 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

Primary Pitch:

9 on 12

Secondary Pitch:

12 on 12

Framing Type:

Stick

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections
