Marvelous Open Floor Plan

Plan 17701LV

  • 2,494

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A marvelous open floor plan combines the family room, kitchen and breakfast nook allowing views through a wall of windows out to the rear covered veranda.
  • Built-ins flank the fireplace that provides a wonderful focal point.
  • The master suite is located on the first floor and has a spacious walk-in closet plus doors leading to the rear veranda.
  • Each of the bedrooms on the second floor has its own bath and a loft area close by makes a great study spot.
  • The max ridge height is 27’ – 10” to the first floor subfloor.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

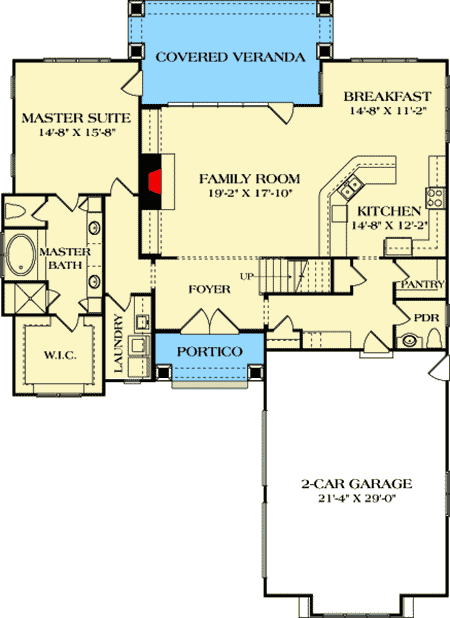

Marvelous Open Floor Plan - 17701LV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

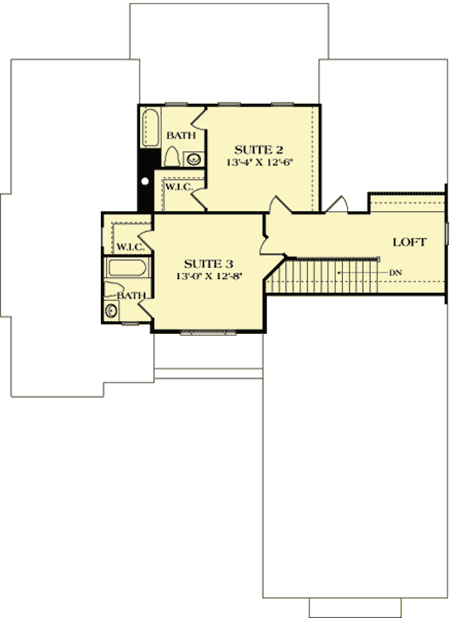

Marvelous Open Floor Plan - 17701LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,494 sq. ft.
  • 1st Floor: 1,767 sq. ft.
  • 2nd Floor: 727 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 4"
  • Depth: 73' 7"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 671 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12

Architectural Style

Special features

Marvelous Open Floor Plan

  • 2,494

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,250
  • PDF - Single-Build $1,250
  • CAD - Single-Build $2,499
  • View all purchase option online

About This Plan

  • A marvelous open floor plan combines the family room, kitchen and breakfast nook allowing views through a wall of windows out to the rear covered veranda.
  • Built-ins flank the fireplace that provides a wonderful focal point.
  • The master suite is located on the first floor and has a spacious walk-in closet plus doors leading to the rear veranda.
  • Each of the bedrooms on the second floor has its own bath and a loft area close by makes a great study spot.
  • The max ridge height is 27’ – 10” to the first floor subfloor.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,494 sq. ft.
  • 1st Floor: 1,767 sq. ft.
  • 2nd Floor: 727 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 53' 4"
  • Depth: 73' 7"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 671 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
Plan 17701LV
View this and more for this plan by visiting www.architechtecturaldesigns.com/17701LV
|
Need Help? 800-854-7852
|
