Plan 90174PD
Master Down 3 Bedroom Cottage
Heated S.F.
1,450
Beds
3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details
  • This 3 bedroom cottage features the master bedroom on the main floor maximizing your privacy and eliminating the need for excessive stair climbing.
  • The dining and living room comprise of one open space and with the kitchen nearby, you have a great space for spendging with friends and family.
  • The optional porch in back gives you room for expansion and can be enclosed for multi-season use.
  • Two bedrooms share a bath upstairs.
What's Included
Please note this plan is designed to the National Building Code of Canada.

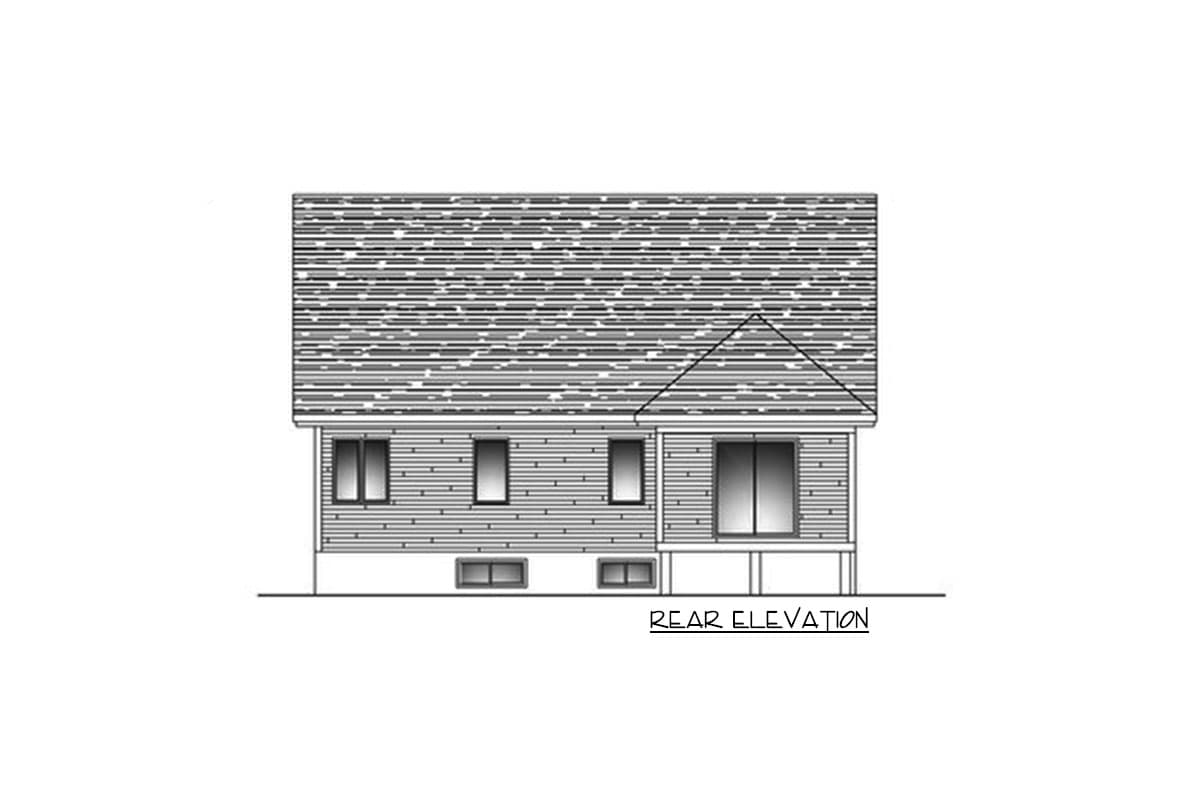

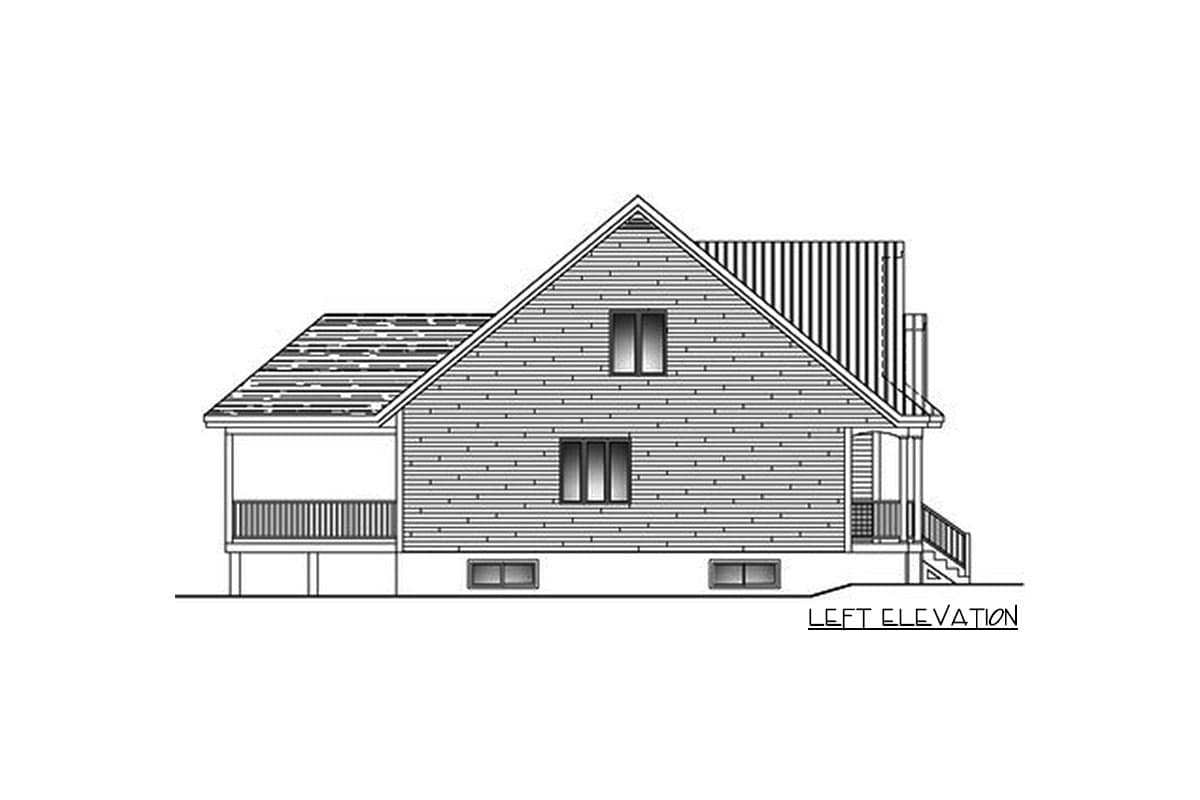

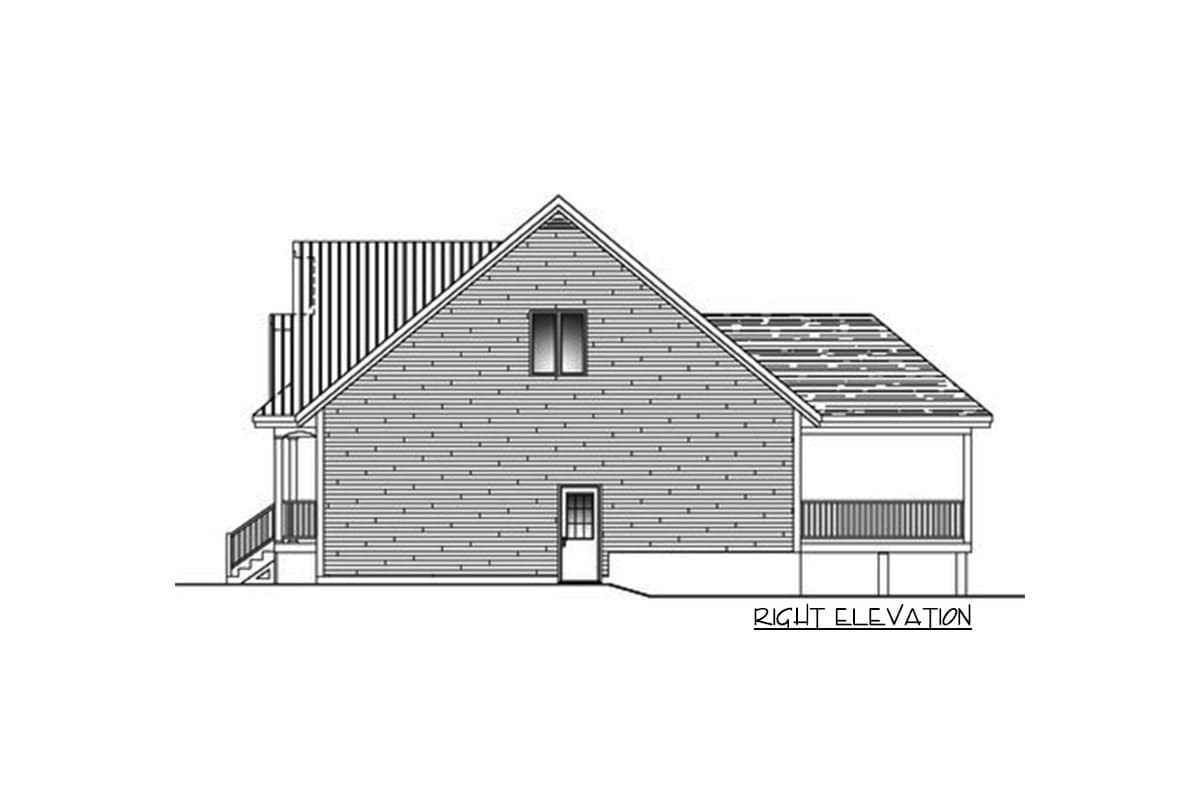

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Master Down 3 Bedroom Cottage

  • 1,450

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

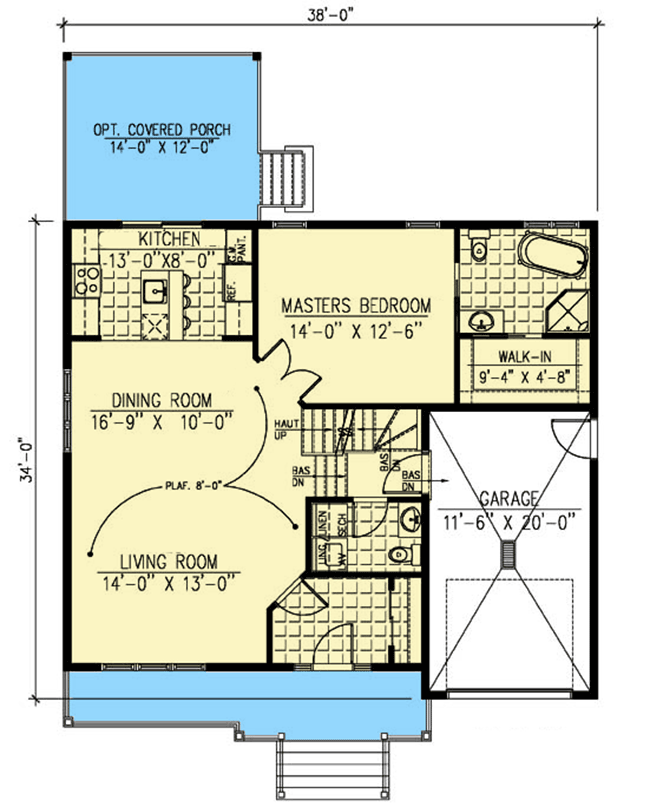

Floor Plan

  • Main Level

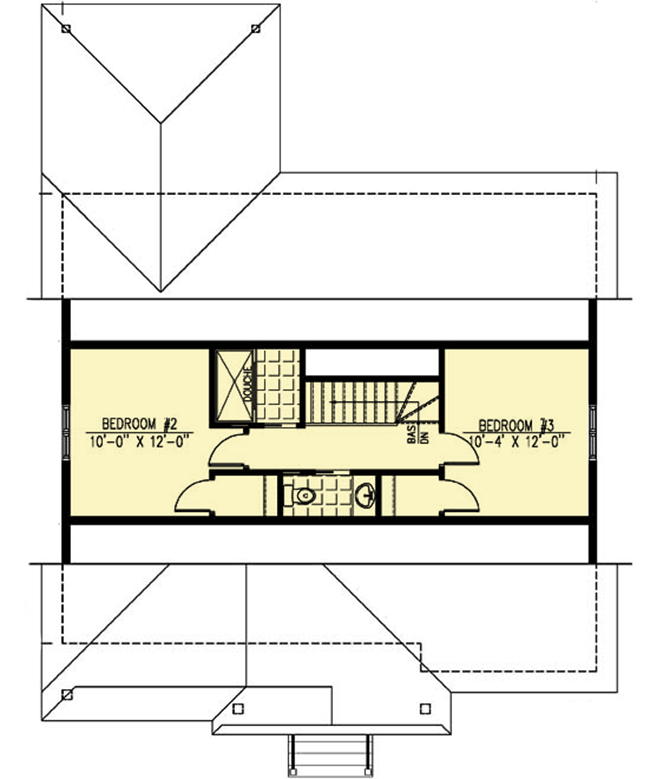

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,450 sq. ft.
  • 1st Floor: 994 sq. ft.
  • 2nd Floor: 456 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 34' 0"
  • Max ridge height: 27' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 247 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
