Master Down with Exterior Options

Plan 93041EL

  • 3,243

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This master down house plan comes with two exterior options both sharing the same flexibile floor plan.
  • The master suite is very private and has a large walk-in dressing room. Laundry is conveniently located steps away.
  • The family room is open to the breakfast room and kitchen. Columns help divide the spaces.
  • The foyer is flanked by a formal area and a study or guest suite.
  • Three bedrooms upstairs and a large game room (or home theater) complete this house plan.
  • Related Plan: For an alternate exterior, see house plan 93042EL.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

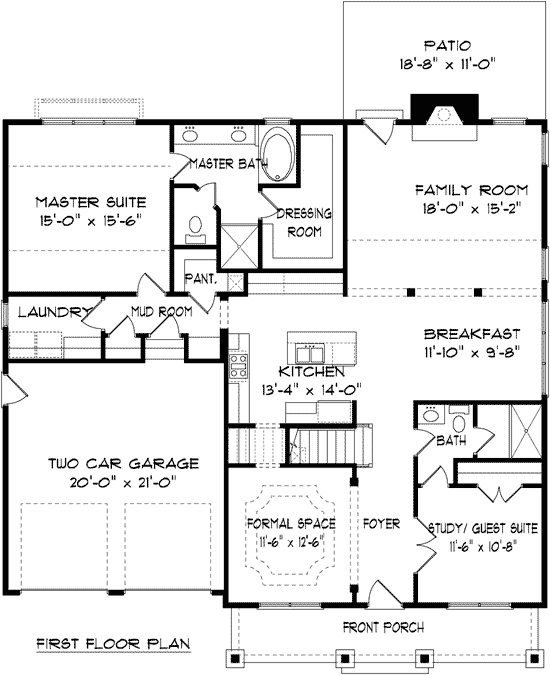

Master Down with Exterior Options - 93041EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

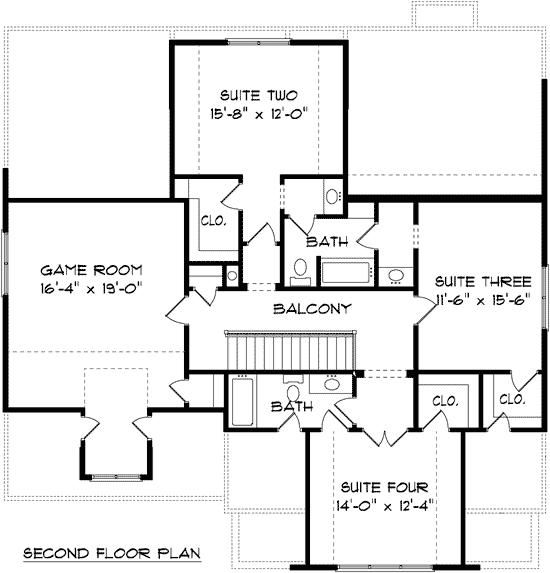

Master Down with Exterior Options - 93041EL floor plan - 2nd Floor
