Plan 93042EL

Exclusive

Master Down with Exterior Options

Heated S.F.
3,243
Beds
3 - 4
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 93042EL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 93042EL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

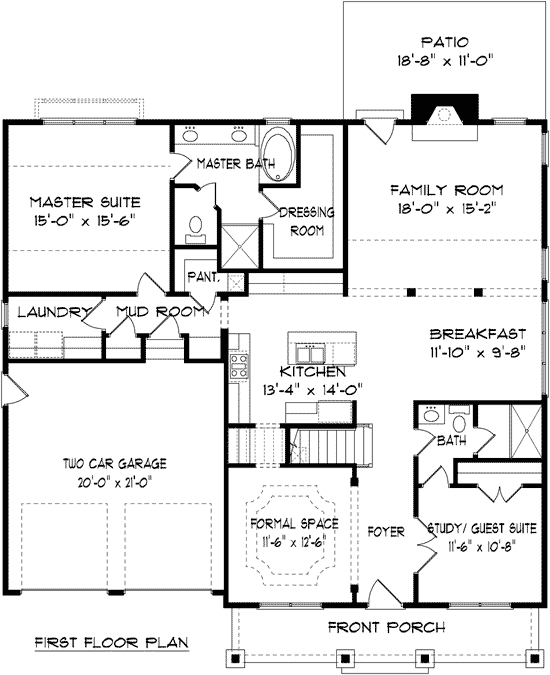

Plan 93042EL: Master Down with Exterior Options - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

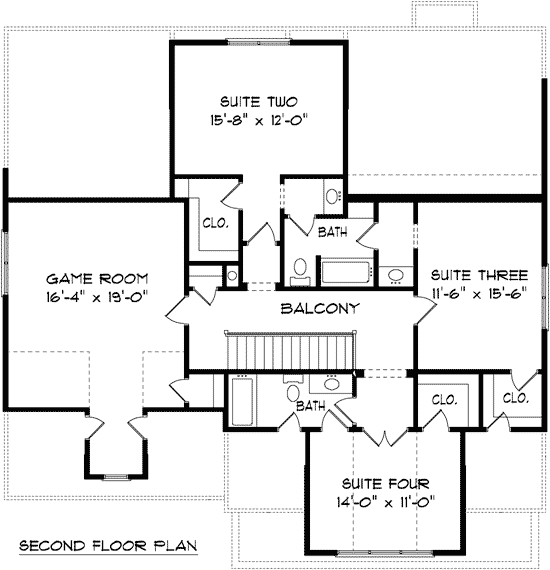

Plan 93042EL: Master Down with Exterior Options - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • This master down house plan comes with two exterior options both sharing the same flexibile floor plan.
  • The master suite is very private and has a large walk-in dressing room. Laundry is conveniently located steps away.
  • The family room is open to the breakfast room and kitchen. Columns help divide the spaces.
  • The foyer is flanked by a formal area and a study or guest suite.
  • Three bedrooms upstairs and a large game room (or home theater) complete this house plan.
  • Related Plan: For an alternate exterior, see house plan 93041EL.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan
  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,243 sq. ft.

1st Floor

1,775 sq. ft.

2nd Floor

1,468 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

50' 2"

Depth

52' 5"

Garage

Type

Attached

Area

442 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Northwest

Special Features

Game/Rec Room

Home Theater

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Exclusive
