Plan 39221ST Master Down with Great Outdoor Spaces

Master Down with Great Outdoor Spaces

Plan 39221ST

  • 5,779

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

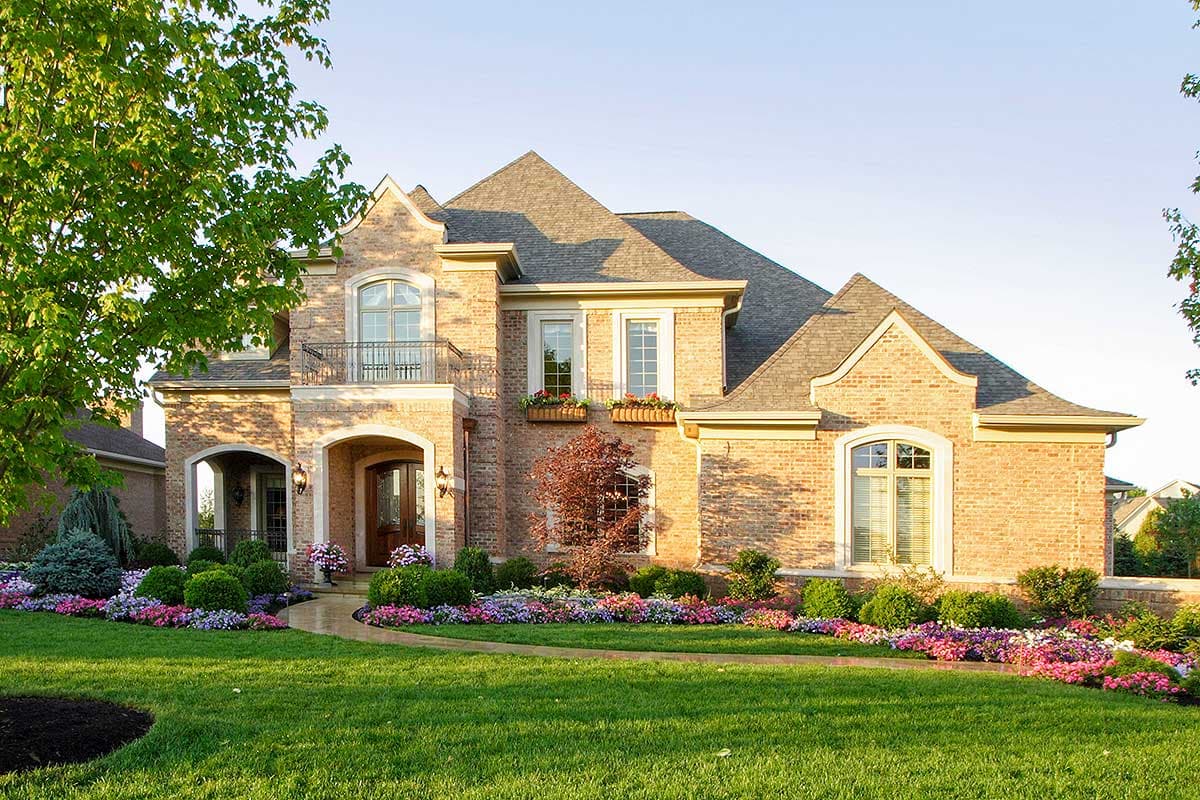

  • A brick facade with heavy limestone trim and arched gables creates a beautifully appointed exterior.

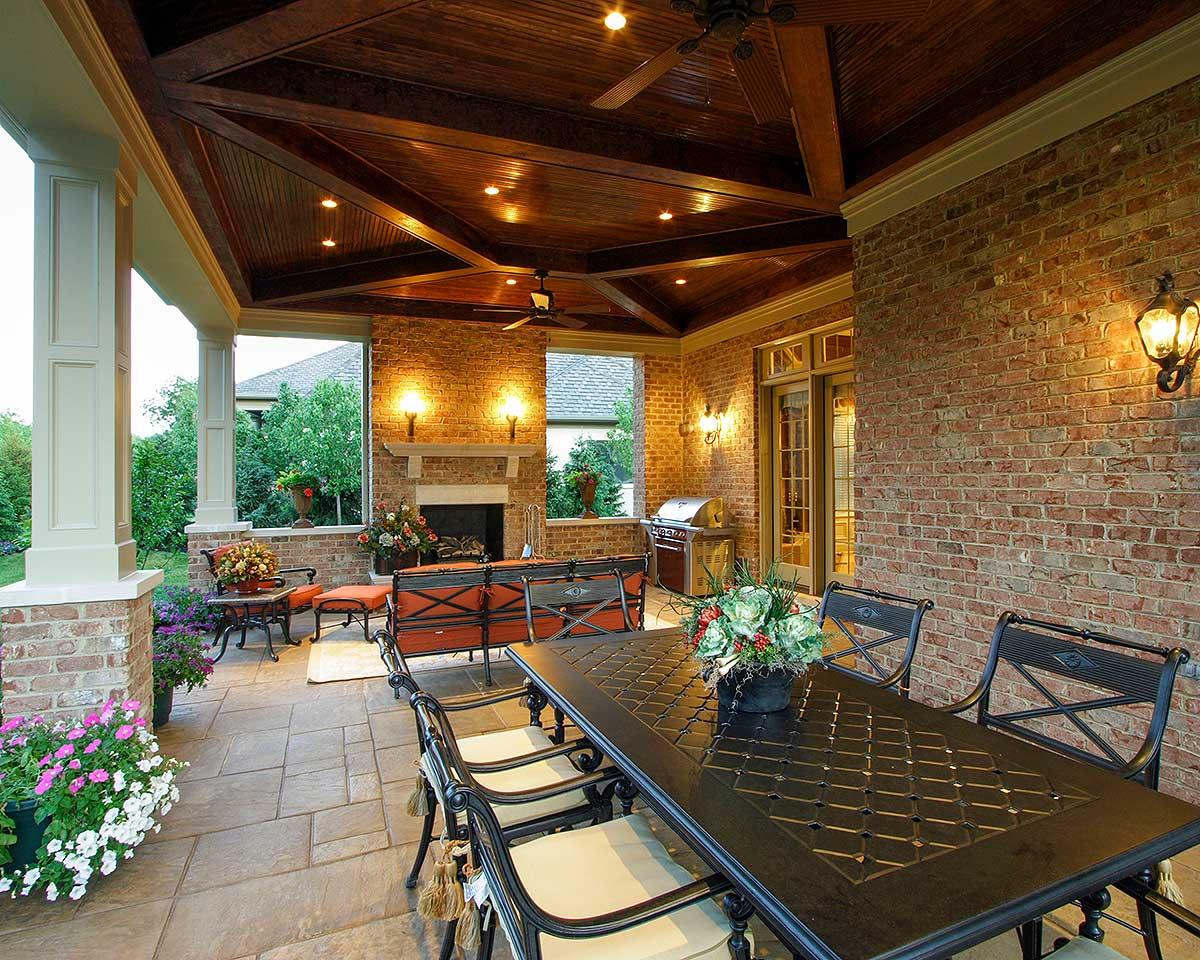

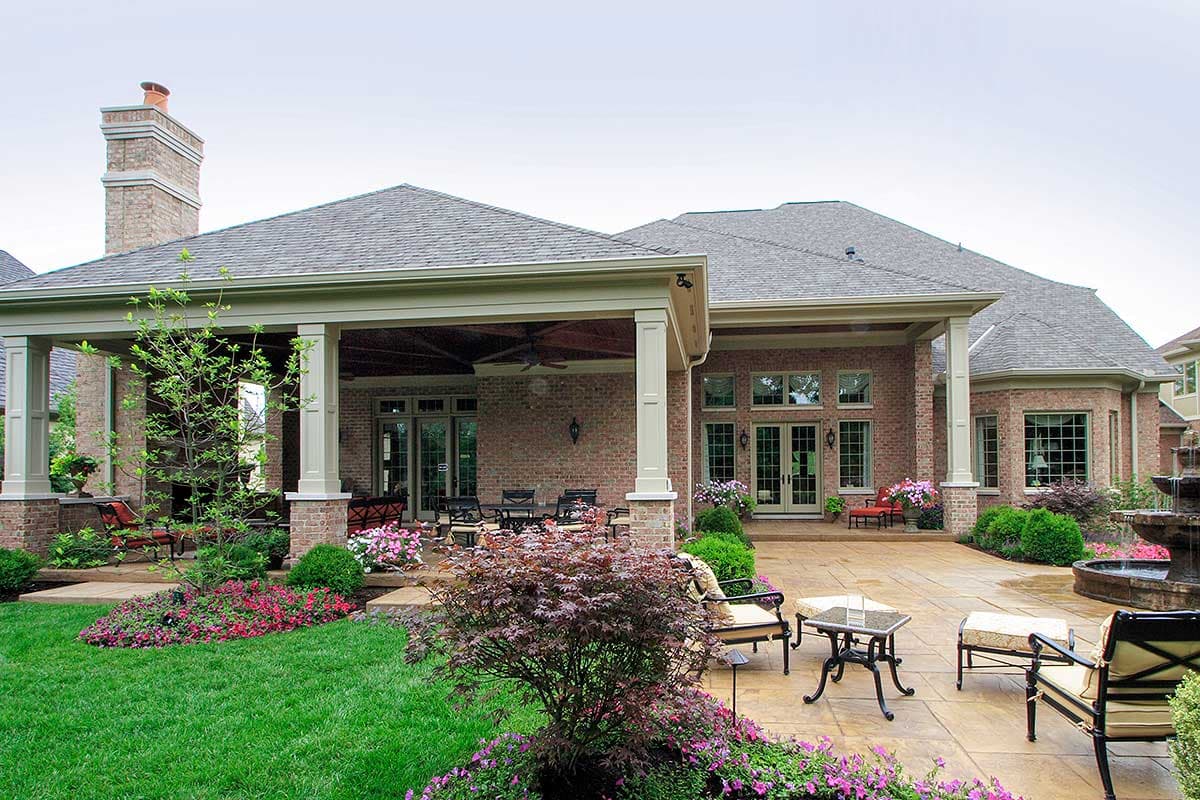

  • Covered porches provide wonderful outdoor living spaces and the luxurious interior includes a library.
  • Great Room and Sitting Room each with a gas fireplace, high ceilings throughout with a 2-story entry hall,a Pub with wet bar, and Master Suite with a lavishly equipped bath.
  • A large pantry, wall oven, island with seating and 6 burner cooktop enhance the cooking experience in this designed Kitchen.
  • Each family member will feel pampered in their own bedroom with priave bath and walk-in closet.
  • From the balcony you can enjoy a dramatic view to the Entry Hall below and a centralized computer area makes sense for the younger family members.
  • Hours of fun and relaxation is the intent of the finished lower level.
  • A three car garage and serviceable mud room with large walk-in closet helps maintain order.

  • General notes and specifications

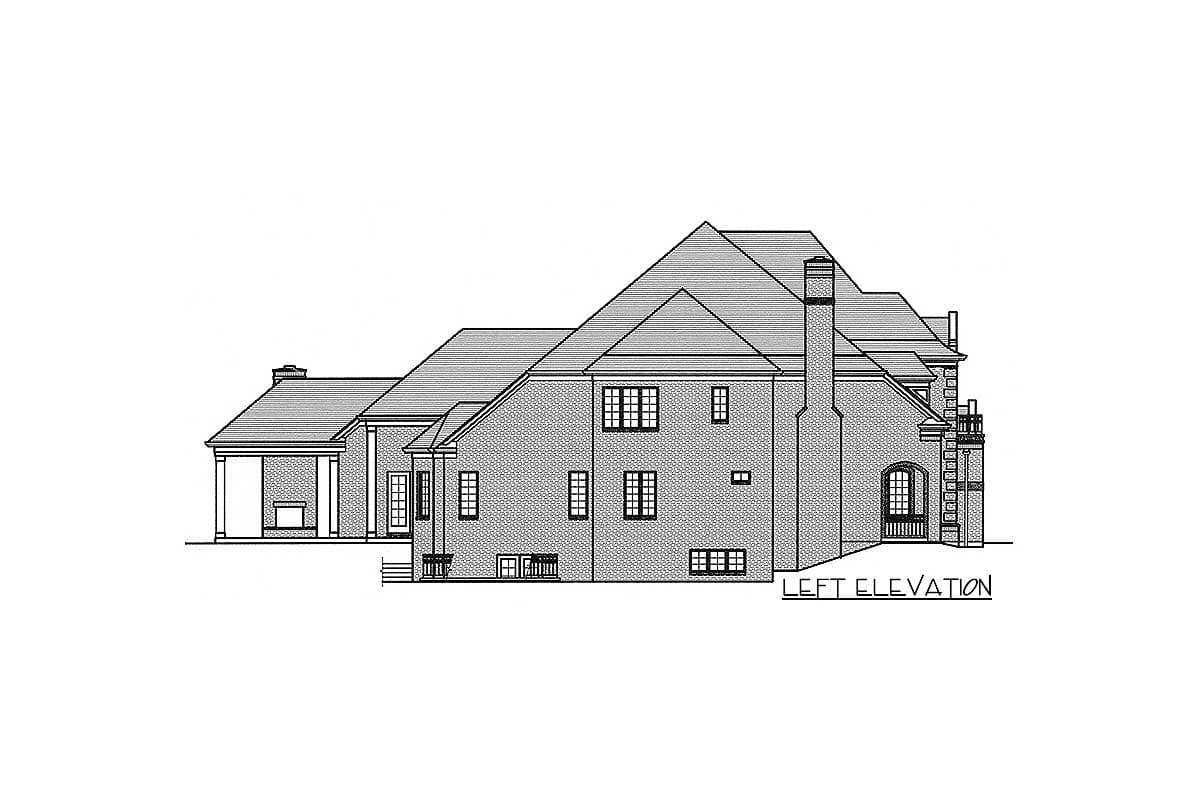

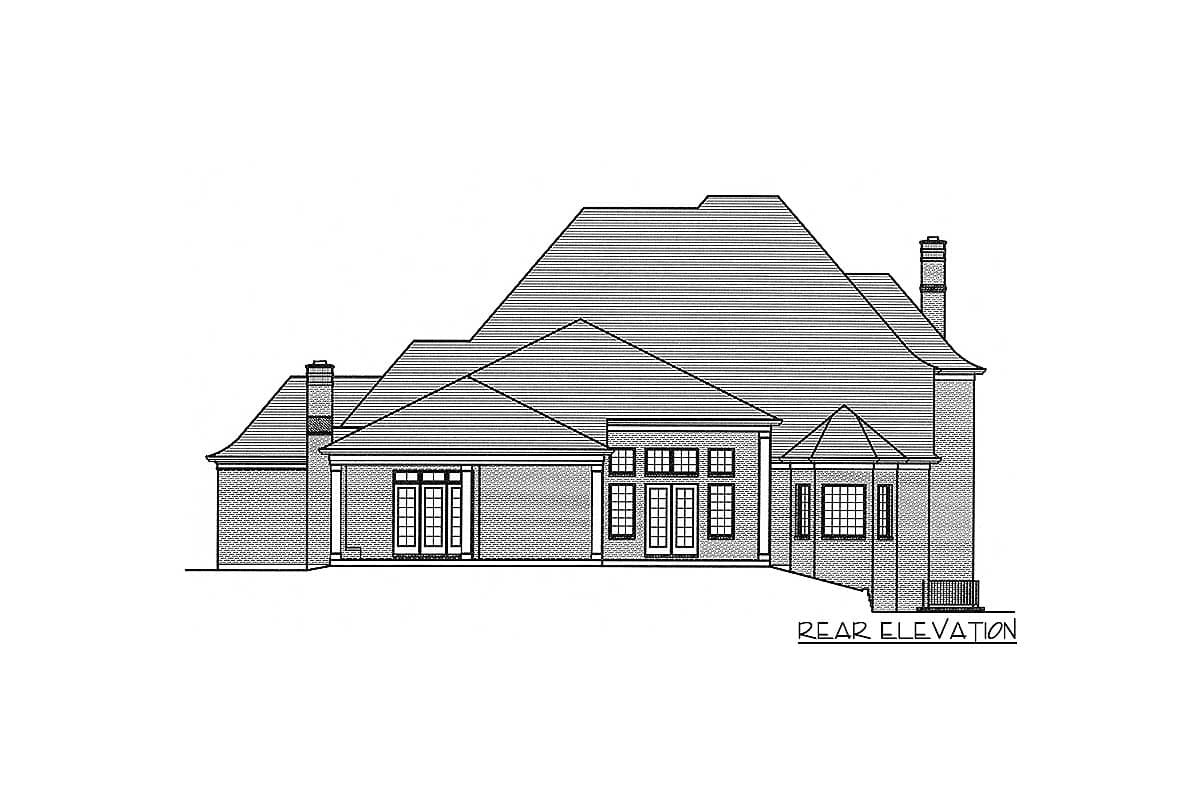

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

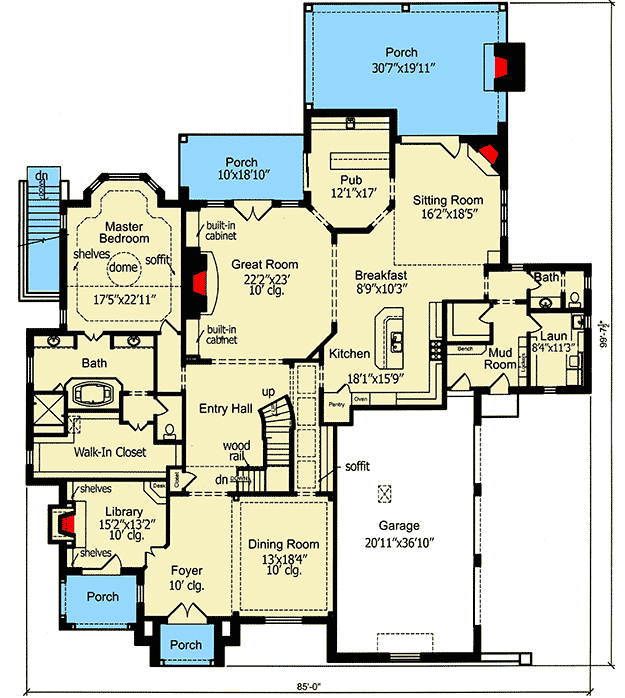

Master Down with Great Outdoor Spaces - 39221ST floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

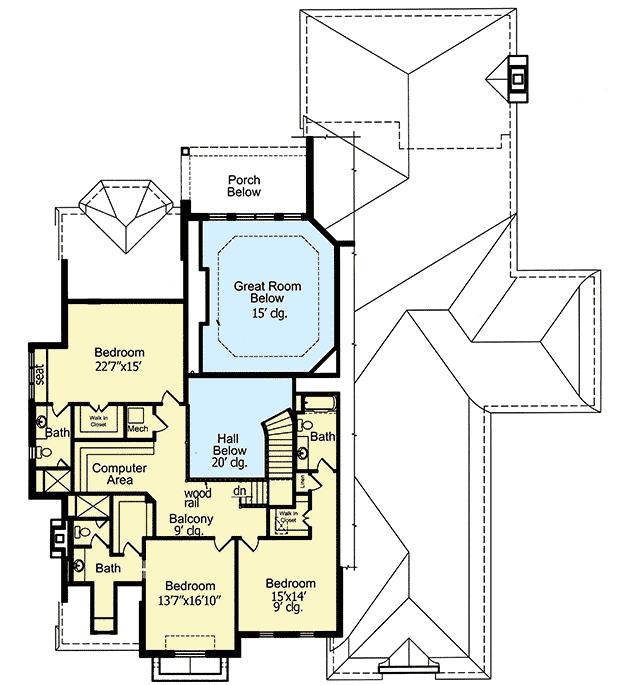

Master Down with Great Outdoor Spaces - 39221ST floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

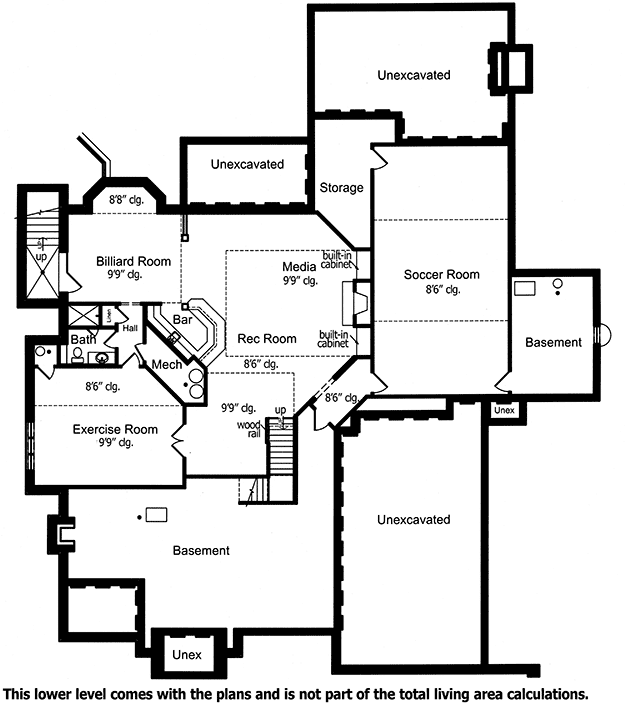

Master Down with Great Outdoor Spaces - 39221ST floor plan - Basement

Plan details

Master Down with Great Outdoor Spaces

  • 5,779

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,175
  • PDF - Single-Build $1,400
  • 5 Sets + PDF $1,470
  • PDF - Unlimited Build $1,750
  • CAD - Unlimited Build $2,190
  • View all purchase option online

About This Plan

  • A brick facade with heavy limestone trim and arched gables creates a beautifully appointed exterior.
  • Covered porches provide wonderful outdoor living spaces and the luxurious interior includes a library.
  • Great Room and Sitting Room each with a gas fireplace, high ceilings throughout with a 2-story entry hall,a Pub with wet bar, and Master Suite with a lavishly equipped bath.
  • A large pantry, wall oven, island with seating and 6 burner cooktop enhance the cooking experience in this designed Kitchen.
  • Each family member will feel pampered in their own bedroom with priave bath and walk-in closet.
  • From the balcony you can enjoy a dramatic view to the Entry Hall below and a centralized computer area makes sense for the younger family members.
  • Hours of fun and relaxation is the intent of the finished lower level.
  • A three car garage and serviceable mud room with large walk-in closet helps maintain order.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,779 sq. ft.
  • 1st Floor: 4,095 sq. ft.
  • 2nd Floor: 1,684 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 85' 0"
  • Depth: 99' 8"

Garage

  • Type: Attached
  • Area: 770 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 9" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
