Master Suite with Sitting Room

Plan 737009LVL

  • 1,912

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • An arched entry porch shelters your arrival at the front door of this Northwest house plan.
  • Designed for a narrow lot, the home is only 34' wide but its open floor layout make makes the home feel bigger.
  • Double doors open to reveal the home office off the foyer.
  • Sliding glass doors in the dining area lead out to a rear patio.
  • Four large bedrooms are all up on the second floor with the master suite having a large sitting area.
  • The laundry room is also conveniently located on this floor.
  • Related Plan: Get a smaller version without the den with house plan 737011LVL.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections
Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

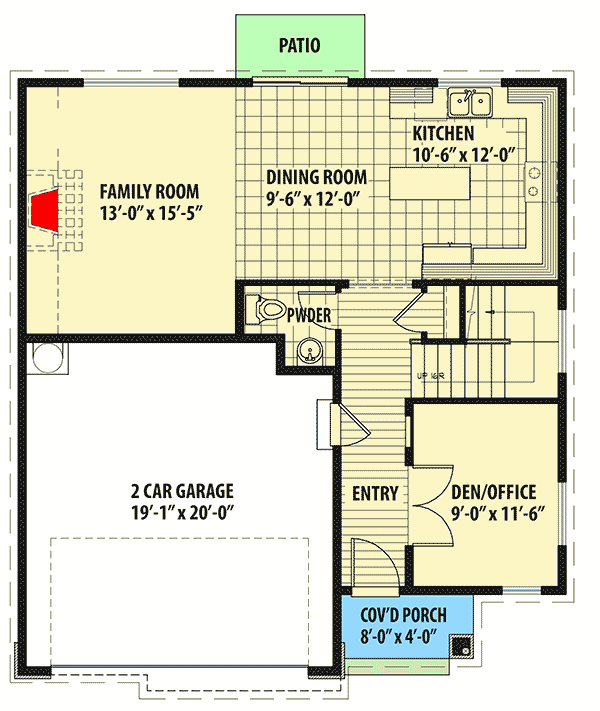

Master Suite with Sitting Room - 737009LVL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Master Suite with Sitting Room - 737009LVL floor plan - 2nd Floor

Master Suite with Sitting Room

  • 1,912

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,912 sq. ft.
  • 1st Floor: 782 sq. ft.
  • 2nd Floor: 1,130 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 38' 0"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 386 sq. ft.
  • Count: 2 Cars

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
