Plan 72716DA
Master With Deck Access
Heated S.F.
1,639
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This house plan was designed for rear sloping lot and can easily be built on a flat site. The primary difference plays out on the rear deck, which would be elevated over a down slope and at ground level otherwise.
  • Shingles fill the upper sections of three gables that add to the overall country-style ambiance. The Craftsman windows across the front facade include a row of small panes above the door. Slender wooden columns set on stone veneer bases highlight the gabled porch vestibule.
  • A living room with a fireplace fills the right side of the wide open gathering space. The dining room is fully open to the living room, and partially open to the kitchen across a work island rimmed by a curved eating bar. Sliding glass doors in the dining area open onto a railed and covered deck with a vaulted ceiling.
  • Counters span three sides of the kitchen and storage is surprisingly generous, running over and under the counters on two sides, as well as under the work island counter. Plus the pantry fills one entire corner. Laundry appliances are nearby, in a pass-through utility room with garage access.
  • Two bedrooms and a full bathroom are down a hallway to the right of the entry, while the owners' suite is down the opposite hallway. Suite amenities include a walk-in closet and a bathroom with dual vanity, oversized shower and private toilet and deck access.
  • The roof has a 7:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Master With Deck Access

  • 1,639

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

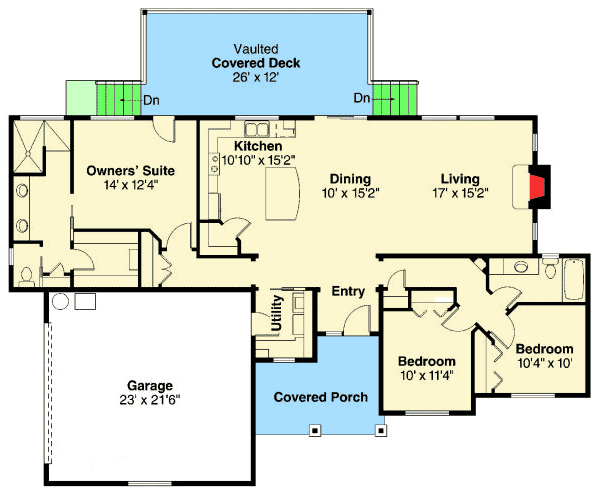

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,639 sq. ft.
  • 1st Floor: 1,639 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 54' 0"
  • Max ridge height: 19' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 7 on 12
