Matching Traditional Homes with Shared Porte-Cochere

Plan 59728ND

  • 4,442

    Heated s.f.

  • 2

    Units

  • 108' 4"

    Width

  • 86' 2"

    Depth

  • From the dormer windows to the columns on the covered front porch, your eyes are drawn to the exquisite exterior details of this dual family plan. The Porte Cochere acts as a unifying feature and adds even more visual interest.
  • Inside the mirror image floor plans the masterful use of space allows open airy rooms with 9-foot ceilings on the first floor.
  • The master suite’s bath includes a double vanity, glass shower and whirlpool bath.
  • Other features include a great room fireplace and media center.
  • Good times are waiting outdoors on the grilling porch.
  • Upstairs highlights included a bath and two bedrooms with a work center in between that offers convenience.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

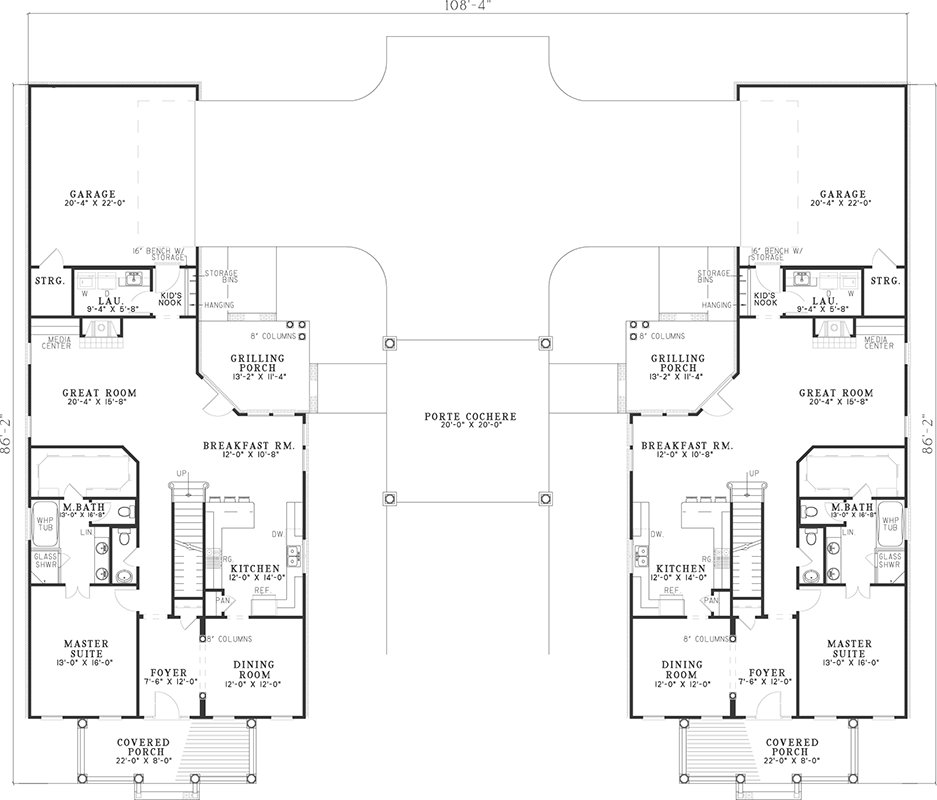

Matching Traditional Homes with Shared Porte-Cochere - 59728ND floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Matching Traditional Homes with Shared Porte-Cochere - 59728ND floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,442 sq. ft.
  • 1st Floor: 3,296 sq. ft.
  • 2nd Floor: 1,146 sq. ft.
  • Porch, Rear: 388 sq. ft.
  • Porch, Front: 352 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 108' 4"
  • Depth: 86' 2"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1006 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Special features

Plan Collections

Matching Traditional Homes with Shared Porte-Cochere

  • 4,442

    Heated s.f.

  • 2

    Units

  • 108' 4"

    Width

  • 86' 2"

    Depth

Buy This Plan
  • PDF - Single-Build $1,550
  • 5 Sets $1,650
  • 5 Sets + PDF $1,900
  • PDF - Unlimited Build $2,250
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • From the dormer windows to the columns on the covered front porch, your eyes are drawn to the exquisite exterior details of this dual family plan. The Porte Cochere acts as a unifying feature and adds even more visual interest.
  • Inside the mirror image floor plans the masterful use of space allows open airy rooms with 9-foot ceilings on the first floor.
  • The master suite’s bath includes a double vanity, glass shower and whirlpool bath.
  • Other features include a great room fireplace and media center.
  • Good times are waiting outdoors on the grilling porch.
  • Upstairs highlights included a bath and two bedrooms with a work center in between that offers convenience.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,442 sq. ft.
  • 1st Floor: 3,296 sq. ft.
  • 2nd Floor: 1,146 sq. ft.
  • Porch, Rear: 388 sq. ft.
  • Porch, Front: 352 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 108' 4"
  • Depth: 86' 2"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1006 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
