Mediterranean Dream Home Plan

Plan 9539RW

This plan plants 10 trees

7,805
Heated s.f.
4
Beds
5.5+
Baths
1
Stories
4
Cars

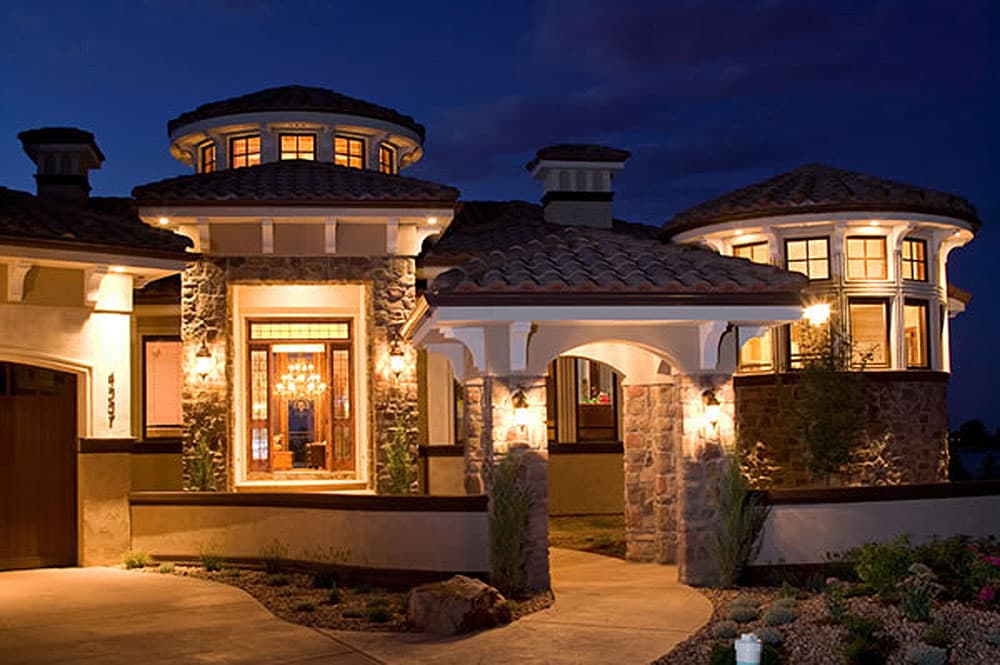

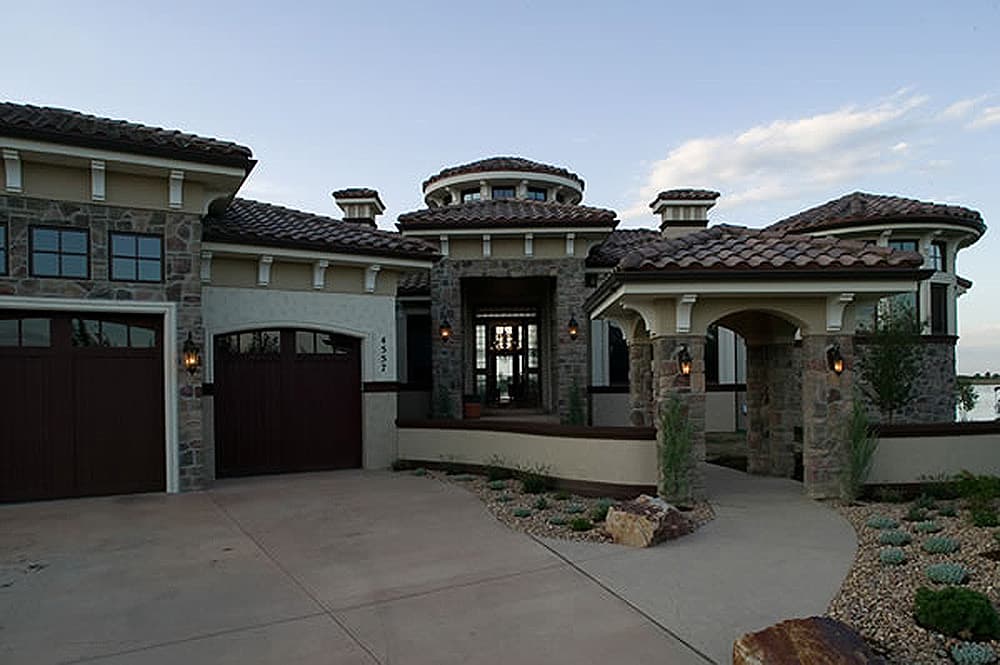

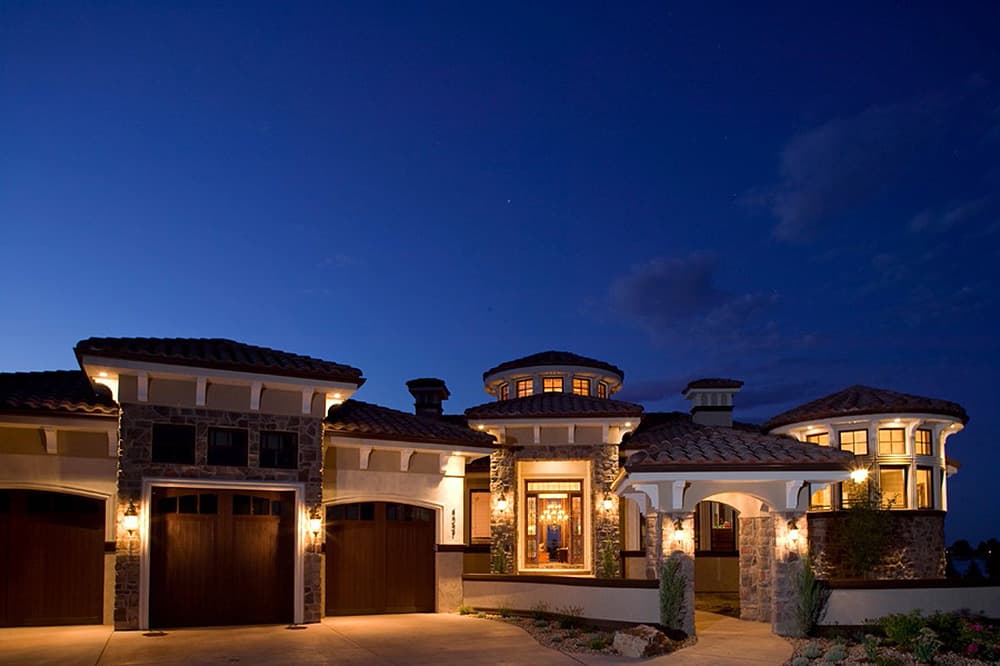

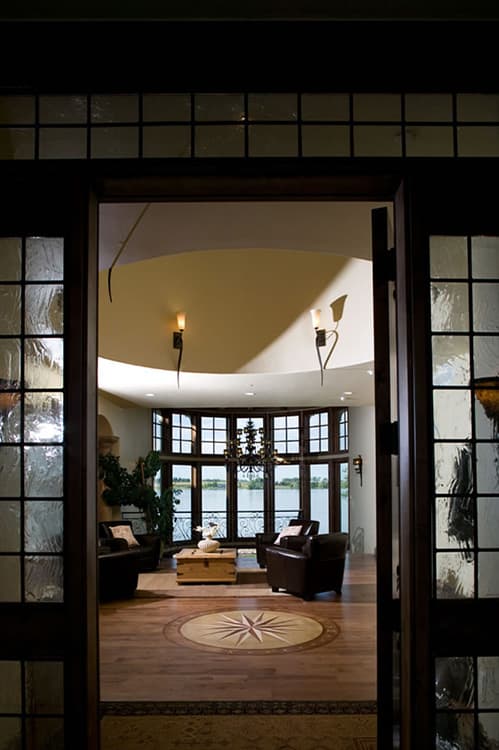

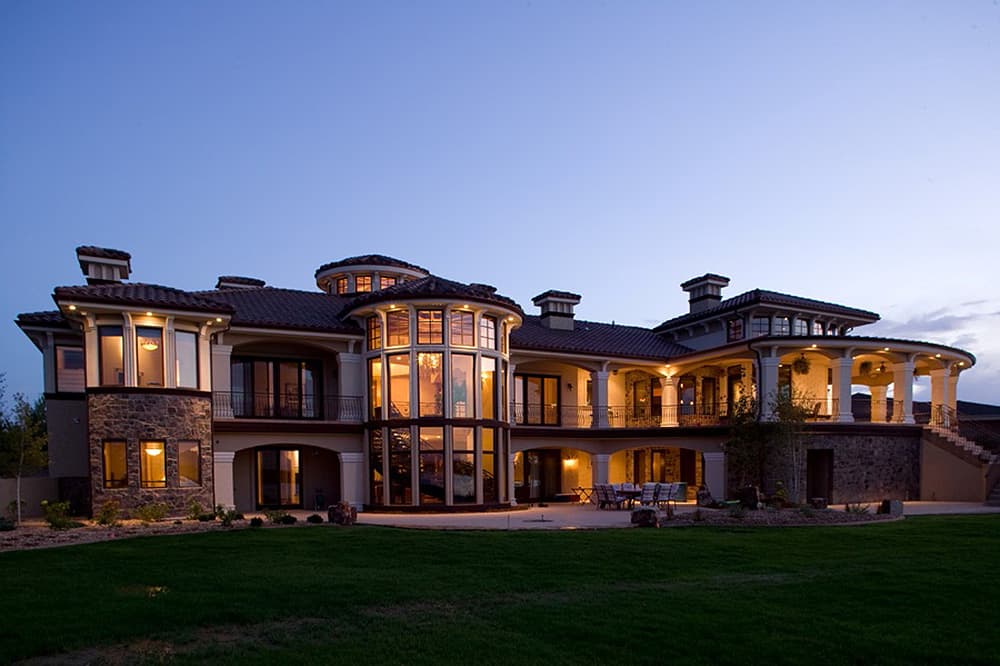

A dramatic and stunning exterior with a courtyard entrance hints at all the luxurious amenities within. This Mediterranean home plan was designed for entertaining on a grand scale with a huge entry hall to greet you upon entering.

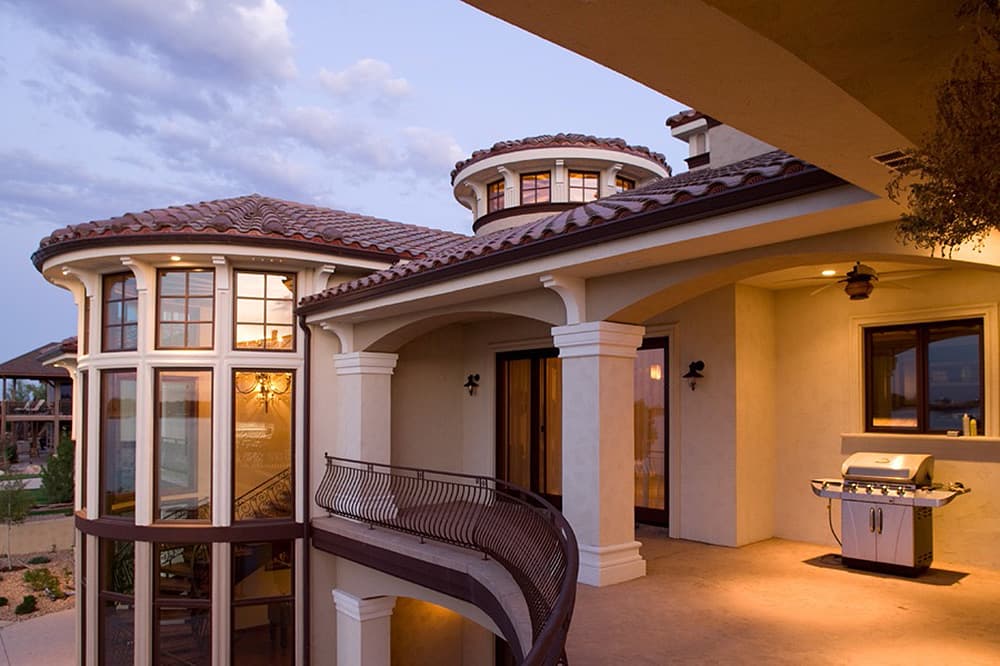

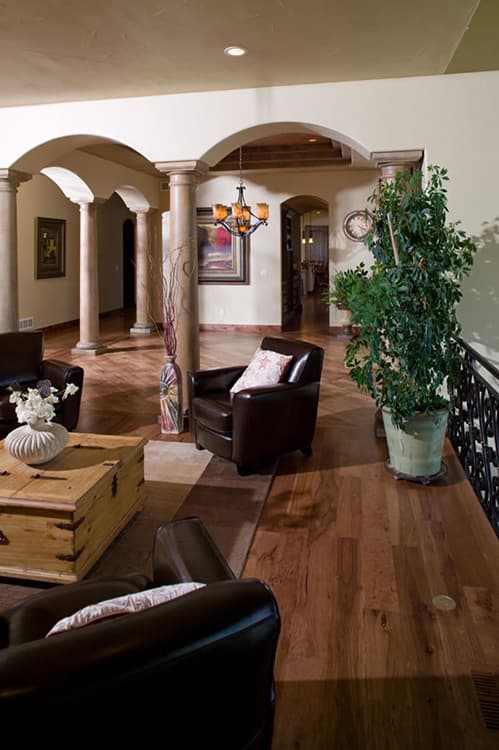

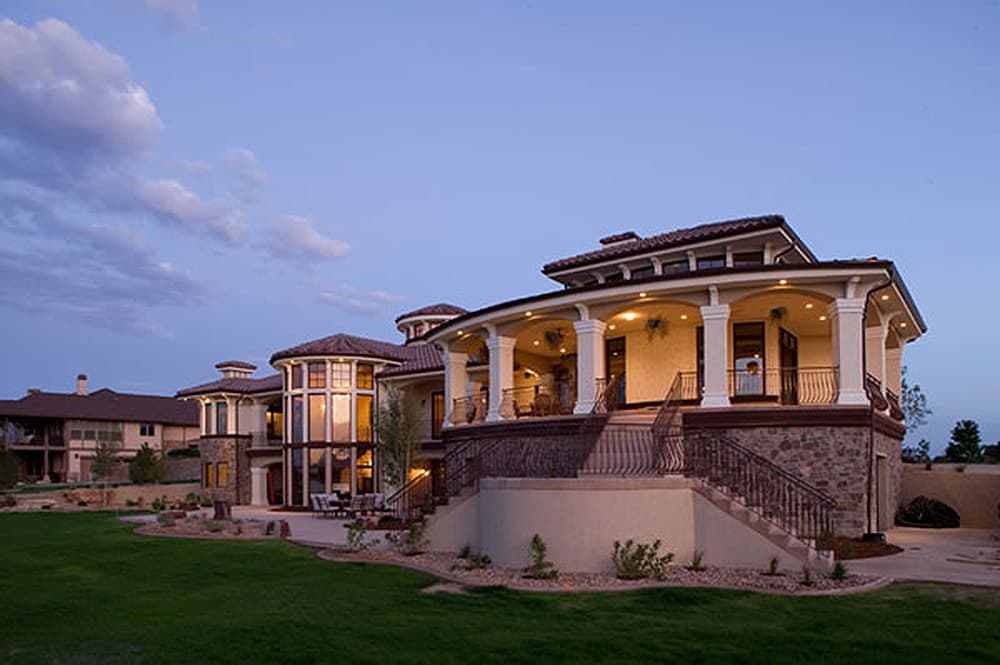

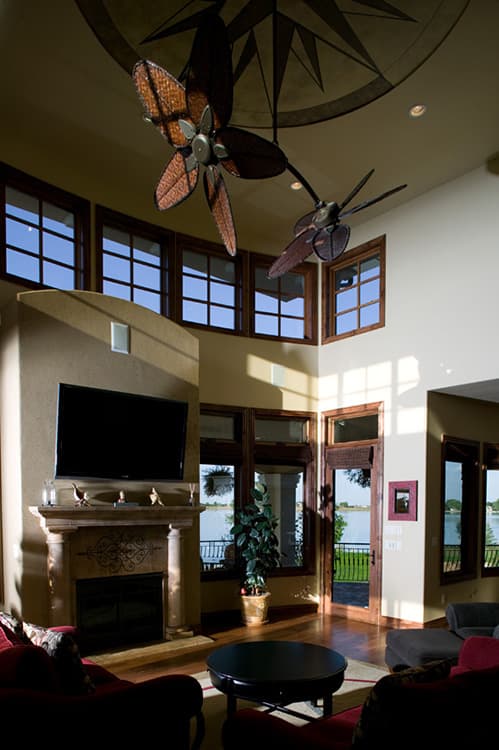

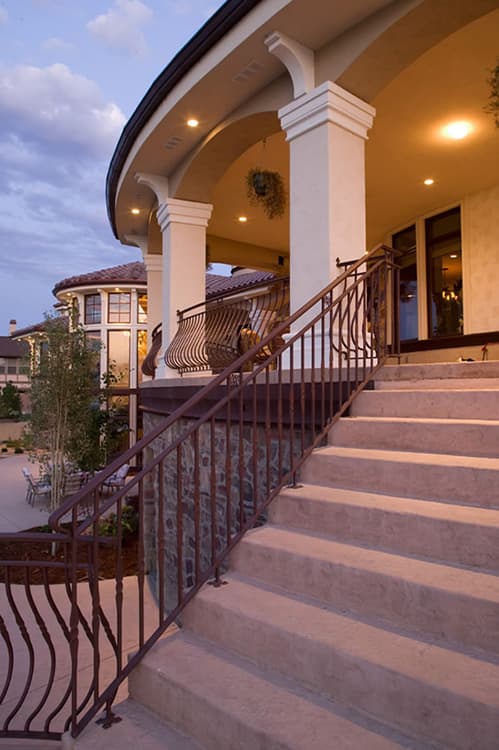

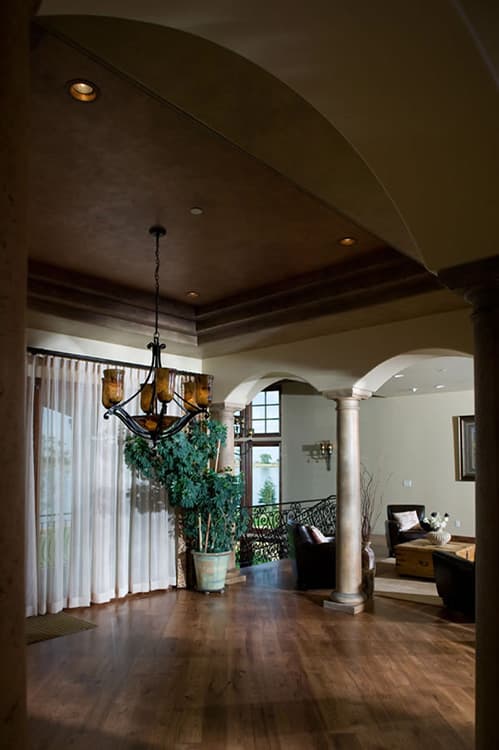

The receiving area opens to the formal dining room with columns and a tray ceiling. The great room with a fireplace opens to the rear covered veranda, all the better to enjoy the views.

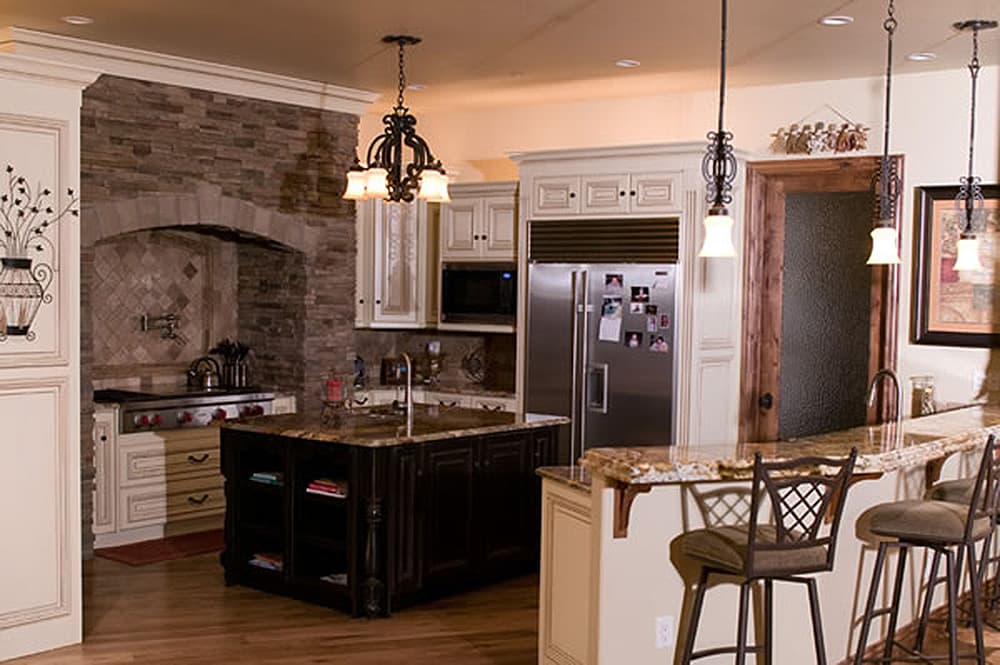

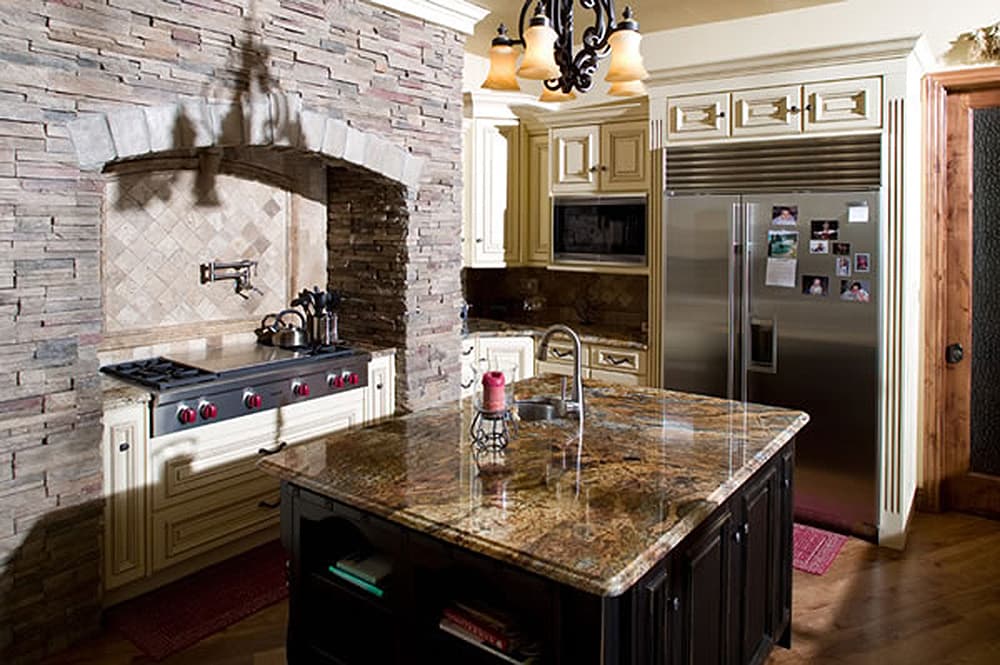

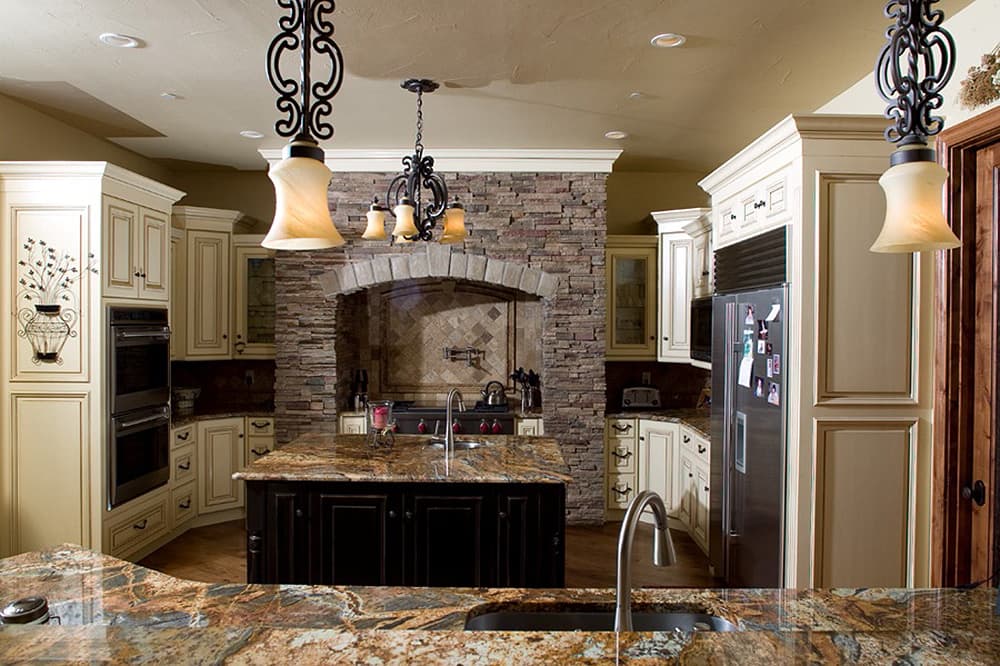

The kitchen is huge, with both a large center island and a spacious walk-in pantry and has great rear-facing views.
Boasting its own private veranda, the master suite is fit for a king. Relax in your own sitting area with a fireplace or step into the luxurious spa bath with both a walk-in shower and a soaking tub. Even the over-sized walk-in closet has an island!

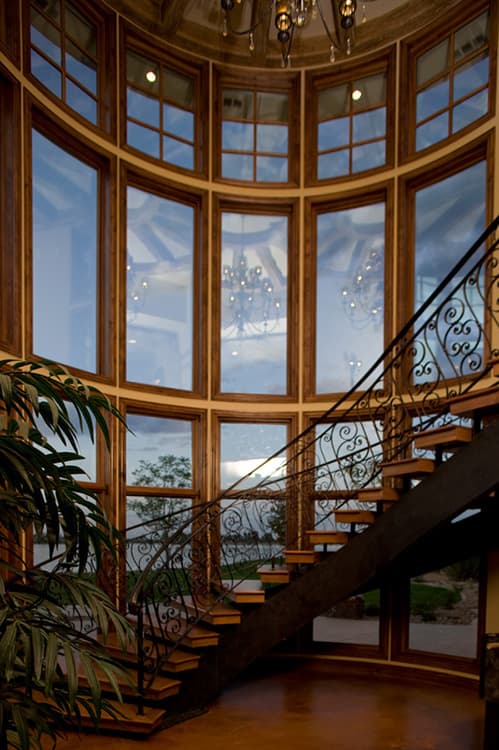

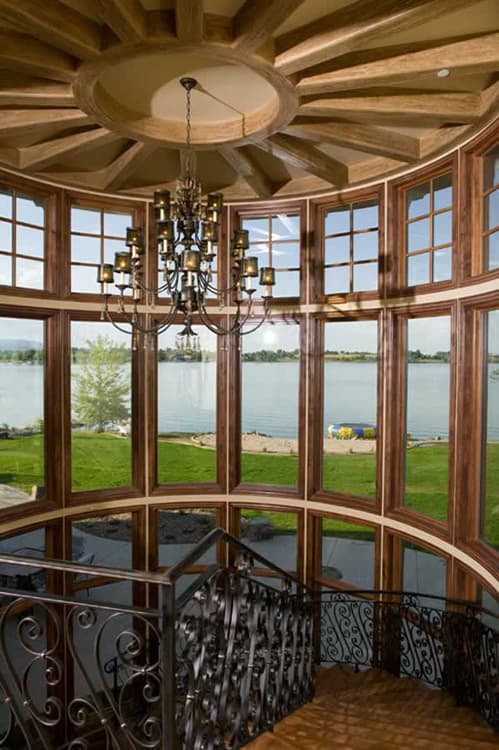

An elaborate curved staircase off the receiving area leads down to the maginficent lower level where the entertaining continues.

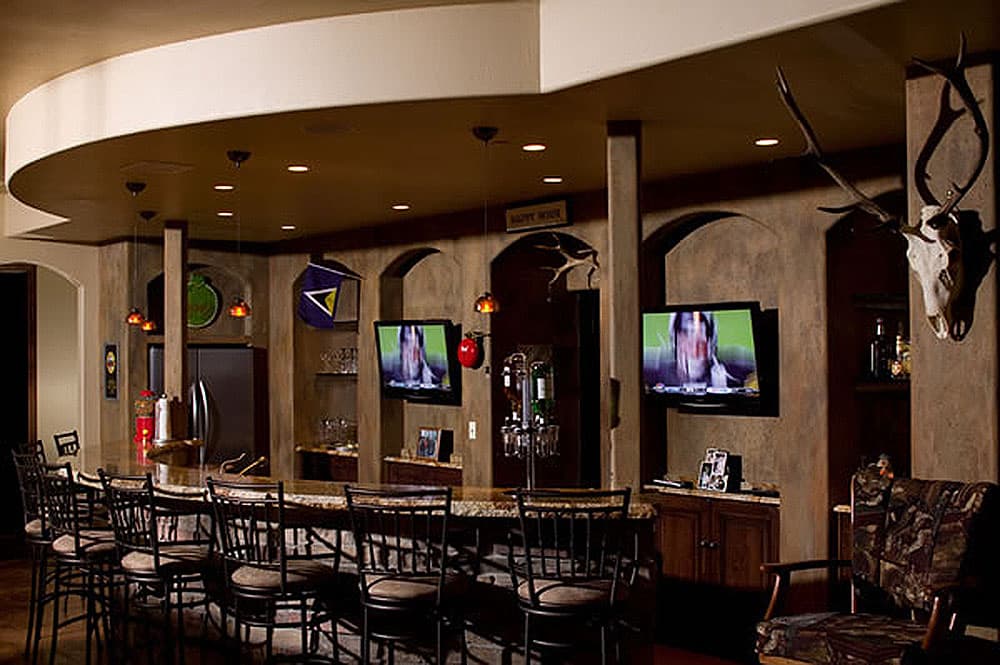

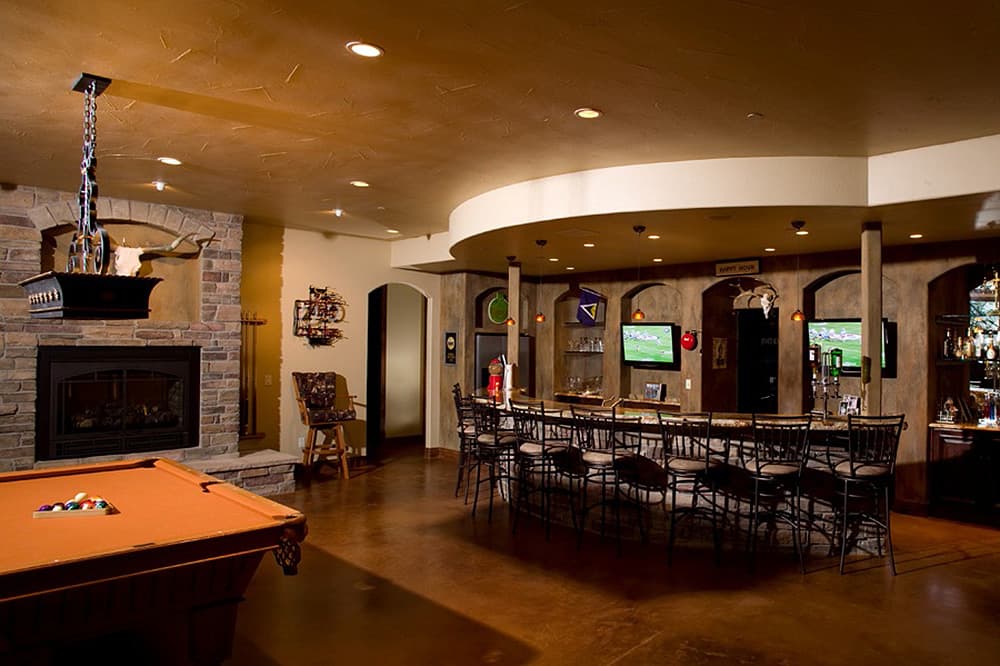

Wine enthusiasts will love the large wine cellar by the huge wet bar that is big enough for another kitchen.
Play pool in the billiards area or step into the home theater for your own private showings.
Two guest suites each have their own bath and walk-in closets. One bedroom has a sitting area and would make a perfect in-law suite.
Note the giant locker room area that could also function as an exercise room.

The following details are included with this house plan:

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

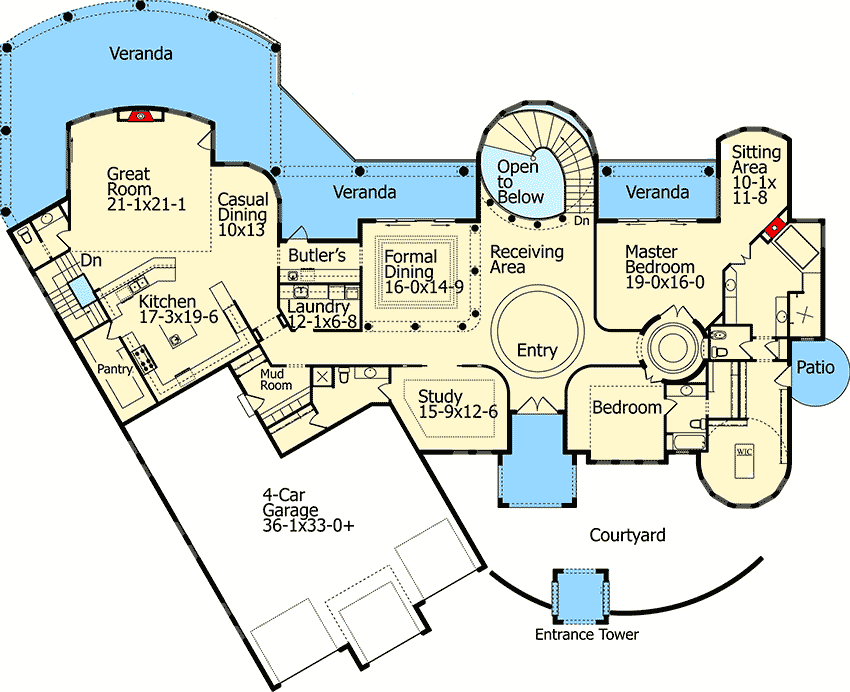

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Mediterranean Dream Home Plan - 9539RW floor plan - Main Level

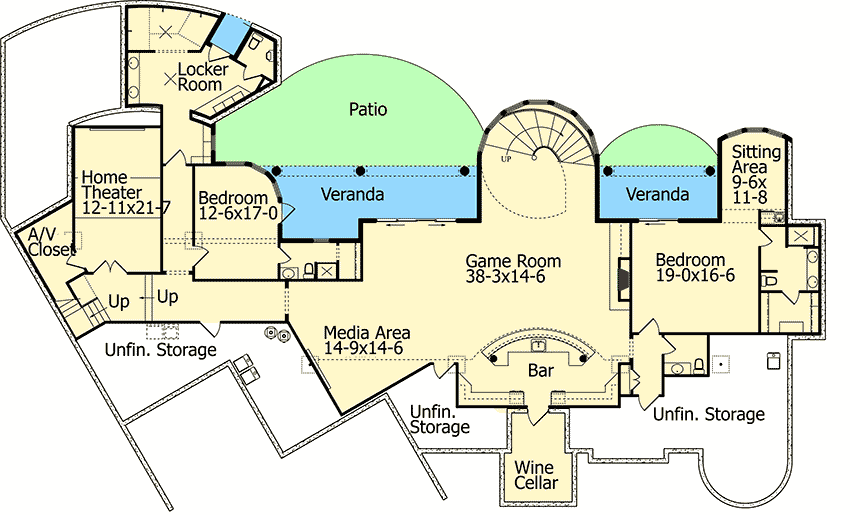

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Mediterranean Dream Home Plan - 9539RW floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 7,805 sq. ft.
Lower Level: 3,544 sq. ft.
1st Floor: 4,261 sq. ft.

Basement Unfinished: 1,270 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 5
Half bathrooms: 2

Foundation Type

Standard Foundations: Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 123' 6"
Depth: 130' 5"
Max ridge height: 29' 0"

Garage

Type: Attached
Area: 1470 sq. ft.
Count: 4 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

Primary Pitch: 5 on 12

Framing Type: Truss

Architectural Style

Special features
