Mediterranean House Plan with Two Master Suites

Pageloader

Mediterranean House Plan with Two Master Suites

Plan 66329WE

  • 6,189

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 6

    Cars

  • Take your pick of a first floor or second floor master suite in this three story Coastal design that offers unique and distinctive features.
  • With just over 6,000 square feet of livable space this house plan has a grand staircase and elaborate ceiling designs throughout.
  • The outdoor living areas of this plan are incomparable to any other and include almost 3,000 square feet of space.
  • With expansive glass doors and windows throughout, this plan takes advantage of natural light and ocean views from practically every room.
  • Although this design was originally for an oceanfront lot, this home would work beautifully for any view-oriented lot!
  • NOTE: This plan is not available for purchase in the state of Florida.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Plan details



Mediterranean House Plan with Two Master Suites

  • 6,189

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 6

    Car garage

Buy This Plan
  • Reproducible Set $3,500
  • PDF - single-use $3,500
  • CAD $3,500
  • View all purchase option online

About This Plan

  • Take your pick of a first floor or second floor master suite in this three story Coastal design that offers unique and distinctive features.
  • With just over 6,000 square feet of livable space this house plan has a grand staircase and elaborate ceiling designs throughout.
  • The outdoor living areas of this plan are incomparable to any other and include almost 3,000 square feet of space.
  • With expansive glass doors and windows throughout, this plan takes advantage of natural light and ocean views from practically every room.
  • Although this design was originally for an oceanfront lot, this home would work beautifully for any view-oriented lot!
  • NOTE: This plan is not available for purchase in the state of Florida.

Floor Plans

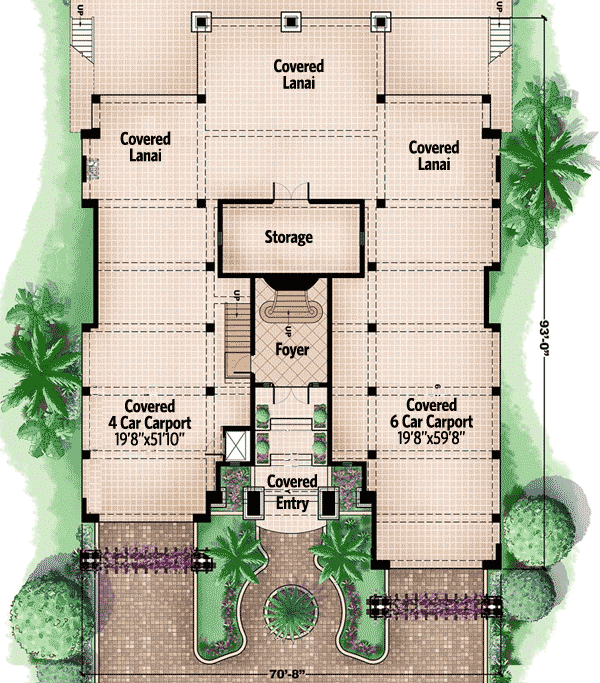

  • Ground Level

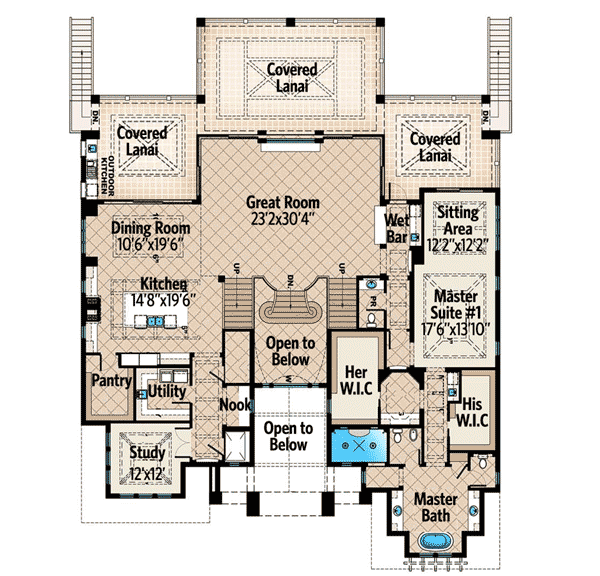

  • Main Level

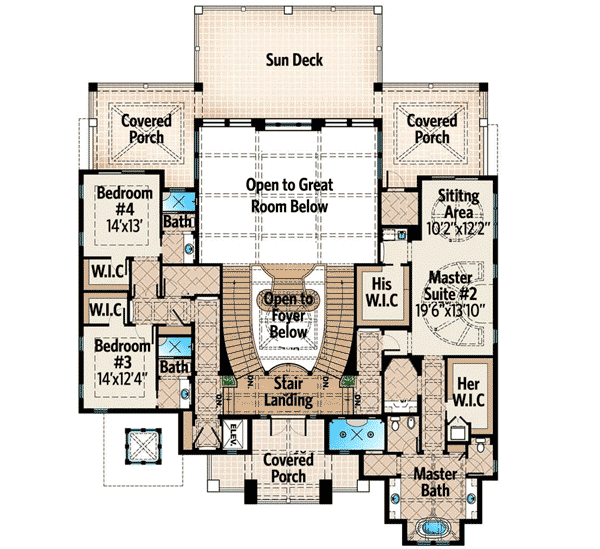

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,189 sq. ft.
  • Lower Level: 298 sq. ft.
  • 1st Floor: 3,429 sq. ft.
  • 2nd Floor: 2,462 sq. ft.
  • Storage: 276 sq. ft.
  • Lanai: 3,700 sq. ft.
  • Entry: 346 sq. ft.
  • Deck: 667 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 8"
  • Depth: 93' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Drive Under
  • Area: 2985 sq. ft.
  • Count: 6 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 4"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
