Plan 36319TX

Mediterranean Mansion

Heated S.F.

4,173

Beds

4

Baths

4

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

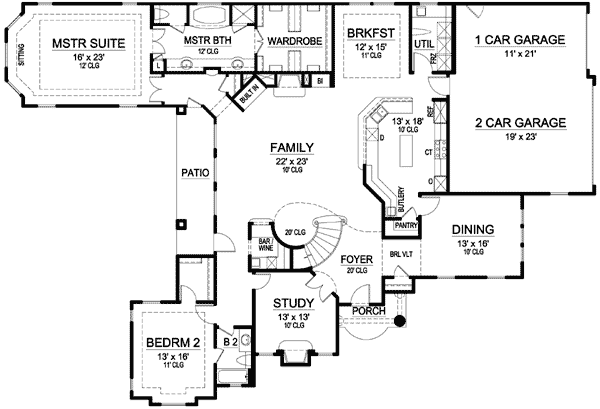

Mediterranean Mansion - 36319TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

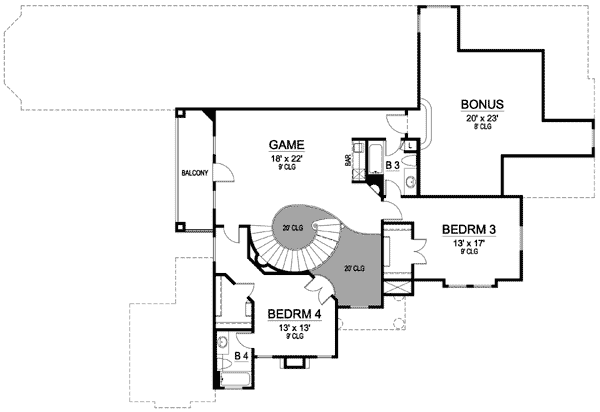

Mediterranean Mansion - 36319TX floor plan - 2nd Floor

Plan Details

This Mediterranean mansion house plan revolves around the family gathering area of the breakfast room, kitchen and family room, open to one another and divided only by the eating bar in the kitchen.
A welcoming foyer leads to the dining room through the barrel vaulted ceiling.
A study off the foyer with its warming fire offers peace and quiet.
A bar and wine area beyond the spiral staircase is conveniently located. Serve guests from off the family room and walk onto the patio to enjoy the outdoors.
The master suite with its tray ceiling and sitting area also includes a master bath with his and her vanities and a large walk in closet that measures 10'8" by 12'.
The second floor of this house plan has two bedrooms, a game and bonus room and two bathrooms.
You'll enjoy the two story ceiling view from the balcony.

What's Included

Cover sheet
Foundation Plan
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

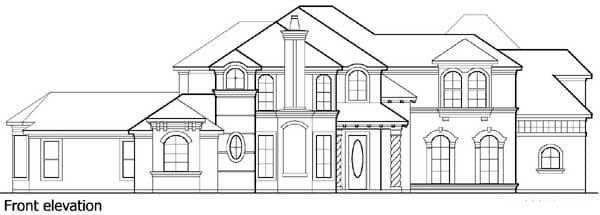

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

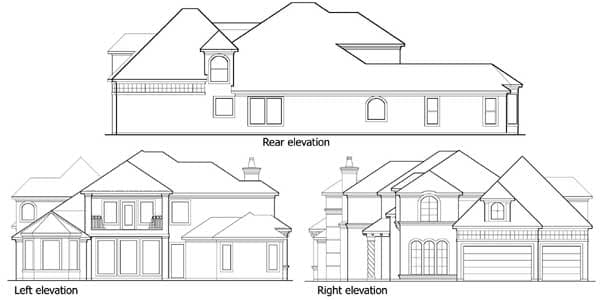

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

4,173 sq. ft.

1st Floor:

2,946 sq. ft.

2nd Floor:

1,227 sq. ft.

Bonus:

530 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

95' 0"

Depth:

65' 0"

Max Ridge Height:

31' 0"

Garage

Type:

Attached

Area:

689 sq. ft.

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor
