Plan 82078KA
Mediterranean Opulence
Heated S.F.
6,248
Beds
4
Baths
4.5+
Stories
1
Cars
4
Floor Plan

Plan 82078KA

Main Level
slide image 0

Plan 82078KA

1-800-854-7852

1-262-521-4596

Main Level

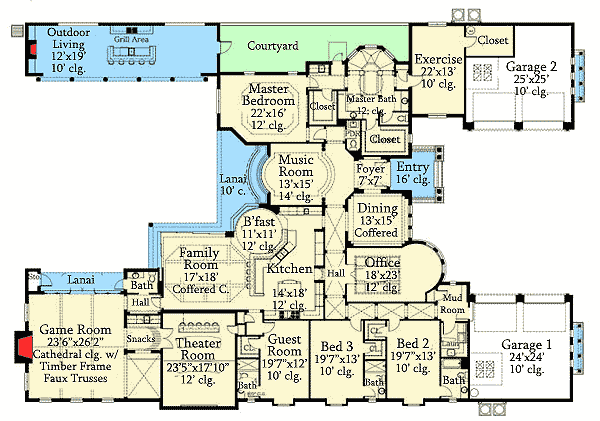

floor plan image Main Level
Plan Details
  • Arched windows, transoms and a big turret give this Mediterranean house plan a commanding presence.
  • Luxurious details can be found in every room inside.
  • The master suite has its own private side courtyard and a huge exercise room, so no need to run to the gym!
  • In the opulent master bathroom, the huge soaking tub is set right in the middle of the room and a gorgeous ceiling is a delight to view.
  • Choose from the coffered family room or the vaulted and beamed game room as your main family hang out.
  • The game room has its own snack kitchen, shared with the theater room, and a convenient half bath.
  • This magnificent home also has a large home office, a music room and three elegant guest suites each of which have private bathrooms and walk-in closets.
  • Even the outdoor living space is luxurious with a big grilling kitchen and an outdoor fireplace.
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

6,248 sq. ft.

1st Floor

6,248 sq. ft.

Porch, Front

153 sq. ft.

Porch, Rear

697 sq. ft.

Lanai

279 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

95' 0"

Depth

143' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1449 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Special Features

Bedrooms - Split

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

6,248 sq. ft.

1st Floor

6,248 sq. ft.

Porch, Front

153 sq. ft.

Porch, Rear

697 sq. ft.

Lanai

279 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

95' 0"

Depth

143' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1449 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Special Features

Bedrooms - Split

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Plan Collections

Luxury
