Plan 16923WG Metal Framed 4-Bed Modern Farmhouse Plan with Home Office

Metal Framed 4-Bed Modern Farmhouse Plan with Home Office

Plan 16923WG

  • 3,177

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The rectangular center of this 4-bedroom Modern Farmhouse is framed by a front and back porch with a seamless flow between the indoor and outdoor living spaces.
  • Delight in cooking and entertaining with the help of this spacious kitchen, anchored by a prep island, with a walk-in pantry nearby.
  • Enter from the 3-car garage to find the laundry room across from a powder bath.
  • The master suite occupies the right wing of the home and includes a safe room that is accessible from the walk-in closet.
  • Upstairs, bedrooms 2 and 3 share a Jack-and-Jill bathroom, while a game room overlooks the family room below.

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

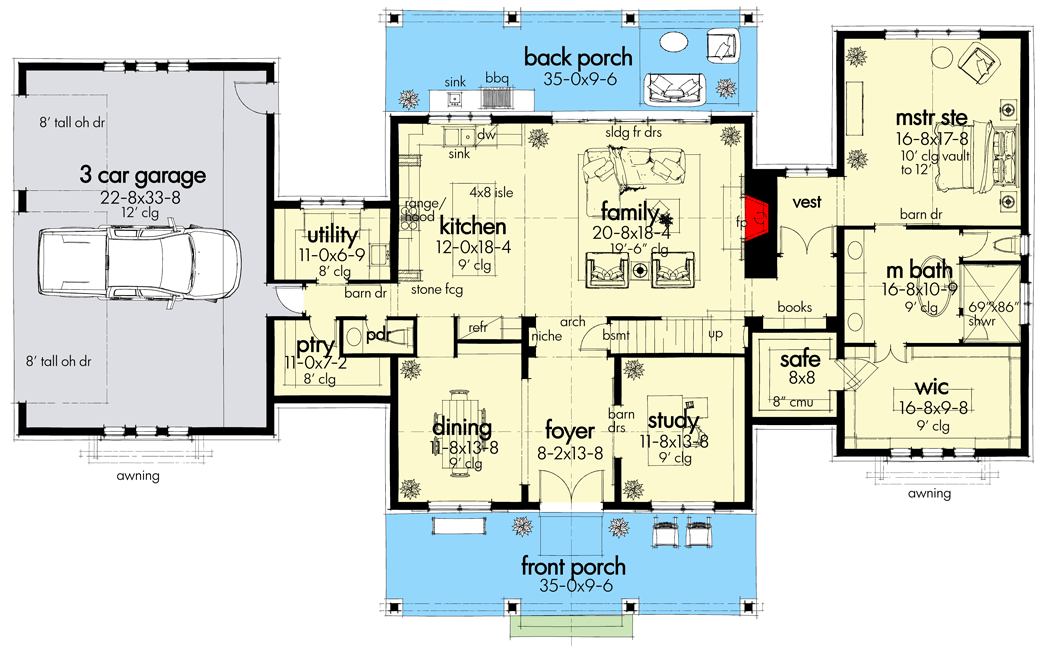

Metal Framed 4-Bed Modern Farmhouse Plan with Home Office - 16923WG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

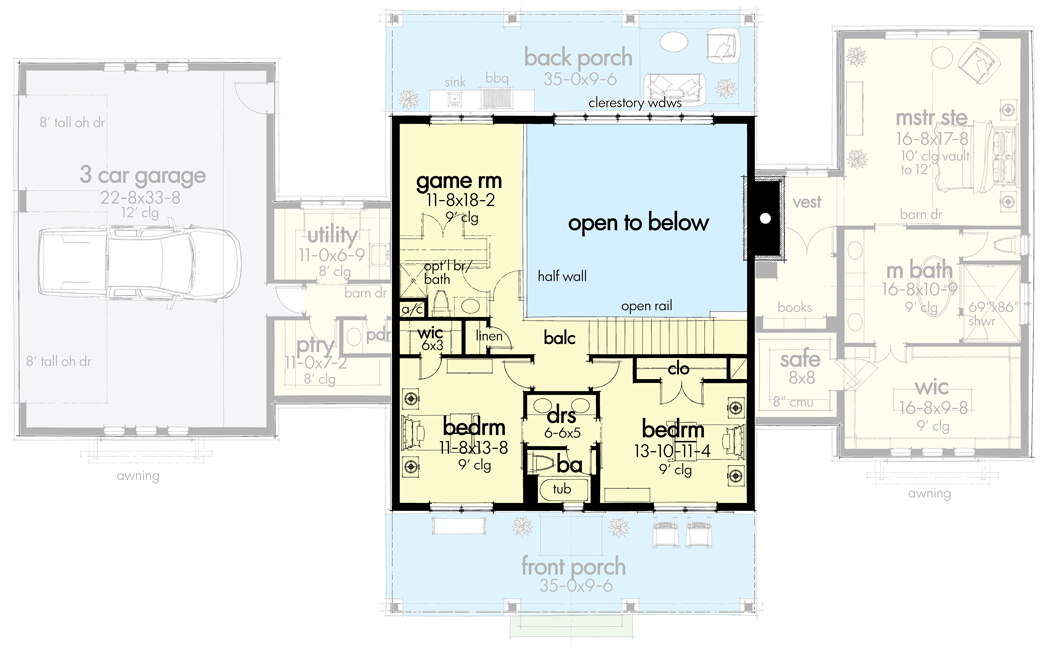

Metal Framed 4-Bed Modern Farmhouse Plan with Home Office - 16923WG floor plan - 2nd Floor

Plan details

Metal Framed 4-Bed Modern Farmhouse Plan with Home Office

  • 3,177

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets $1,745
  • 5 Sets + PDF $1,845
  • PDF - Unlimited Build $1,990
  • CAD - Single-Build $2,395
  • CAD - Unlimited Build $2,790
  • View all purchase option online

About This Plan

  • The rectangular center of this 4-bedroom Modern Farmhouse is framed by a front and back porch with a seamless flow between the indoor and outdoor living spaces.
  • Delight in cooking and entertaining with the help of this spacious kitchen, anchored by a prep island, with a walk-in pantry nearby.
  • Enter from the 3-car garage to find the laundry room across from a powder bath.
  • The master suite occupies the right wing of the home and includes a safe room that is accessible from the walk-in closet.
  • Upstairs, bedrooms 2 and 3 share a Jack-and-Jill bathroom, while a game room overlooks the family room below.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,177 sq. ft.
  • 1st Floor: 2,375 sq. ft.
  • 2nd Floor: 802 sq. ft.
  • Porch, Rear: 324 sq. ft.
  • Porch, Front: 324 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 8" Metal Frame

Dimensions

  • Width: 75' 11"
  • Depth: 57' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 844 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 1 on 12
  • Framing Type: Steel Frame
