Plan 33260ZR

Mid Century Modern House Plan with Flex Room and Outdoor Living - 2687 Sq Ft

Heated S.F.
2,687
Beds
2 - 3
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 33260ZR

Main Level
Main Level

Plan 33260ZR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

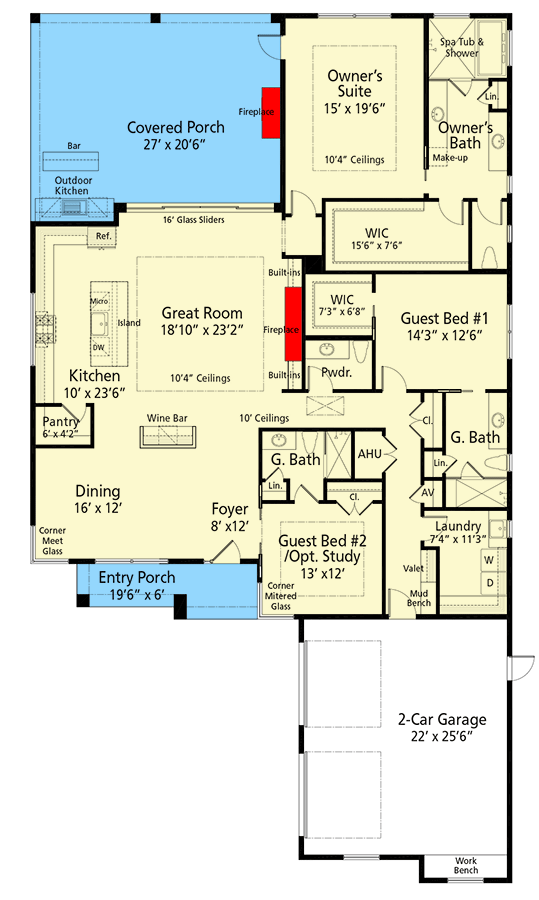

Plan 33260ZR: Mid Century Modern House Plan with Flex Room and Outdoor Living - 2687 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, New American

Plan Details

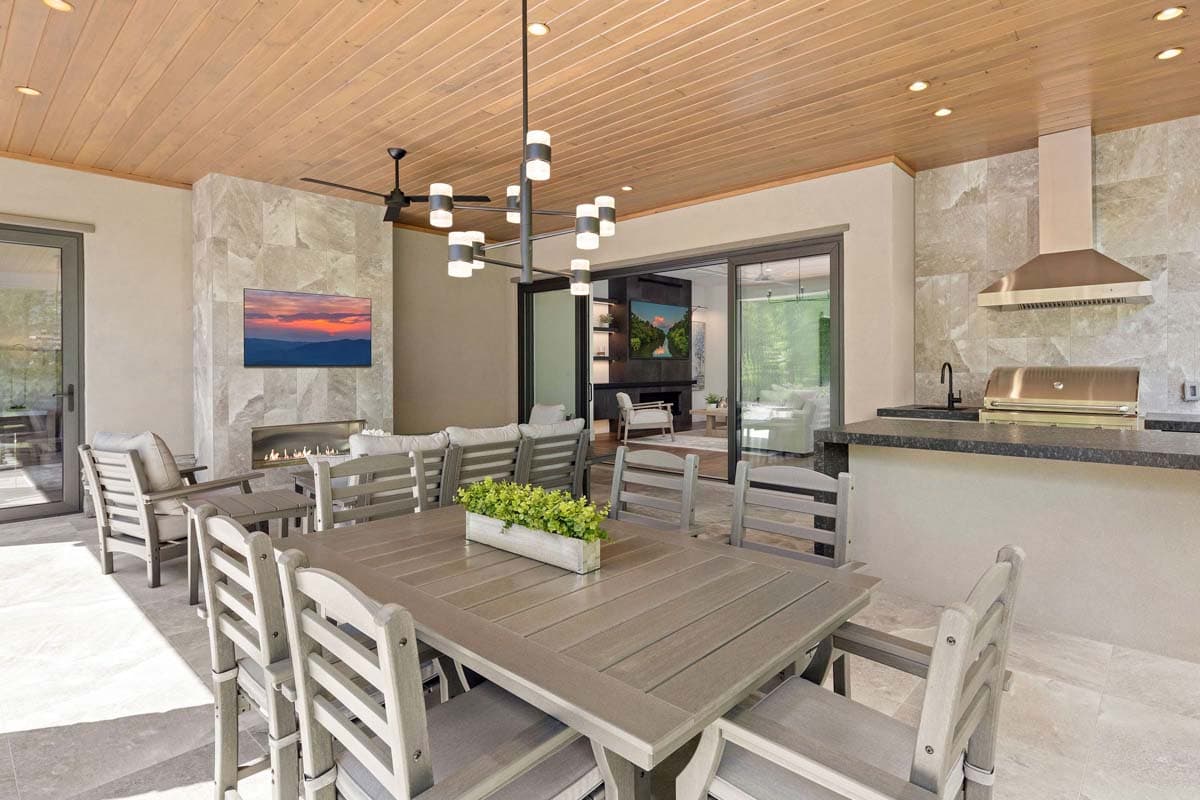

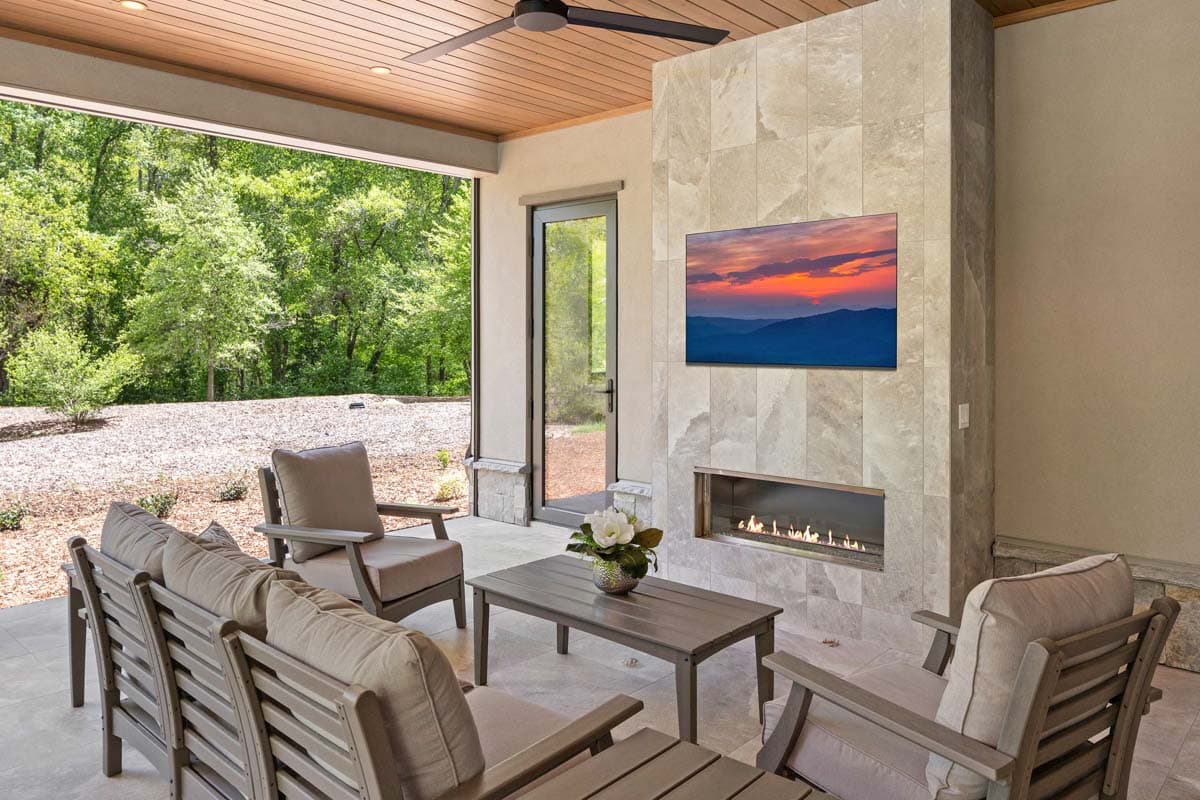

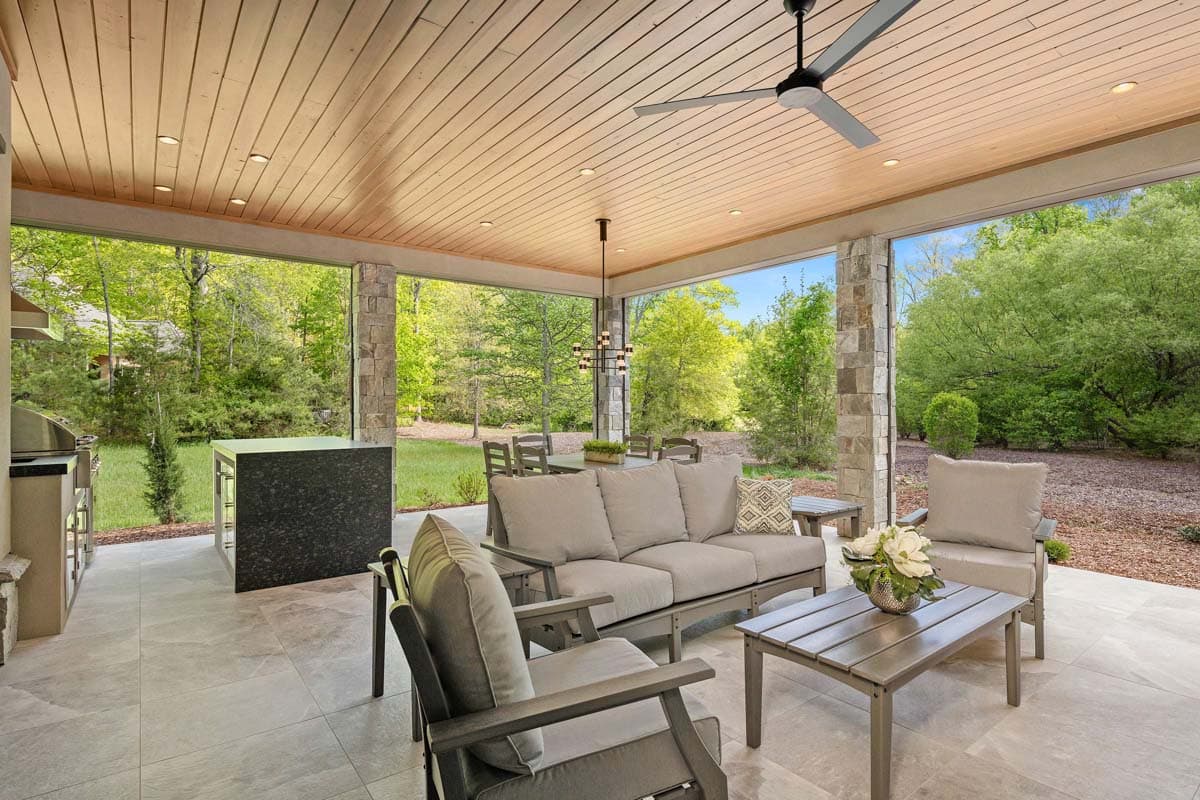

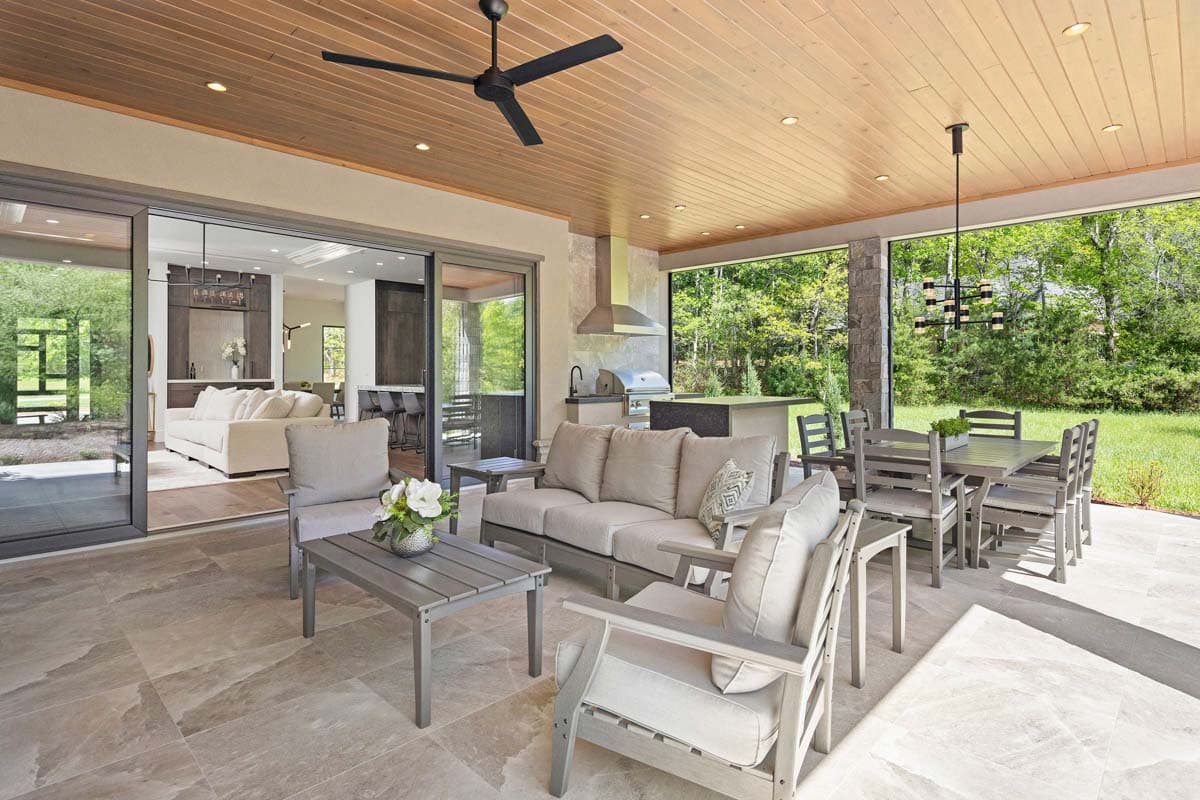

  • This 2,687 square foot Mid Century Modern House Plan gives you 3 beds, 3.5 baths and has a 623 square foot 2-car courtyard style garage. A covered rear porch with outdoor kitchen and a fireplace gives you 871 square feet of outdoor space to enjoy.

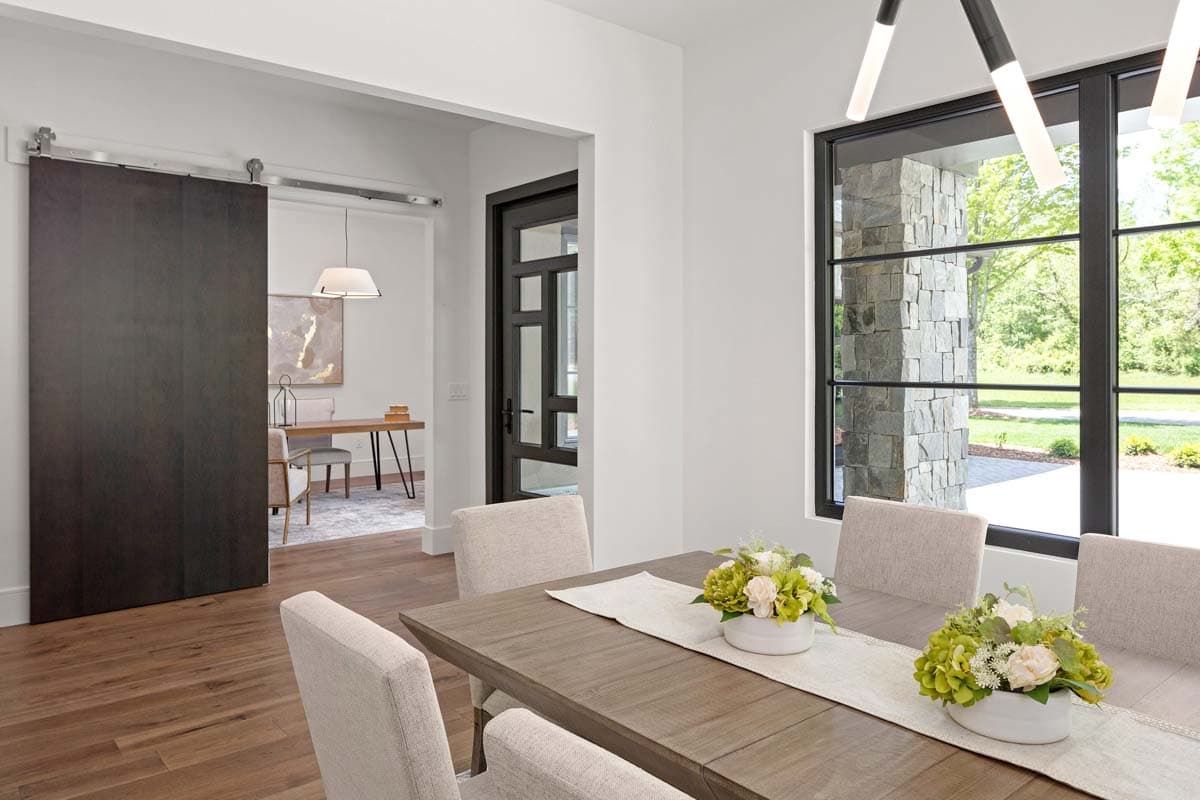

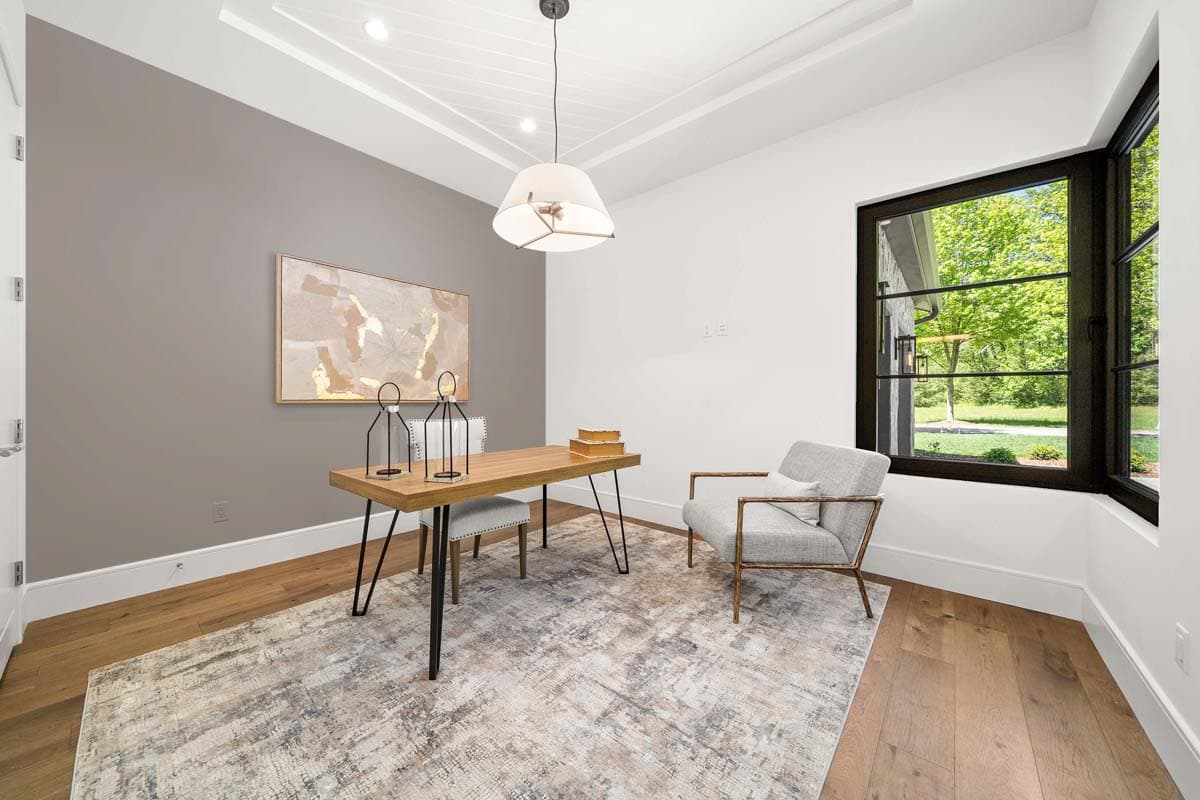

  • Pocket doors on the right of the foyer open to a flex room that can be a third bedroom or a study/home office. It has direct access to a full bath.

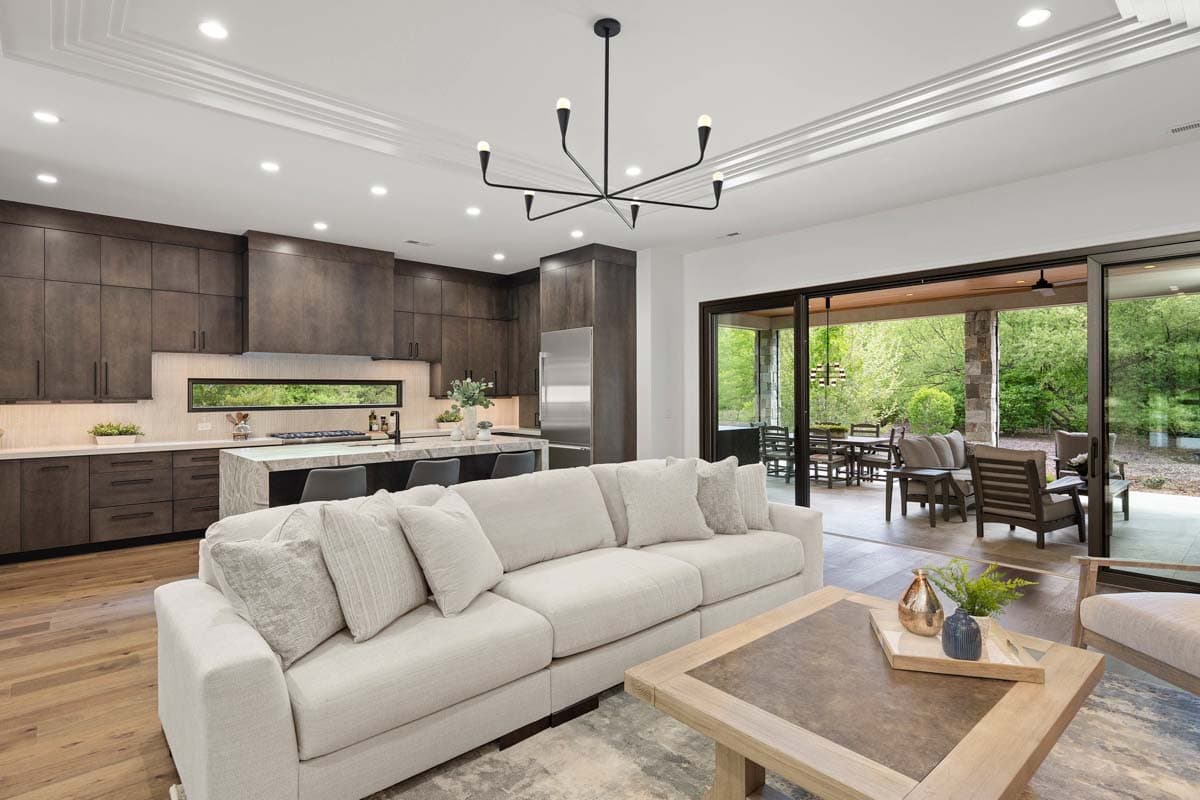

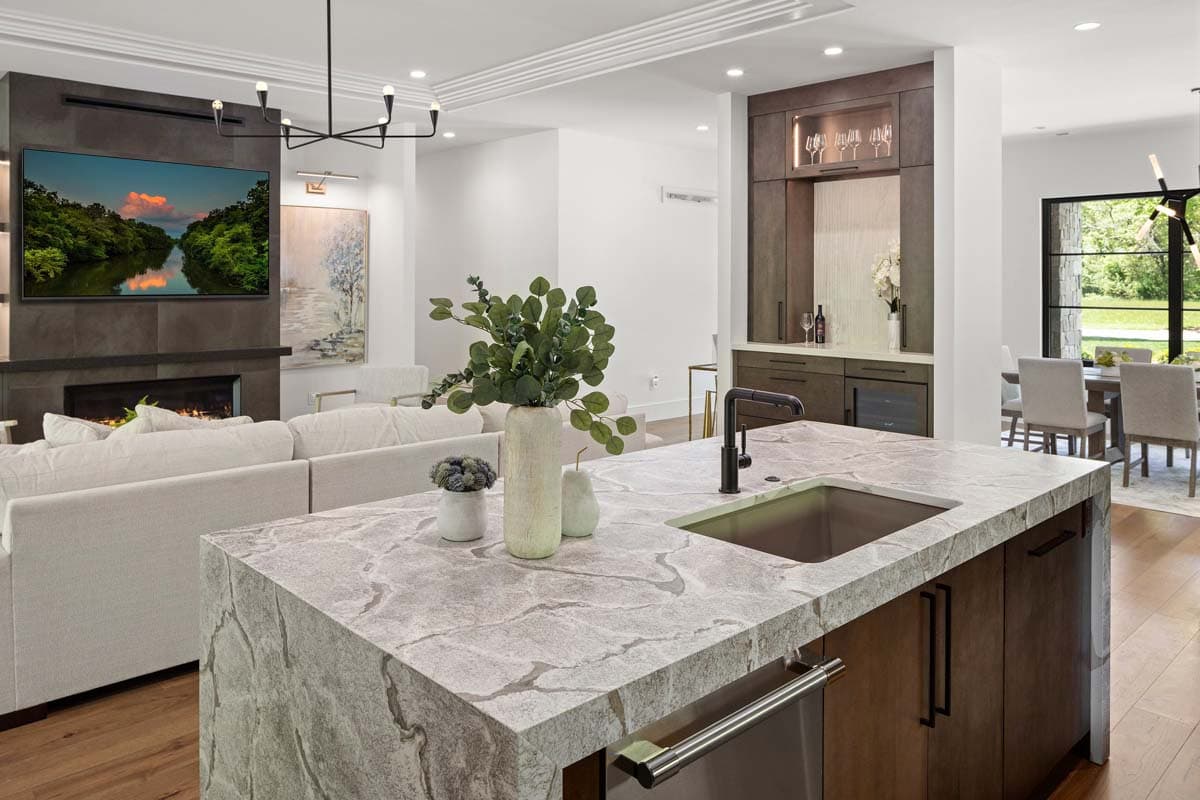

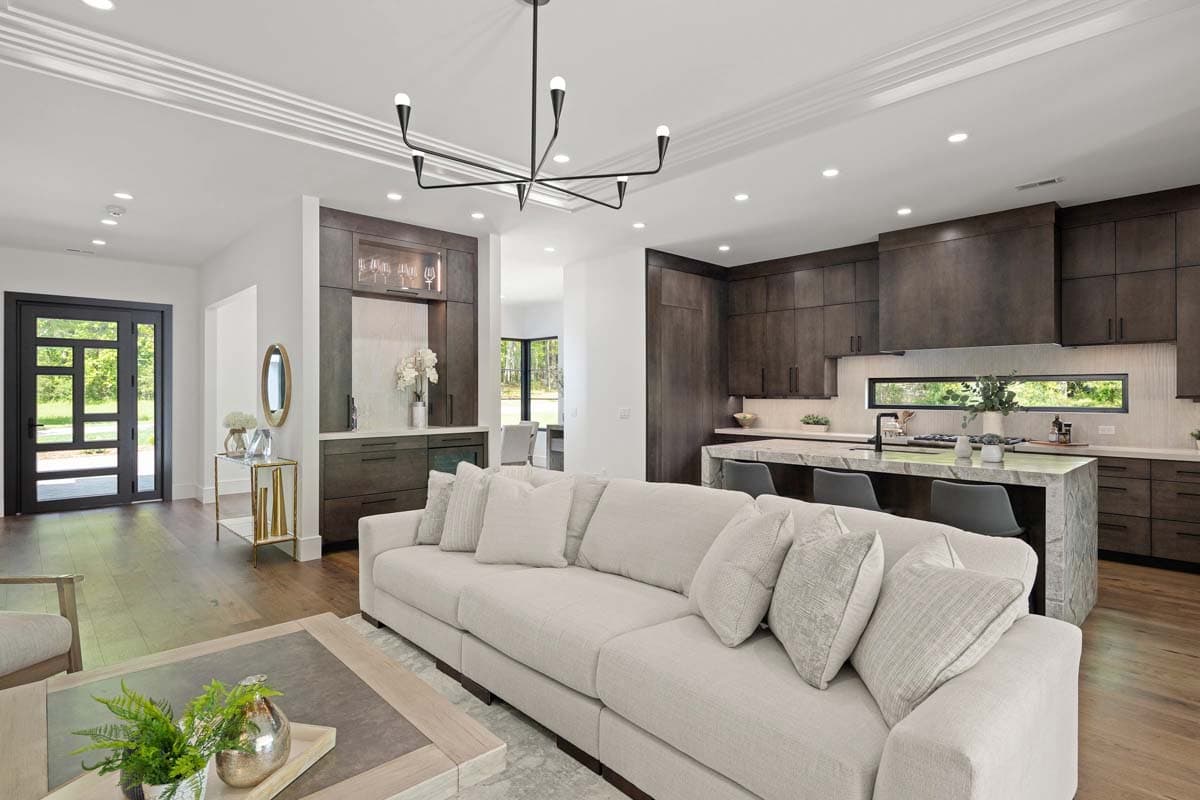

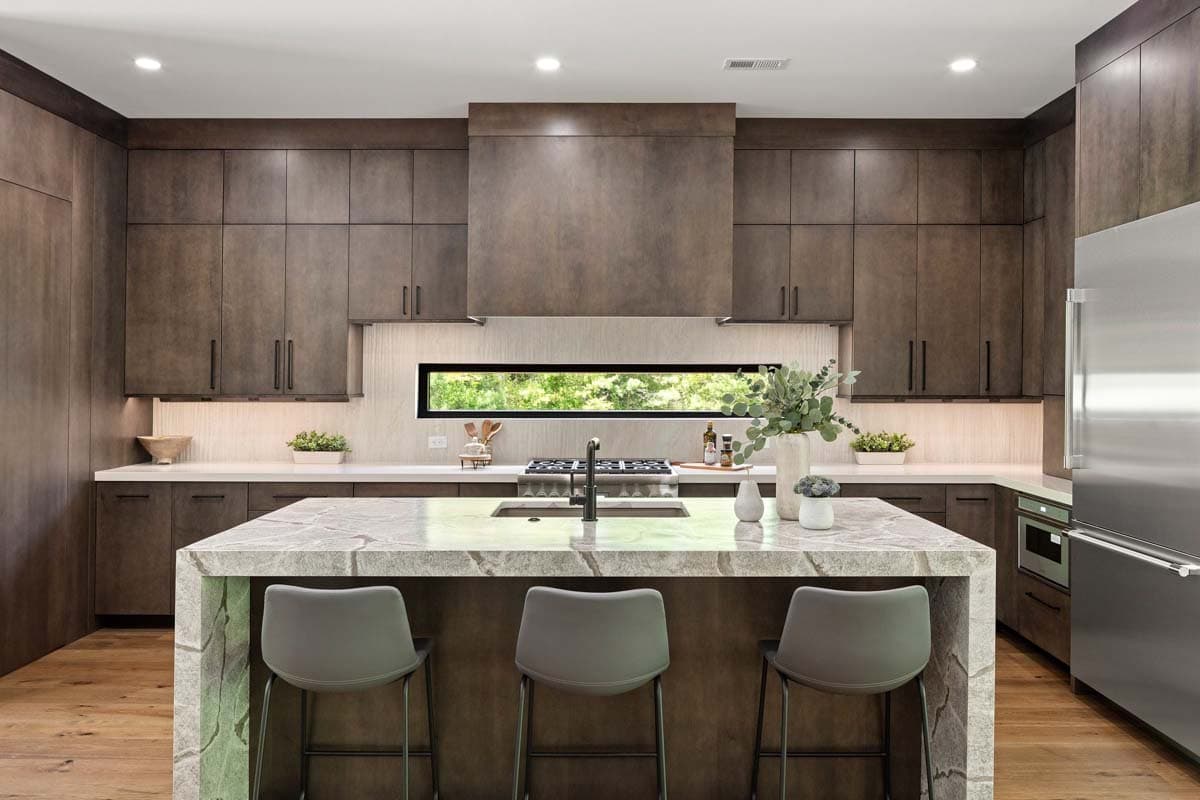

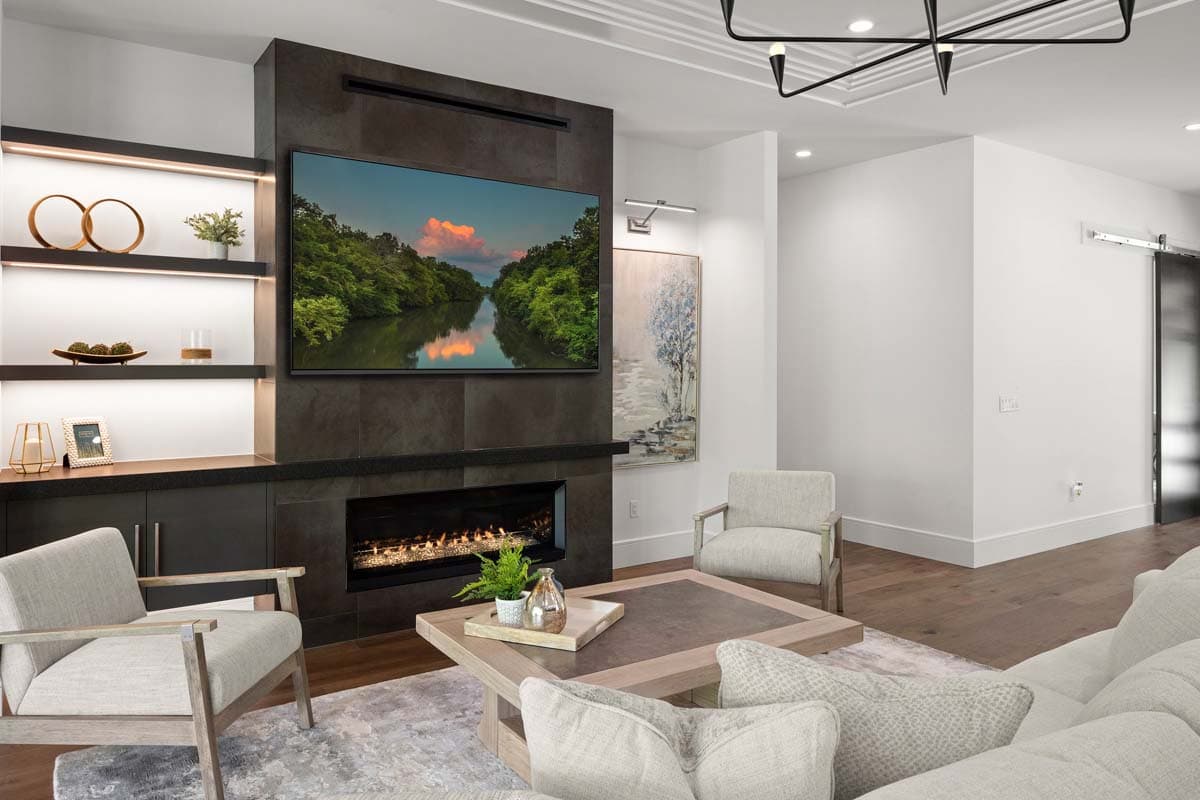

  • A wine bar provides the only separation from the dining room and the great room and the island kitchen further back. Sliding doors on the back wall open to the back porch.

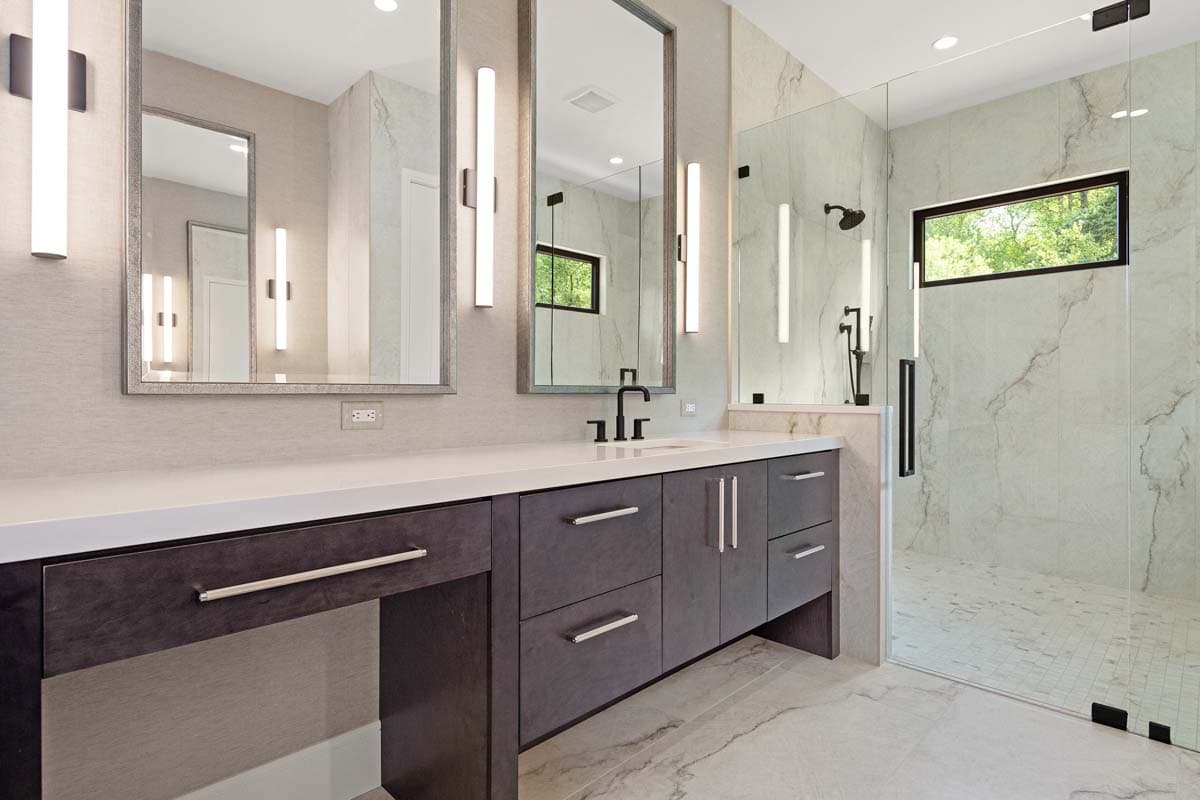

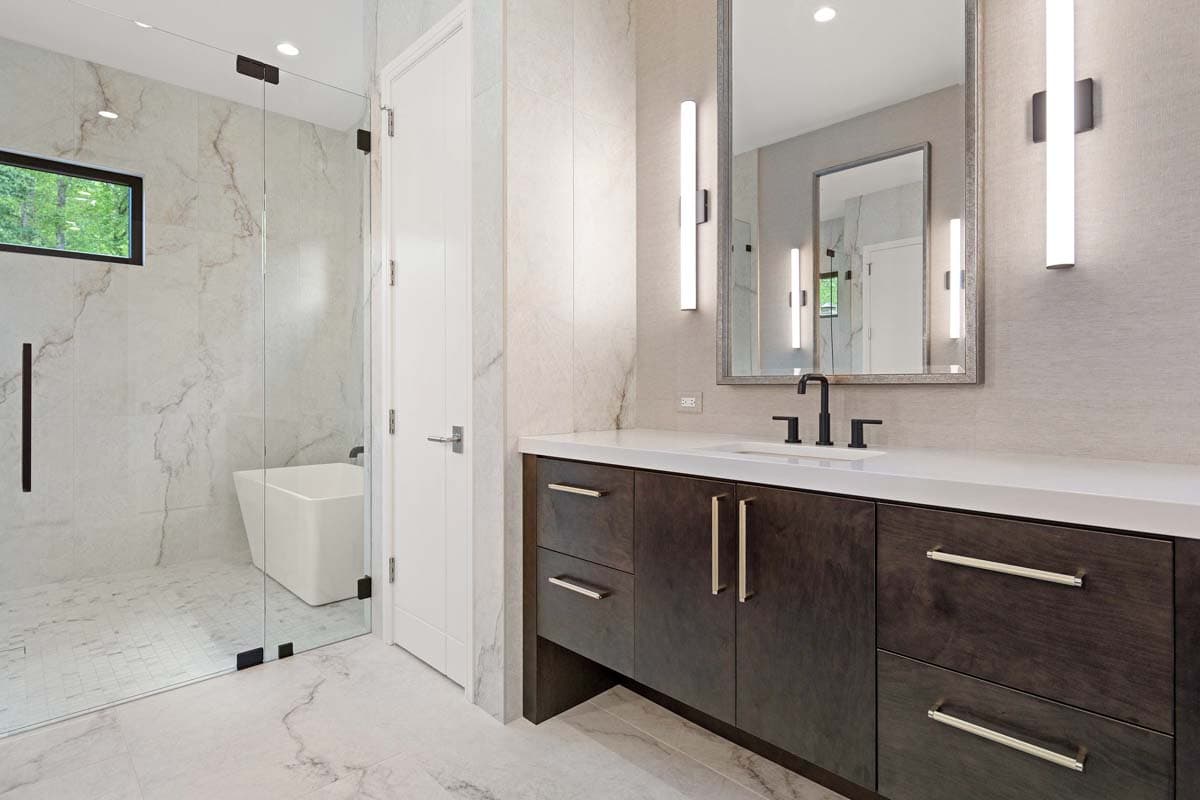

  • The owner's suite is located in back and has a tray ceiling and rear porch access. A large walk-in closet is accessible from the bathroom with spat tub and shower, two vanities and a private commode.
  • NOTE: This house plan is not for sale in Buncombe County, NC. Contact us to purchase this if building in Asheville, NC.

What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

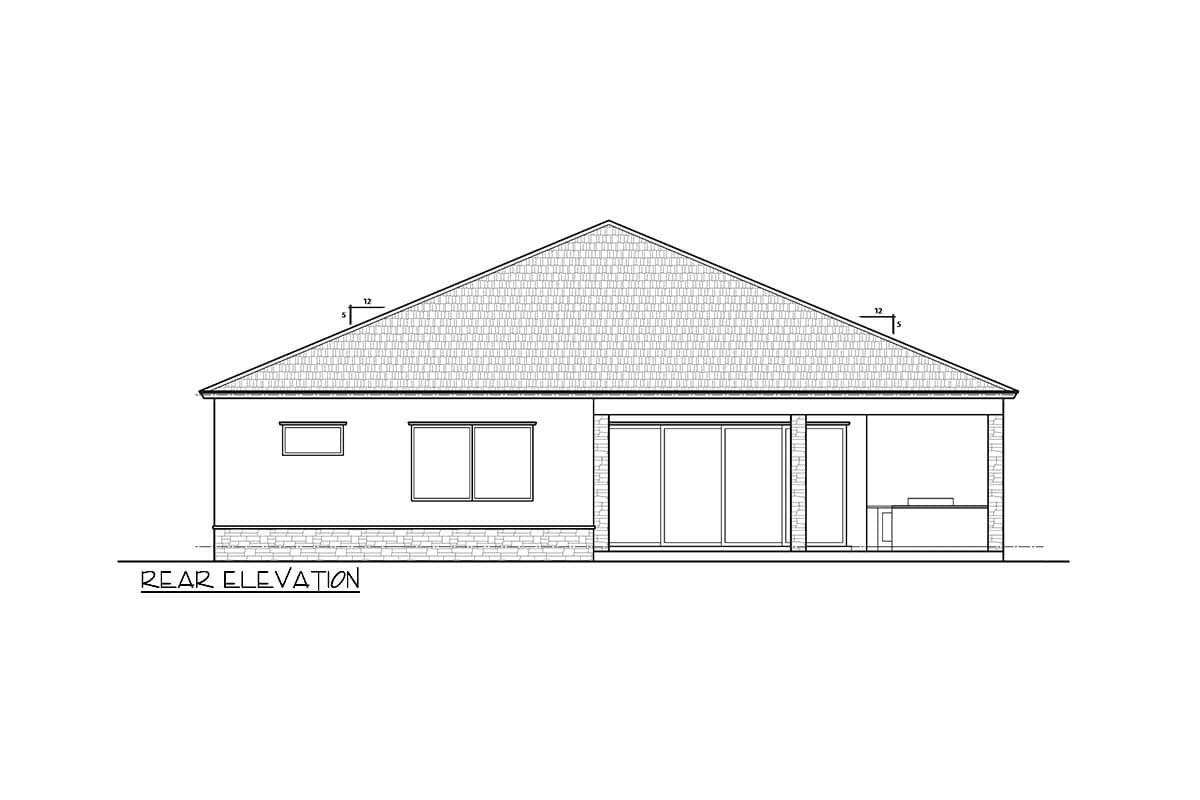

  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,687 sq. ft.

1st Floor

2,687 sq. ft.

Porch, Front

103 sq. ft.

Porch, Rear

871 sq. ft.

Deck & Porch

103 sq. ft.

Covered Patio

871 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

94' 0"

Max Ridge Height

21' 5"

Garage

Type

Attached

Area

623 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

New American

Special Features

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

2,687 sq. ft.

1st Floor

2,687 sq. ft.

Porch, Front

103 sq. ft.

Porch, Rear

871 sq. ft.

Deck & Porch

103 sq. ft.

Covered Patio

871 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

94' 0"

Max Ridge Height

21' 5"

Garage

Type

Attached

Area

623 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

New American

Special Features

Flex Room

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry

Wet Bar
