Mid-Century Modern Ranch Under 3000 Square Feet with 3-Car Side-Load Garage

Plan 430085LY

  • 2,800

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This mid-century modern house plan gives you 4 beds (each with their own bathroom), a 3-car side-entry 757 square foot garage and 2,800 square feet of heated living space.
  • A courtyard entry with entry porch welcomes you to the home. Step inside, and your view extends across an open floor plan.
  • A private study located by the entry makes a great work from home space and enjoys views through windows on two sides.
  • The master bedroom is privately located in back while the remaining bedrooms are clustered across the home.
  • Entertain outside on the covered patio which is accessible through sliding doors in the dining room.
  • A mudroom and large utility room are located just inside the garage entry.

This designer's plans consist of the following:
  • Cover sheet
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

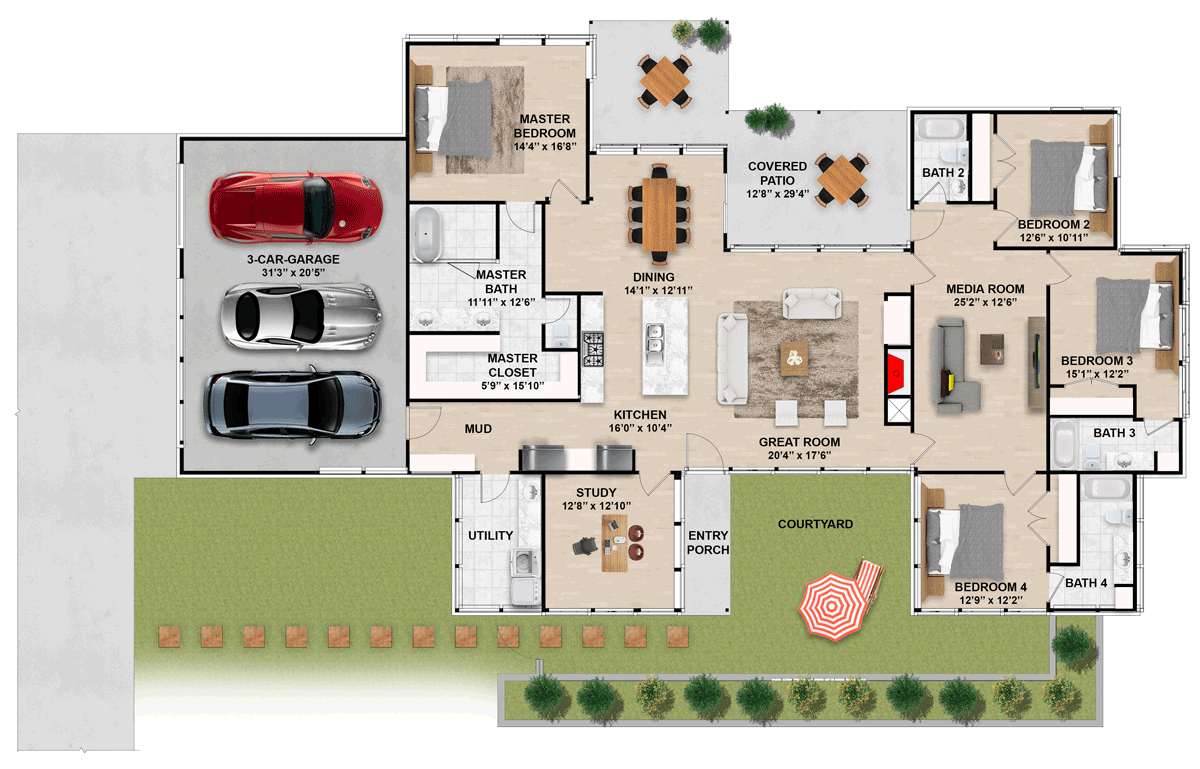

Mid-Century Modern Ranch Under 3000 Square Feet with 3-Car Side-Load Garage - 430085LY floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,800 sq. ft.
  • 1st Floor: 2,800 sq. ft.
  • Courtyard: 108 sq. ft.
  • Porch, Combined: 344 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 96' 0"
  • Depth: 55' 0"
  • Max ridge height: 15' 0"

Garage

  • Type: Attached
  • Area: 757 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Mid-Century Modern Ranch Under 3000 Square Feet with 3-Car Side-Load Garage

  • 2,800

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD+PDF+Study Set $3,500
  • View all purchase option online

About This Plan

  • This mid-century modern house plan gives you 4 beds (each with their own bathroom), a 3-car side-entry 757 square foot garage and 2,800 square feet of heated living space.
  • A courtyard entry with entry porch welcomes you to the home. Step inside, and your view extends across an open floor plan.
  • A private study located by the entry makes a great work from home space and enjoys views through windows on two sides.
  • The master bedroom is privately located in back while the remaining bedrooms are clustered across the home.
  • Entertain outside on the covered patio which is accessible through sliding doors in the dining room.
  • A mudroom and large utility room are located just inside the garage entry.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,800 sq. ft.
  • 1st Floor: 2,800 sq. ft.
  • Courtyard: 108 sq. ft.
  • Porch, Combined: 344 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 96' 0"
  • Depth: 55' 0"
  • Max ridge height: 15' 0"

Garage

  • Type: Attached
  • Area: 757 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick And Truss
