Modern 1-Bed Cottage ADU House Plan with Home Office

Plan 95133RW

  • 952

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Enjoy all of the comforts of modern living in this compact, 1-bedroom Cottage home, perfect as an ADU on your property.
  • The shed-style roof allows for transom windows above the three sets of sliding doors to maximize natural lighting in the open living space.
  • The kitchen is home to a prep island and walk-in pantry, while a rear deck provides the perfect spot for a grill.
  • The work-at-home resident will appreciate the cozy home office with a large window.
  • Two closets frame the window in the bedroom, which neighbors a full bath with a linen closet.

The following details are included with this house plan:
  • Cover Page

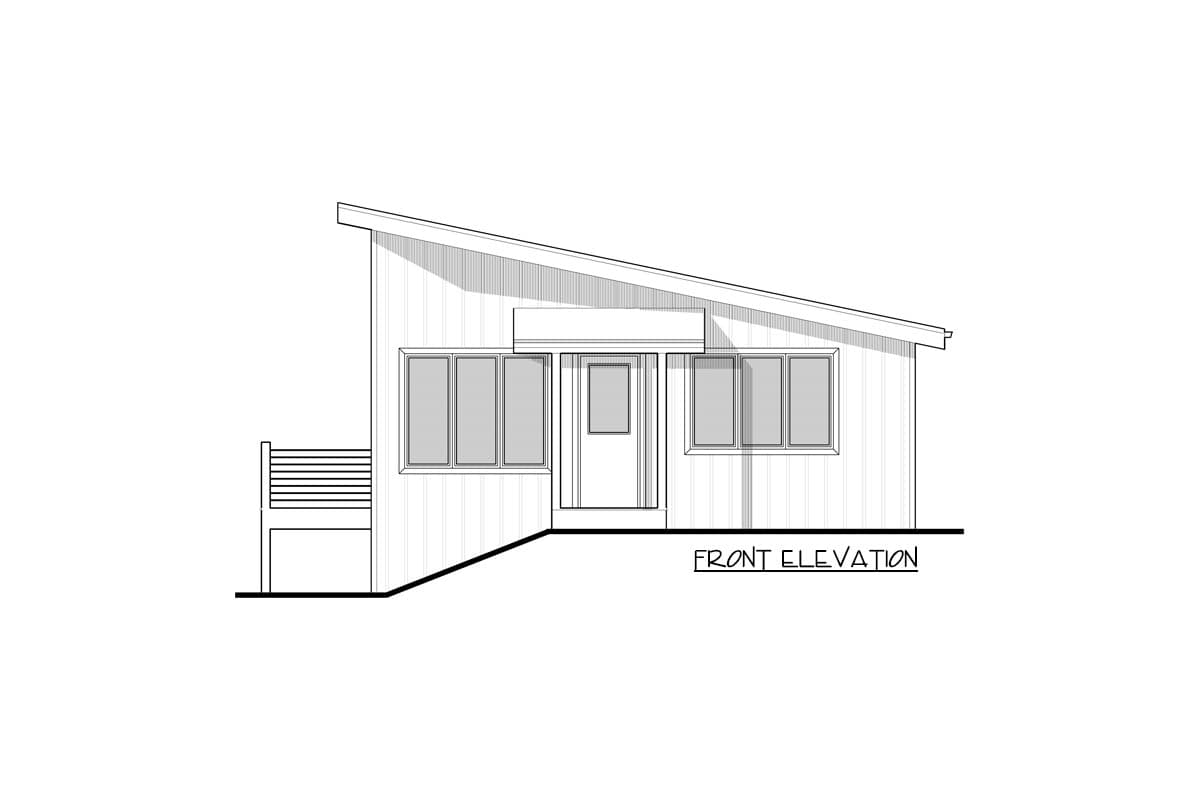

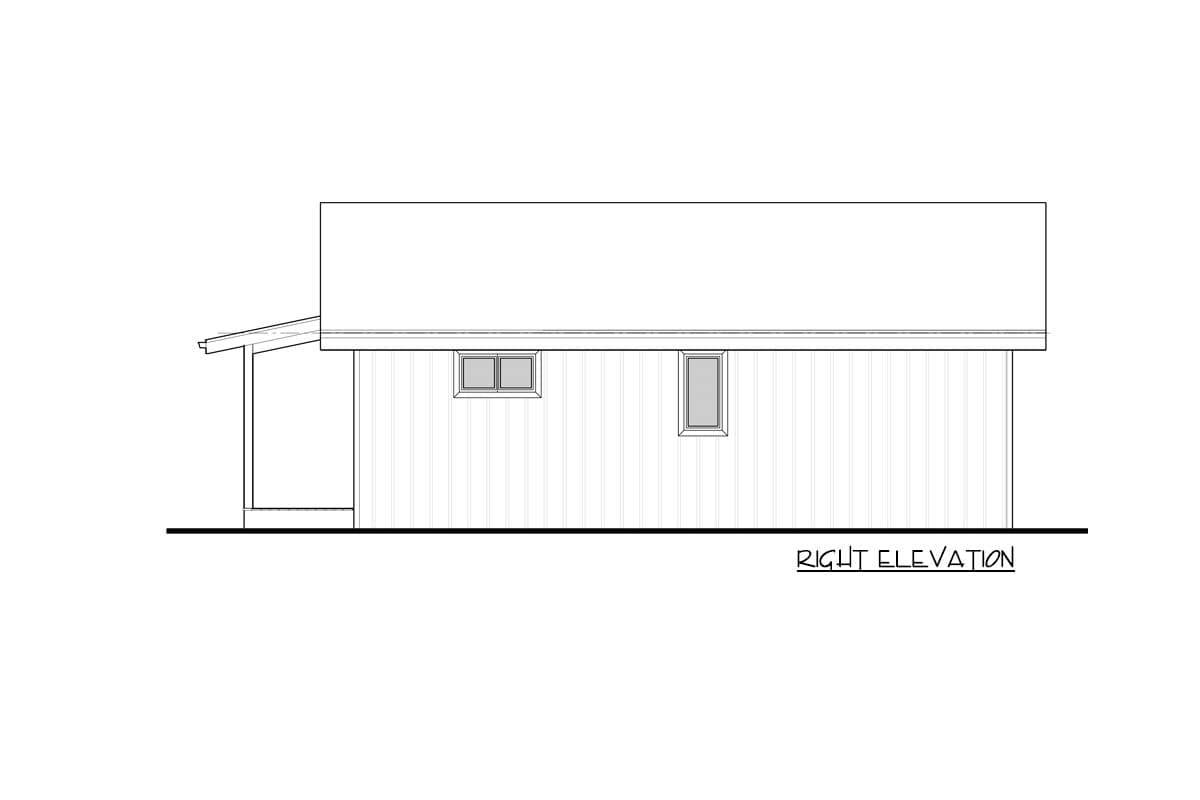

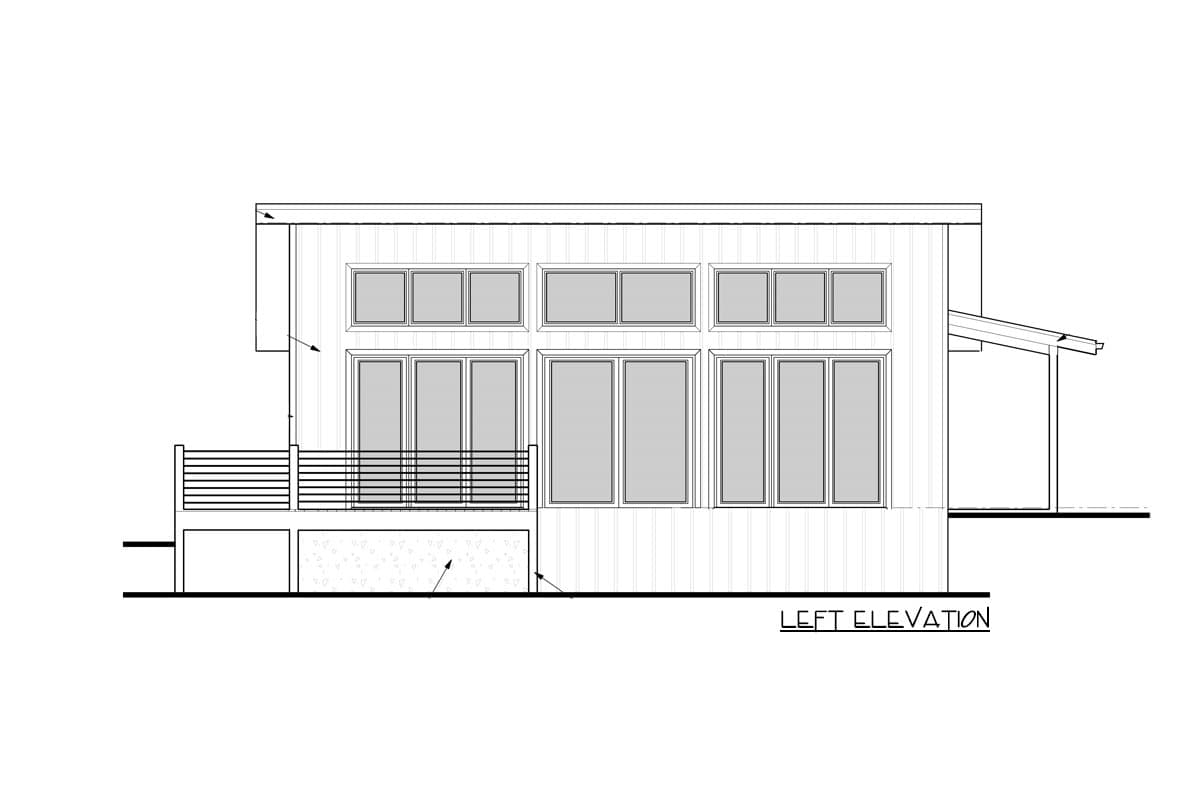

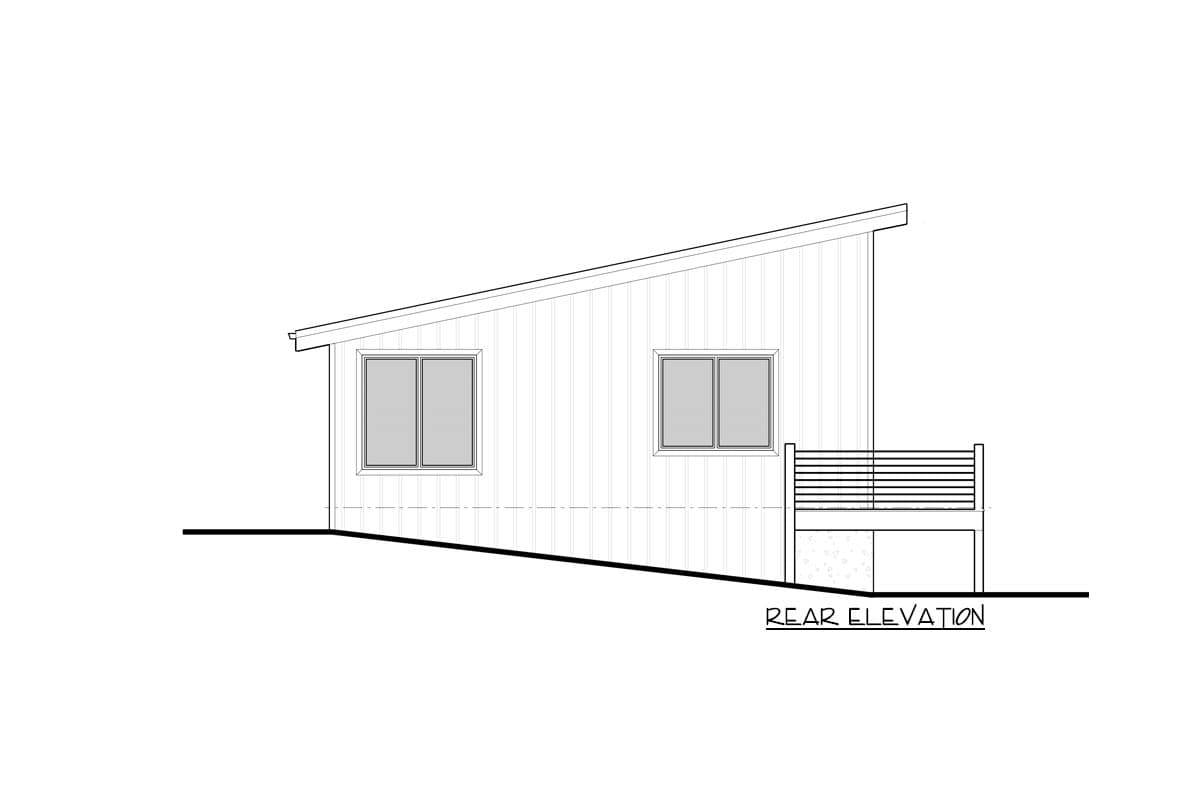

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

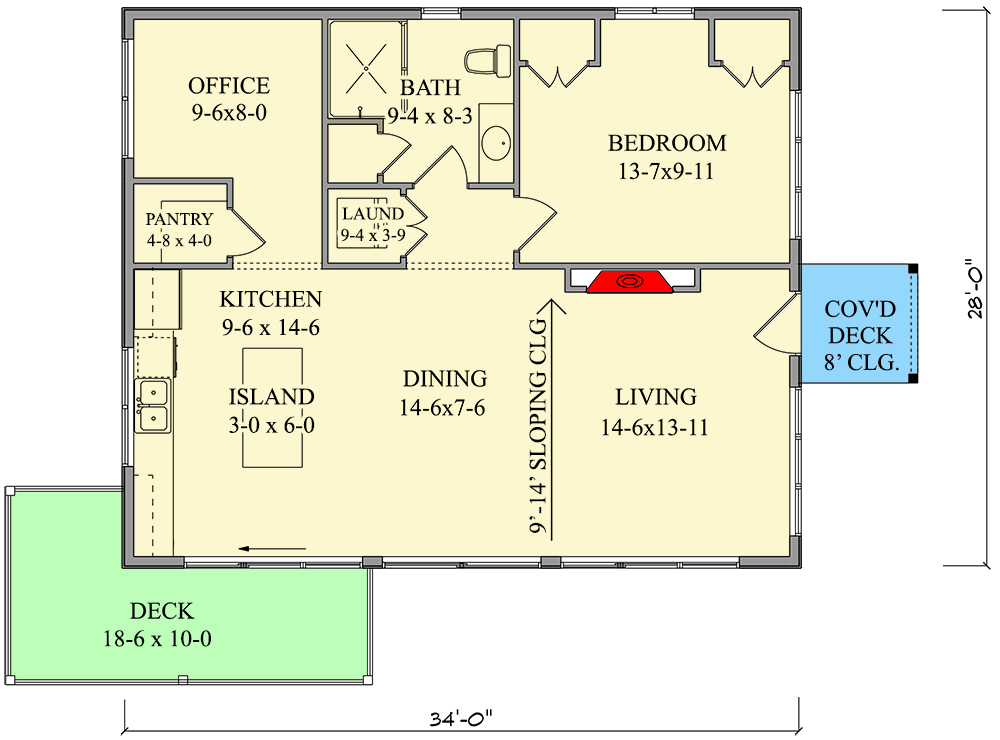

Modern 1-Bed Cottage ADU House Plan with Home Office - 95133RW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 952 sq. ft.
  • 1st Floor: 952 sq. ft.
  • Porch, Combined: 135 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 28' 0"
  • Max ridge height: 15' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 2.5 on 12

Architectural Style

Special features

Plan Collections

Modern 1-Bed Cottage ADU House Plan with Home Office

  • 952

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,350
  • PDF - Unlimited Build $2,025
  • CAD + PDF - Single Build $2,650
  • CAD - Unlimited Build $3,975
  • View all purchase option online

About This Plan

  • Enjoy all of the comforts of modern living in this compact, 1-bedroom Cottage home, perfect as an ADU on your property.
  • The shed-style roof allows for transom windows above the three sets of sliding doors to maximize natural lighting in the open living space.
  • The kitchen is home to a prep island and walk-in pantry, while a rear deck provides the perfect spot for a grill.
  • The work-at-home resident will appreciate the cozy home office with a large window.
  • Two closets frame the window in the bedroom, which neighbors a full bath with a linen closet.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 952 sq. ft.
  • 1st Floor: 952 sq. ft.
  • Porch, Combined: 135 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 28' 0"
  • Max ridge height: 15' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 2.5 on 12
Plan 95133RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95133RW
|
Need Help? 800-854-7852
|
