Modern 2-Car Detached Garage

Plan 22508DR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • This detached garage plan gives you parking for two cars and gives each one a separate door. Timbers support a hip roof providing an attractive design element and some shelter.
  • A man door on the right side gives you access from in- and outside. Two brackets support an overhang and a window gives you some natural light.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

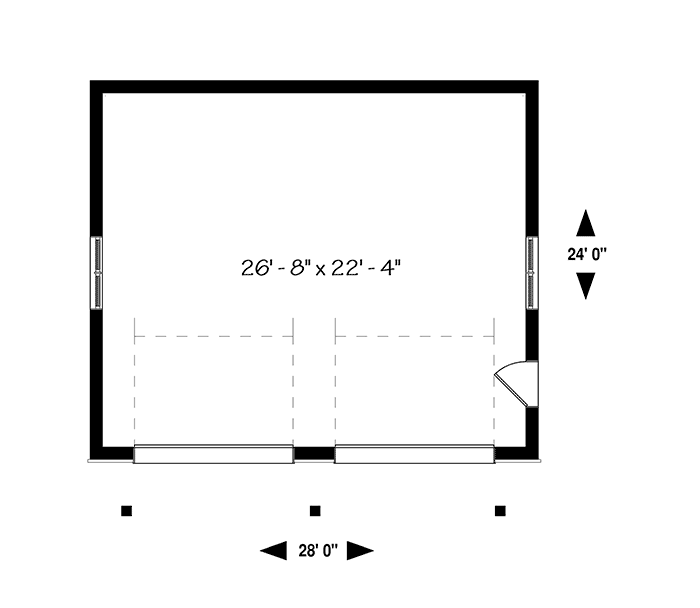

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern 2-Car Detached Garage - 22508DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 24' 0"
  • Max ridge height: 19' 0"

Garage

  • Type: Detached
  • Area: 672 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Modern 2-Car Detached Garage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $425
  • 3 Sets + PDF $530
  • CAD + PDF - Single-Build $725
  • View all purchase option online

About This Plan

  • This detached garage plan gives you parking for two cars and gives each one a separate door. Timbers support a hip roof providing an attractive design element and some shelter.
  • A man door on the right side gives you access from in- and outside. Two brackets support an overhang and a window gives you some natural light.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 24' 0"
  • Max ridge height: 19' 0"

Garage

  • Type: Detached
  • Area: 672 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
