Plan 890084AH Modern 2-Story House Plan with Upstairs Laundry

Modern 2-Story House Plan with Upstairs Laundry

Plan 890084AH

  • 2,321

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern 2-story home has a spacious deck for the perfect place to enjoy a summer evening.
  • On the main floor the great room flows into the kitchen and dining room area creating a great open floor plan.
  • Four bedrooms are located upstairs including a master suite with a large walk-in closet and dual sinks in the bathroom.
  • The three additional bedrooms share a full bath just off the hallway.
  • A 3-stall garage is attached to the house to complete this plan.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



Modern 2-Story House Plan with Upstairs Laundry

  • 2,321

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,015
  • 8 Sets $1,061
  • Reproducible Set $1,275
  • PDF - Single-Build $1,275
  • CAD - Single-Build $2,020
  • View all purchase option online

About This Plan

  • This modern 2-story home has a spacious deck for the perfect place to enjoy a summer evening.
  • On the main floor the great room flows into the kitchen and dining room area creating a great open floor plan.
  • Four bedrooms are located upstairs including a master suite with a large walk-in closet and dual sinks in the bathroom.
  • The three additional bedrooms share a full bath just off the hallway.
  • A 3-stall garage is attached to the house to complete this plan.

Floor Plans

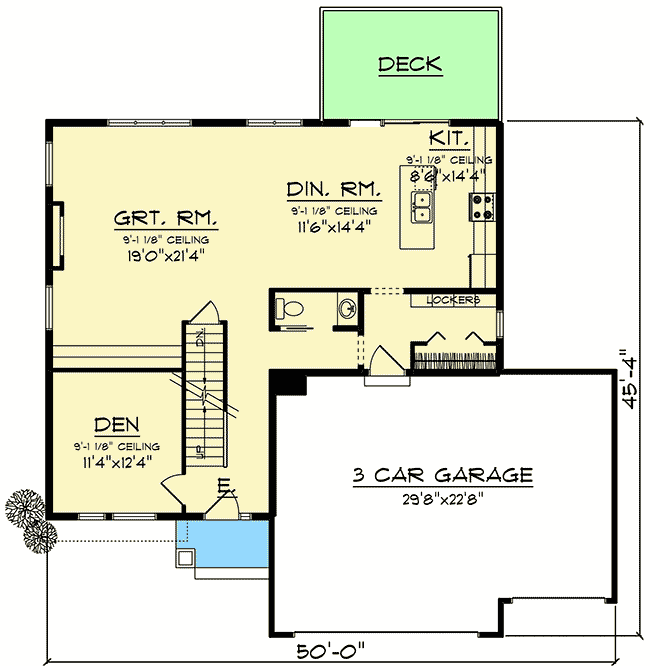

  • Main Level

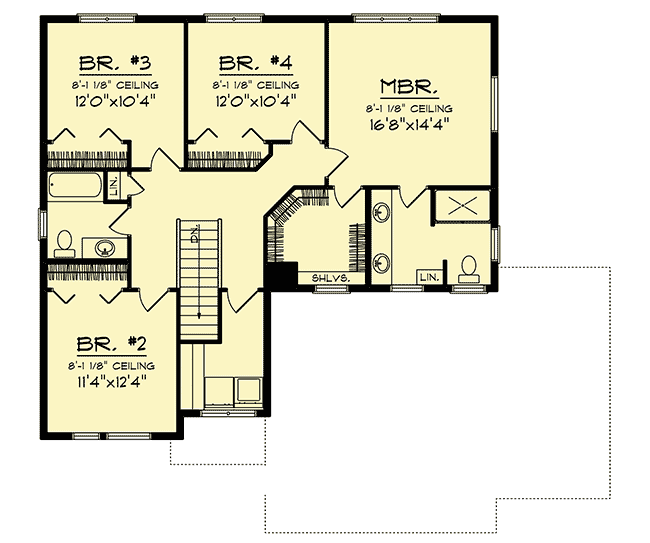

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,321 sq. ft.
  • 1st Floor: 1,151 sq. ft.
  • 2nd Floor: 1,170 sq. ft.
  • Porch, Combined: 36 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 45' 4"
  • Max ridge height: 22' 8"

Garage

  • Type: Attached
  • Area: 662 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
