Plan 31192D
Modern 3-Bed Cottage with Upstairs Laundry
Heated S.F.
1,074
Beds
3
Baths
2.5
Stories
2
Cars
1
Plan Details
  • A shed dormer on the upstairs creates great, useable space for the three bedrooms- and stackable laundry - on the second floor of this 3-bed cottage house plan.
  • The main floor consists of an open living space and a kitchen with counter seating and a powder room under the stairs.
  • A covered patio in back gives you space for a couple of chairs.
  • There is parking for one car and access to the home in the back of the garage.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

What's Included

  • Foundation plan
  • Fully dimensioned floor plan

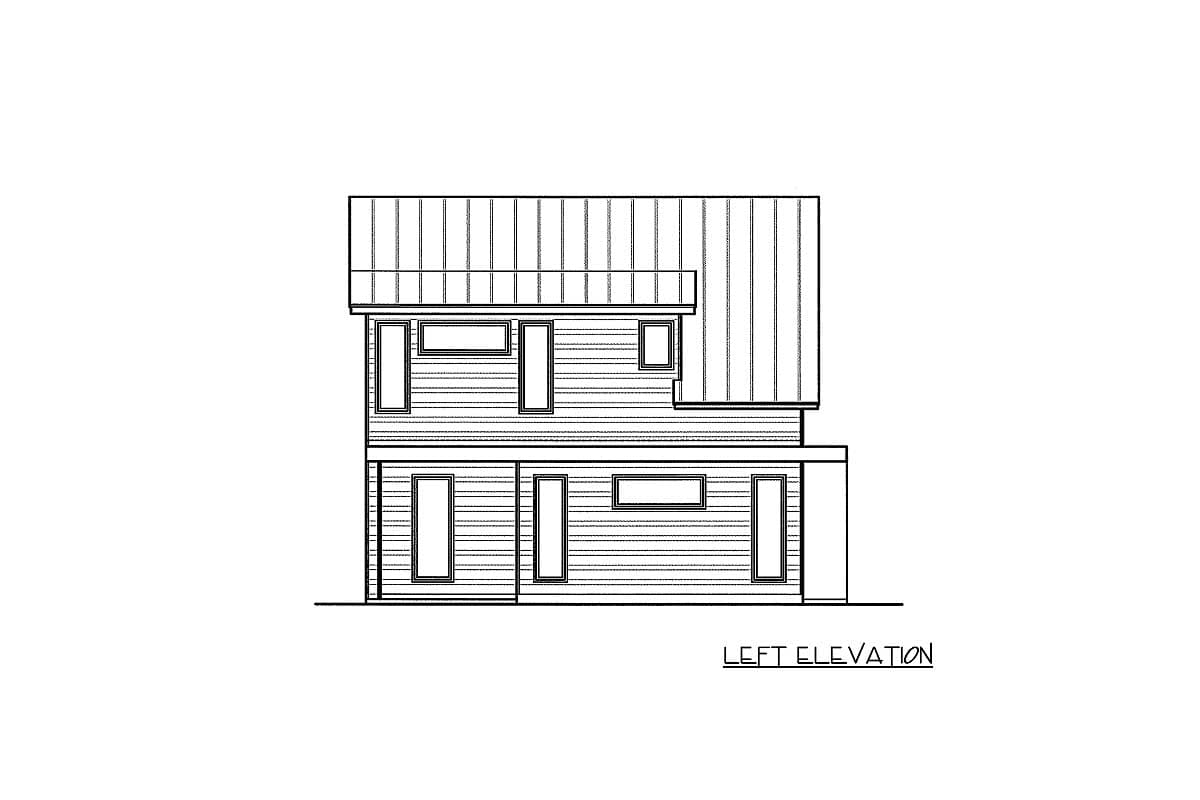

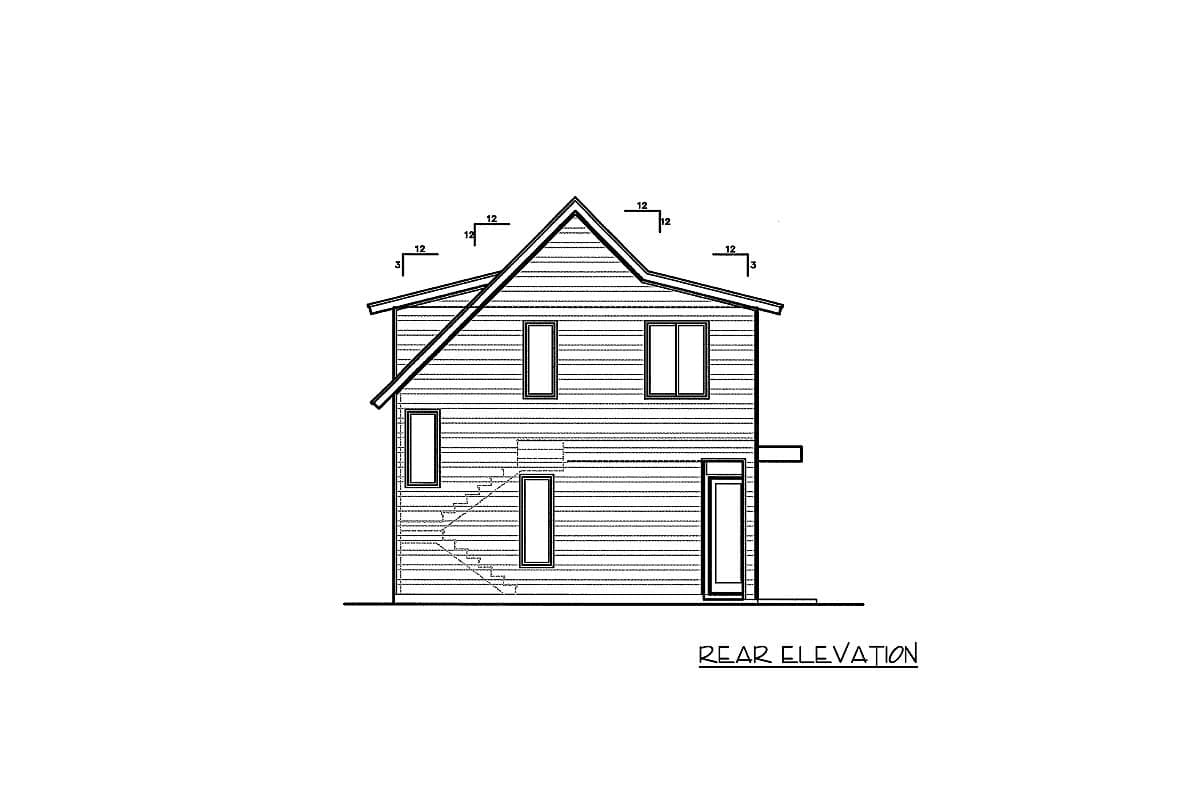

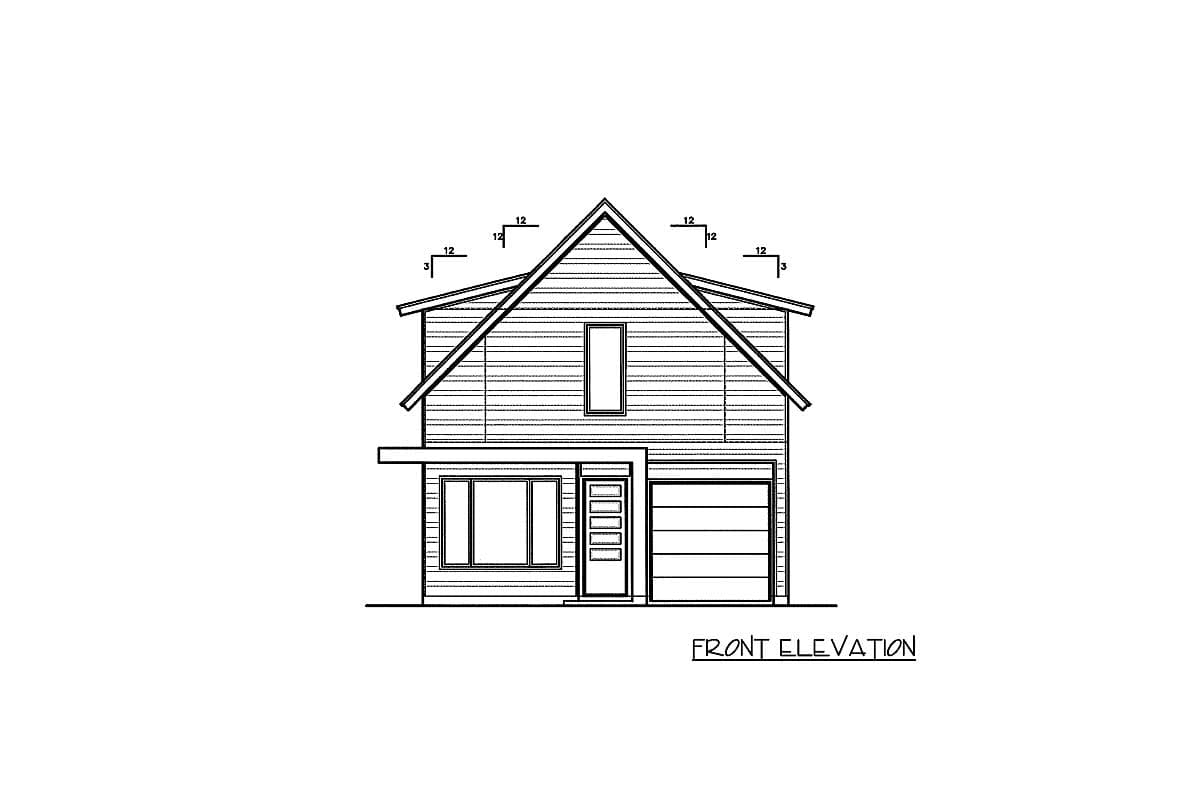

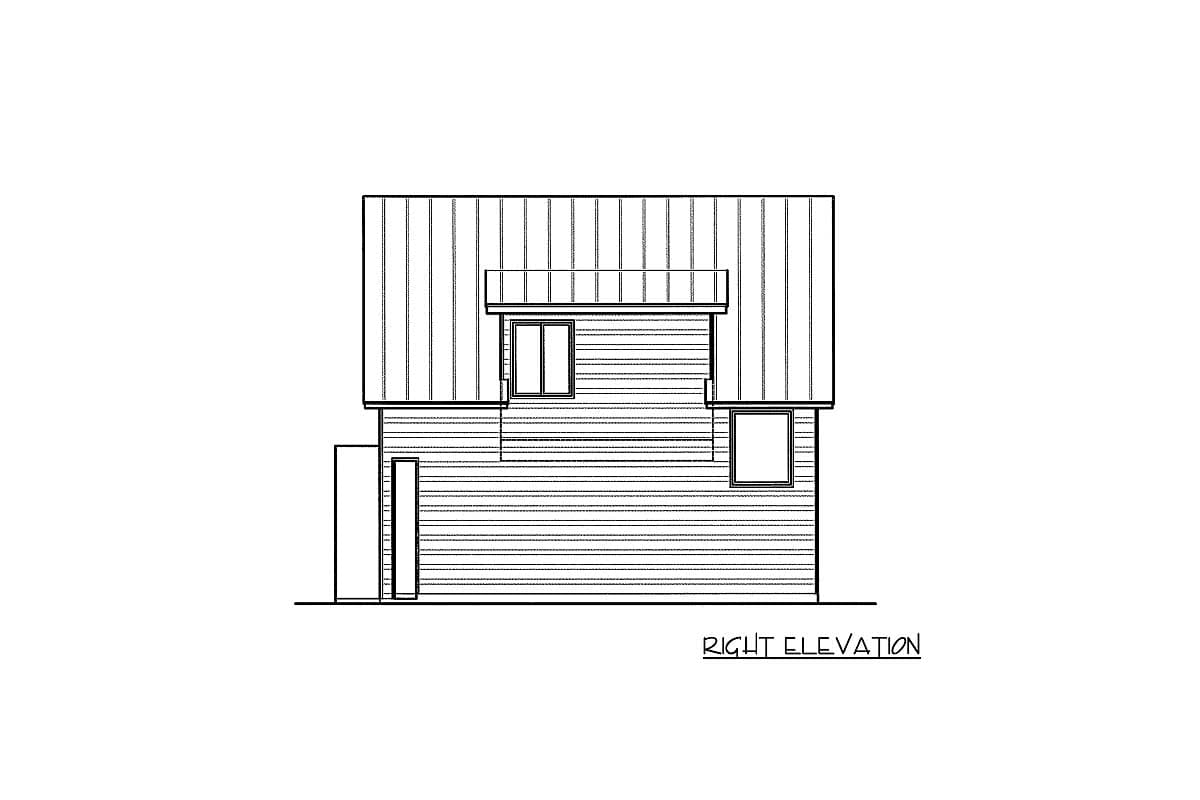

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern 3-Bed Cottage with Upstairs Laundry

  • 1,074

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

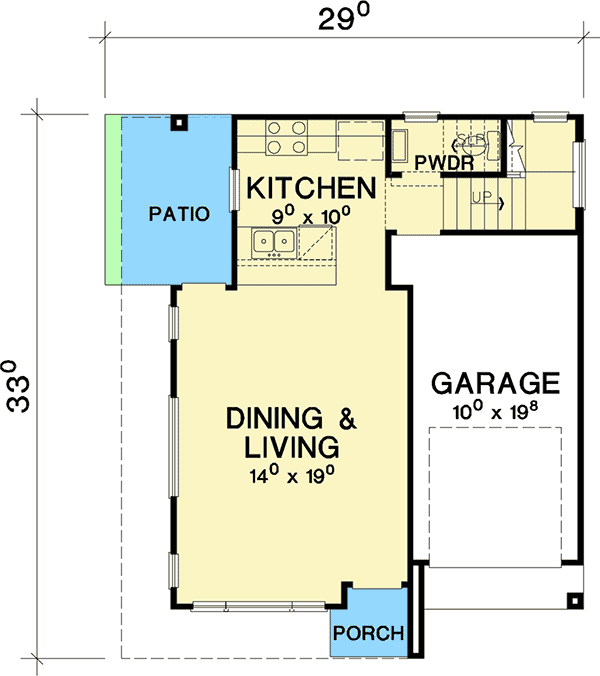

  • Main Level

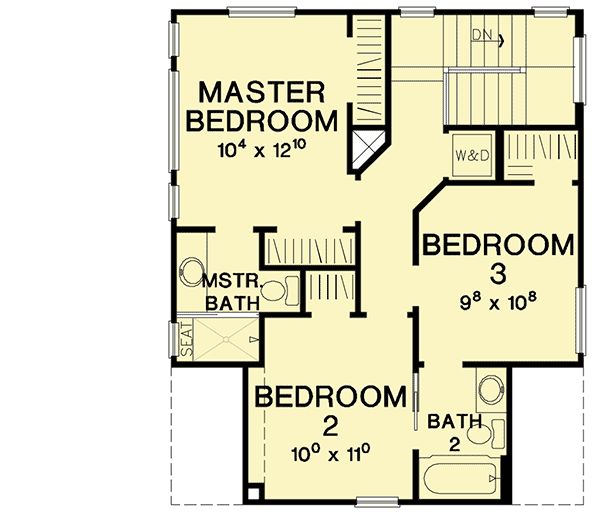

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,074 sq. ft.
  • 1st Floor: 469 sq. ft.
  • 2nd Floor: 605 sq. ft.

Dimensions

  • Width: 29' 0"
  • Depth: 33' 0"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 245 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
