Plan 666209RAF

Modern 5-Bed House Plan for Sloped Lots

Heated S.F.
7,320
Beds
5
Baths
5.5+
Stories
1
Cars
4

Floor Plan

Plan 666209RAF

Main Level
Main Level
Finished Lower Level
Finished Lower Level

Plan 666209RAF

M-F 9am-5pm EST |

1-203-761-8500

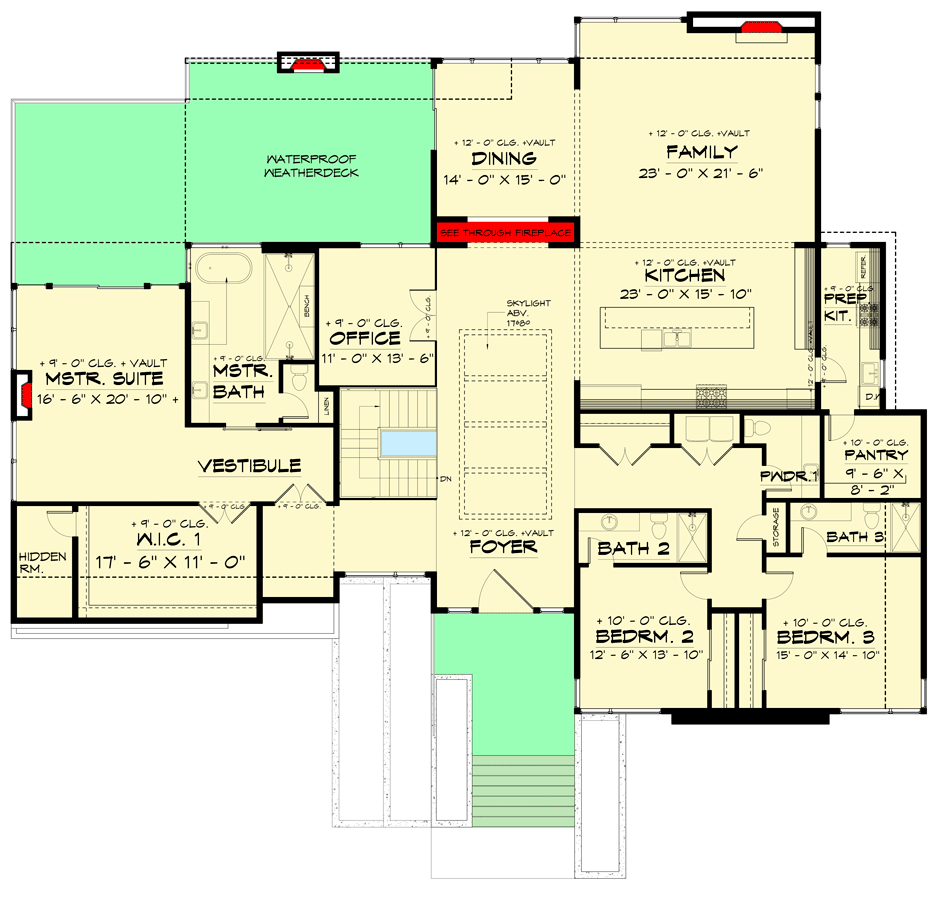

Main Level

Plan 666209RAF: Modern 5-Bed House Plan for Sloped Lots - Floor Plan - Main Level - Contemporary, Modern, Mountain, Northwest

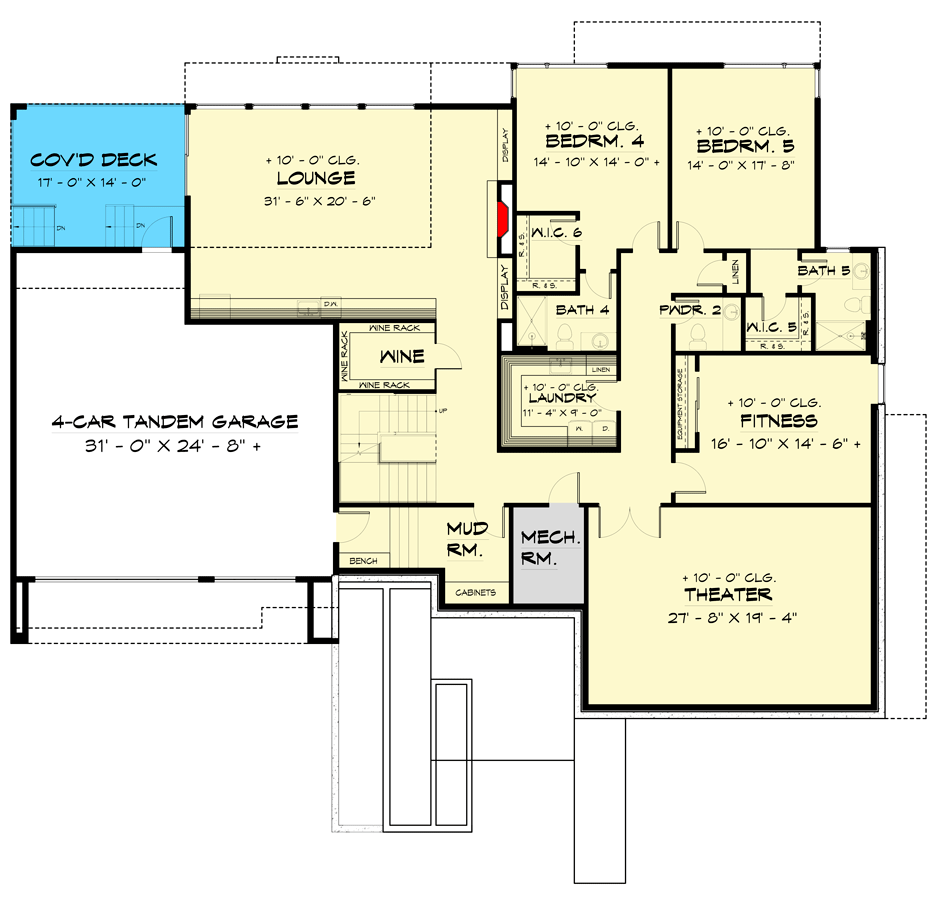

Finished Lower Level

Plan 666209RAF: Modern 5-Bed House Plan for Sloped Lots - Floor Plan - Finished Lower Level - Contemporary, Modern, Mountain, Northwest

Plan Details

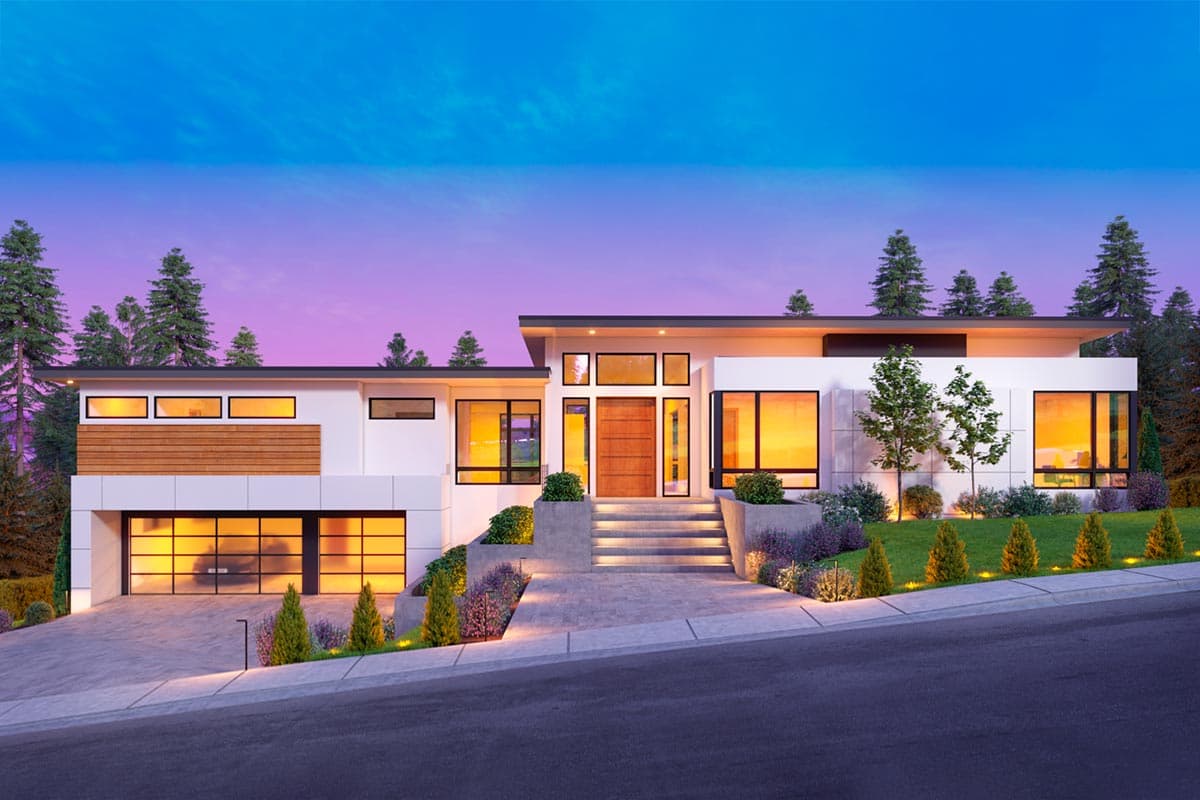

  • With over 7,300 square feet of living space, this Modern 5-bedroom house plan presents a flat roof and oversized windows to welcome the natural light inside.
  • From the foyer, a see-through fireplace provides a peek into the dining room, while 12' ceiling heights in the heart of the home provide a sense of spaciousness.
  • Enjoy entertaining in this gourmet kitchen that features a prep kitchen with a second range, sink, and cold storage. The back deck lends an ideal spot to gather outdoors.
  • The master suite shares the left side of the main level with a home office, while 2 secondary bedroom suites are located across the home.
  • Discover the 4-car, tandem garage on the lower level, along with the mudroom, laundry room, lounge with wine cellar, theater, and a fitness room.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

7,320 sq. ft.

Lower Level

3,216 sq. ft.

1st Floor

4,101 sq. ft.

Porch, Front

164 sq. ft.

Porch, Rear

238 sq. ft.

Deck

738 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

85' 4"

Depth

64' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

920 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

2-Jan on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Mountain

Northwest

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Game/Rec Room

Home Office

Home Theater

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Fireplace

Safe Room

Walk-in Pantry

Wet Bar

Wine Room

Plan Collections

Home Office

Sloping Lot
