Modern A-Frame House Plan with Side Entry - 2007 Sq Ft
Heated S.F.
2,007
Beds
2
Baths
2
Stories
2
Tour
Flyer
Videos
What's Included
Plan Details
  • This modern A-frame house plan has an exterior with cedar siding and a metal roof. On the right, an airlock-type entry gets you inside - as do sliding doors on the front and back - introducing you to an open layout.
  • The kitchen includes a pantry, a large island with a snack bar, and ample counter space. The great room lies under a soaring 2-story cathedral ceiling (the highest point of the ceiling is 30'!) and is warmed by a fireplace that is flanked by built-in bookshelves. A large quad sliding glass door leads from the great room to the rear of the home.
  • The master suite is conveniently located on the main floor and includes its own large quad sliding glass door to the front of the home. The master bathroom includes his/her vanities.
  • The second floor adds an additional bedroom and a wonderful loft area. The bedroom feels huge with its tall cathedral ceiling.
  • Related Plan: Get an alternate version with house plan 623354DJ (2,073 sq. ft.).
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.

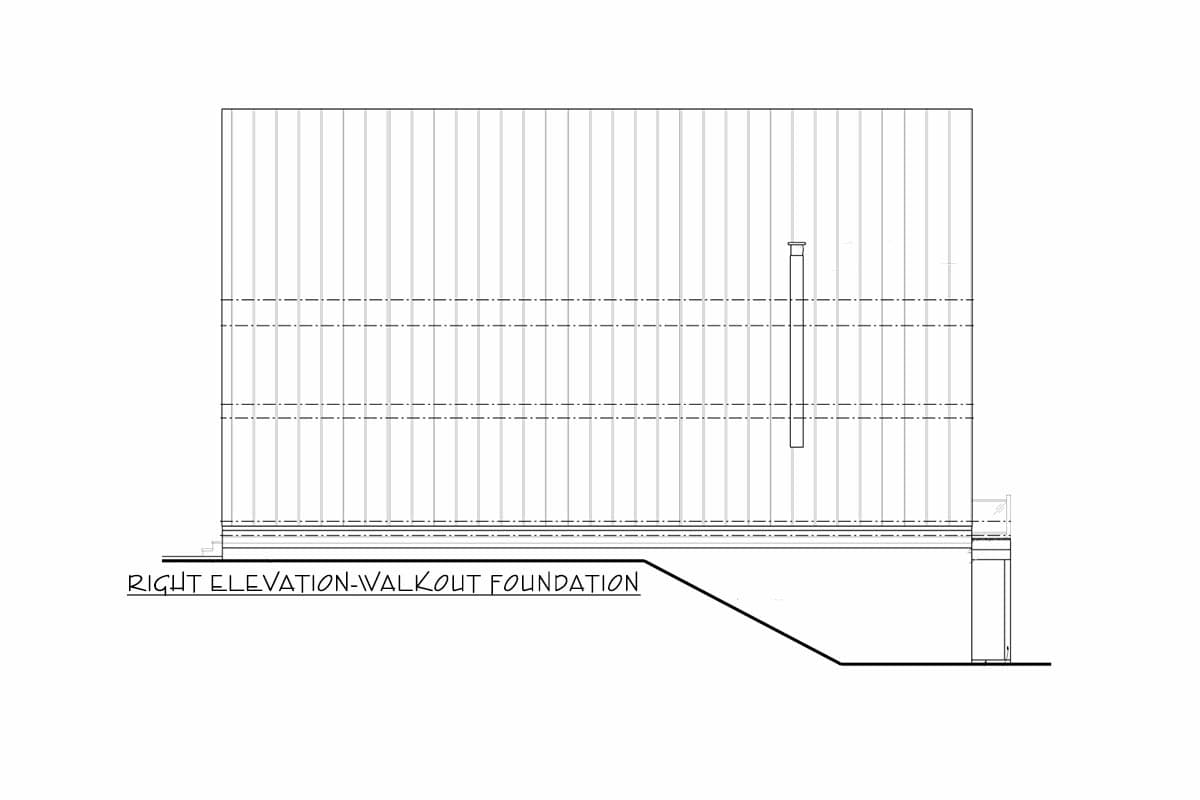

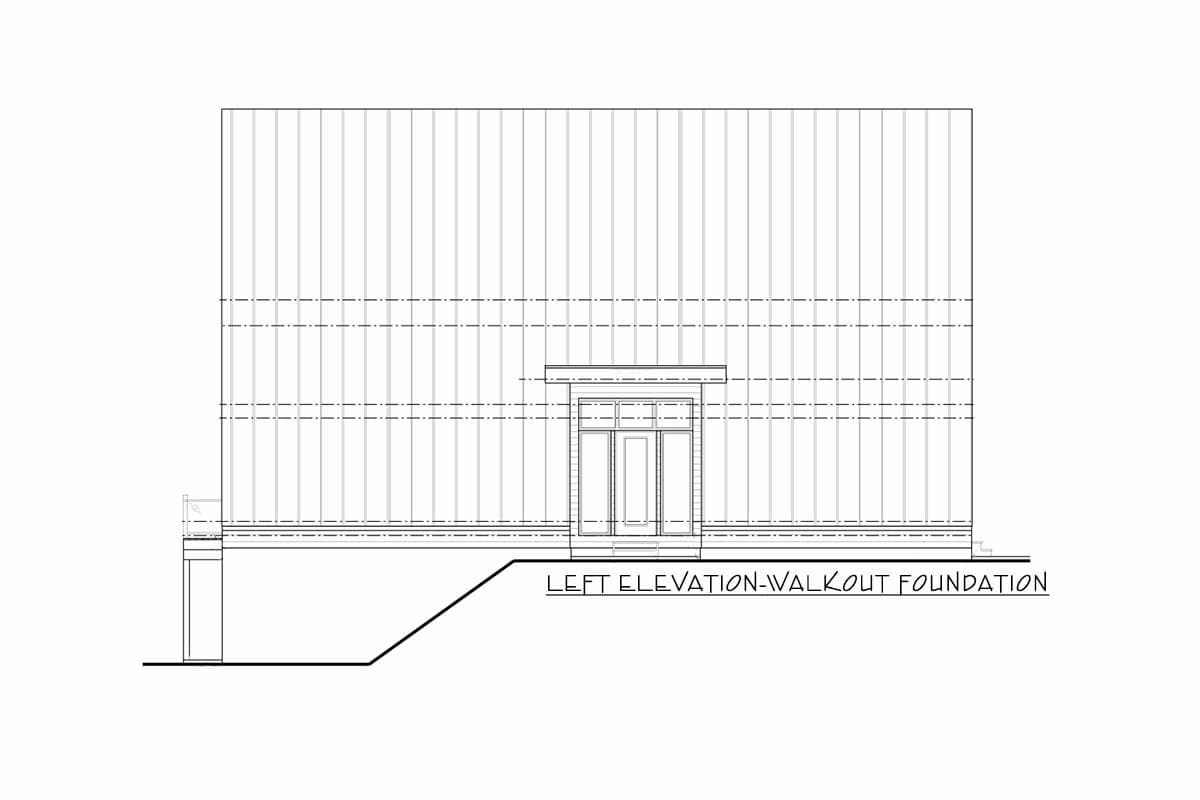

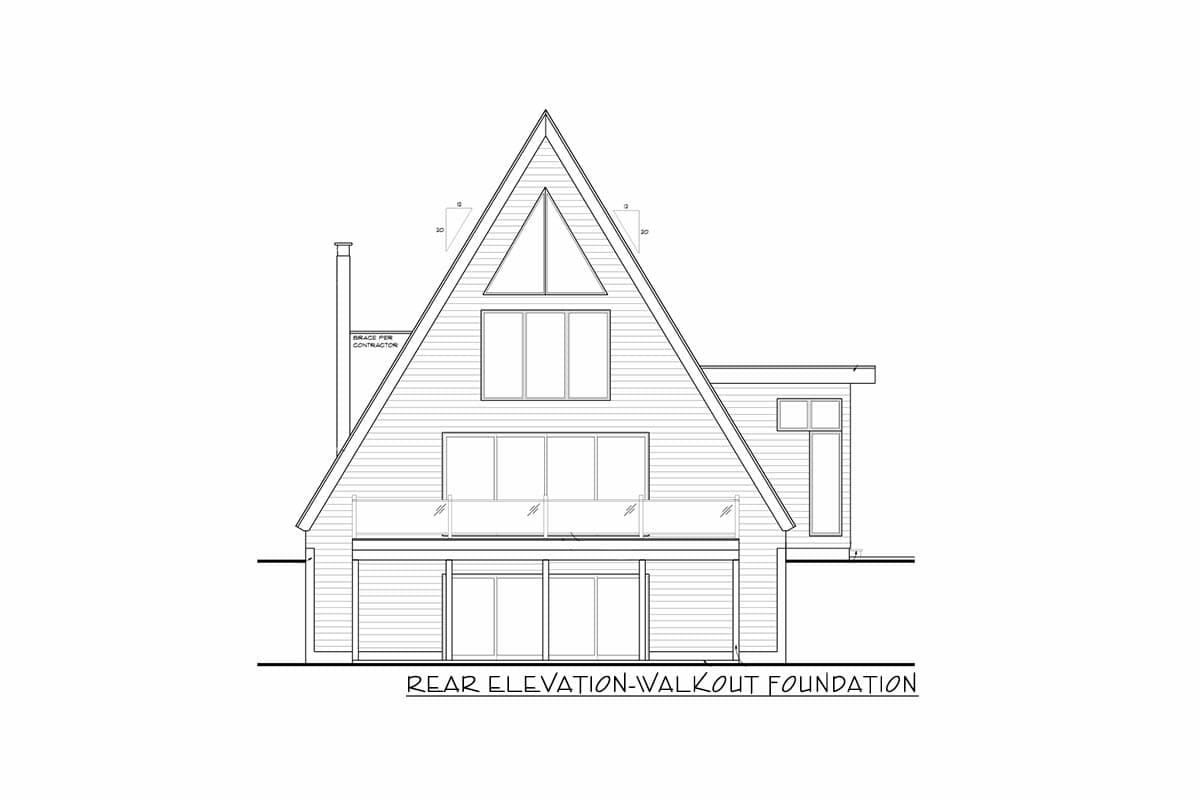

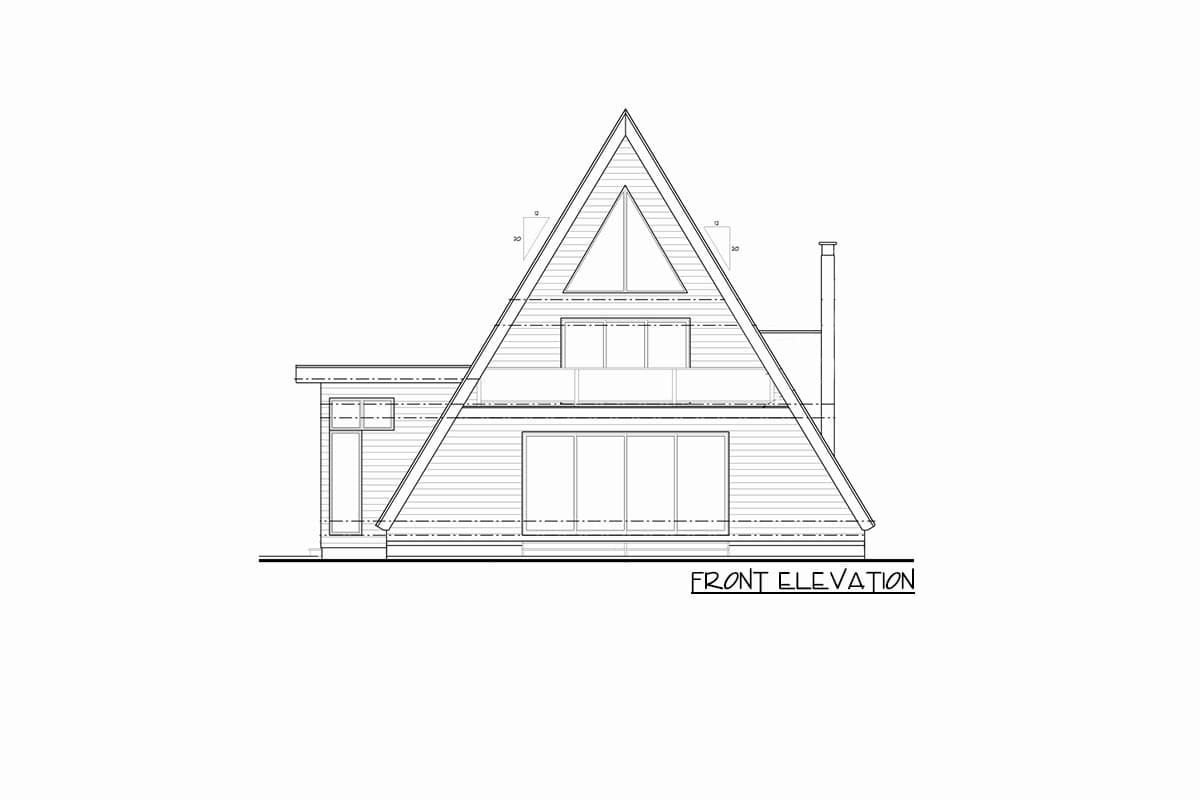

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

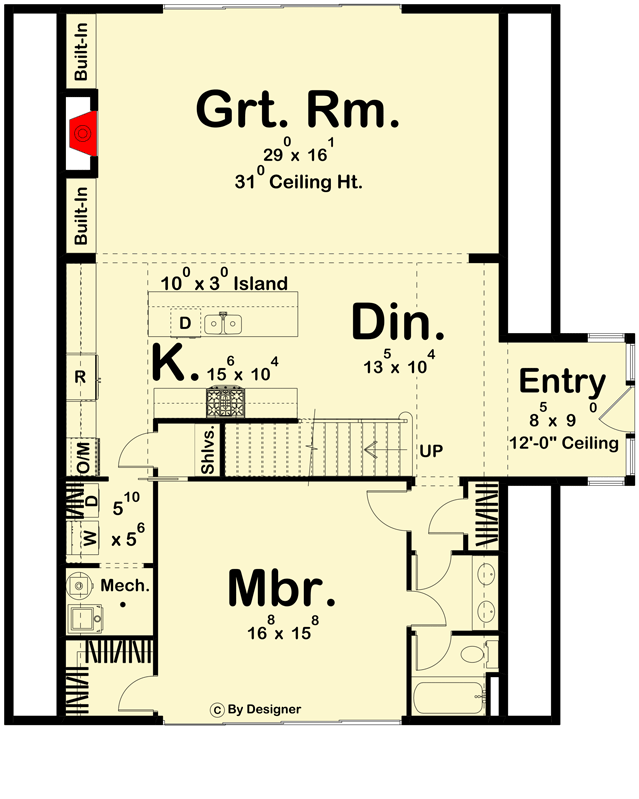

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern A-Frame House Plan with Side Entry - 2007 Sq Ft

  • 2,007

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

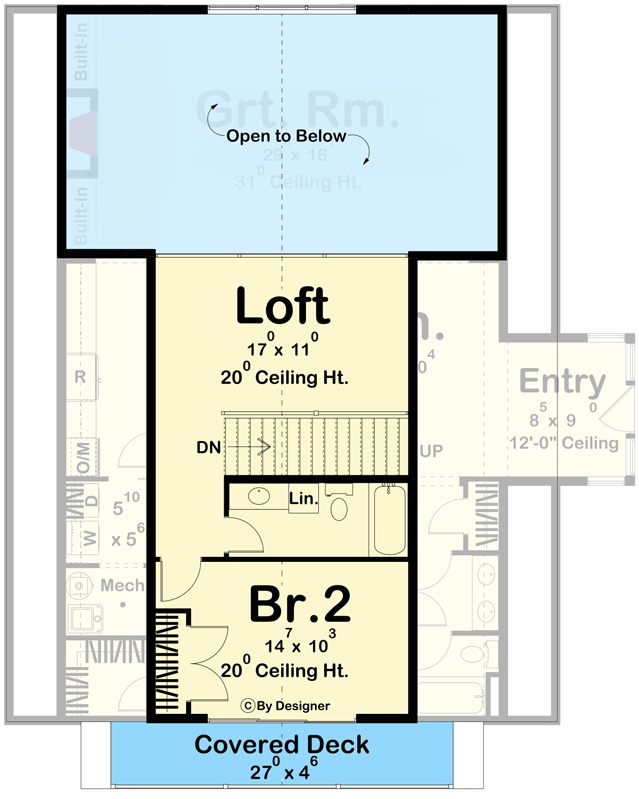

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,007 sq. ft.
  • 1st Floor: 1,498 sq. ft.
  • 2nd Floor: 509 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 48' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
