Modern A-Frame House Plan with Two Master Suites and Vaulted Living

Name: Plan 350159GH: Modern A-Frame House Plan with Two Master Suites and Vaulted Living
Brand: Architectural Designs
SKU: 350159GH
Price: 1370.0 USD
Availability: InStock

Heated S.F.

1,599

Beds

Baths

2.5+

Stories

Floor Plan

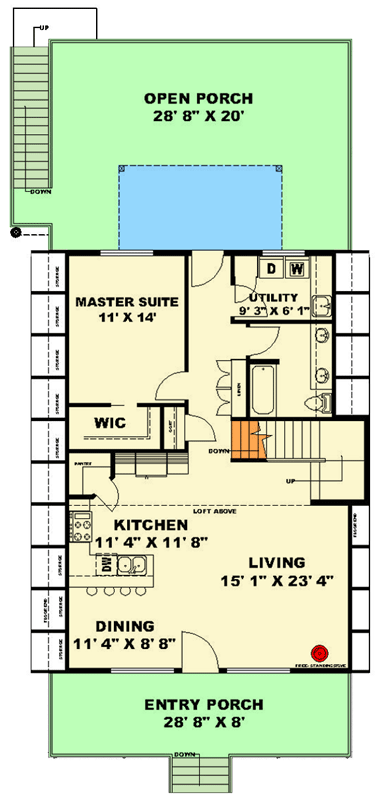

Main Level

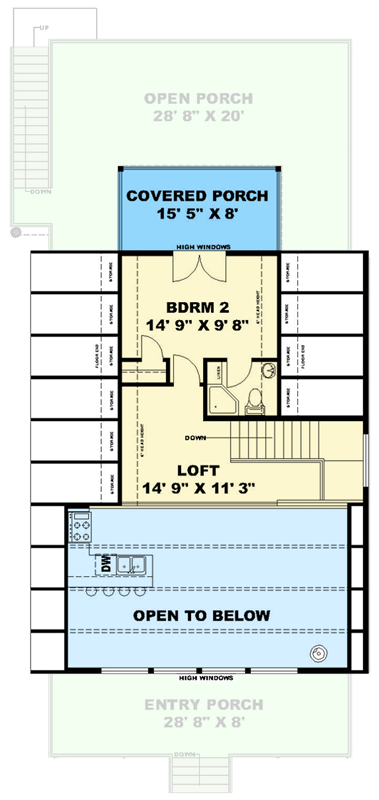

2nd Floor

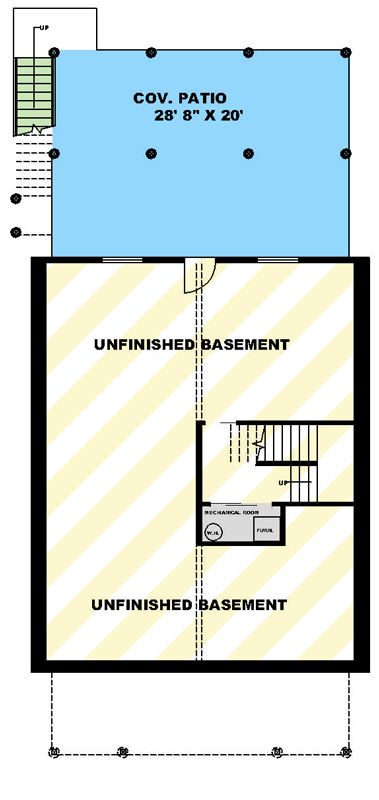

Optional Unfinished Basement Level

Plan Details

This modern 1,599 sq ft A-frame cabin house plan offers 2 bedrooms, 2 full bathrooms, 3 half bathrooms, and a striking contemporary exterior.
Step onto the expansive entry porch, leading into an inviting open-concept living space defined by a soaring two-story great room and vaulted ceilings that amplify the natural light.
The main level features a seamlessly integrated kitchen and dining area, perfect for intimate meals or lively gatherings, while the adjacent living room provides a dramatic focal point with its vertical windows.
A private master suite is conveniently located on the main floor, offering a tranquil retreat with a walk-in closet and direct access to a well-appointed utility room. An additional private bedroom suite is found on the second floor, ensuring comfort for all occupants.
Ascend to the second floor to discover a versatile loft area, ideal for a reading nook, home office, or creative studio, overlooking the vibrant living space below.
Enjoy the tranquility of nature from the generous open porch wrapping around the main level, or retreat to the lower-level covered patio, perfect for shaded outdoor relaxation.
This plan includes a spacious 1,307 sq ft unfinished walkout basement, offering vast potential for future expansion and customization to suit your lifestyle needs.

What's Included

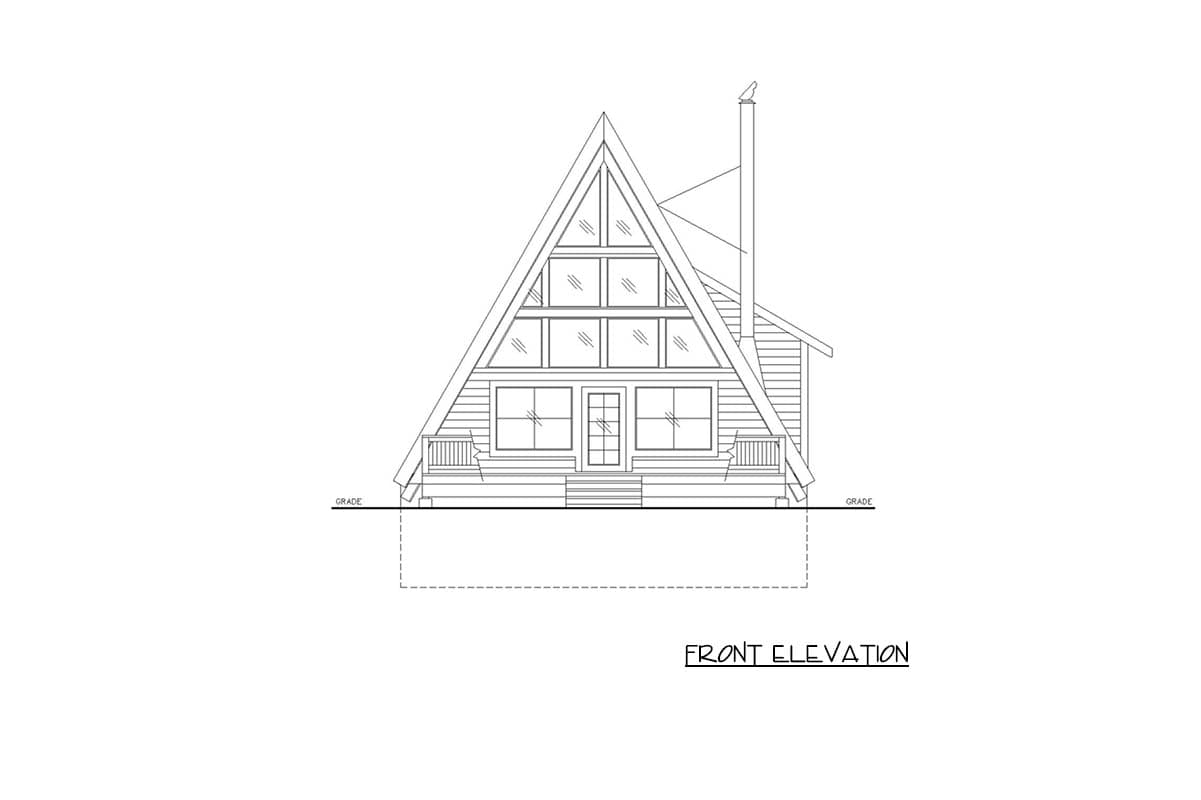

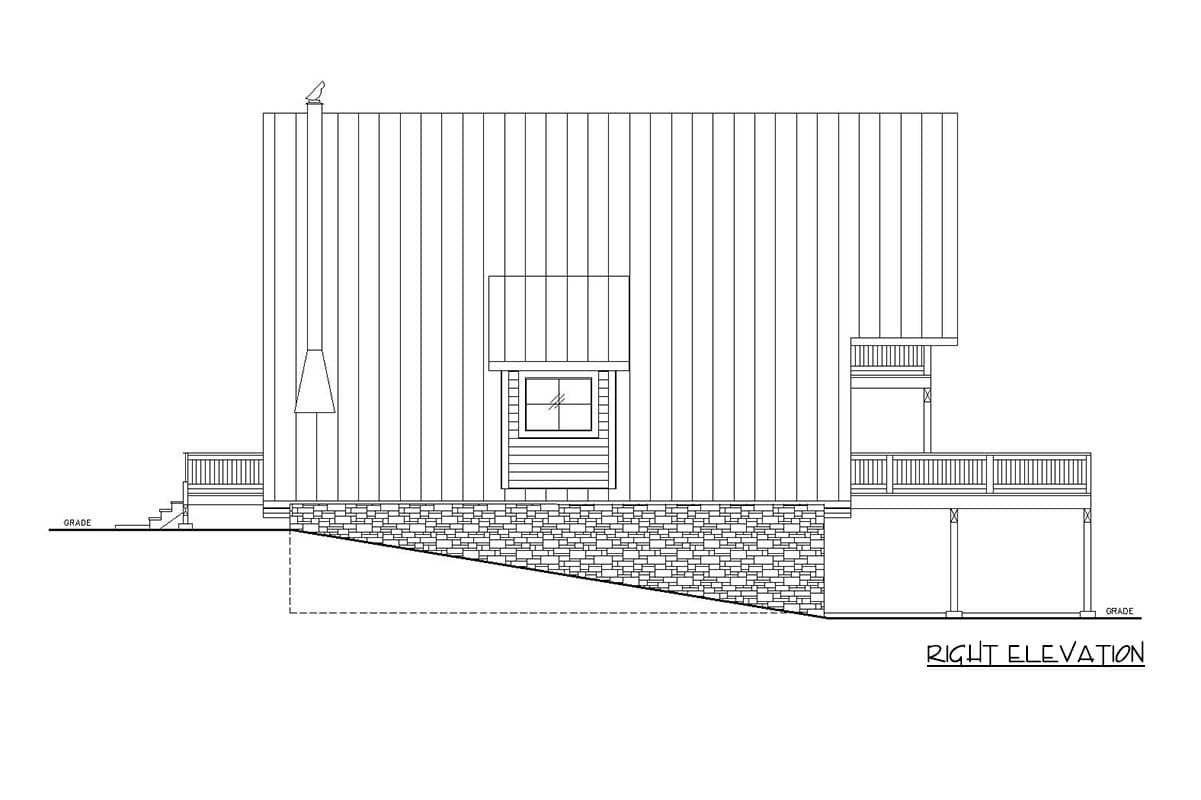

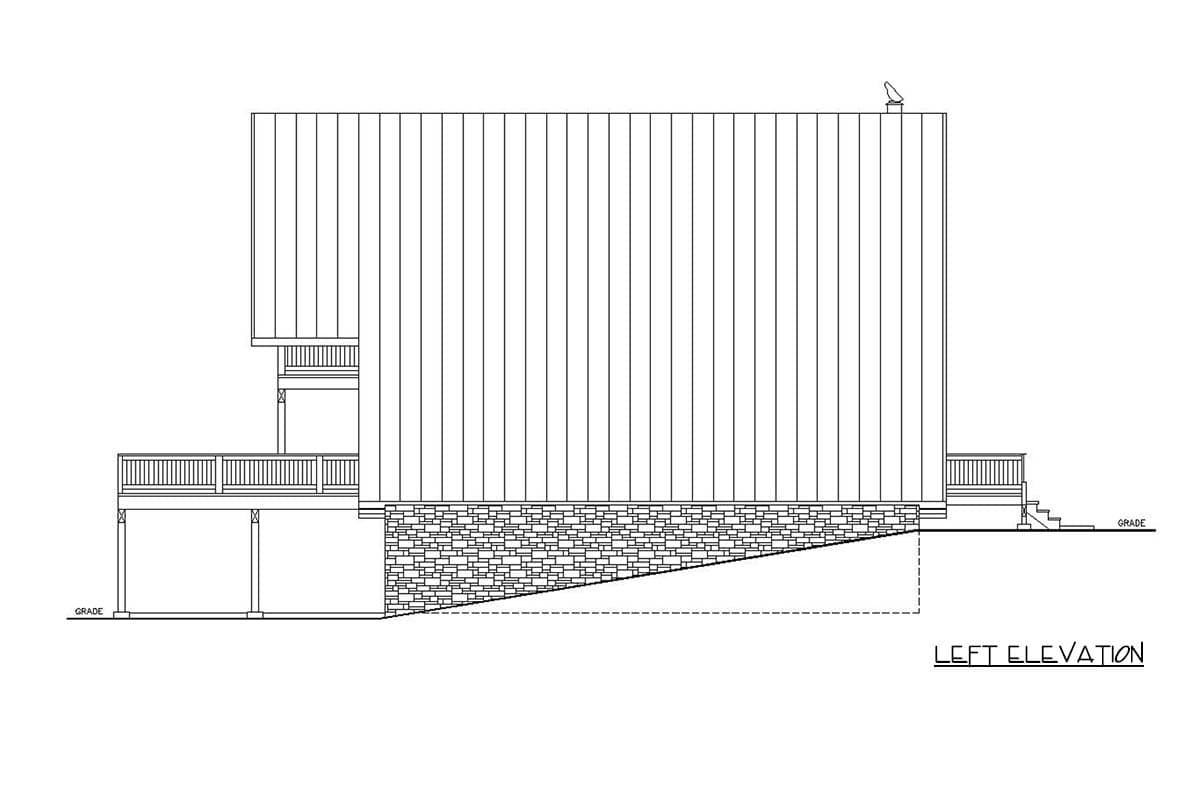

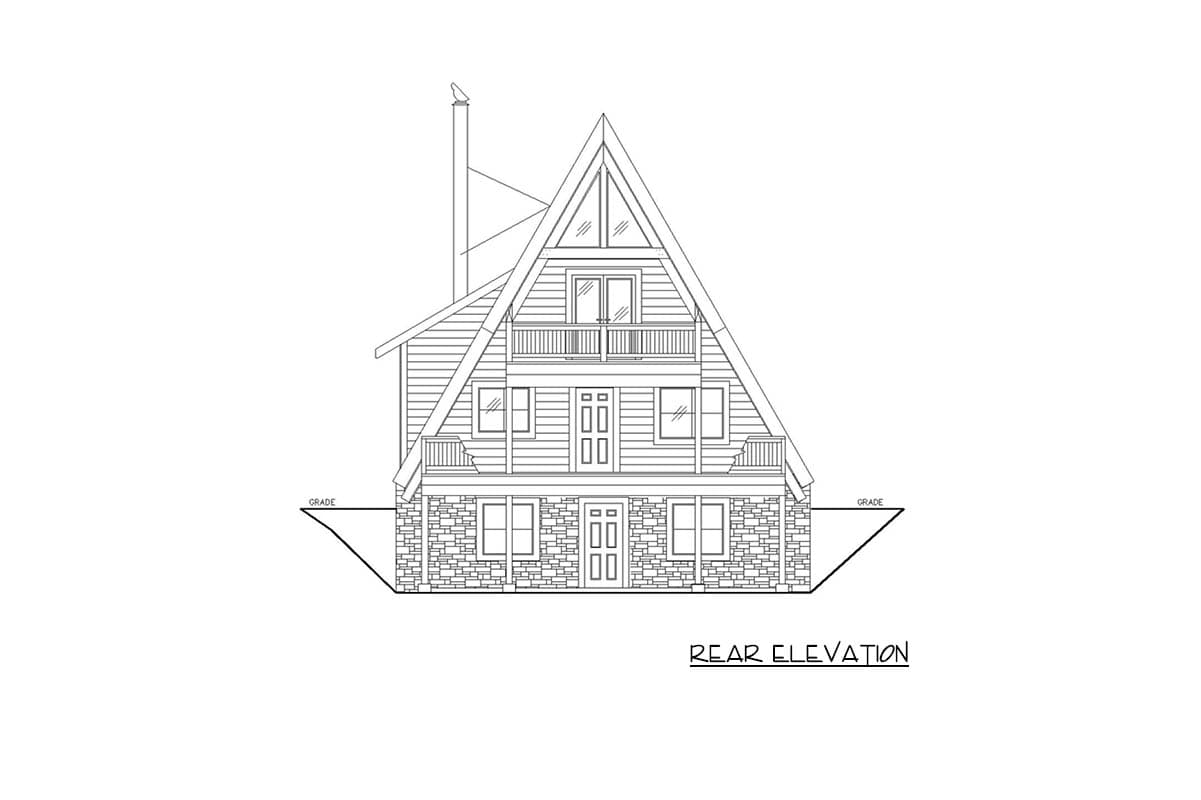

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
