Modern Backyard Office Plan with Bar and Snack Area

Name: Plan 62927DJ: Modern Backyard Office Plan with Bar and Snack Area
Brand: Architectural Designs
SKU: 62927DJ
Price: 499.0 USD
Availability: InStock

Heated S.F.

176

Beds

Baths

0.5

Stories

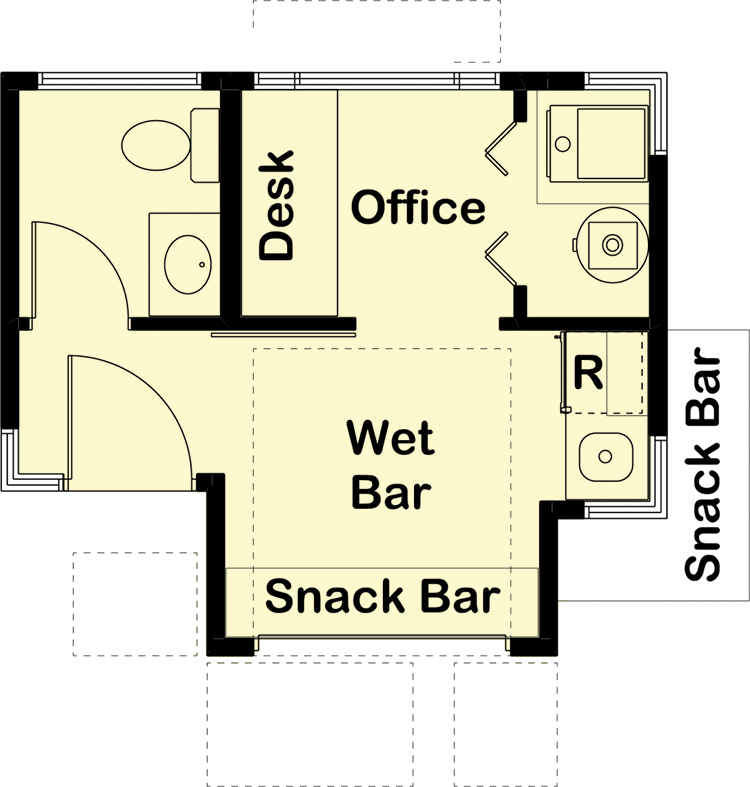

Floor Plan

Main Level

Plan Details

This modern backyard office plan gives you a private place to get work done that you can close off with a sliding barn door or leave it open and join the party going on right outside in the wet bar and snack area.
Great for working at home in colder environments as it comes with its own half bathroom and a utility closet. corner desk.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
