Modern Barndominium House Plan with 3-Car RV Garage and Workshop

Heated S.F.
1,477
Beds
2
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 777077MTL

Metal Wall Framing Detail
Metal Wall Framing Detail
Floor Plan 2

Plan 777077MTL

M-F 9am-5pm EST |

1-203-761-8500

Metal Wall Framing Detail

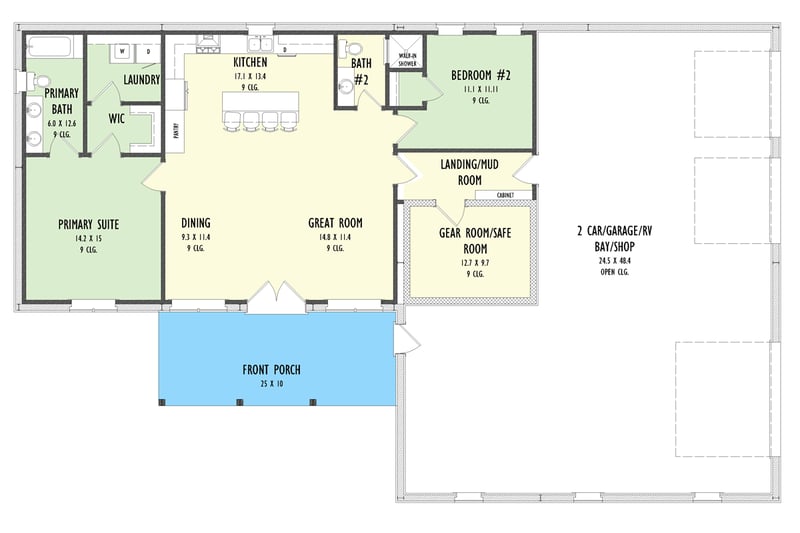

Plan 777077MTL: Modern Barndominium House Plan with 3-Car RV Garage and Workshop - Floor Plan - Metal Wall Framing Detail - Barndominium, Country, Modern Farmhouse

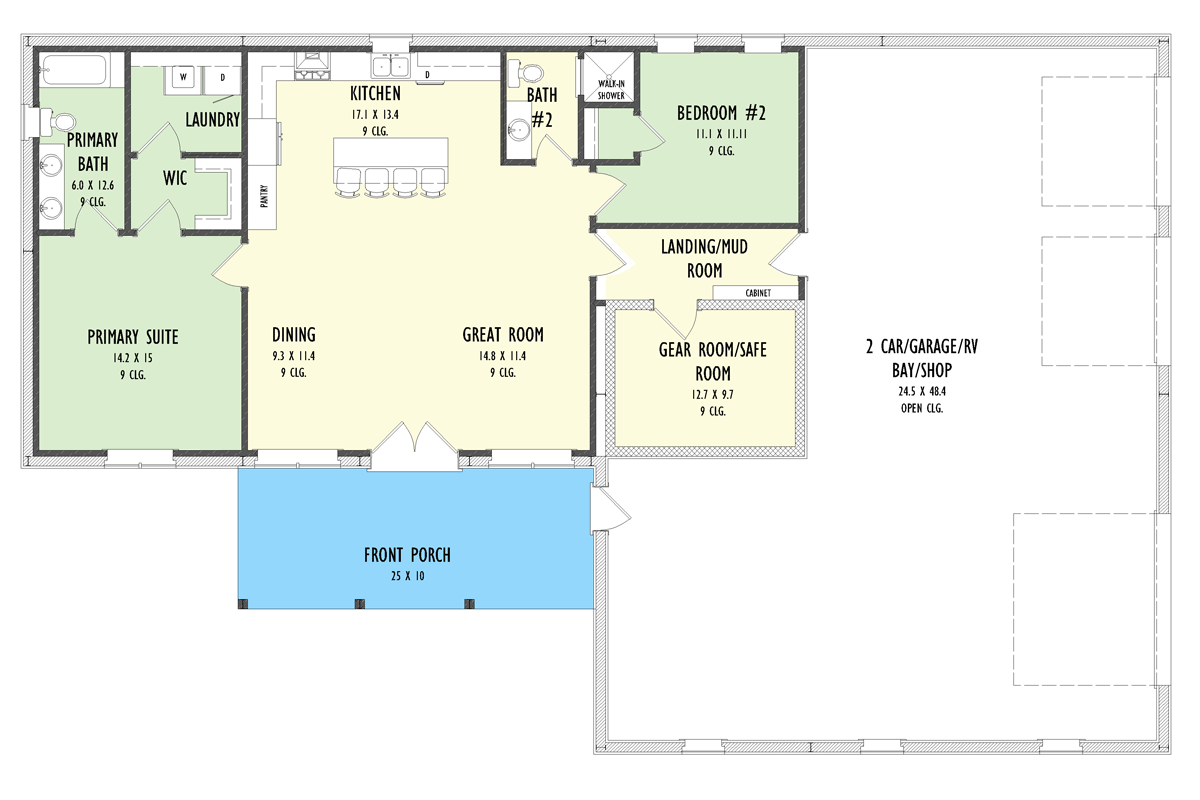

Plan 777077MTL: Modern Barndominium House Plan with 3-Car RV Garage and Workshop - Floor Plan - - Barndominium, Country, Modern Farmhouse

Plan Details

  • This sophisticated modern barndominium features 1,477 square feet of heated living space with two bedrooms, two baths, and a spacious 1,161 sq. ft. three-car RV garage.
  • A sprawling 500-square-foot front porch creates an inviting entry, leading into a thoughtfully designed layout that balances rustic charm with contemporary function.
  • The heart of the home centers on an open-concept living area and a bright breakfast nook, providing a seamless flow for daily life and casual gatherings.
  • The split-bedroom floor plan ensures maximum privacy, with the primary suite featuring direct access to a convenient main-level laundry room.
  • Purpose-built for hobbyists and organized living, the home includes a dedicated workshop area, a functional mudroom, and a secure safe room.
  • The sleek metal exterior walls and clean lines define this country-modern residence, offering a durable and stylish aesthetic for rural or suburban living.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,477 sq. ft.

1st Floor

1,477 sq. ft.

Porch, Front

500 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

50' 0"

Max Ridge Height

22' 4"

Garage

Type

RV Garage, Standard, Attached

Area

1161 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Safe Room

Workshop

Square Footage Breakdown

Total Heated Area

1,477 sq. ft.

1st Floor

1,477 sq. ft.

Porch, Front

500 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

50' 0"

Max Ridge Height

22' 4"

Garage

Type

RV Garage, Standard, Attached

Area

1161 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Barndominium

Country

Modern Farmhouse

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Safe Room

Workshop
