Plan 280248JWD

Modern Barndominium Plan with Indoor Sports Court and Vaulted Loft

Heated S.F.
2,778
Beds
1
Baths
1
Stories
2

Floor Plan

Plan 280248JWD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 280248JWD

M-F 9am-5pm EST |

1-203-761-8500

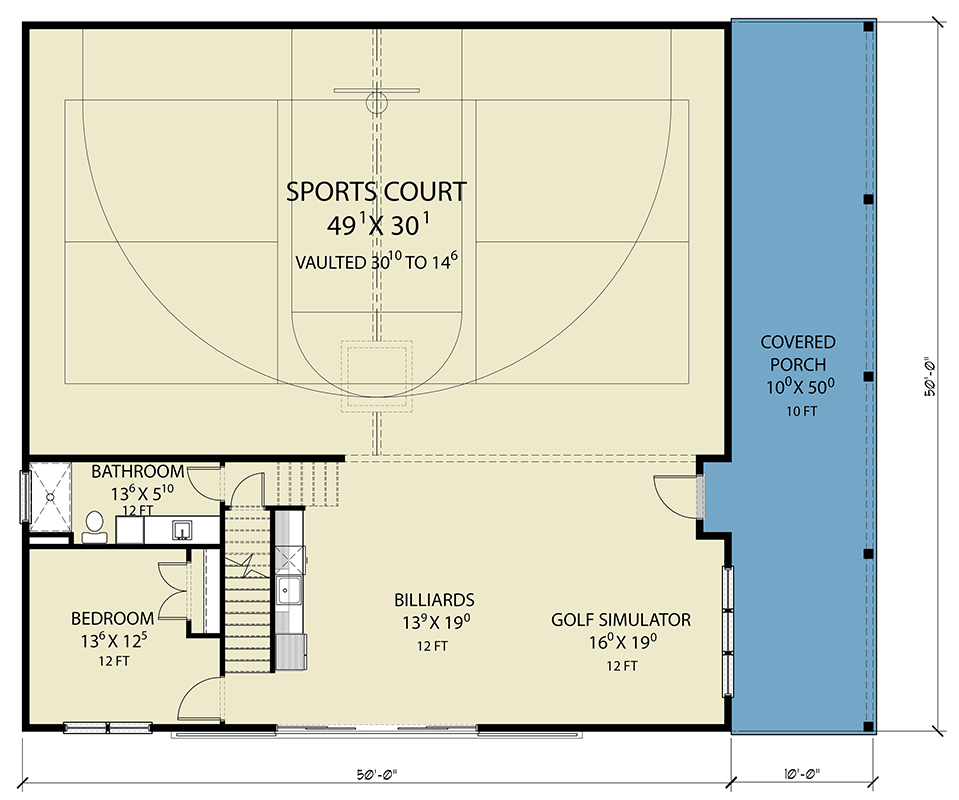

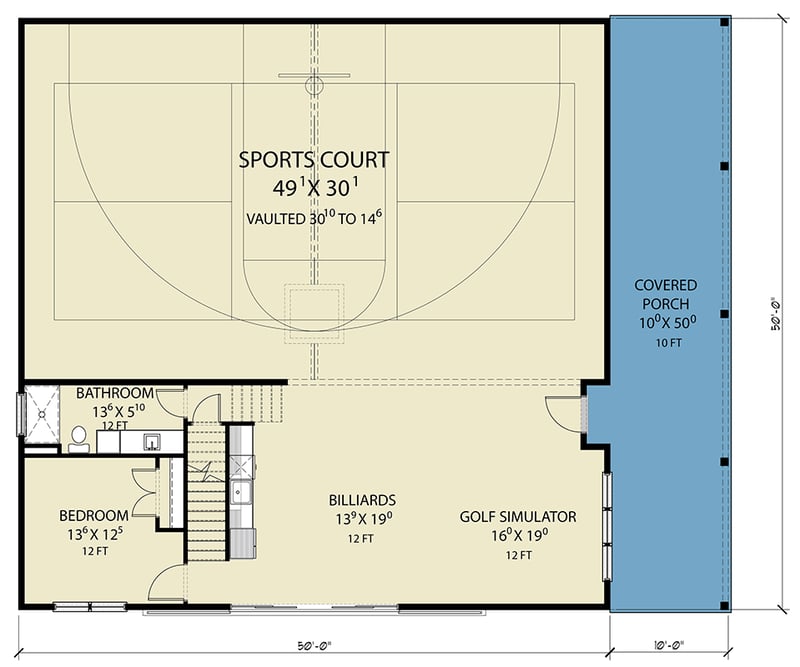

Main Level

Plan 280248JWD: Modern Barndominium Plan with Indoor Sports Court and Vaulted Loft - Floor Plan - Main Level - Barndominium

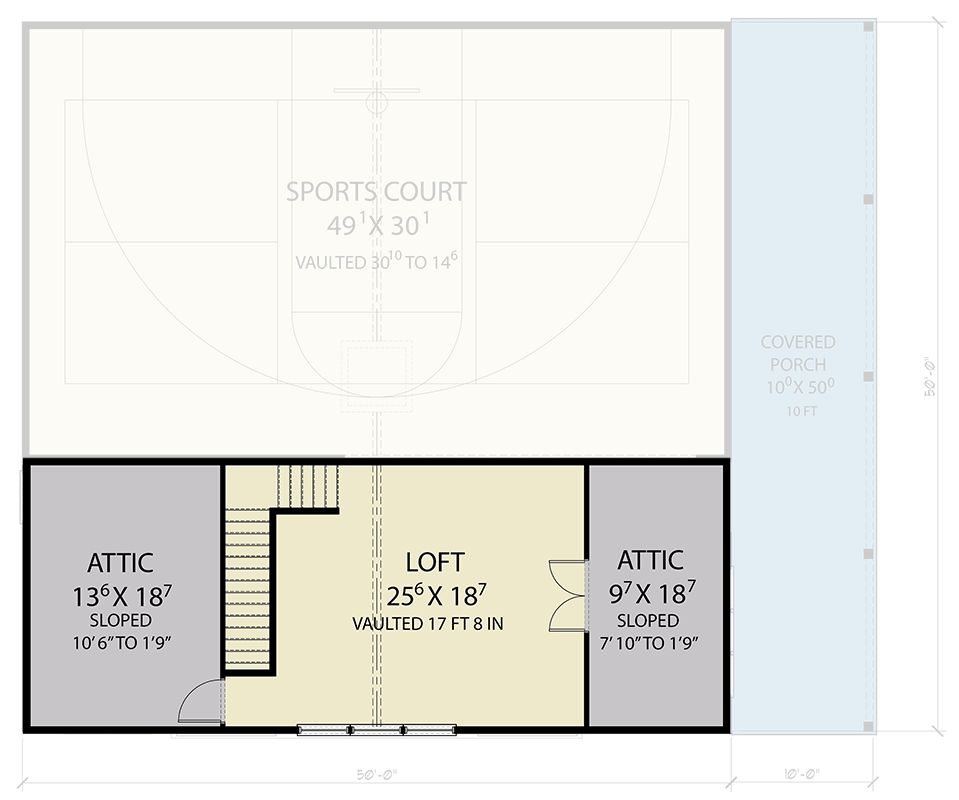

2nd Floor

Plan 280248JWD: Modern Barndominium Plan with Indoor Sports Court and Vaulted Loft - Floor Plan - 2nd Floor - Barndominium

Plan Details

  • This expansive 2,778 sq ft Barndominium Plan offers a unique blend of industrial chic and luxurious recreation, featuring 1 bedroom and 1 full bathroom within its striking modern design.

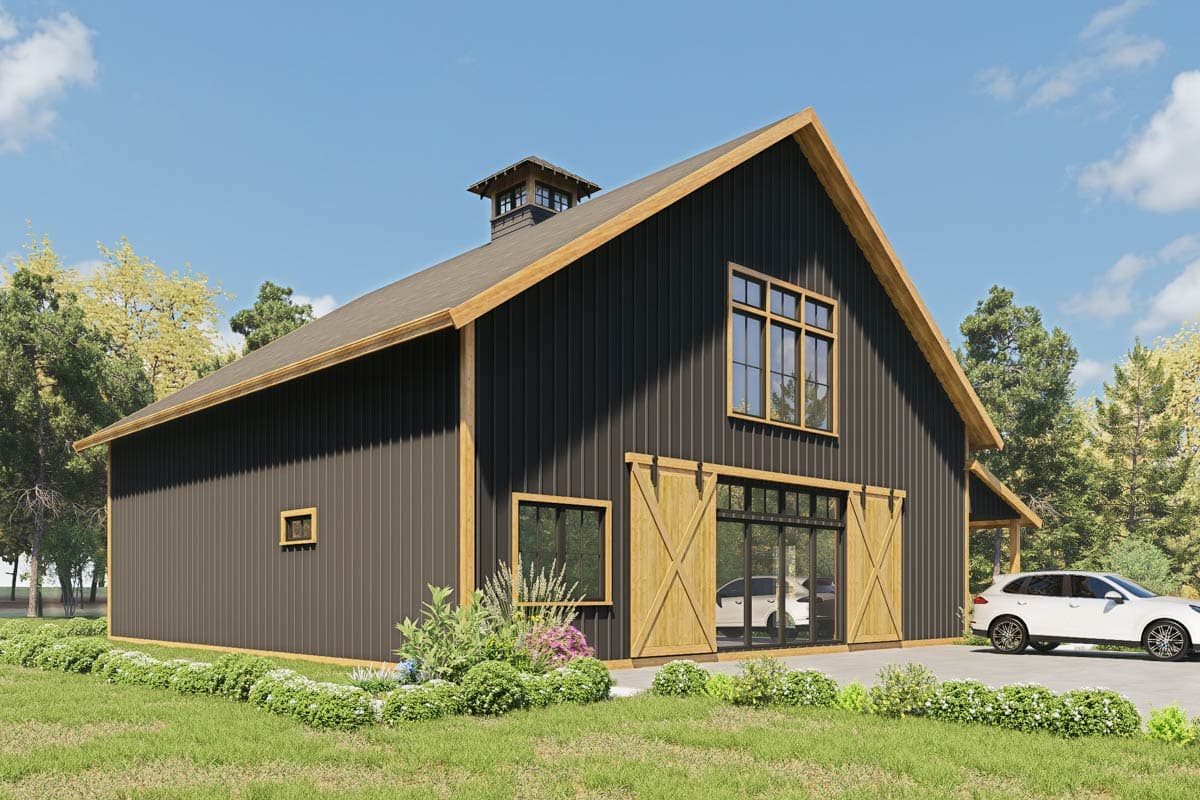

  • The dramatic main entry, framed by impressive barn-style sliding doors and expansive glass, opens directly into an unparalleled indoor sports court, boasting a soaring vaulted ceiling from 14'6" to a dramatic 30 feet.

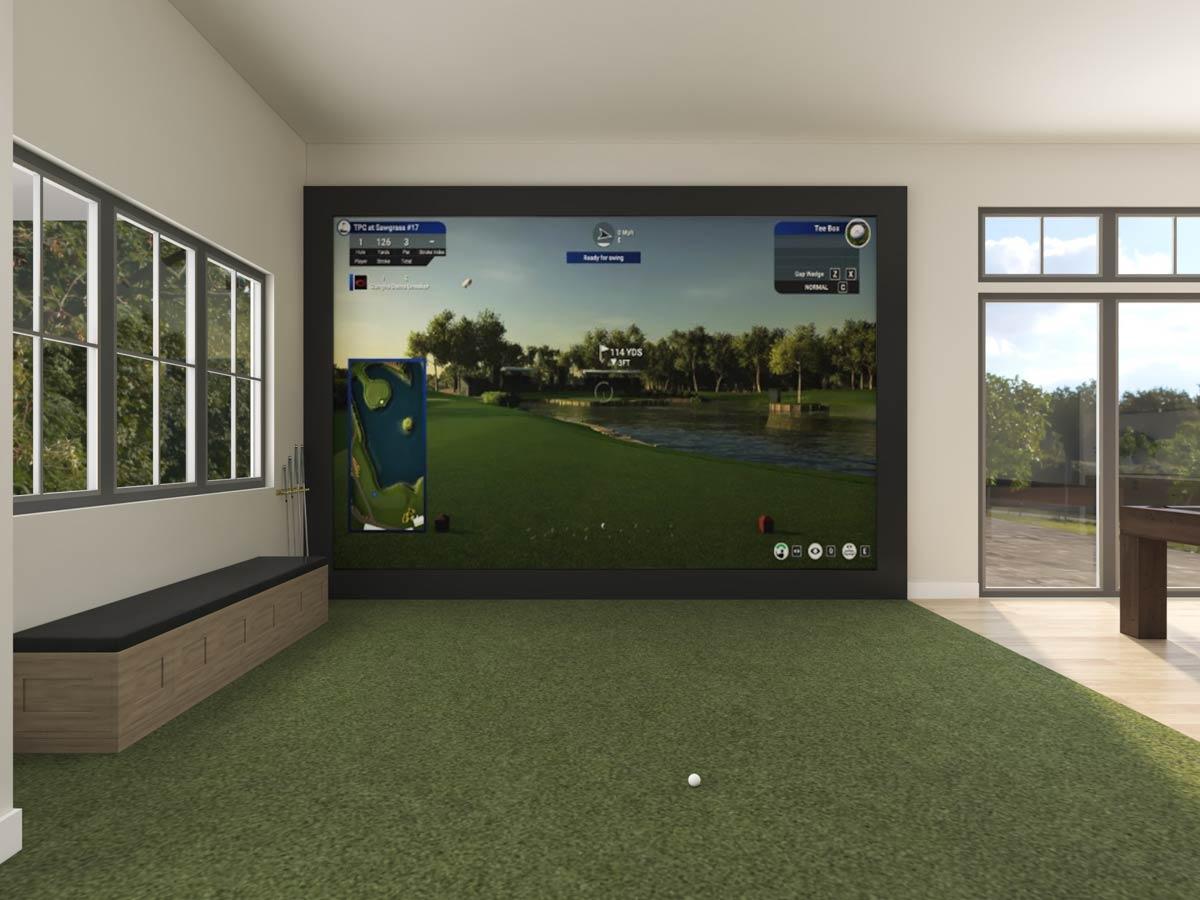

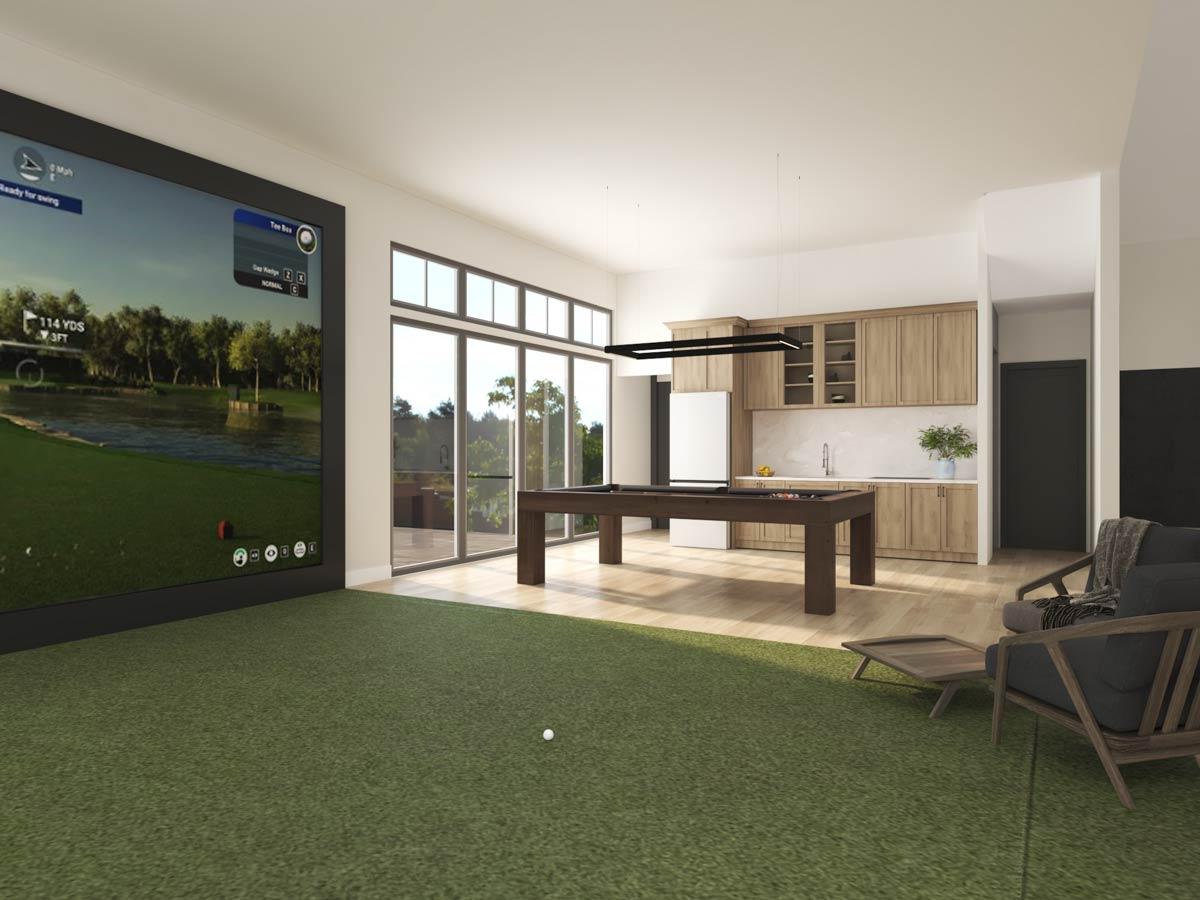

  • Adjacent to the grand court, a thoughtfully designed entertainment zone unfolds, featuring a dedicated golf simulator and a spacious billiards room, both offering generous 12-foot ceilings perfect for hosting gatherings and leisure.

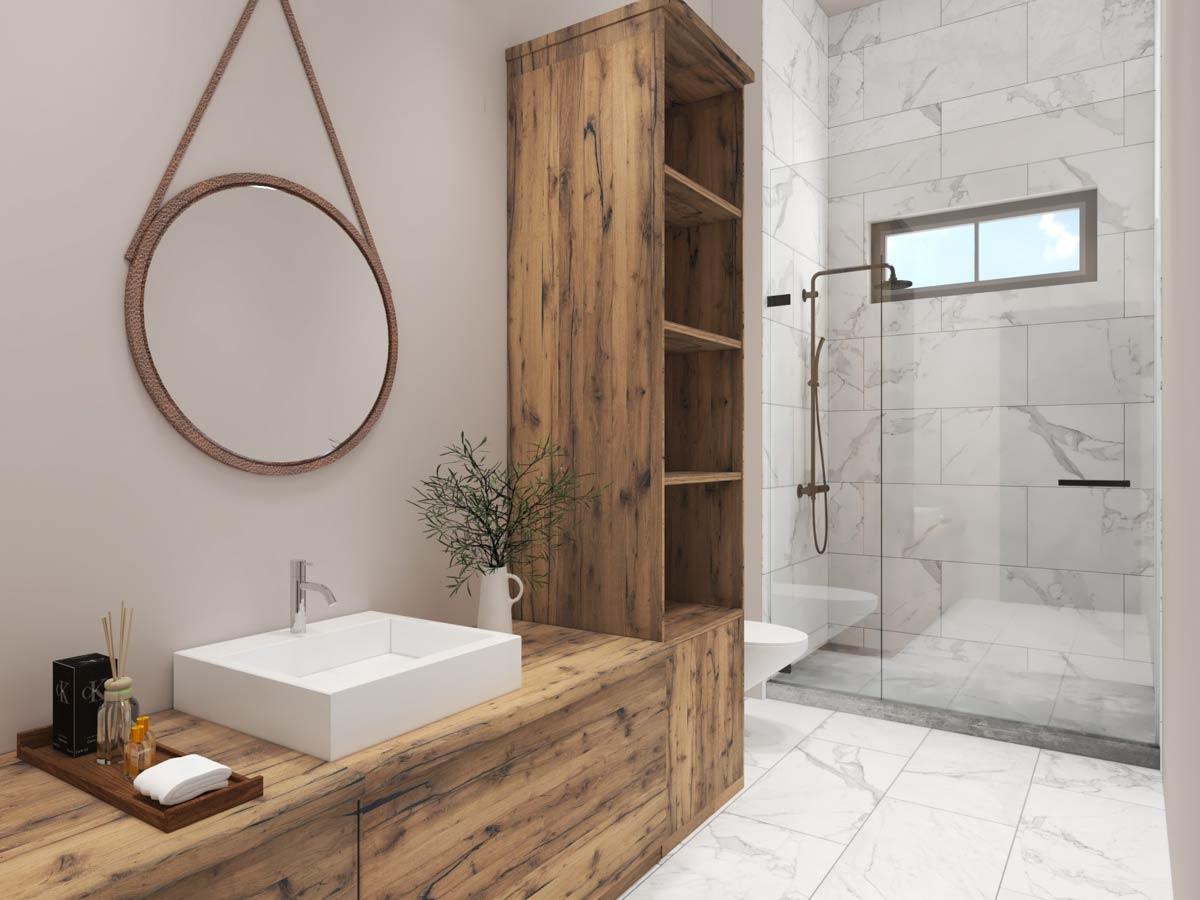

  • The secluded first-floor bedroom suite provides a private sanctuary with a 12-foot ceiling, conveniently located near the full bathroom and the home's exceptional recreational amenities.

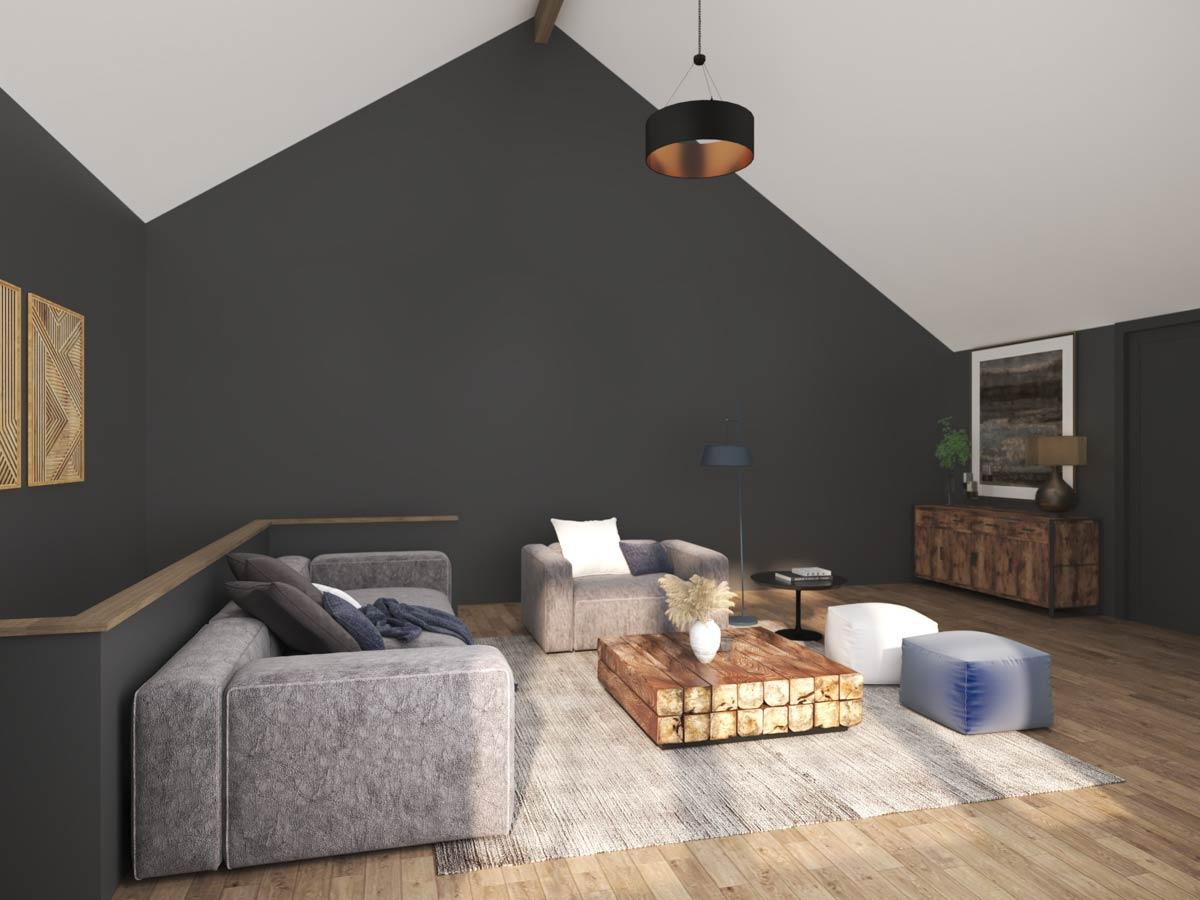

  • Ascend to the second floor where a dramatic 472 sq ft vaulted loft awaits, offering a flexible elevated space for a media room, creative studio, or a quiet retreat, all beneath a lofty 15-foot ceiling.

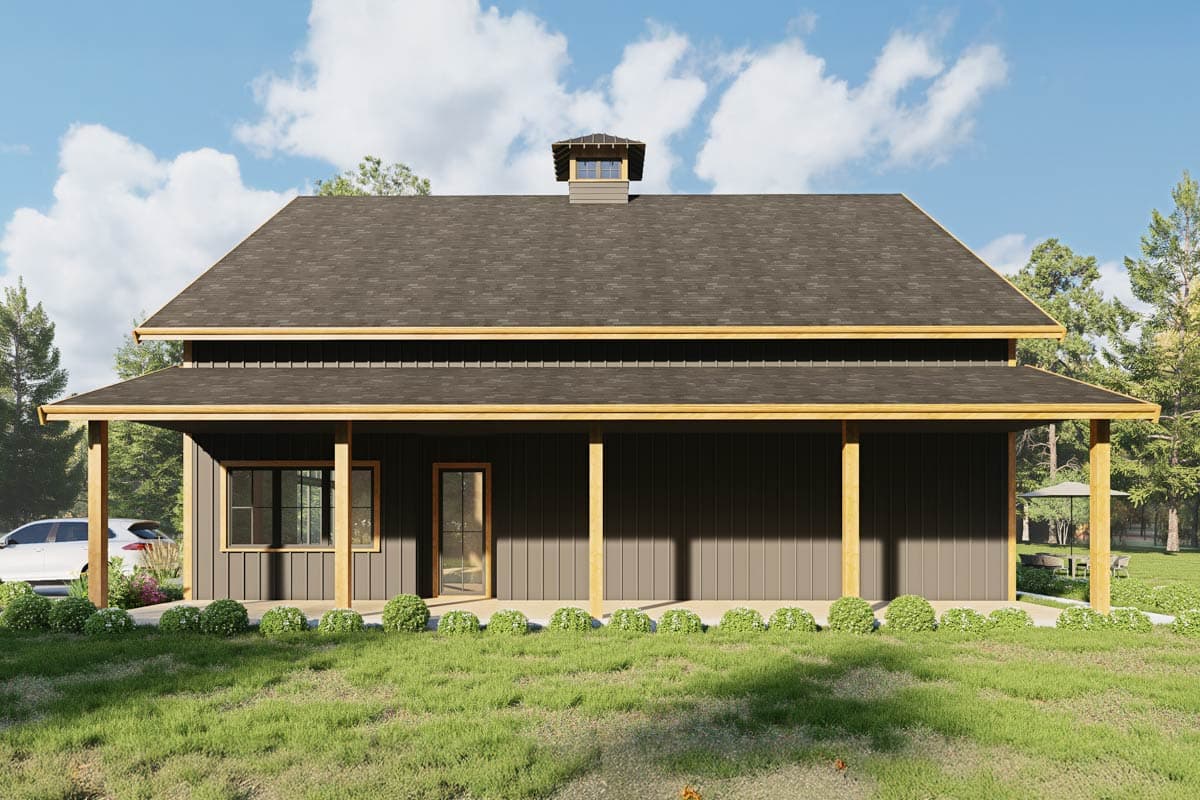

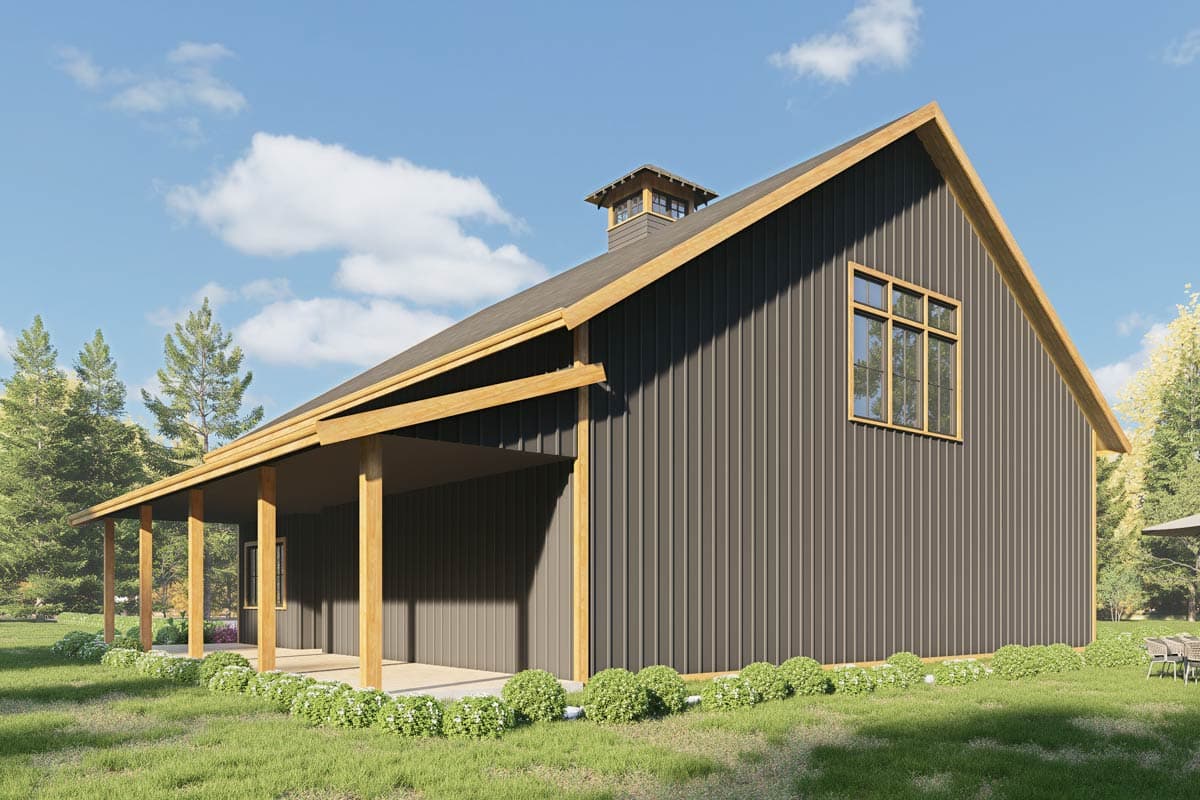

  • A substantial 514 sq ft covered porch extends along the side of the home, creating an inviting outdoor living area ideal for morning coffee or evening relaxation, seamlessly connecting the interior to the natural surroundings.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,778 sq. ft.

1st Floor

2,306 sq. ft.

2nd Floor

427 sq. ft.

Loft

472 sq. ft.

Covered Patio

514 sq. ft.

Attic

427 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

50' 0"

Max Ridge Height

40' 0"

Ceiling Heights

First Floor

12'

Second Floor

15'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Special Features

Flex Room

Game/Rec Room

Loft

Master Suite - 1st Floor

Media Room

Sport Court

Square Footage Breakdown

Total Heated Area

2,778 sq. ft.

1st Floor

2,306 sq. ft.

2nd Floor

427 sq. ft.

Loft

472 sq. ft.

Covered Patio

514 sq. ft.

Attic

427 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

50' 0"

Max Ridge Height

40' 0"

Ceiling Heights

First Floor

12'

Second Floor

15'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Barndominium

Special Features

Flex Room

Game/Rec Room

Loft

Master Suite - 1st Floor

Media Room

Sport Court
