Plan 623529DJ

Modern Barndominium with Two Story Great Room and Wrap Around Porch

Heated S.F.
2,076
Beds
2
Baths
2.5
Stories
2
Tour

Floor Plan

Plan 623529DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623529DJ

M-F 9am-5pm EST |

1-203-761-8500

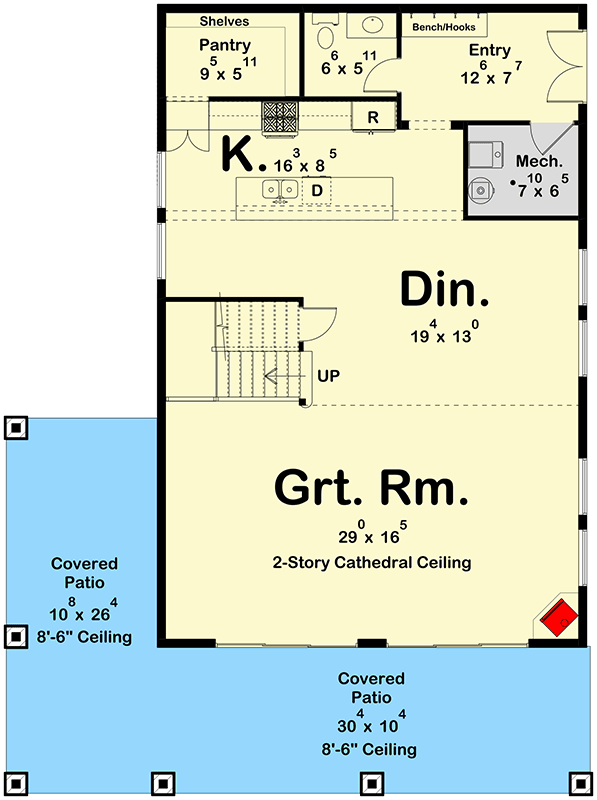

Main Level

Plan 623529DJ: Modern Barndominium with Two Story Great Room and Wrap Around Porch - Floor Plan - Main Level - Barndominium

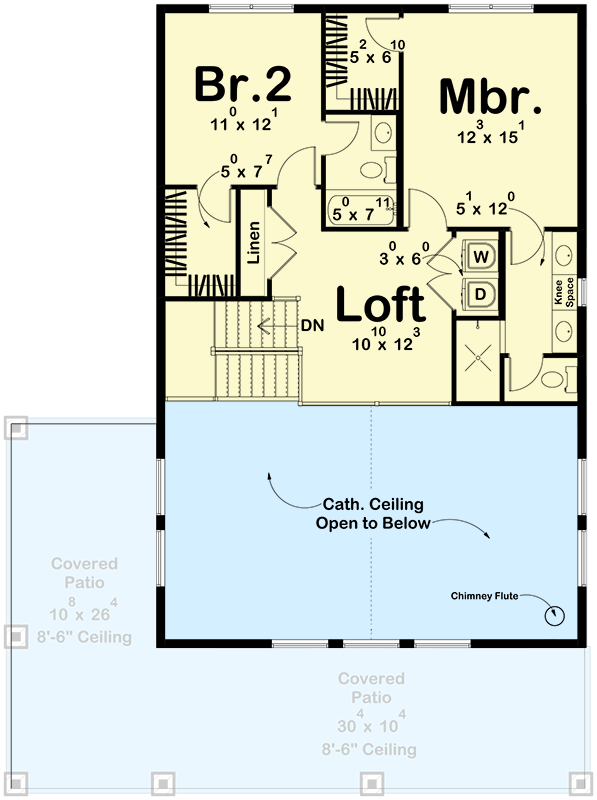

2nd Floor

Plan 623529DJ: Modern Barndominium with Two Story Great Room and Wrap Around Porch - Floor Plan - 2nd Floor - Barndominium

Plan Details

  • Discover 2,076 sq. ft. of living space in this modern barndominium featuring 2 bedrooms, 2.5 baths, and a striking wrap around porch, perfect for appreciating the outdoors.

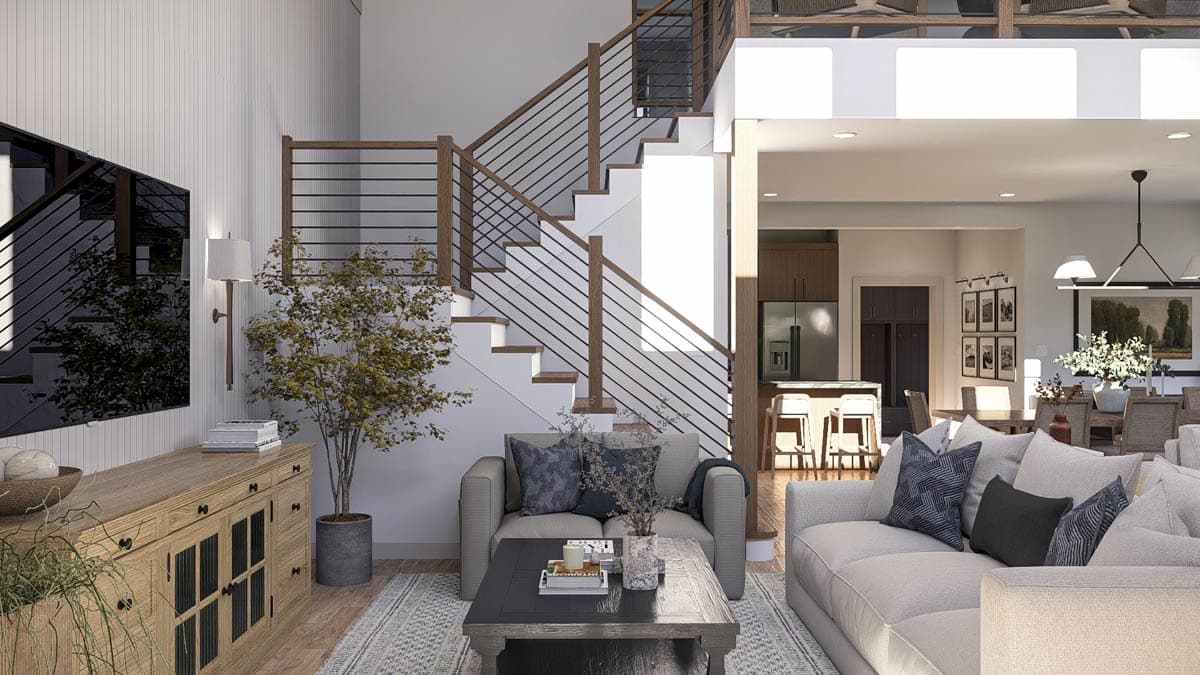

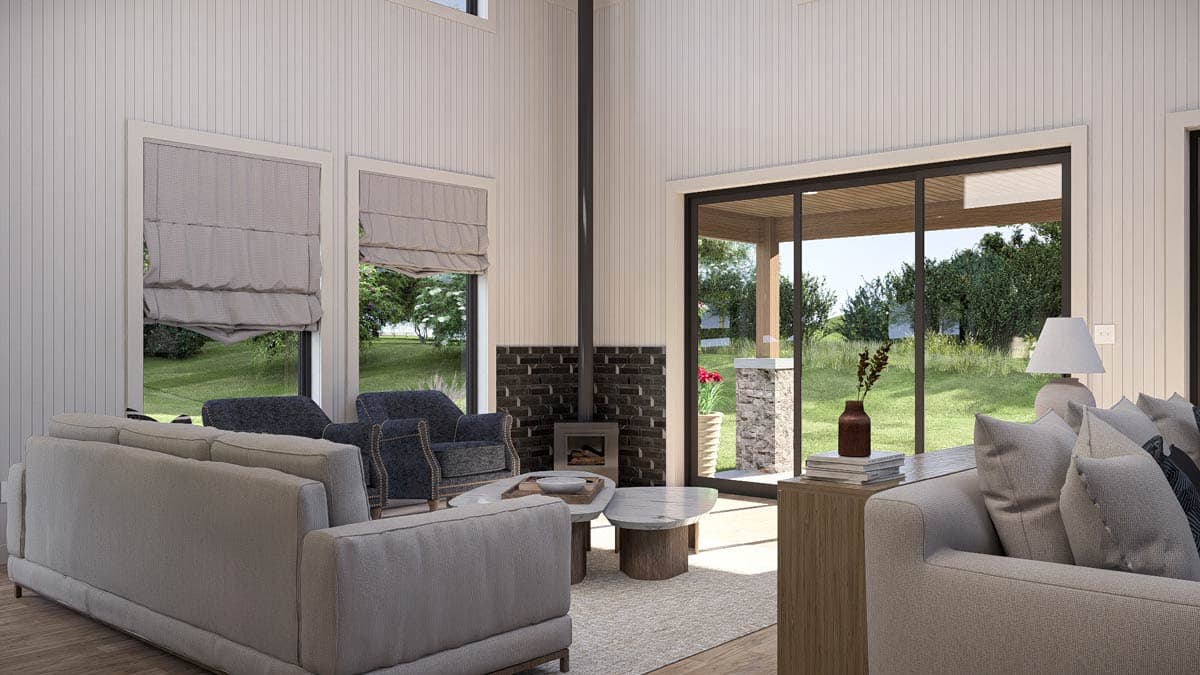

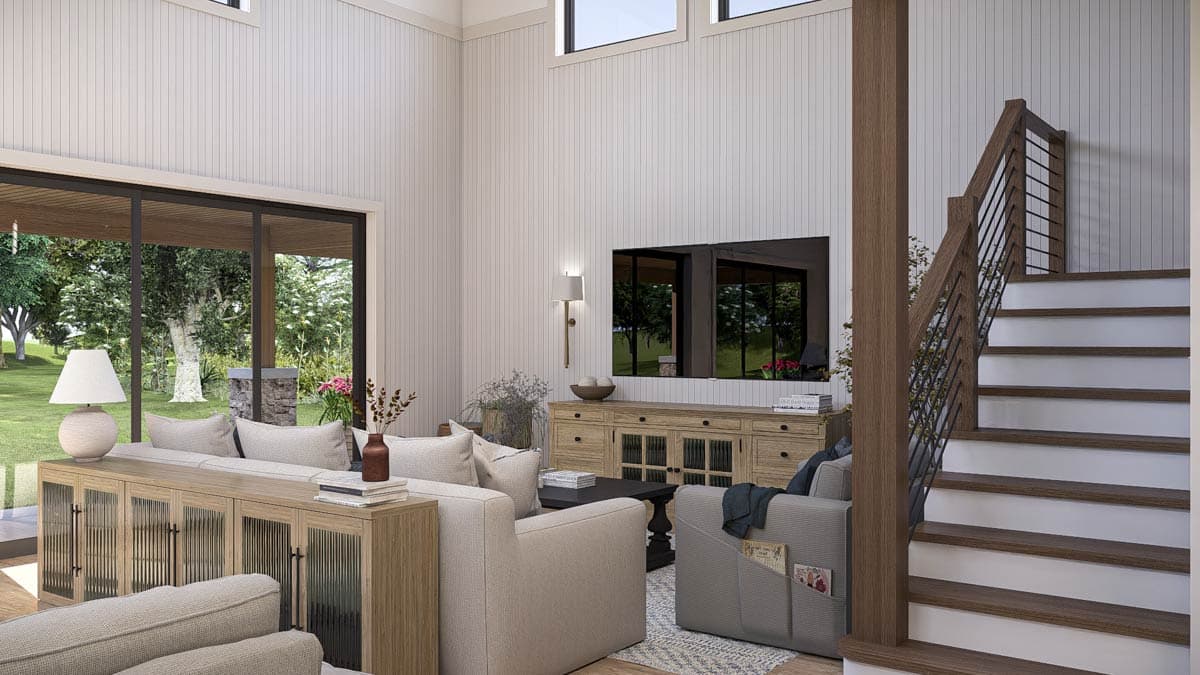

  • Enter into a bright, open-concept first floor highlighted by a two-story great room with cathedral ceilings, offering a seamless flow to the dining room and kitchen.

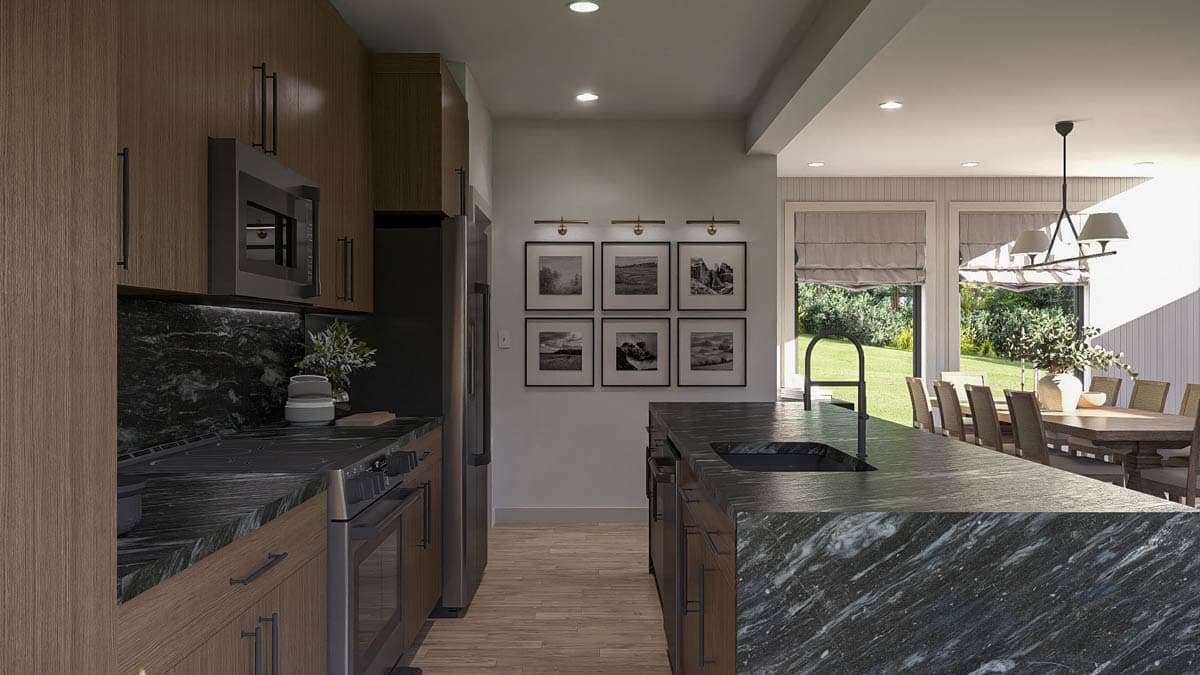

  • The kitchen includes a butler walk-in pantry, ideal for storage and functionality, and opens into the dining area for easy meal serving.
  • Upstairs, find the master suite boasting an ensuite bath and laundry access, conveniently located near the secondary bedroom, both promoting efficient living.

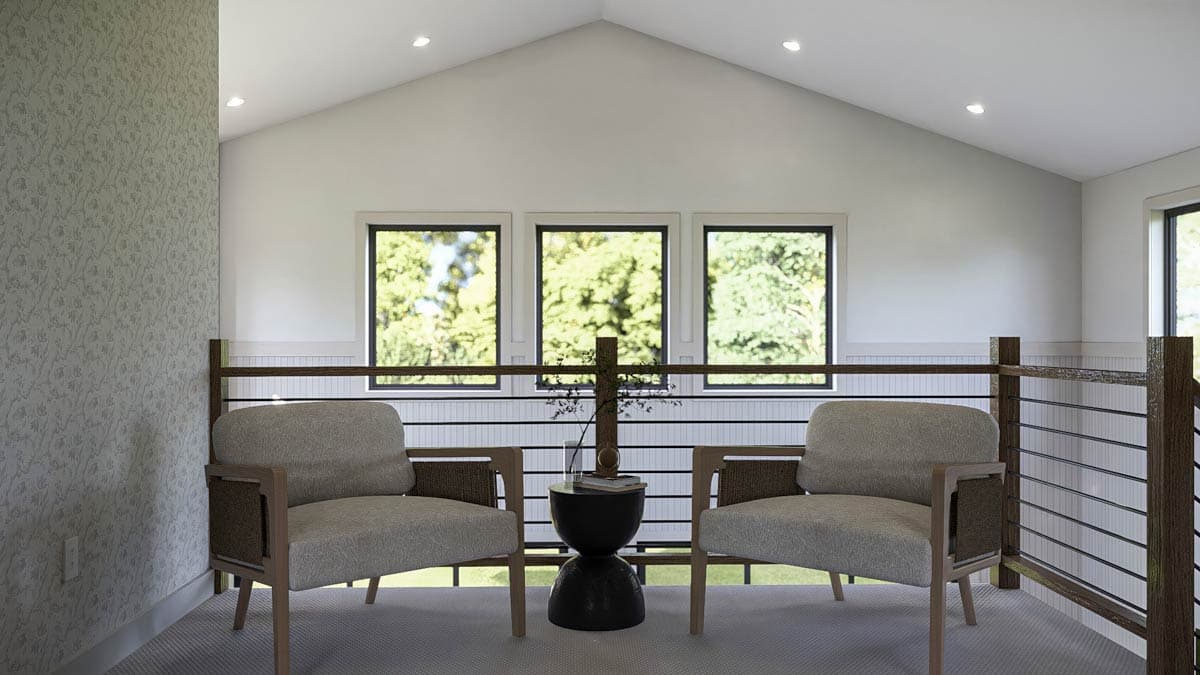

  • Unique spaces include an upstairs loft open to the great room below, providing a cozy reading nook or office.

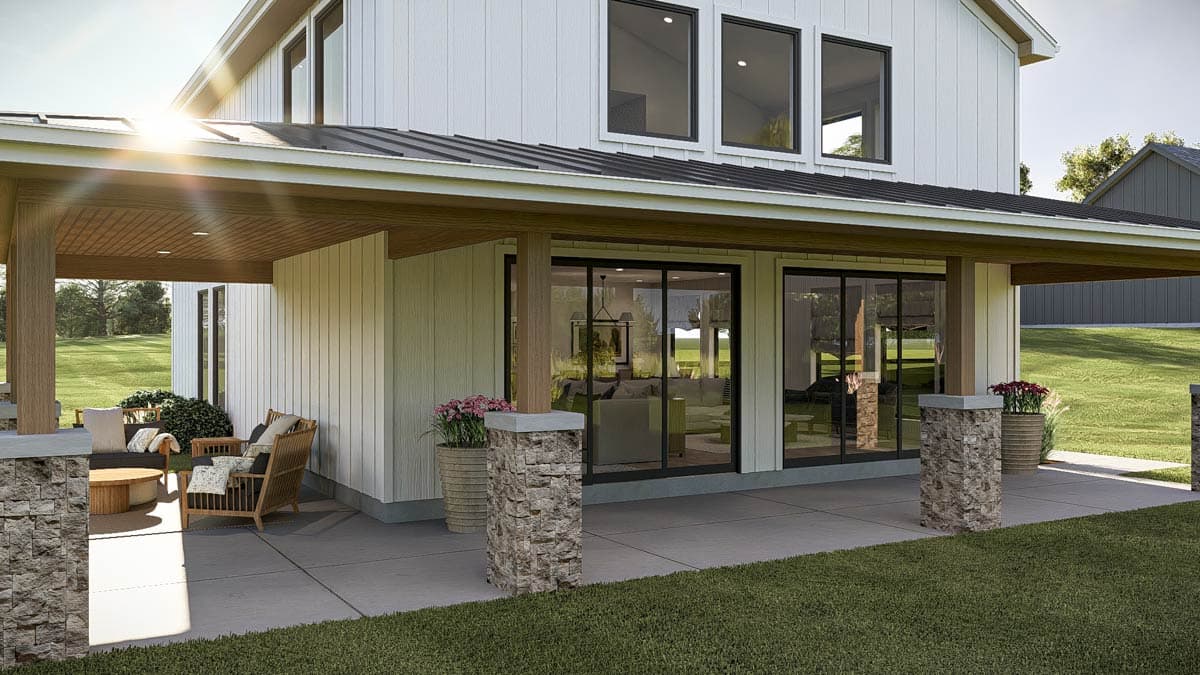

  • Outdoor living is enhanced by expansive covered patios, ideal for relaxing or entertaining amidst serene surroundings.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,076 sq. ft.

1st Floor

1,300 sq. ft.

2nd Floor

776 sq. ft.

Porch, Combined

603 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

41' 0"

Depth

55' 4"

Max Ridge Height

27' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Barndominium

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Two Story Great Room

Walk-in Pantry

Wraparound Porch
