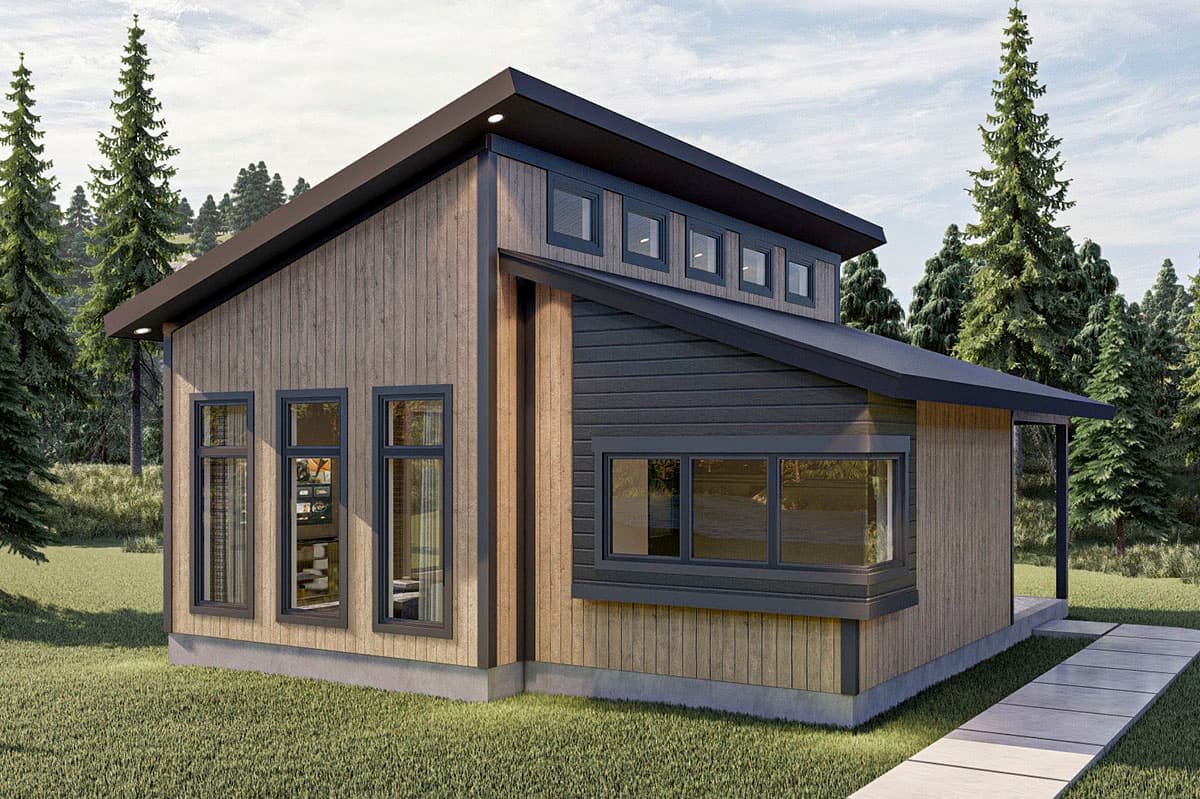

Plan 62708DJ Modern Cabin with Covered Patio

688 1 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Cabin with Covered Patio

Plan 62708DJ

  • 688

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

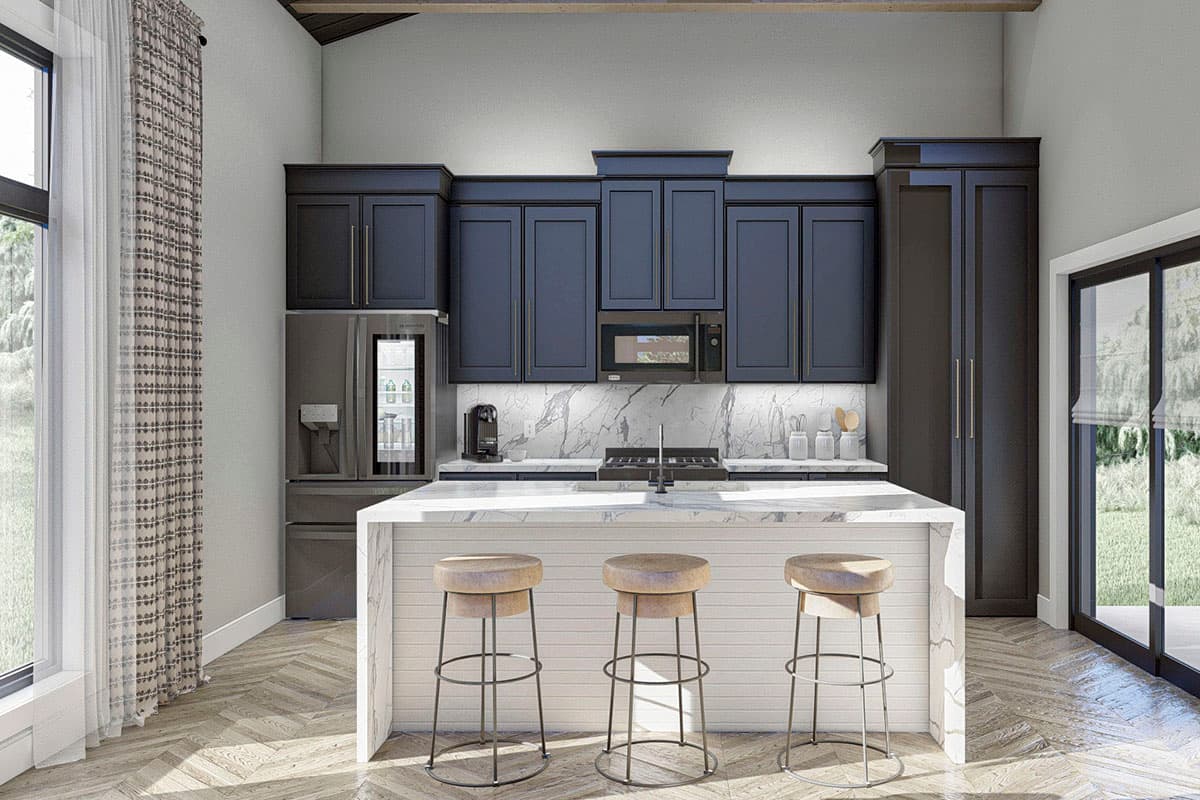

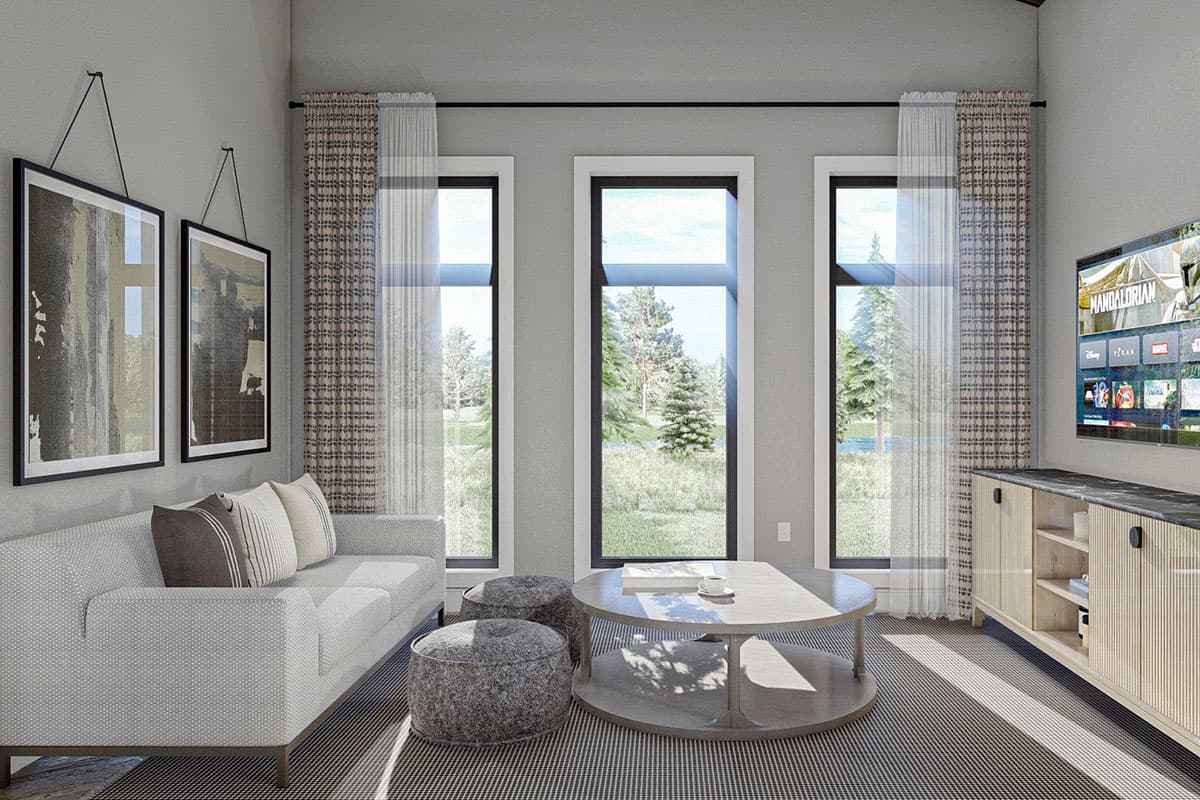

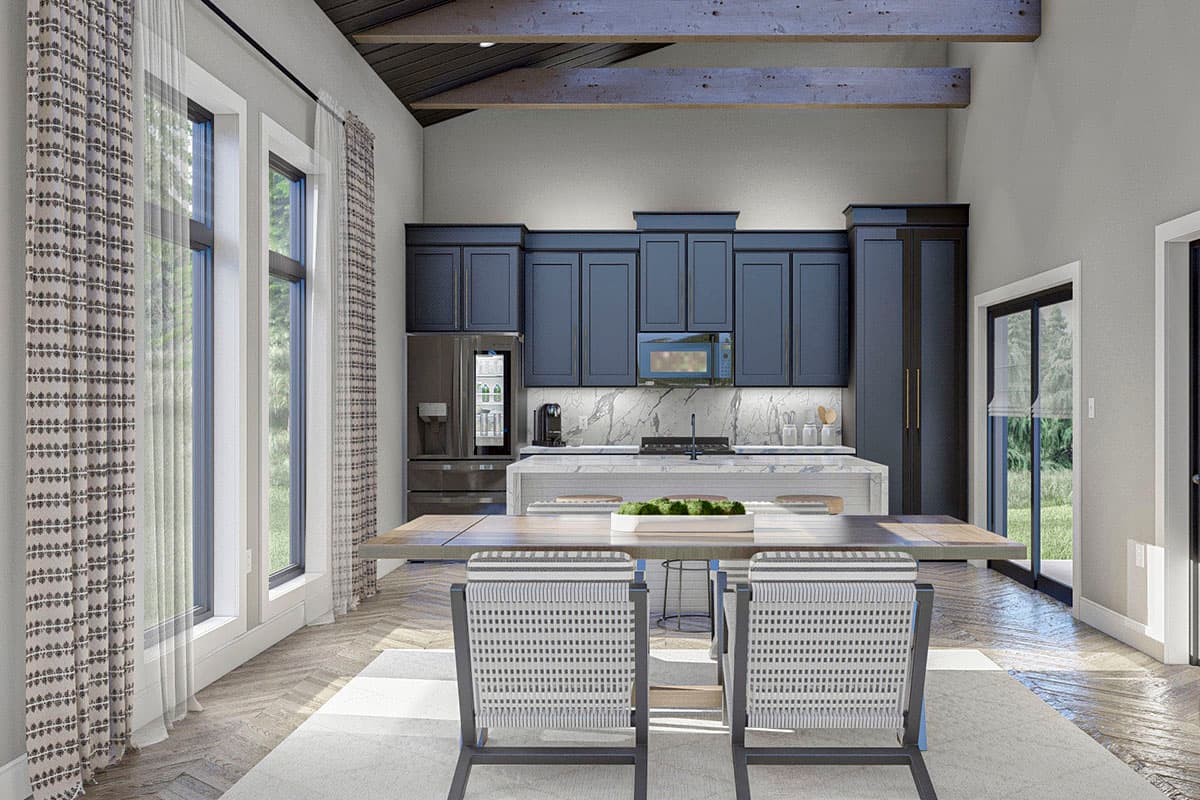

  • This modern cabin plan features a large family room and a full sized kitchen.

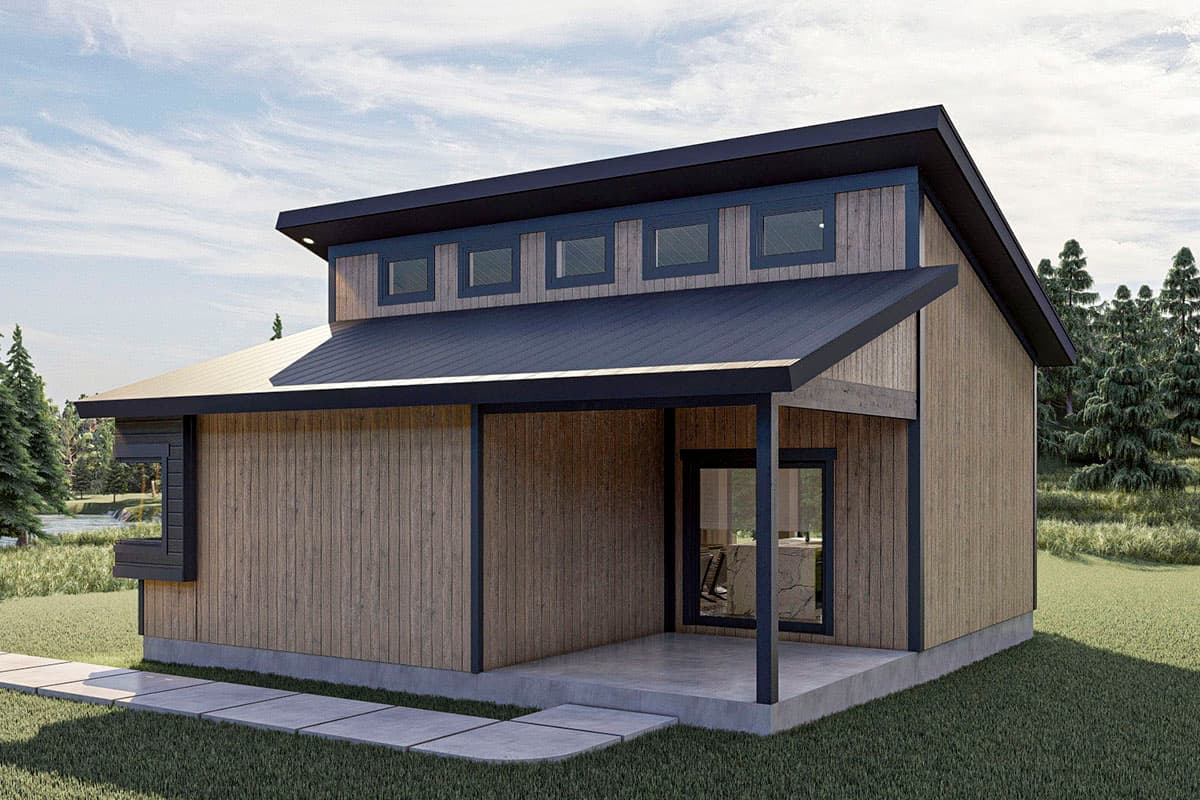

  • The covered patio in back is great for outdoor meals and for enjoying the views.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

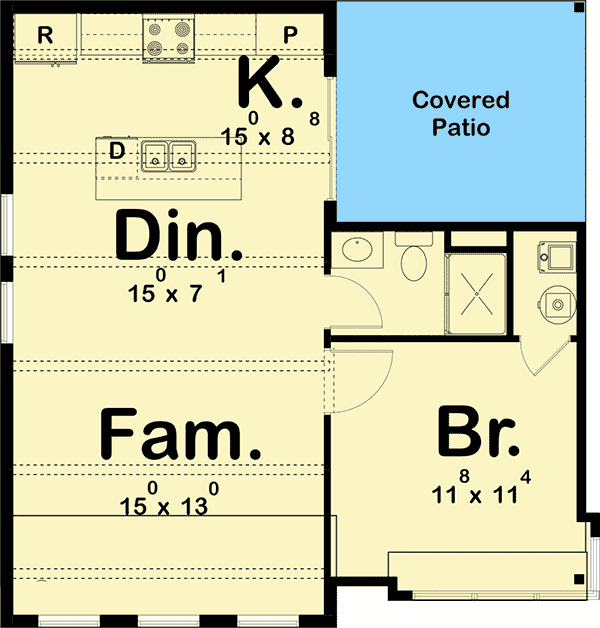

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Cabin with Covered Patio - 62708DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 688 sq. ft.
  • 1st Floor: 688 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 29' 0"
  • Depth: 30' 0"

Architectural Style

Special features

Plan Collections

Modern Cabin with Covered Patio

  • 688

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single-Build $1,300
  • PDF - Unlimited Build $1,300
  • CAD Unlimited + PDF $1,800
  • View all purchase option online

About This Plan

  • This modern cabin plan features a large family room and a full sized kitchen.
  • The covered patio in back is great for outdoor meals and for enjoying the views.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 688 sq. ft.
  • 1st Floor: 688 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 29' 0"
  • Depth: 30' 0"
Plan 62708DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62708DJ
|
